| Author |
Message |
lafireeasymedic
Samba Member
Joined: December 14, 2008
Posts: 12
Location: Los Angeles, Ca
|
 Posted: Thu Dec 24, 2015 2:17 pm Post subject: 1958 rear tail light seal |
 |
|
| I need the tail light seals that fit between the body and the chrome tail light. I believe the part number is 141-945-177 or 141-945-177A. I haven't been able to locate either new or used. Help! |
|
| Back to top |
|
 |
sancho58
Samba Member
Joined: November 18, 2013
Posts: 92
Location: SAN JOSE
|
| Posted: Thu Dec 24, 2015 2:38 pm Post subject: Re: 1958 rear tail light seal |
|
|
| I ordered mine from KGPR in Ventura about 4 months ago |
|
| Back to top |
|
|
lafireeasymedic
Samba Member
Joined: December 14, 2008
Posts: 12
Location: Los Angeles, Ca
|
| Posted: Sat Dec 26, 2015 11:11 pm Post subject: Re: 1958 rear tail light seal |
|
|
| thanks, I found some! |
|
| Back to top |
|
|
lafireeasymedic
Samba Member
Joined: December 14, 2008
Posts: 12
Location: Los Angeles, Ca
|
| Posted: Fri Jan 01, 2016 3:55 pm Post subject: Re: 1958 rear tail light seal |
|
|
| I still need help! What does the 2 additional screw holes in the body ajacent to the tail light lens attach to? Pictures or illustrations would be great. I have searched and could not find any info. Thanks again. |
|
| Back to top |
|
|
VeloMikey
Samba Member
Joined: March 19, 2012
Posts: 765
Location: So Cal
|
|
| Back to top |
|
|
52 deelux
Samba Member
Joined: December 28, 2005
Posts: 73
Location: UK
|
| Posted: Sat Jan 02, 2016 3:44 am Post subject: Re: 1958 rear tail light seal |
|
|

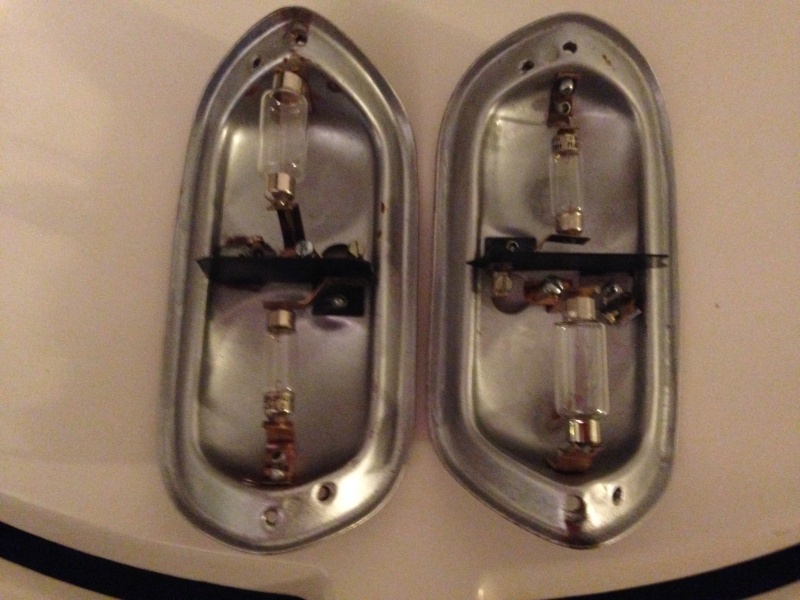

The two holes you refer to are for the up to mid '57 bulb housing. These use festoon type bulbs . If you have later bulb housing with bayonet bulbs these holes become redundant.
_________________
52 BD Deluxe
57 Ghia golde
54 Ragtop |
|
| Back to top |
|
|
52 deelux
Samba Member
Joined: December 28, 2005
Posts: 73
Location: UK
|
| Posted: Sat Jan 02, 2016 3:50 am Post subject: Re: 1958 rear tail light seal |
|
|
_________________
52 BD Deluxe
57 Ghia golde
54 Ragtop |
|
| Back to top |
|
|
lafireeasymedic
Samba Member
Joined: December 14, 2008
Posts: 12
Location: Los Angeles, Ca
|
| Posted: Sat Jan 02, 2016 6:06 pm Post subject: Re: 1958 rear tail light seal |
|
|
| Thanks guys, for your help! The bulb holders that I have are the bayonette style. Now after 30 yrs of disassembly, I hope I can find the proper tail light lens screws. Anyone have the part numbers? My car is a 1958 coupe. |
|
| Back to top |
|
|
sputnick60
Samba Moderator
Joined: July 22, 2007
Posts: 4101
Location: In Molinya Orbit
|
| Posted: Sat Jan 02, 2016 6:28 pm Post subject: Re: 1958 rear tail light seal |
|
|
| lafireeasymedic wrote: |
| Anyone have the part numbers? My car is a 1958 coupe. |
looking at my parts bookâ¦.
reflector is held with 141 945 181 screw, cheese head - bulb holder up to chassis No. 1 708 049 qty=4
lens cover is held in with 141 945 185 Screw, countersunk raised head -Rim up to chassis 1 708 049 Qty = 4
My parts book only shows the Lowlight tail-light with the festoon bulbs.
Nicholas
_________________
'66 Karmann Ghia Cabriolet...
'65 Porsche 356C Coupe...
2005 Mecedes Benz C180 Kompressor Estate
Stop dead photo links! Post your photos to The Samba Gallery! |
|
| Back to top |
|
|
52 deelux
Samba Member
Joined: December 28, 2005
Posts: 73
Location: UK
|
| Posted: Sun Jan 03, 2016 1:02 pm Post subject: Re: 1958 rear tail light seal |
|
|
M4x20mm should be fine.
Slotted raised countersunk.
Easy to get in stainless steel, although the originals are plated brass.
_________________
52 BD Deluxe
57 Ghia golde
54 Ragtop |
|
| Back to top |
|
|
|
