 Posted: Yesterday 11:12 am Post subject: Brazilian Split 4 stud wheels |
 |
|

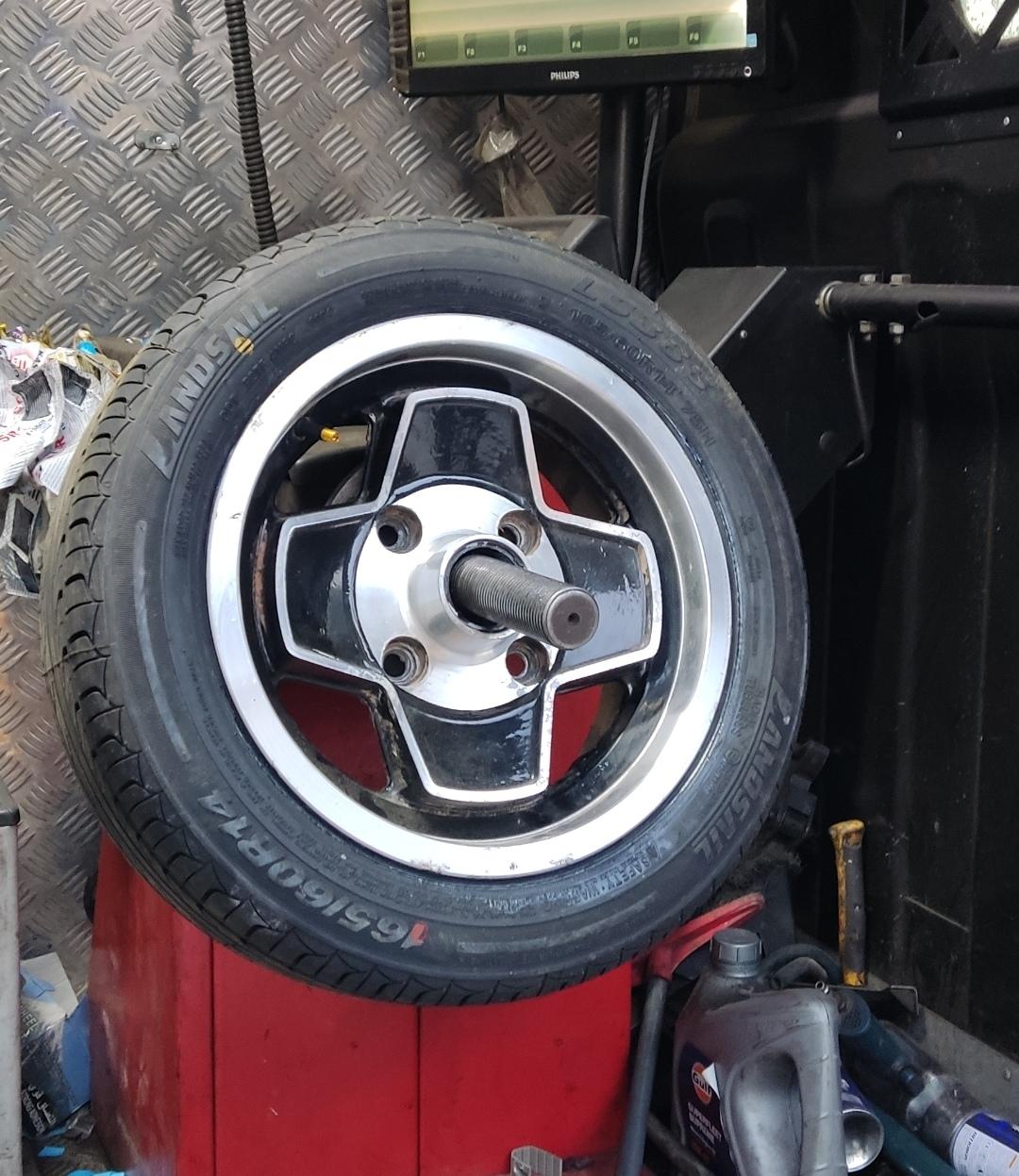

I've bought a Brazilian split window bus. It's been lowered and is riding on 14 inch 4 stud wheels. My understanding is that the buses ran 5 stud wheels. Any ideas what the set up is that's allowed a 4 stud wheel to be used. It's discs front drums on the back.
Last edited by Redfox2020 on Today 12:16 am; edited 1 time in total |
|
| Back to top |
|
 |
Clara
Samba Member
Joined: June 14, 2003
Posts: 12568
|
| Posted: Yesterday 11:43 am Post subject: Re: Brazilian Split 4 stud wheels |
|
|
Yes, split buses came new with wide five bolt pattern, so yours has some mods.
post pics of your suspension, what the wheels were bolted to.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Redfox2020
Samba Member
Joined: Yesterday
Posts: 3
Location: UAE
|
| Posted: Yesterday 1:14 pm Post subject: Re: Brazilian Split 4 stud wheels |
|
|

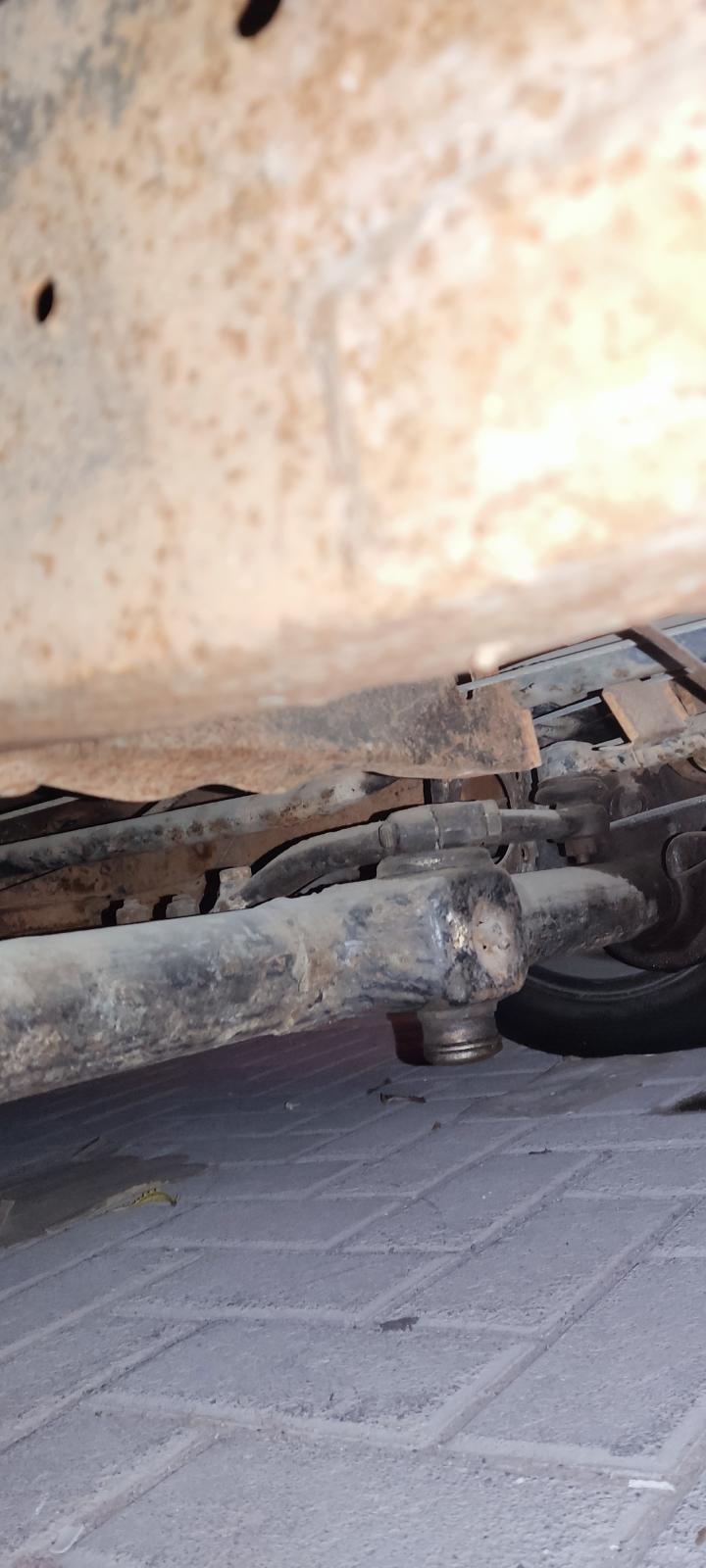

[img] this is the beam.
[/img] |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12568
|
| Posted: Yesterday 3:36 pm Post subject: Re: Brazilian Split 4 stud wheels |
|
|
| Redfox2020 wrote: |
[img] this is the beam.
[/img] |

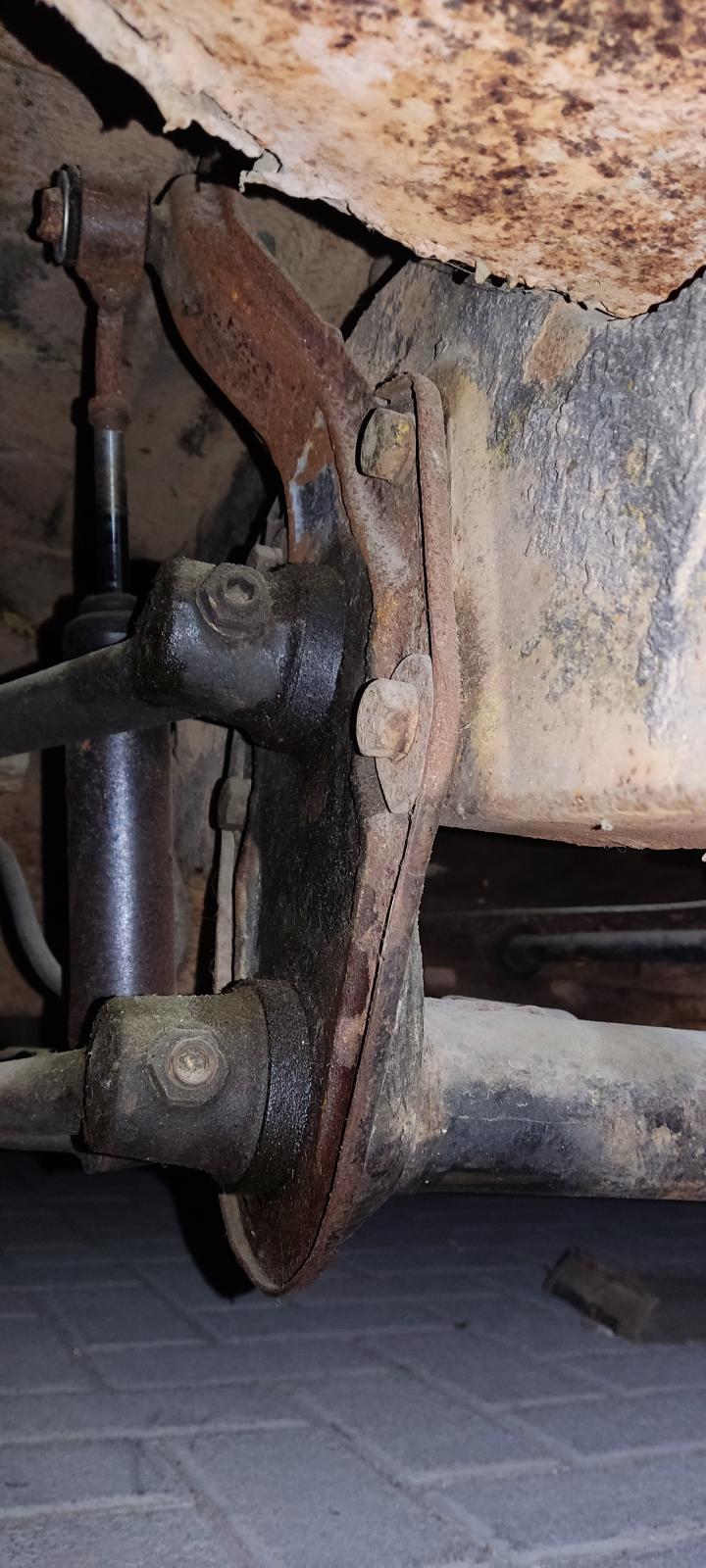

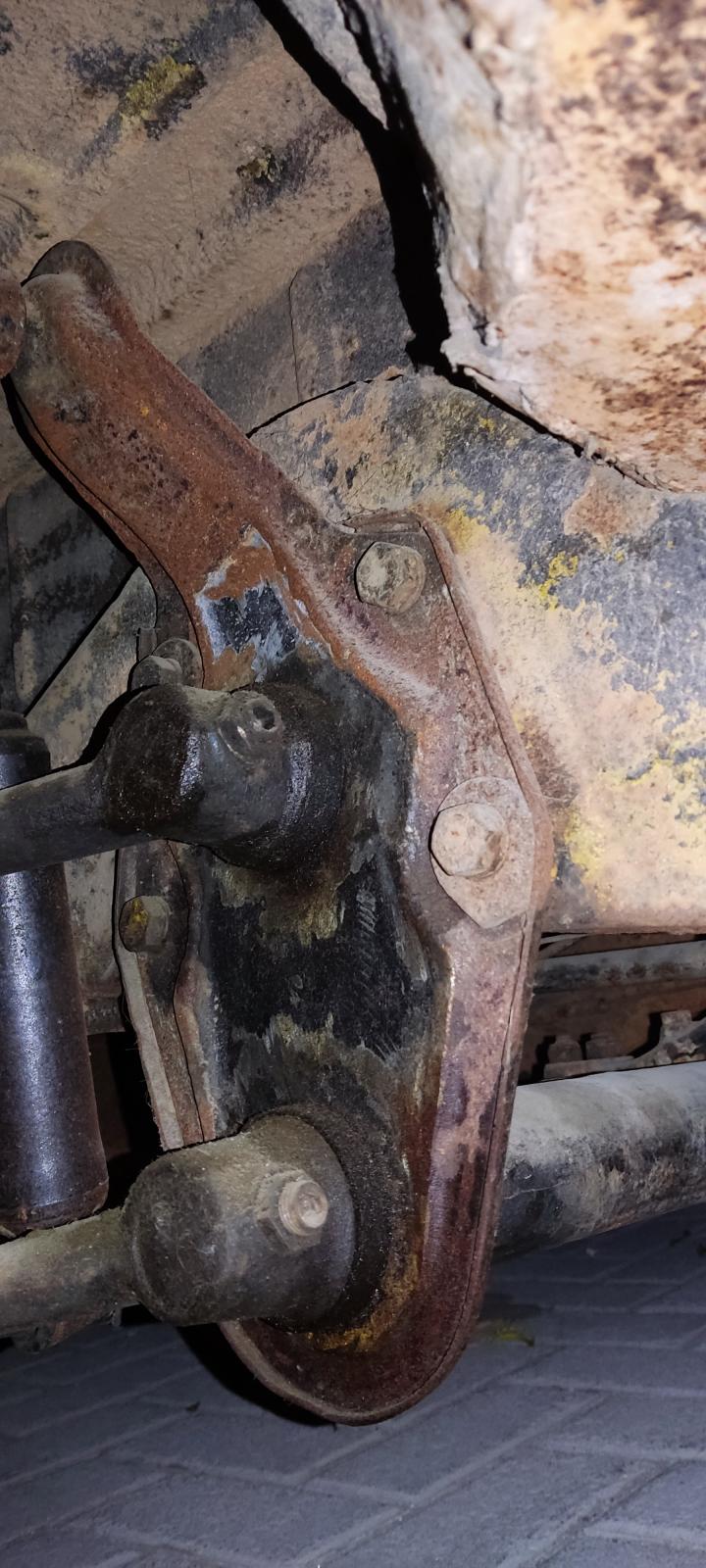

I see a king/link spindle, but not what the front wheels bolts to.
Does it have 4 lug wheels in back as well? Could be a beetle tranny in back.
From the angle of the trailing arms, could be a turned beam. But that doesn't mean how the wheels bolt on.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
panel
Samba Member
Joined: December 02, 2001
Posts: 1182
Location: Victoria B.C. Canada
|
| Posted: Yesterday 5:57 pm Post subject: Re: Brazilian Split 4 stud wheels |
|
|
Can you post a pic of the spindle with the brakes etc ? And the same for the rear....brake area where the wheel bolts to.
_________________
My '65-Subaru EJ20 Turbo conversion |
|
| Back to top |
|
|
Redfox2020
Samba Member
Joined: Yesterday
Posts: 3
Location: UAE
|
| Posted: Today 12:20 am Post subject: Re: Brazilian Split 4 stud wheels |
|
|
Hi, I'll try and get the wheels off tomorrow and some pics of the set up. It's 14 inch 4 stud wheels all round, adjustable spring plates and drums on the back. It's too low for the roads here, speed bumps everywhere.
_________________
71 Karman Ghia
73 Split Bus |
|
| Back to top |
|
|
Malokin Martin
Samba Member
Joined: August 19, 2007
Posts: 3259
Location: E-burg
|
| Posted: Today 12:42 pm Post subject: Re: Brazilian Split 4 stud wheels |
|
|
| panel wrote: |
| Can you post a pic of the spindle with the brakes etc ? And the same for the rear....brake area where the wheel bolts to. |
I have a feeling this is going to be good⦠|
|
