60âs Ghia Metal Restoration

WrennMetallWerks · Posted: Tue Feb 18, 2025 7:49 pm Post subject: Re: 60âs Ghia Metal Restoration

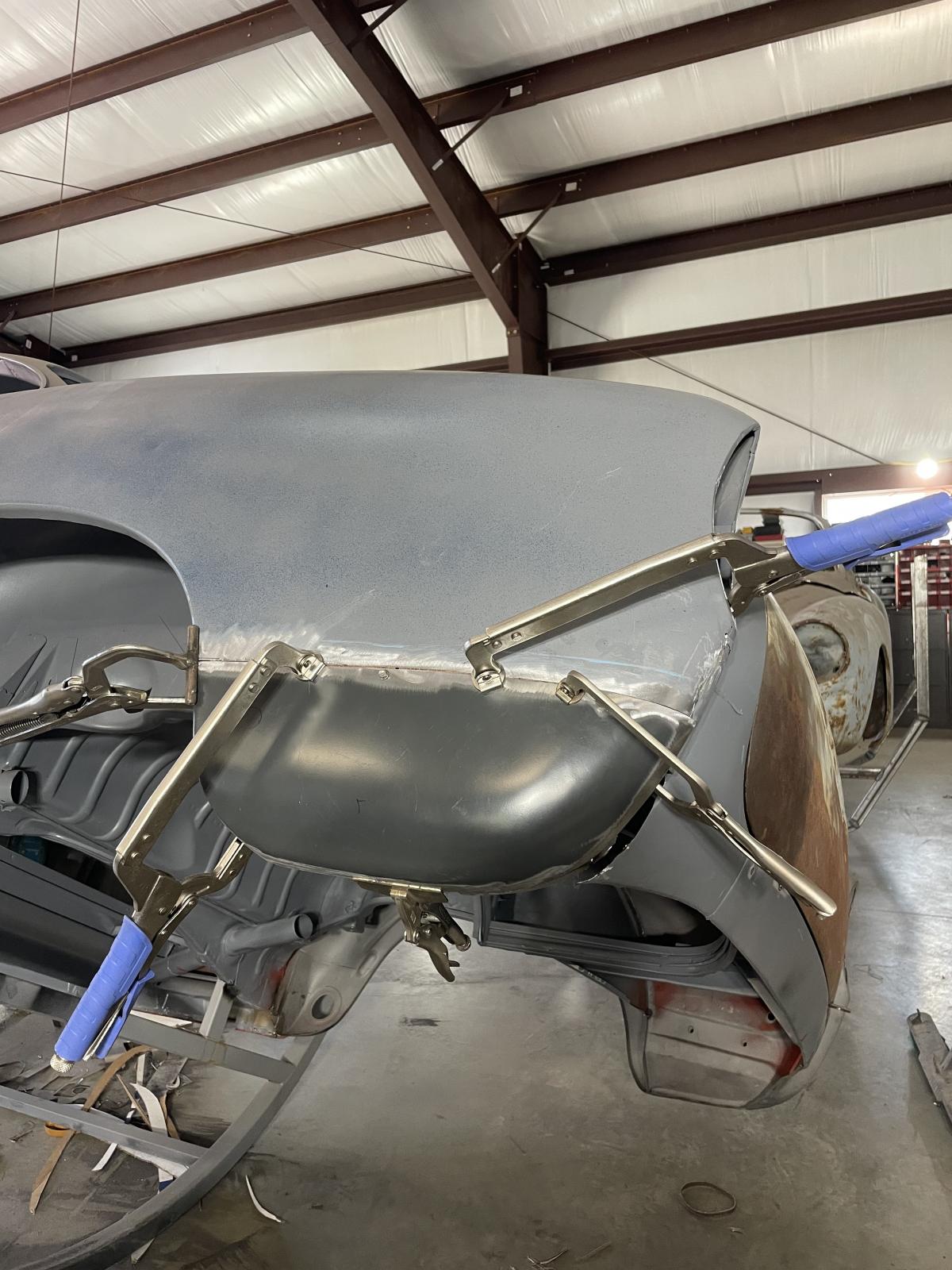

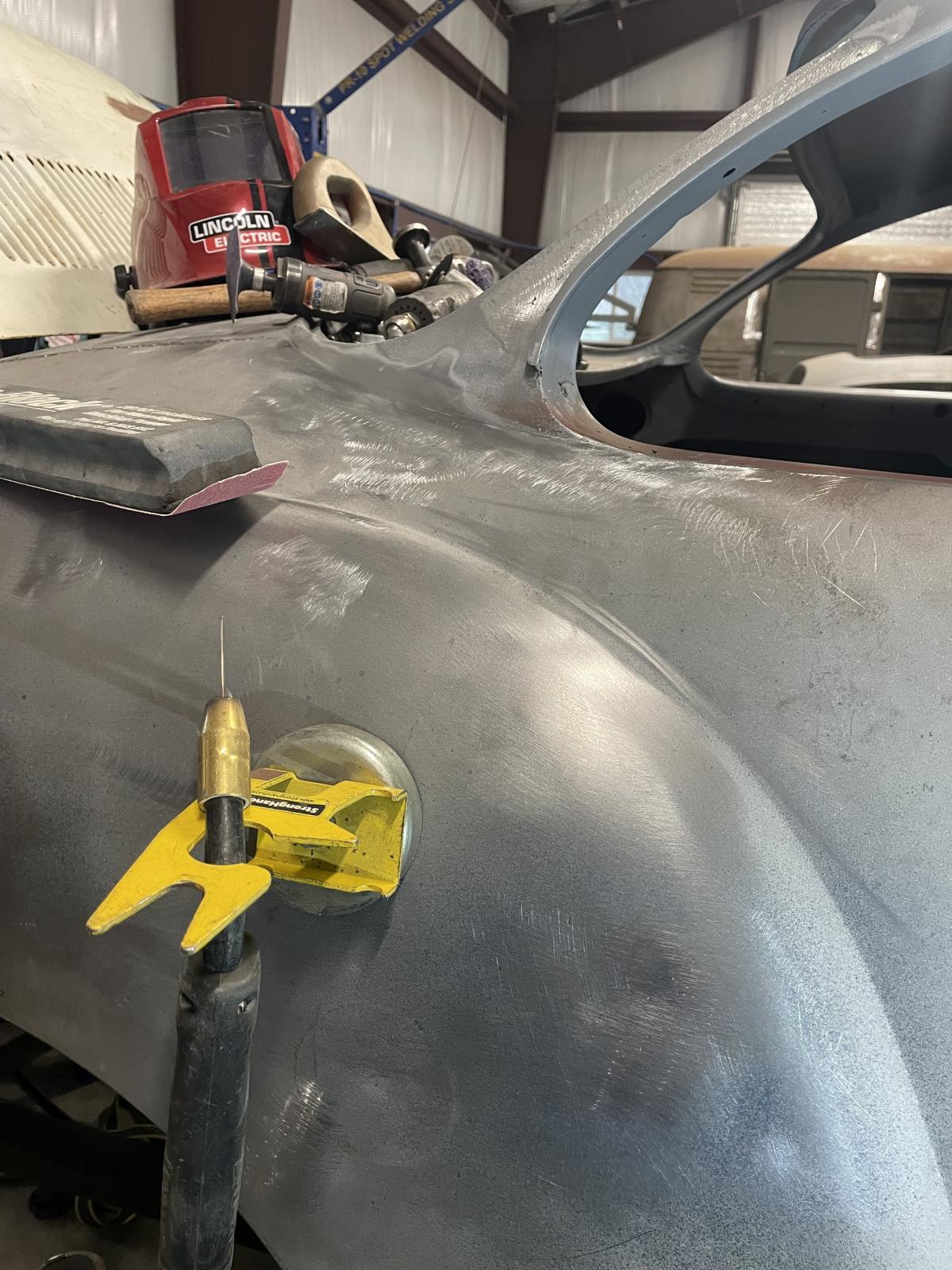

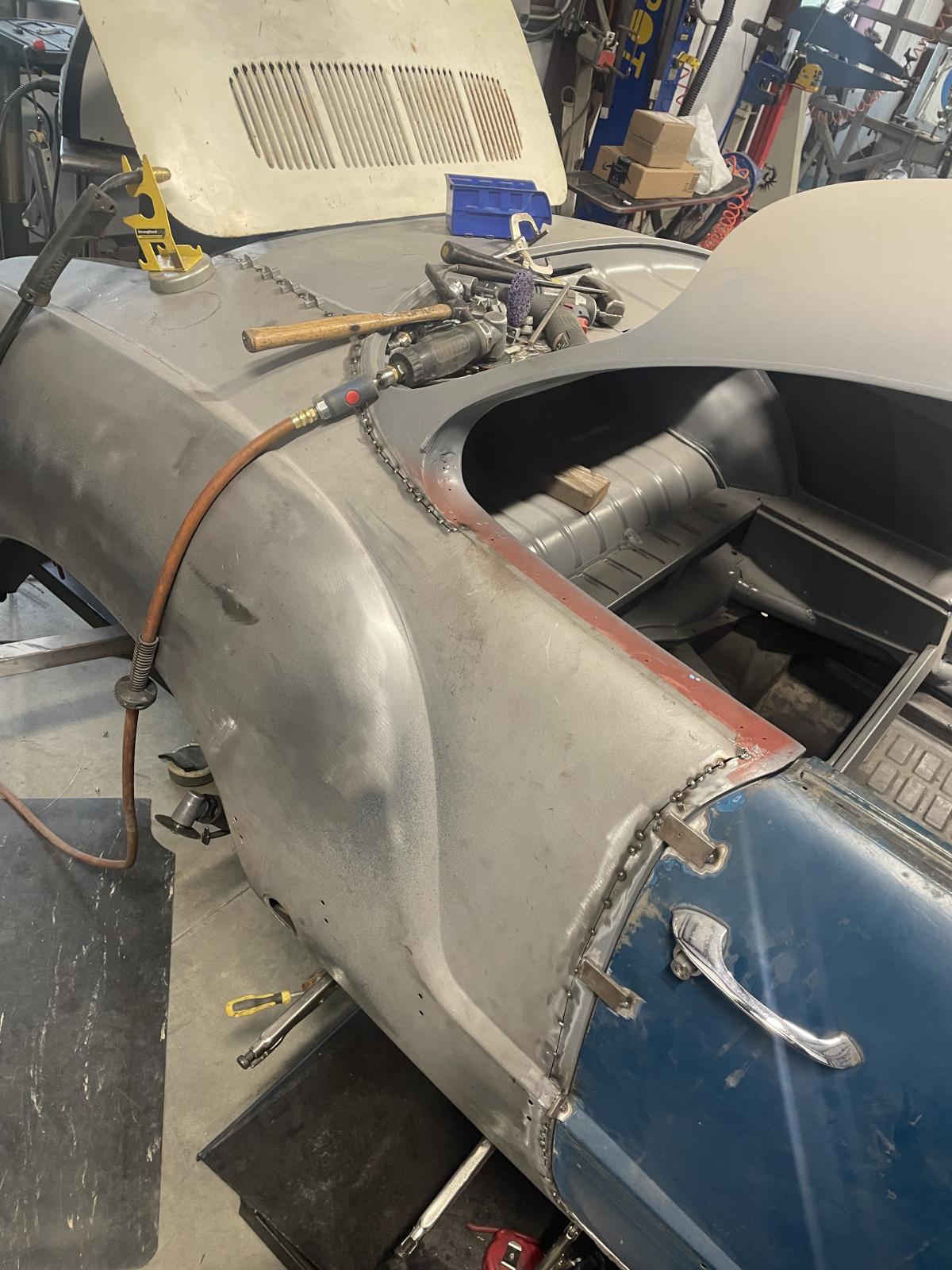

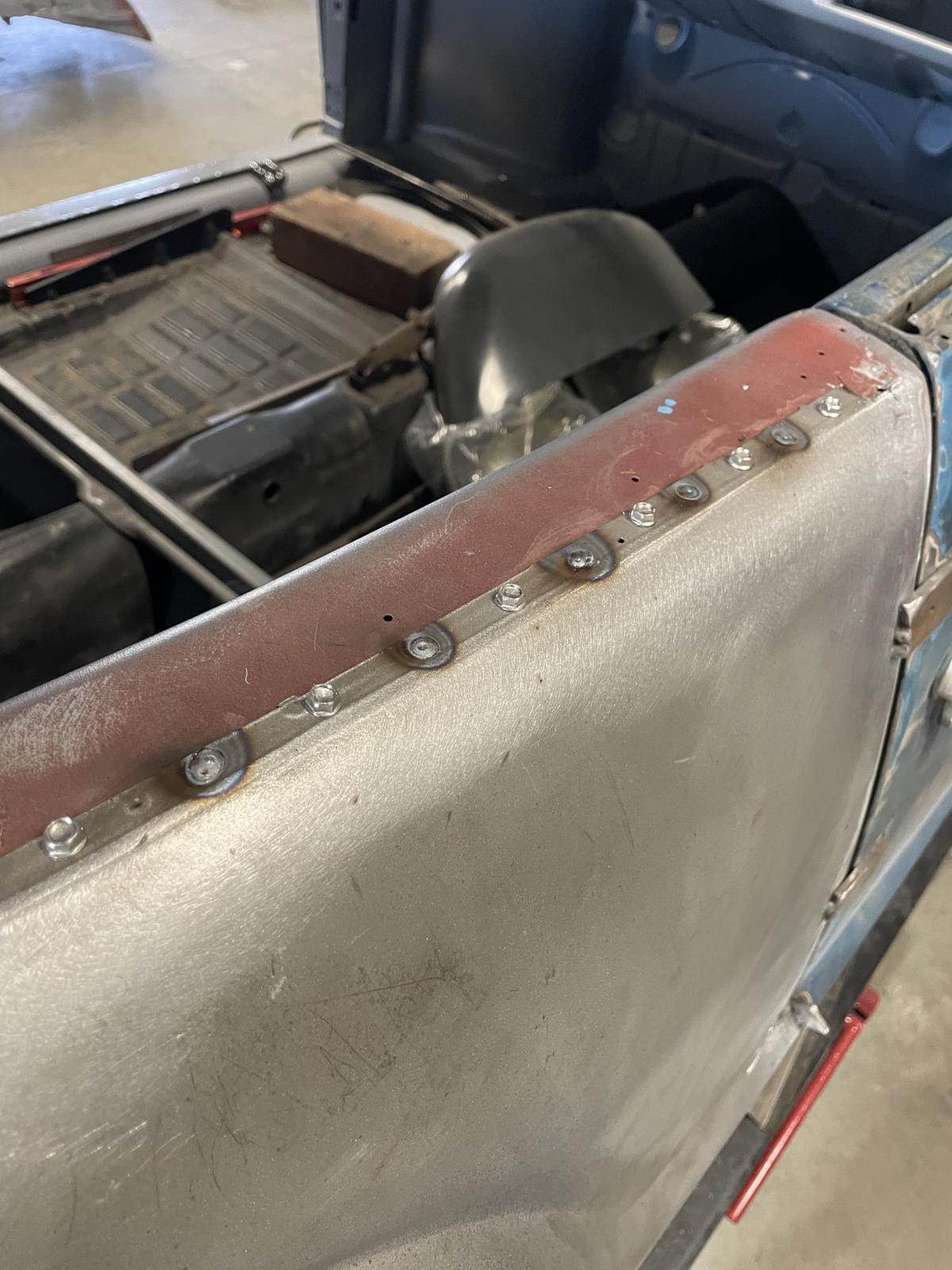

Wellâ¦. I guess I should not be surprised how challenging it would be to get some many contract points to play nice.

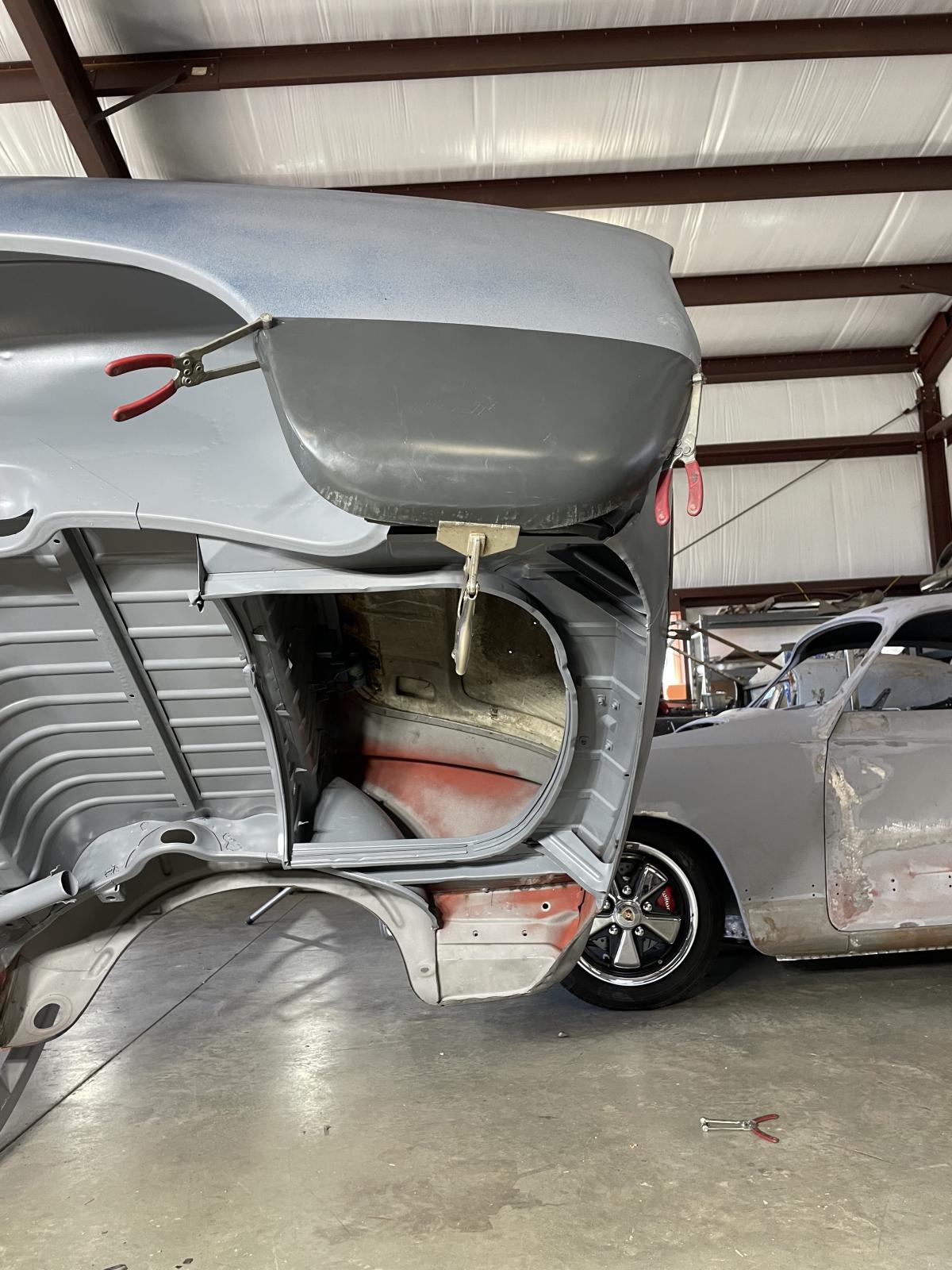

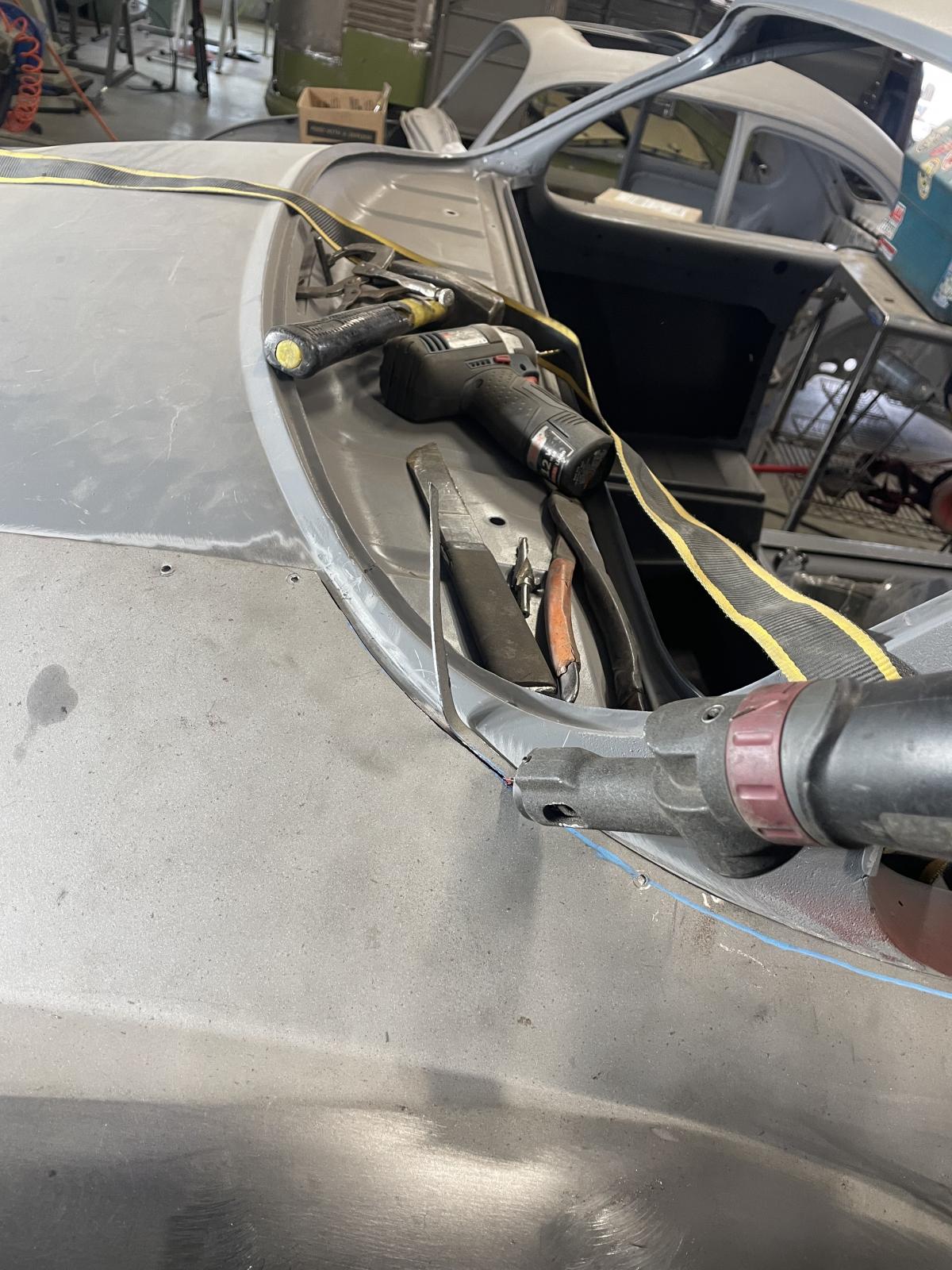

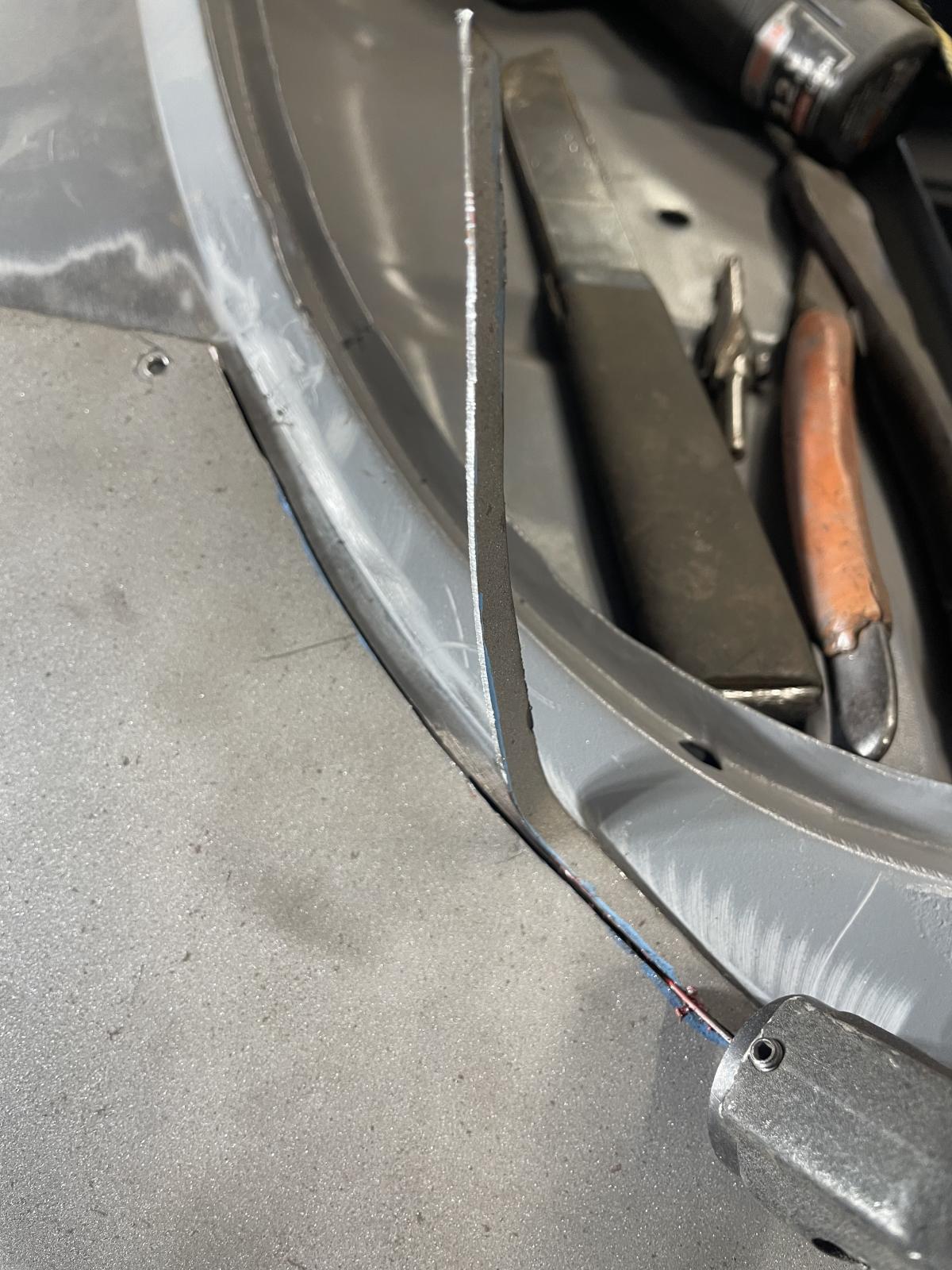

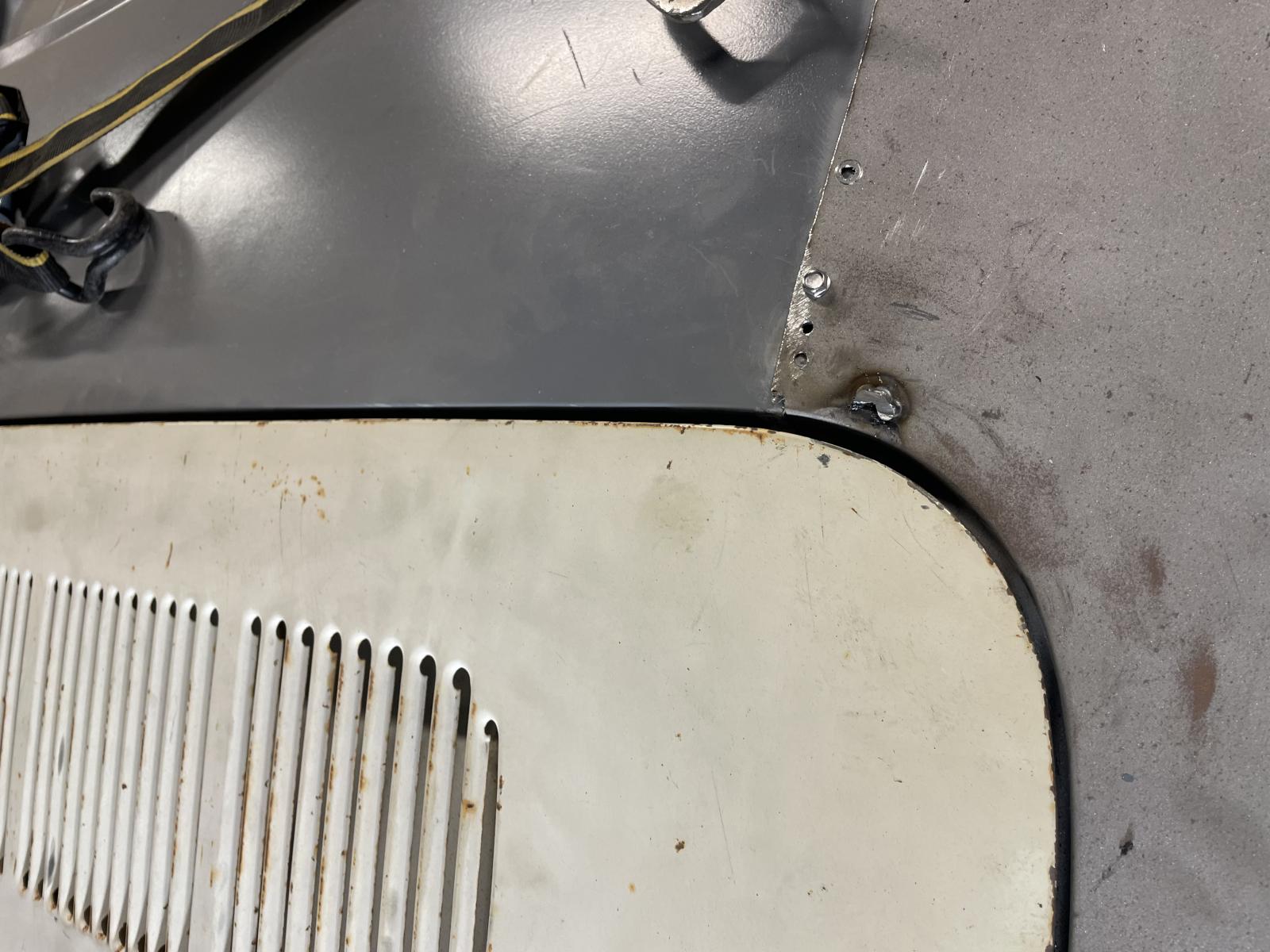

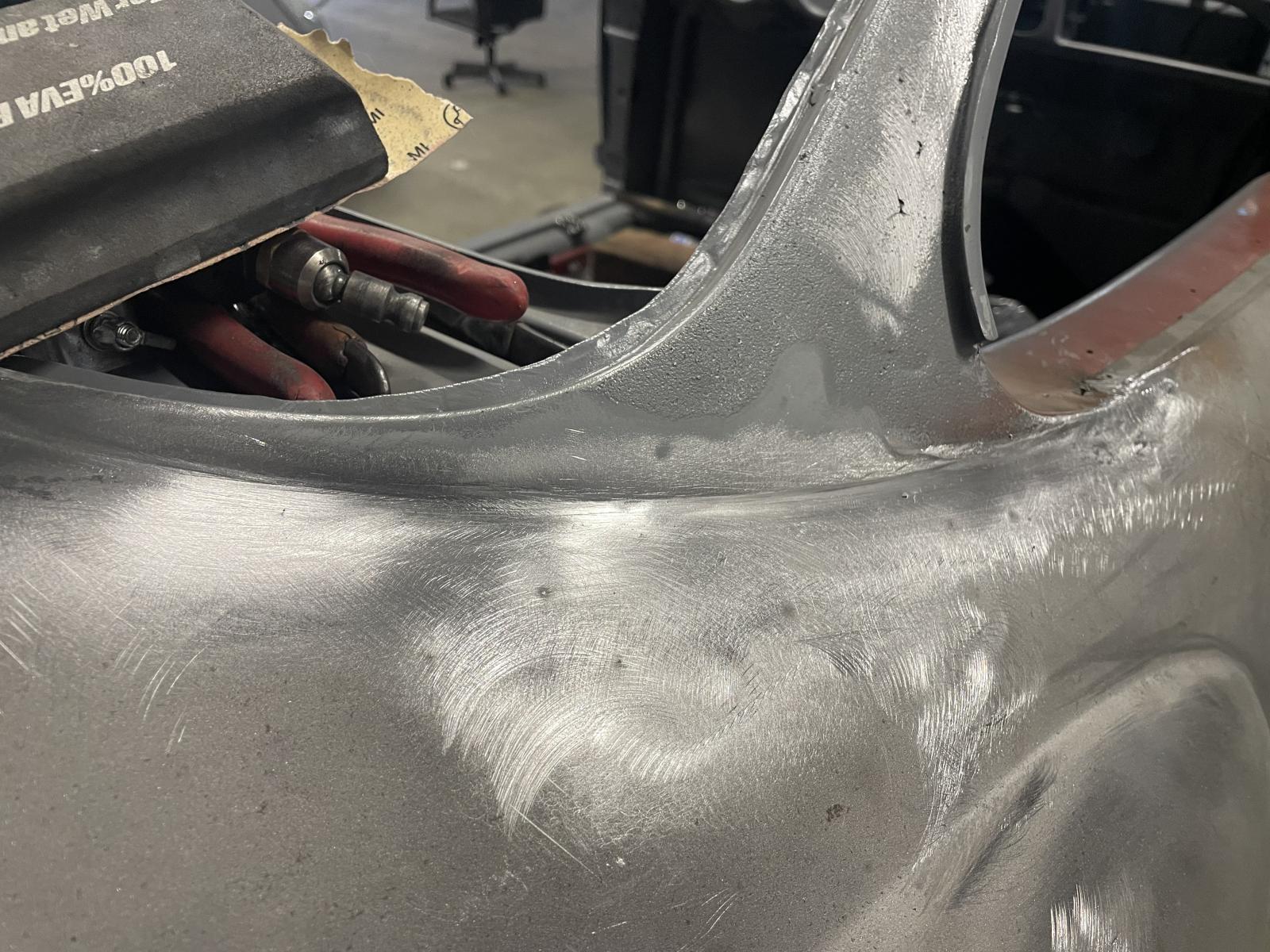

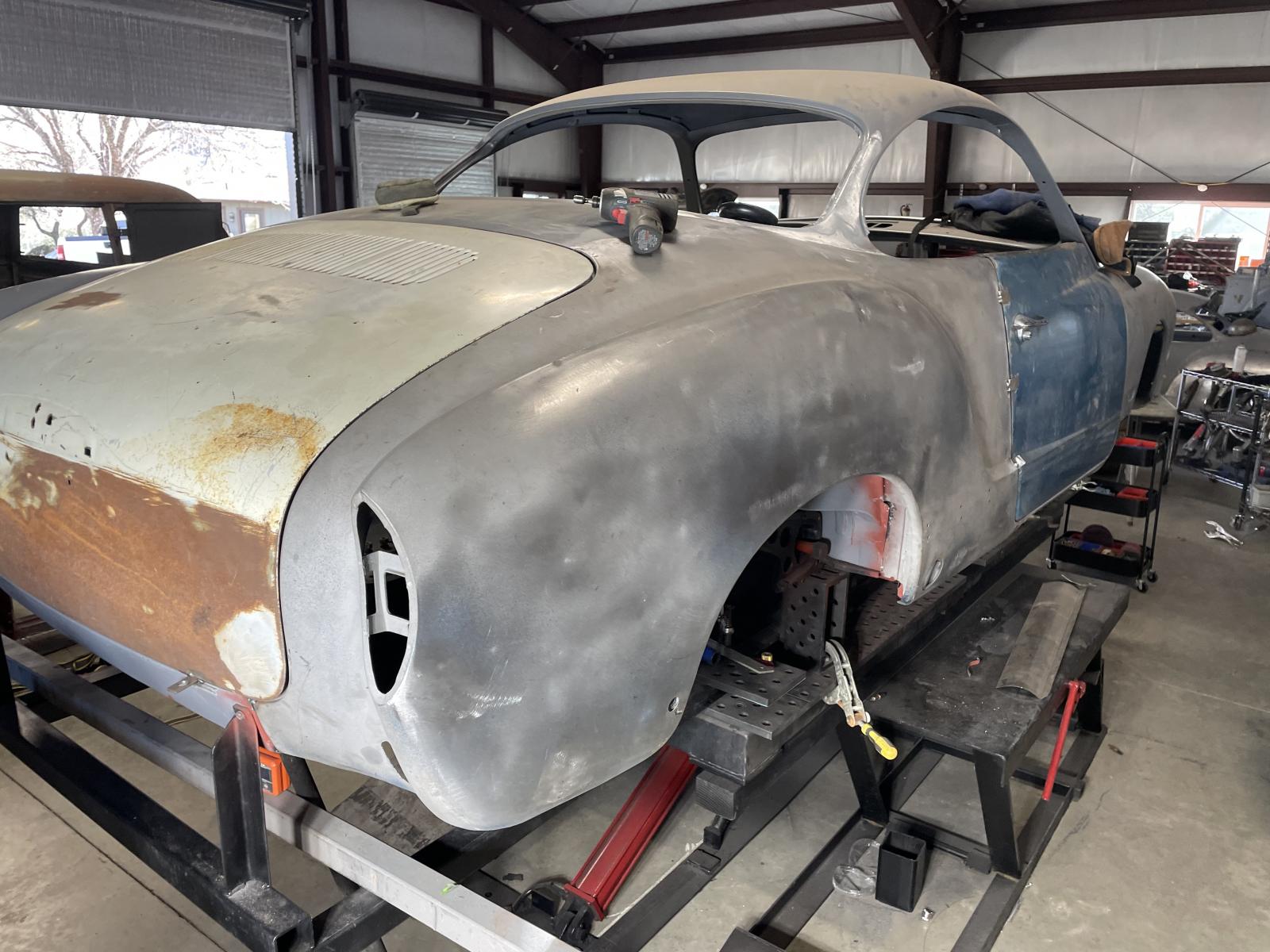

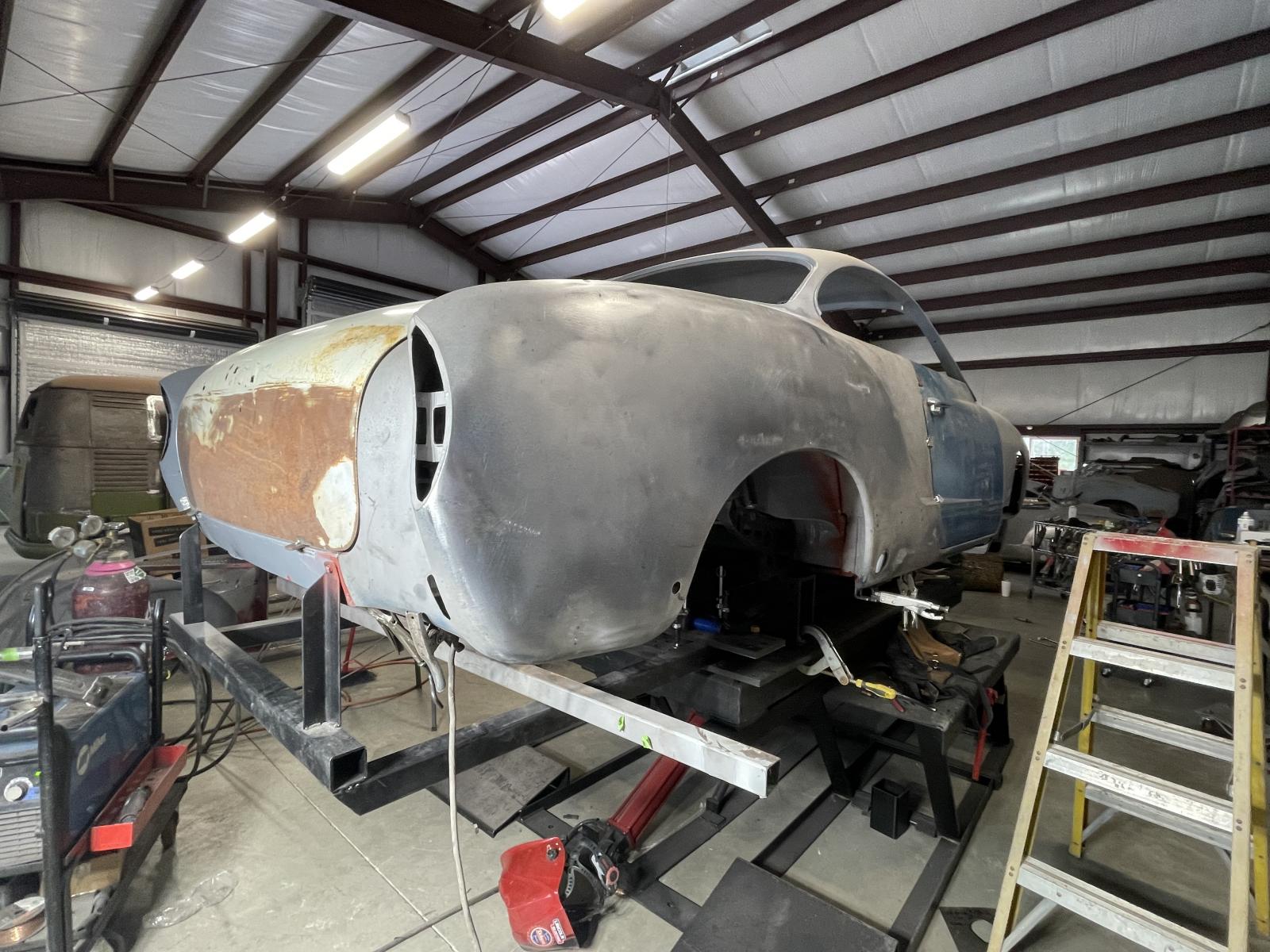

When I got one point where I wanted it another would walk away. The most important and noticeable area is where the decklid meets the quarter panel.

After going back and forth I decided to get that area as good as I can then work the of contact point into position. I think Iâm getting it.

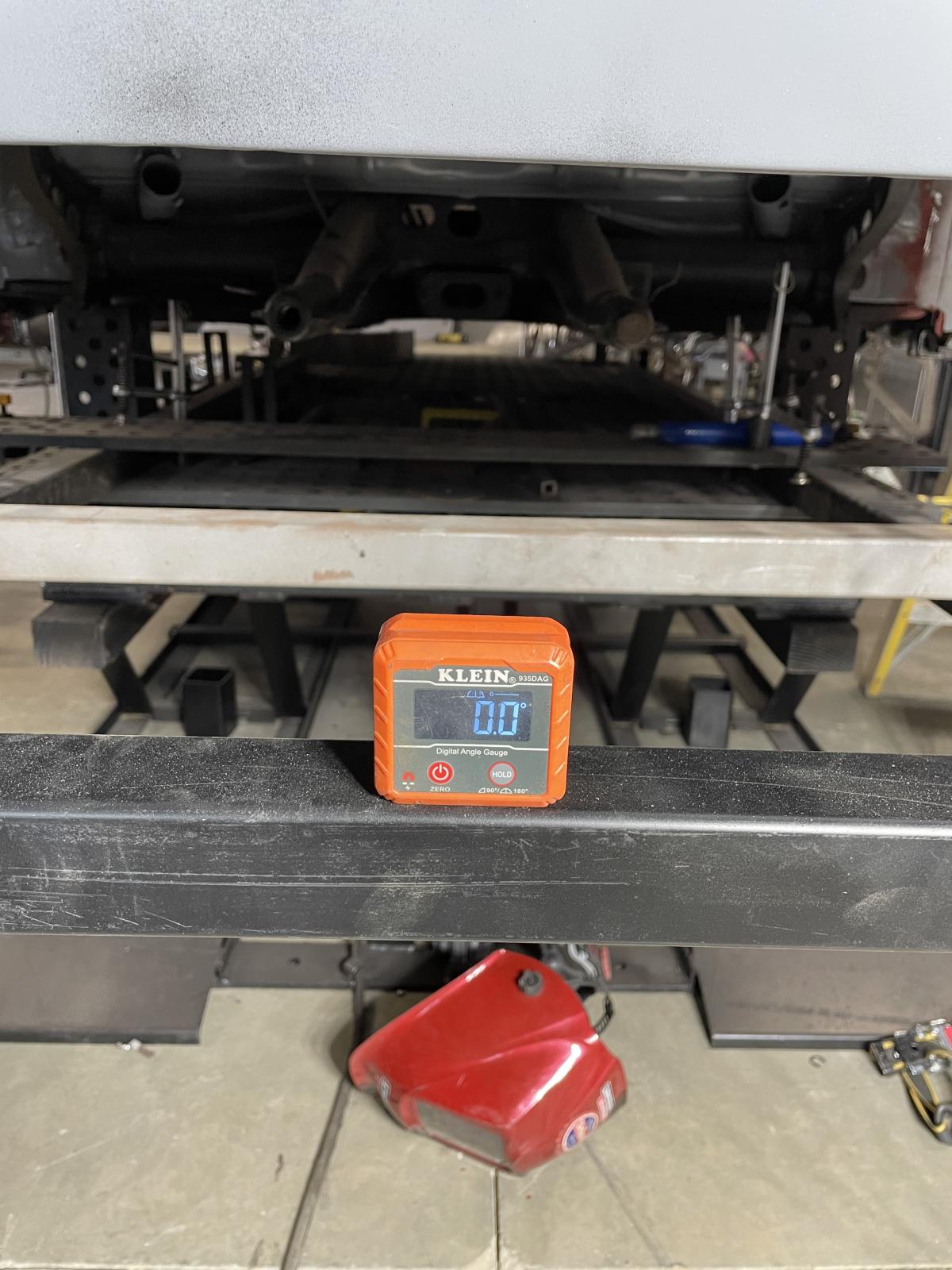

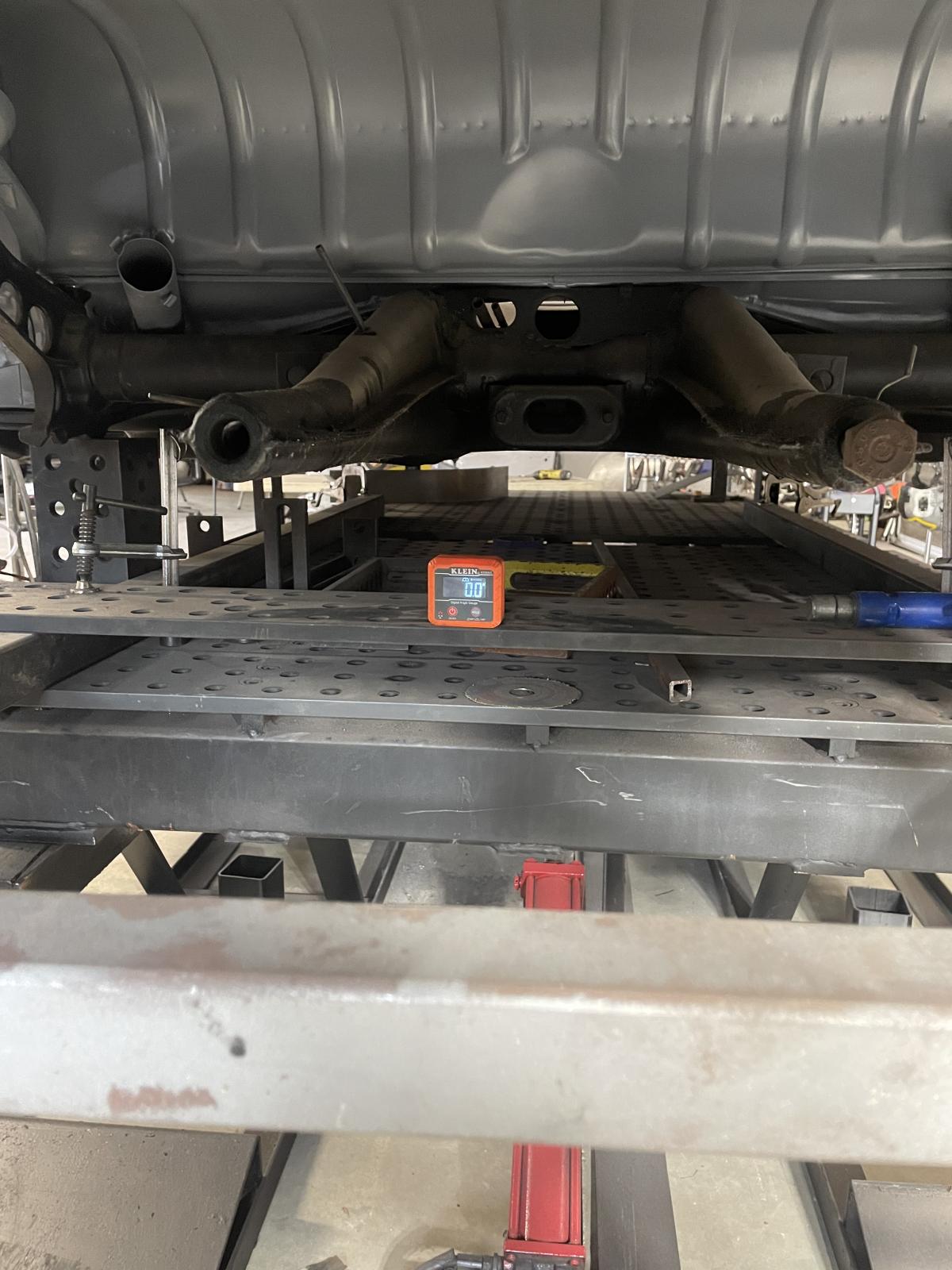

I was pleased to see the back of the car fixture was the same degree as the fabrication table so at least I know that is correct.

Im confident that I will begin welding it on tomorrow Laughing

Image may have been reduced in size. Click image to view fullscreen.

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Wed Feb 19, 2025 8:05 pm Post subject: Re: 60âs Ghia Metal Restoration

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

TRS63 · Posted: Wed Feb 19, 2025 10:50 pm Post subject: Re: 60âs Ghia Metal Restoration

What a perfect work, so good to see, thanks for sharing !

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685

WrennMetallWerks · Posted: Thu Feb 20, 2025 5:47 pm Post subject: Re: 60âs Ghia Metal Restoration

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Thu Feb 20, 2025 5:51 pm Post subject: Re: 60âs Ghia Metal Restoration

WrennMetallWerks · Posted: Sat Feb 22, 2025 7:05 pm Post subject: Re: 60âs Ghia Metal Restoration

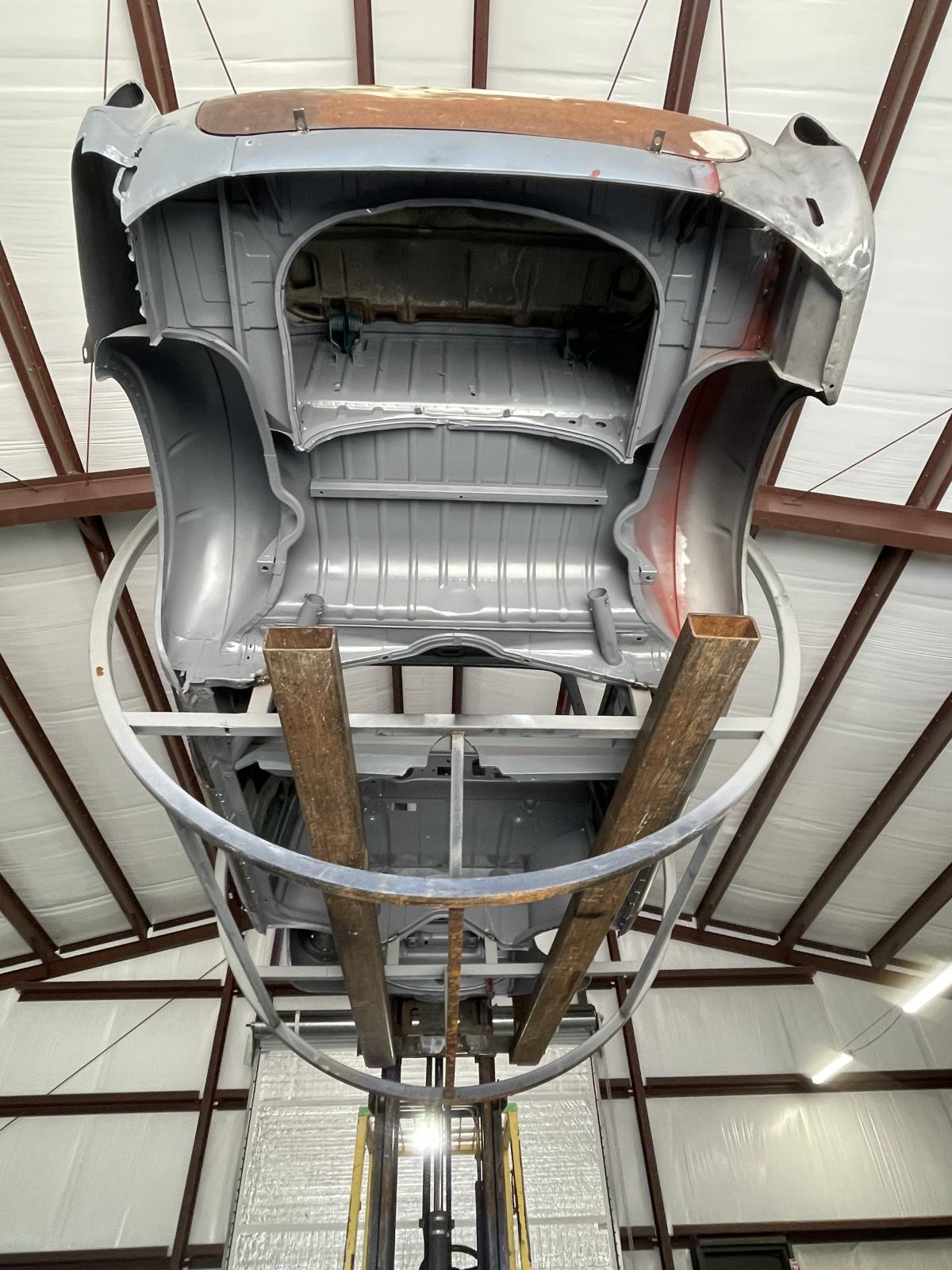

Making milestones.

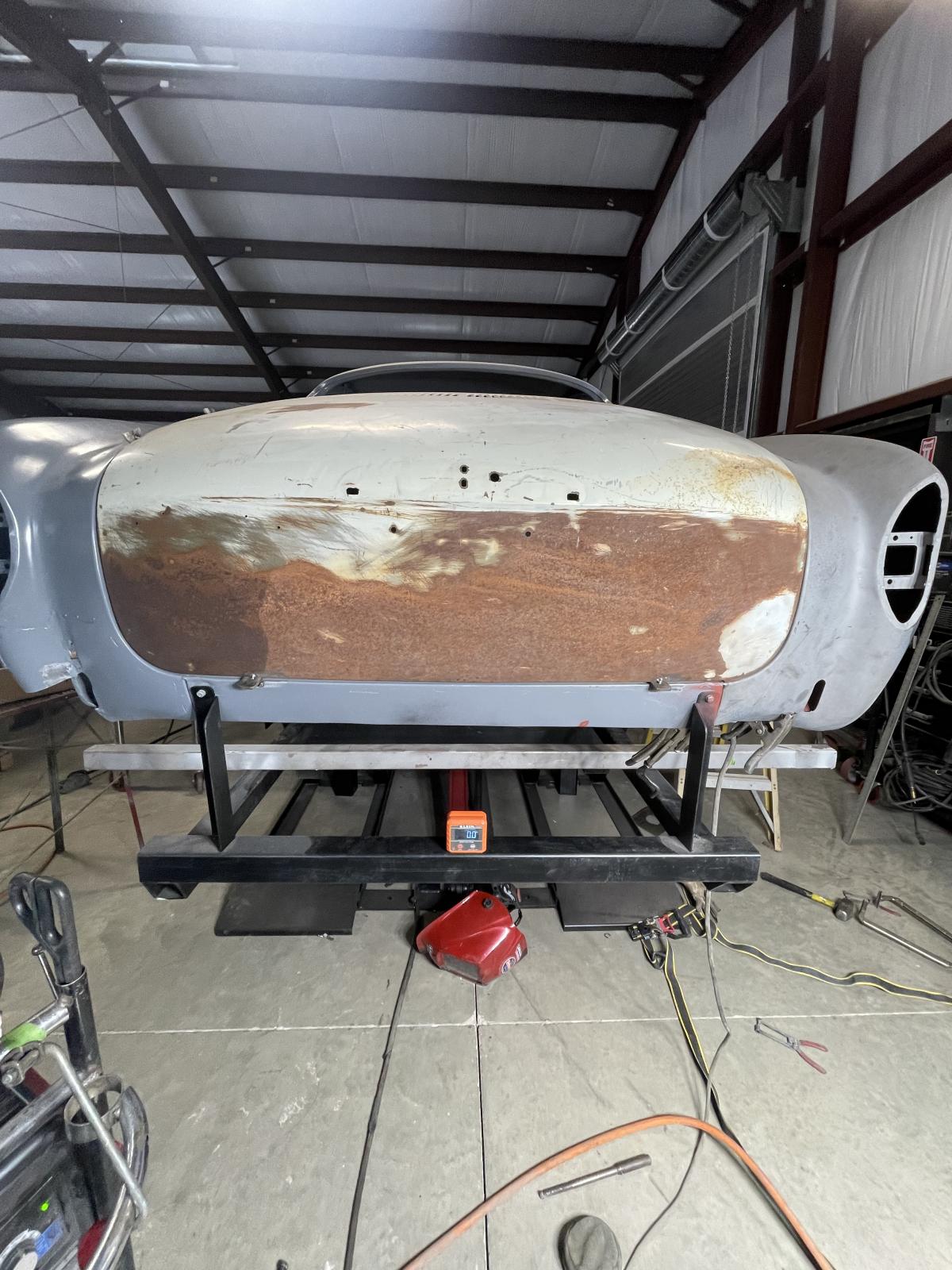

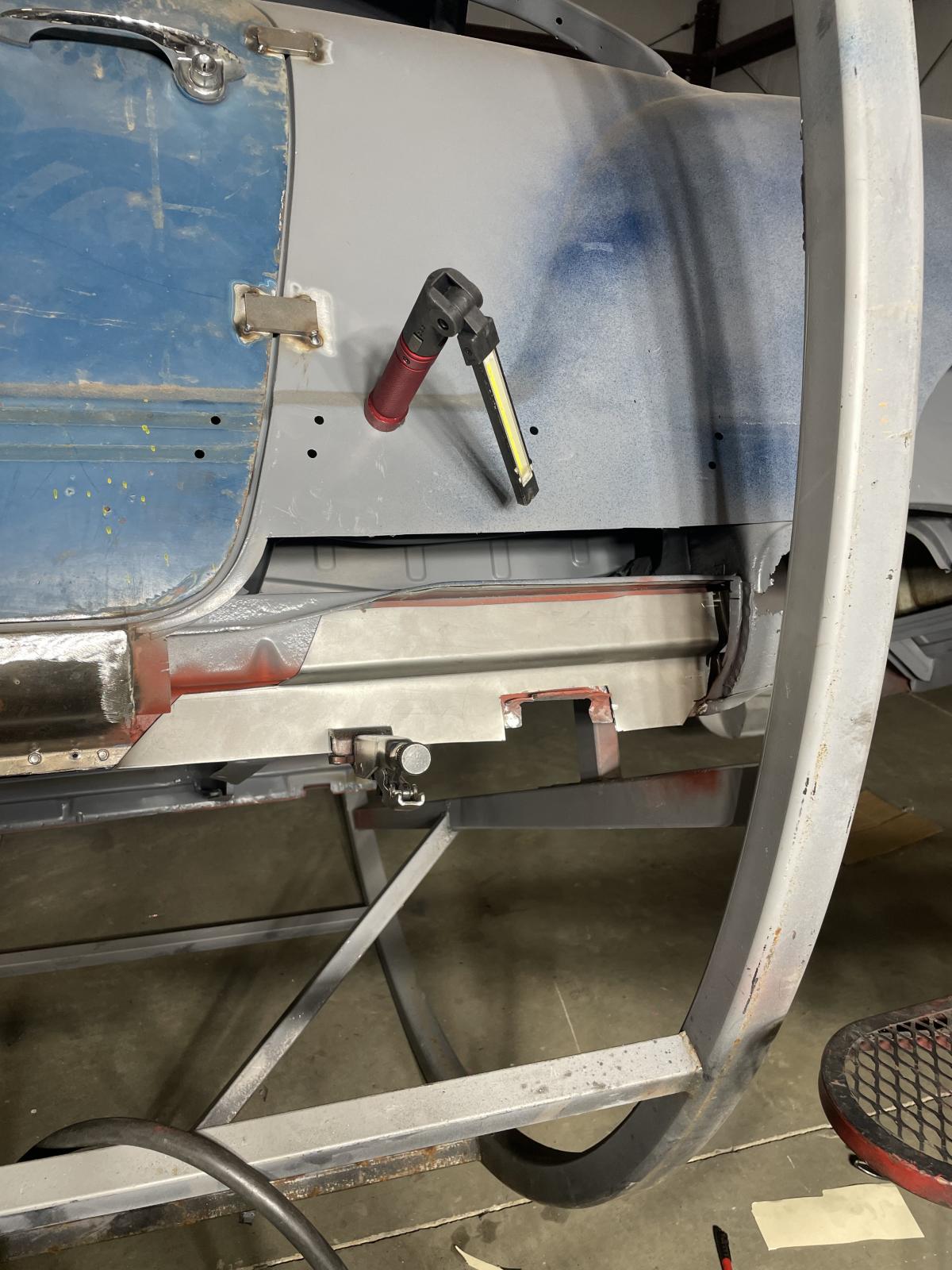

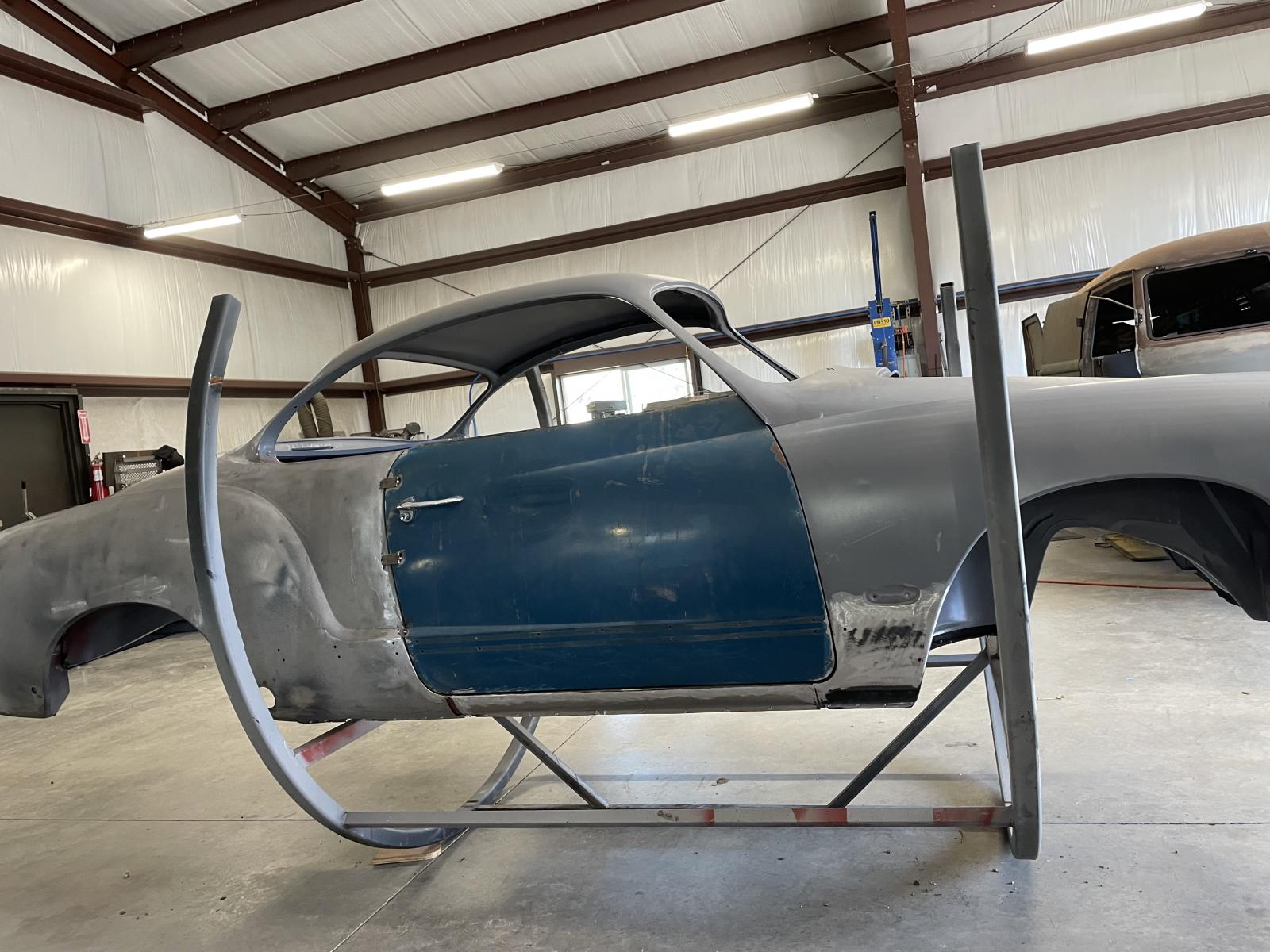

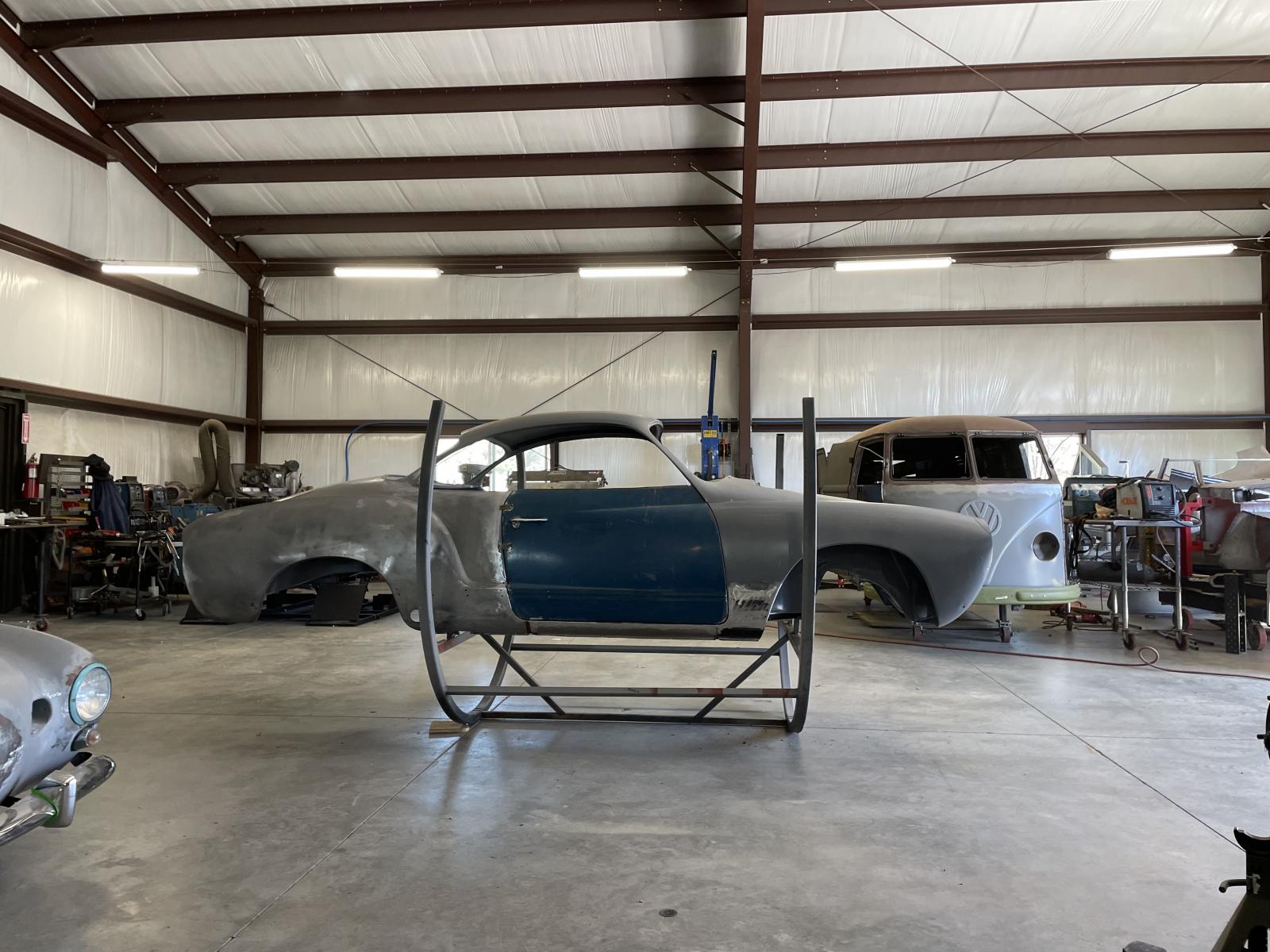

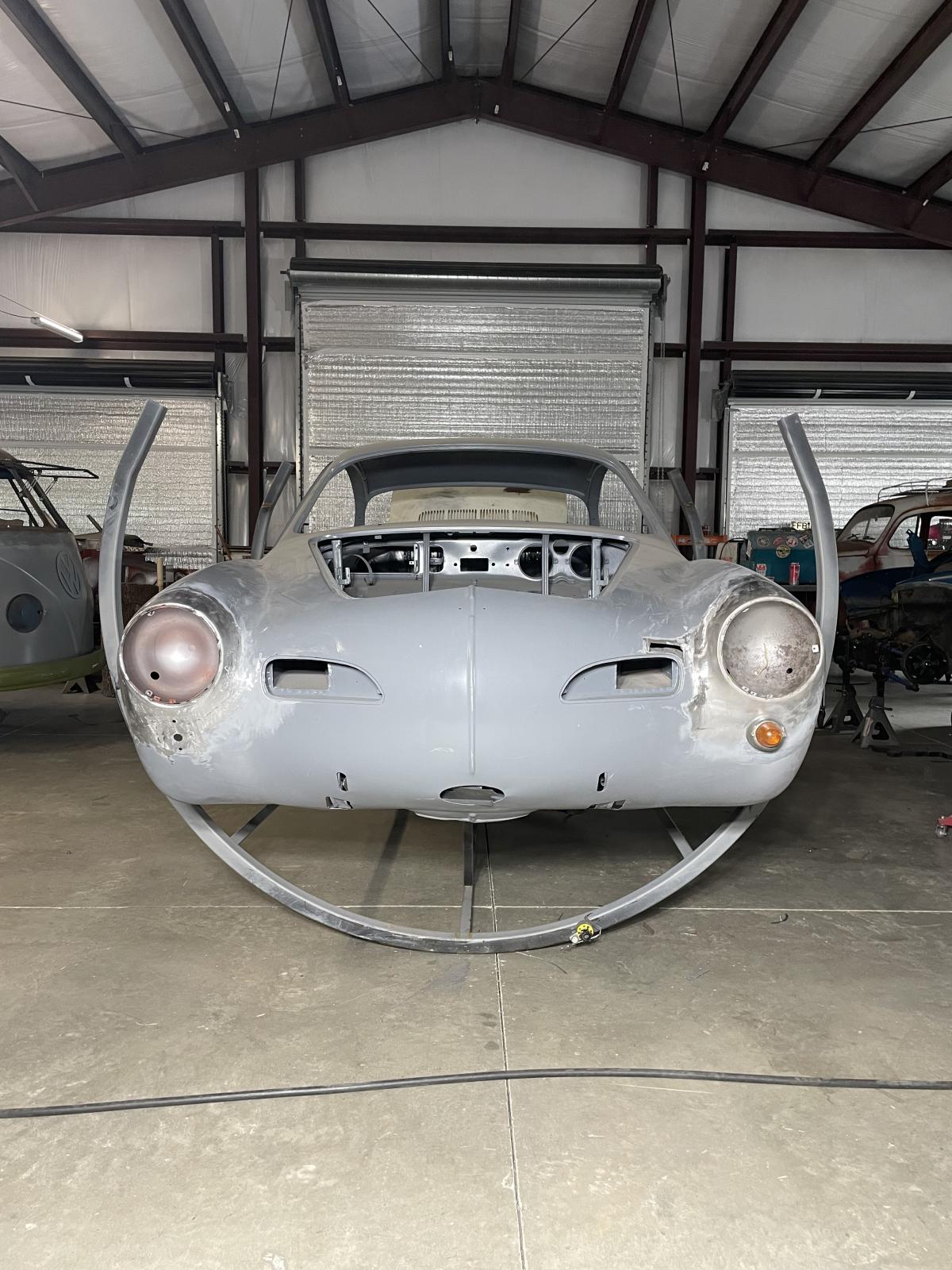

Got the body off the layout table and loaded in the rotisserie.

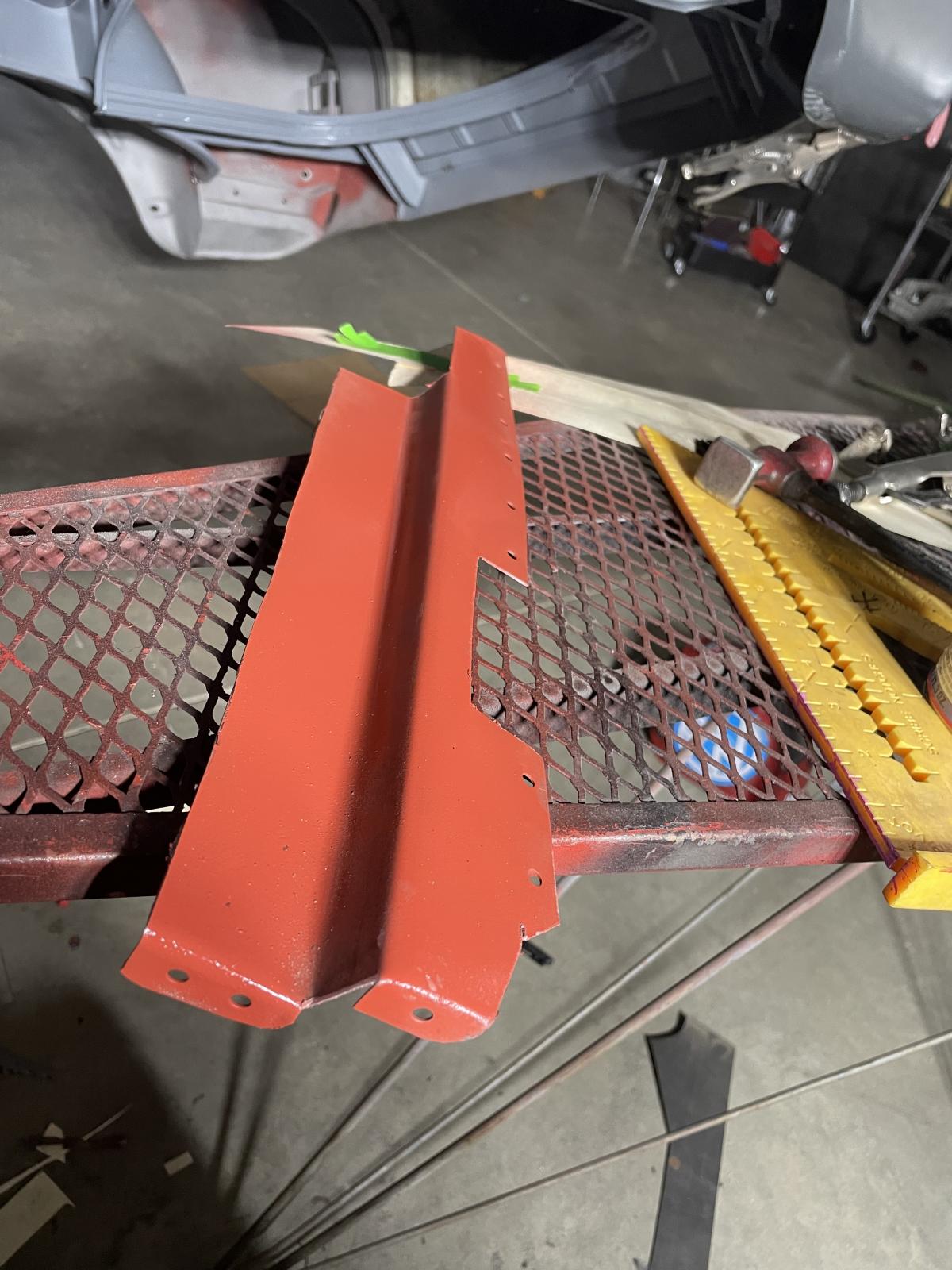

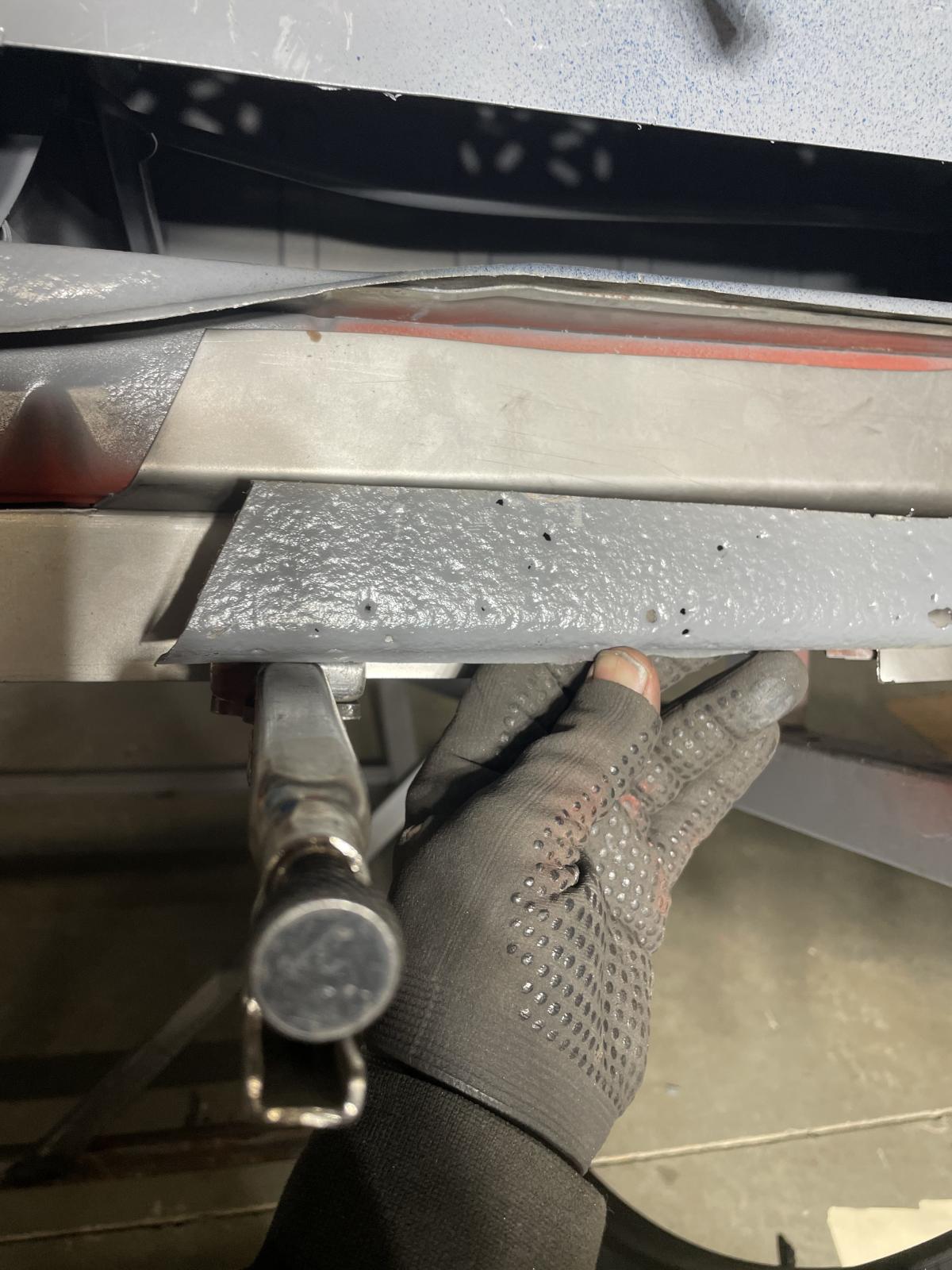

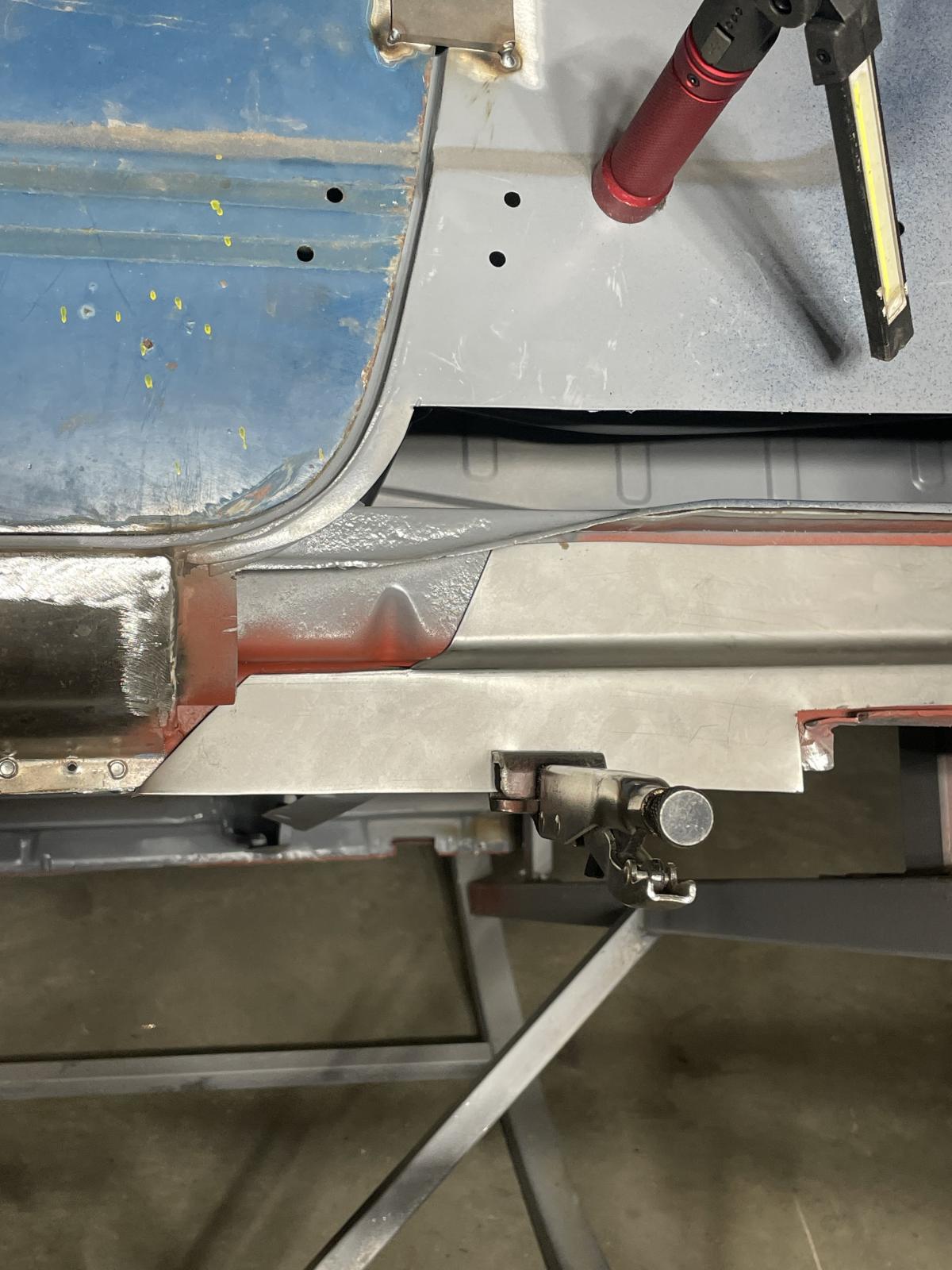

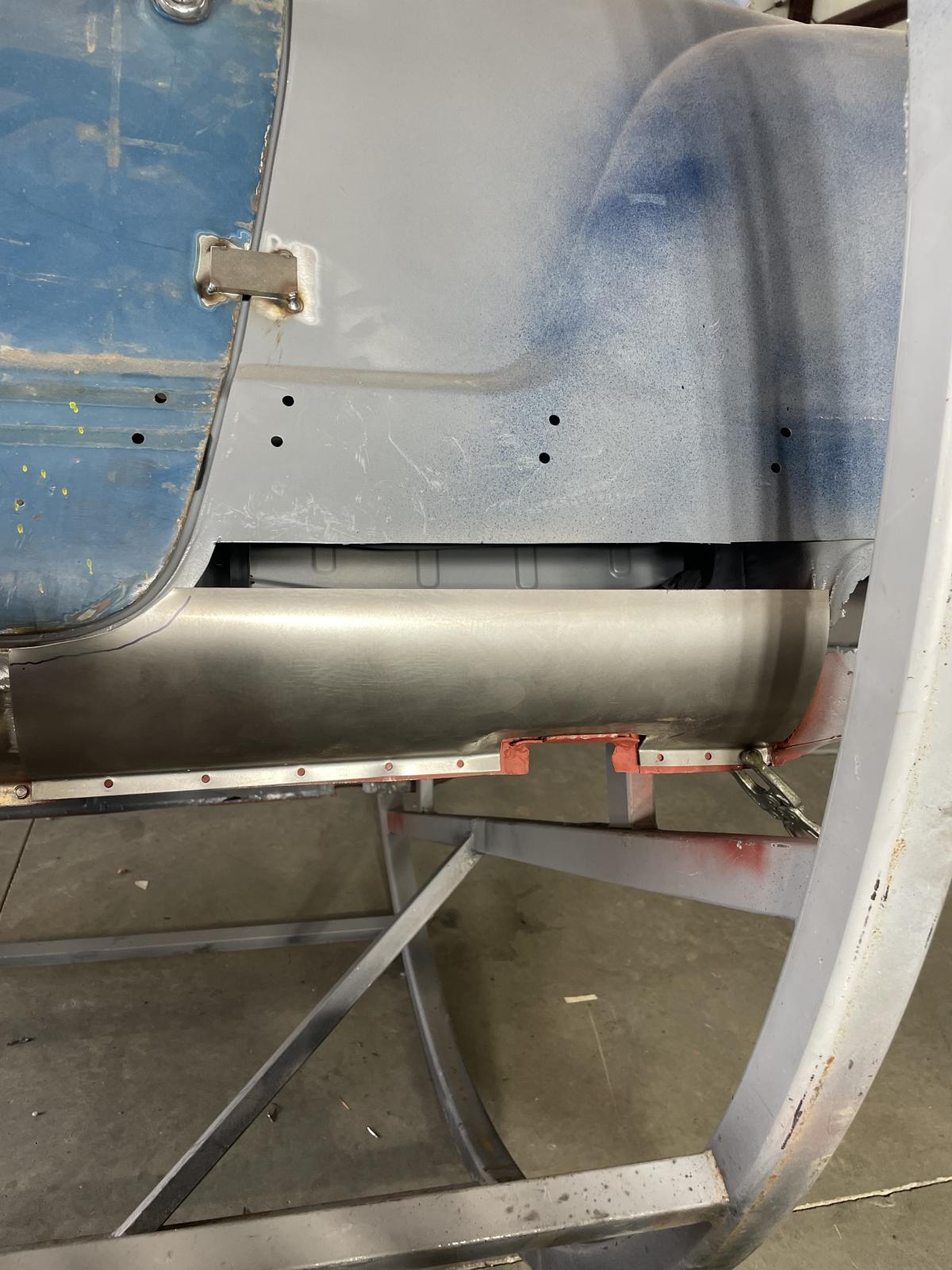

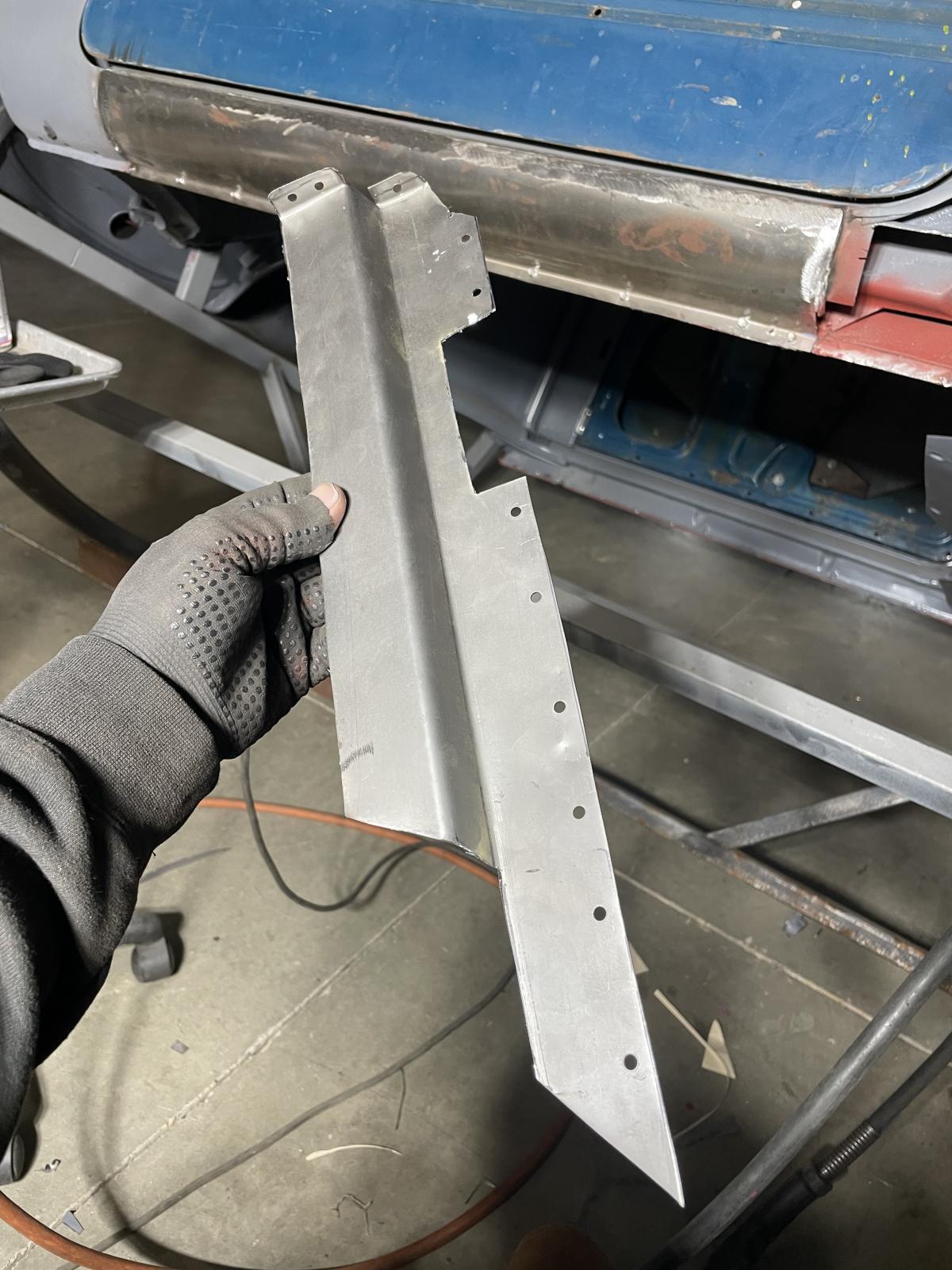

Before I made the move I put the other door on and locked it down with tabs. I also did a bunch of the lower metal panels so the body would be rigid enough to justify removing it from the table.

The quarter panel was the big one so everything else is fairly straight forward from here.

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

DaveB9 · Posted: Thu Feb 27, 2025 1:17 pm Post subject: Re: 60âs Ghia Metal Restoration

Great progress, please keep the photos coming! Metalwork progress is so satisfying.

WrennMetallWerks · Posted: Thu Feb 27, 2025 6:19 pm Post subject: Re: 60âs Ghia Metal Restoration

Thanks man. Will doâ¦

This oneâs weekly rotation starts the third Monday of every month. So it will be a little bit but I will be sure and post up some more fun pics.
_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Mon Mar 17, 2025 5:22 pm Post subject: Re: 60âs Ghia Metal Restoration

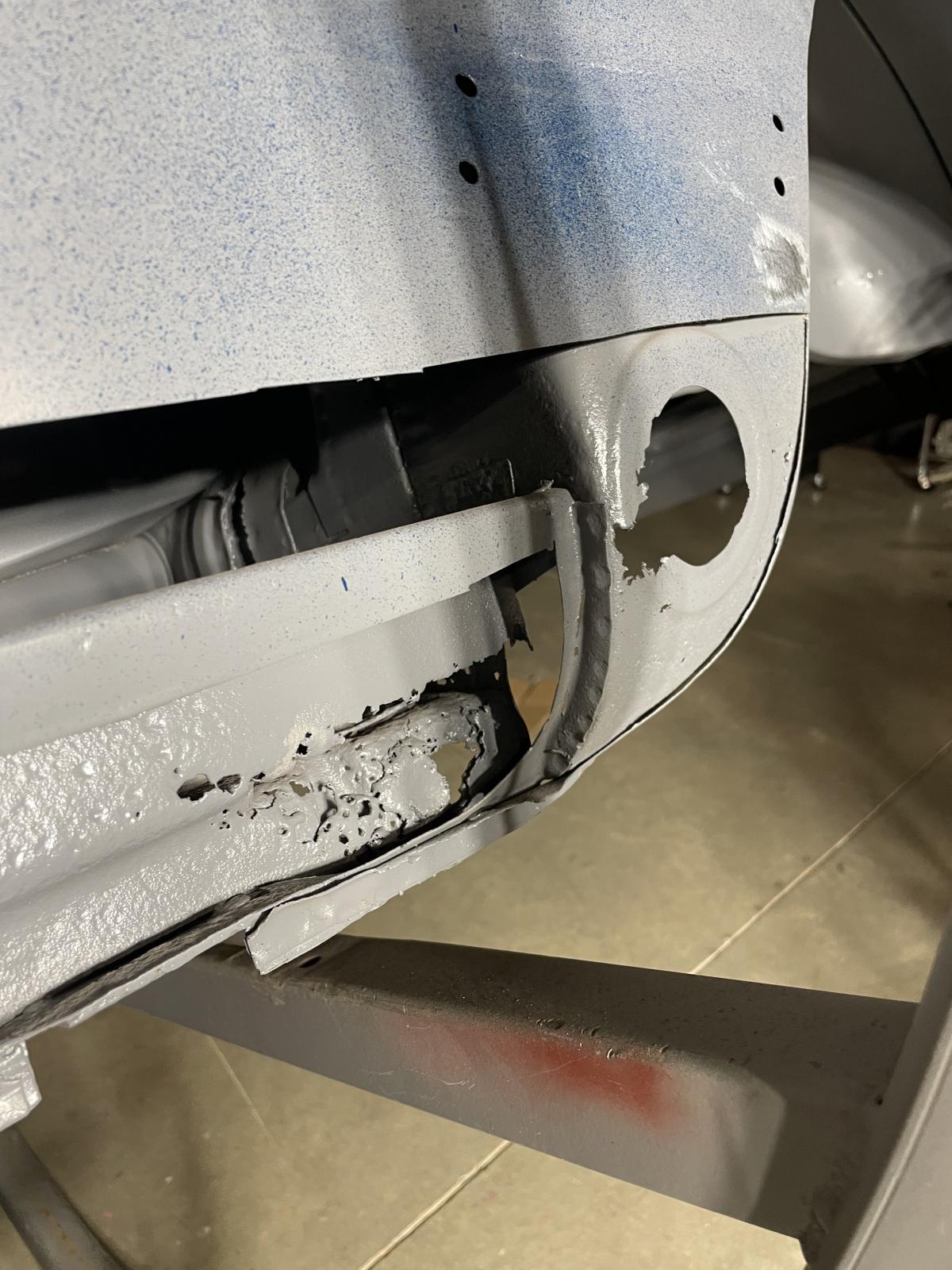

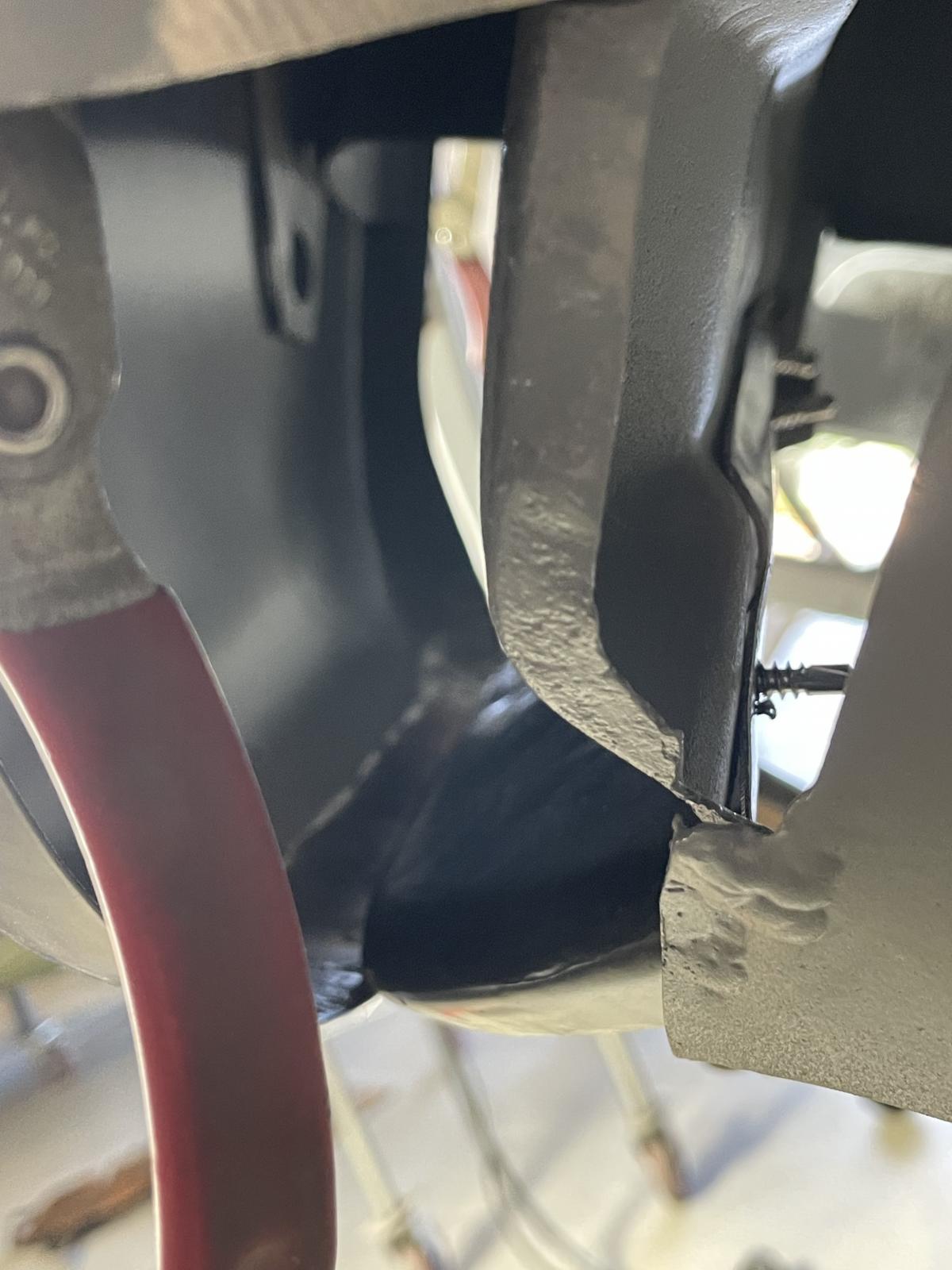

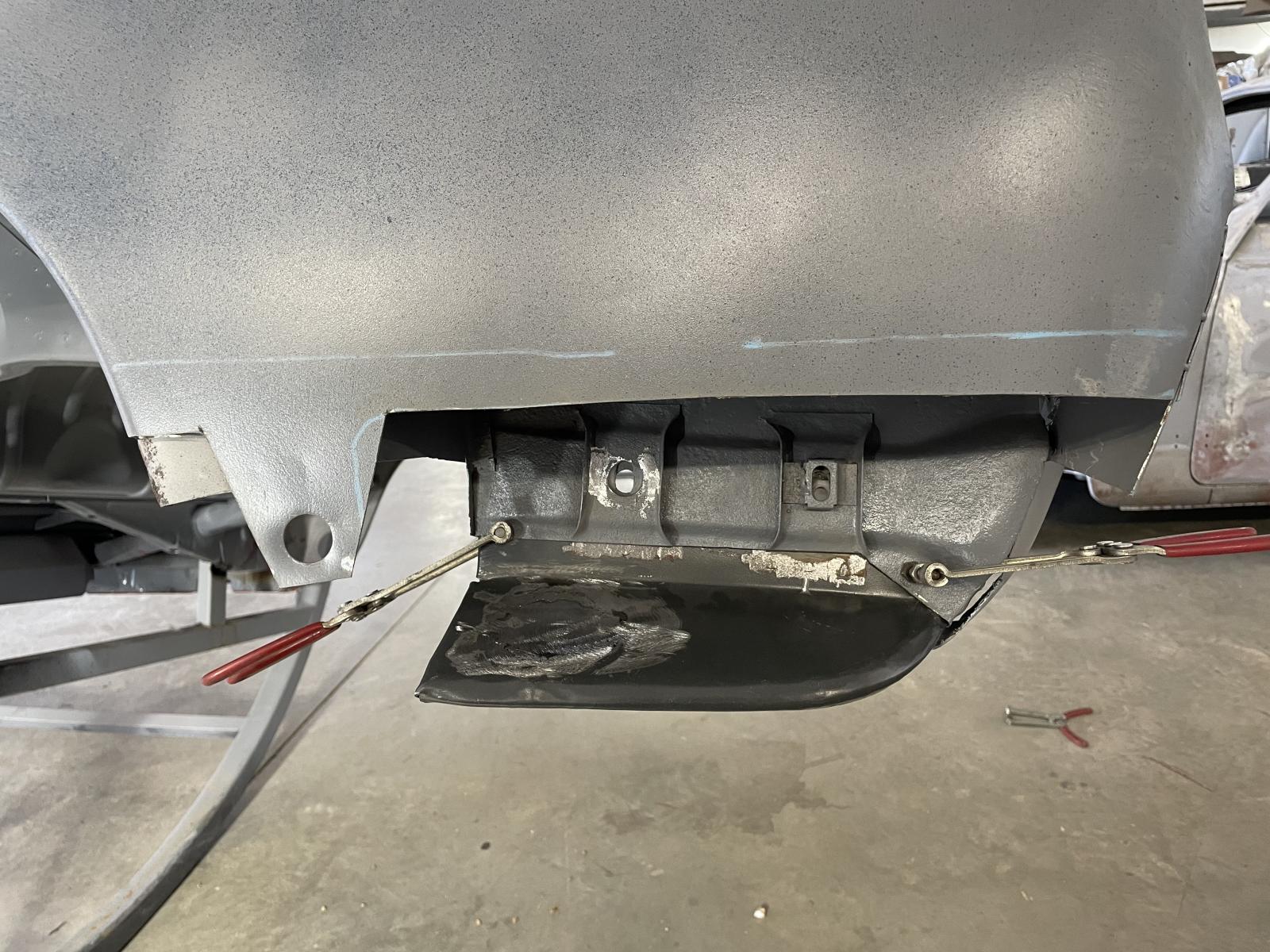

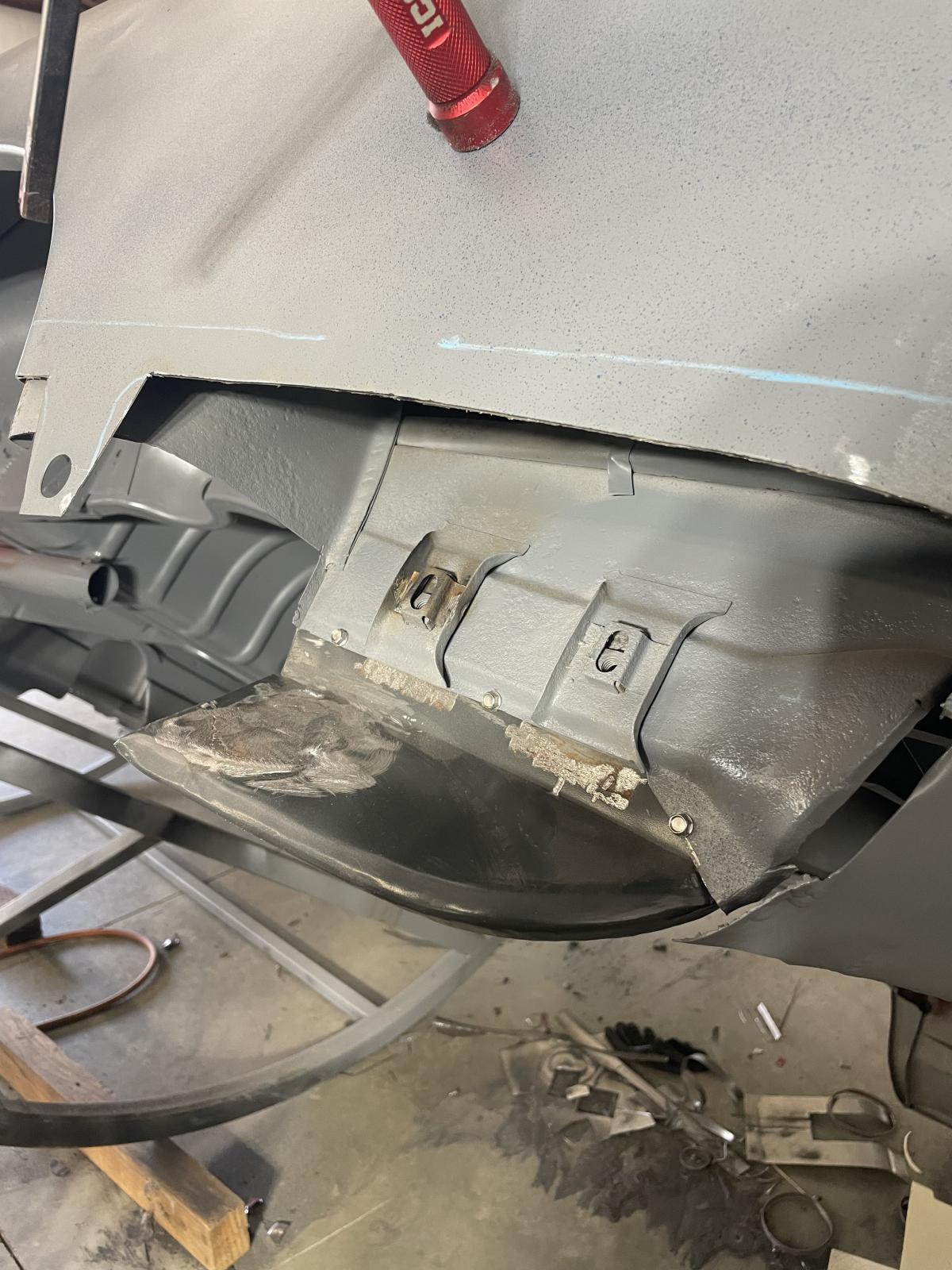

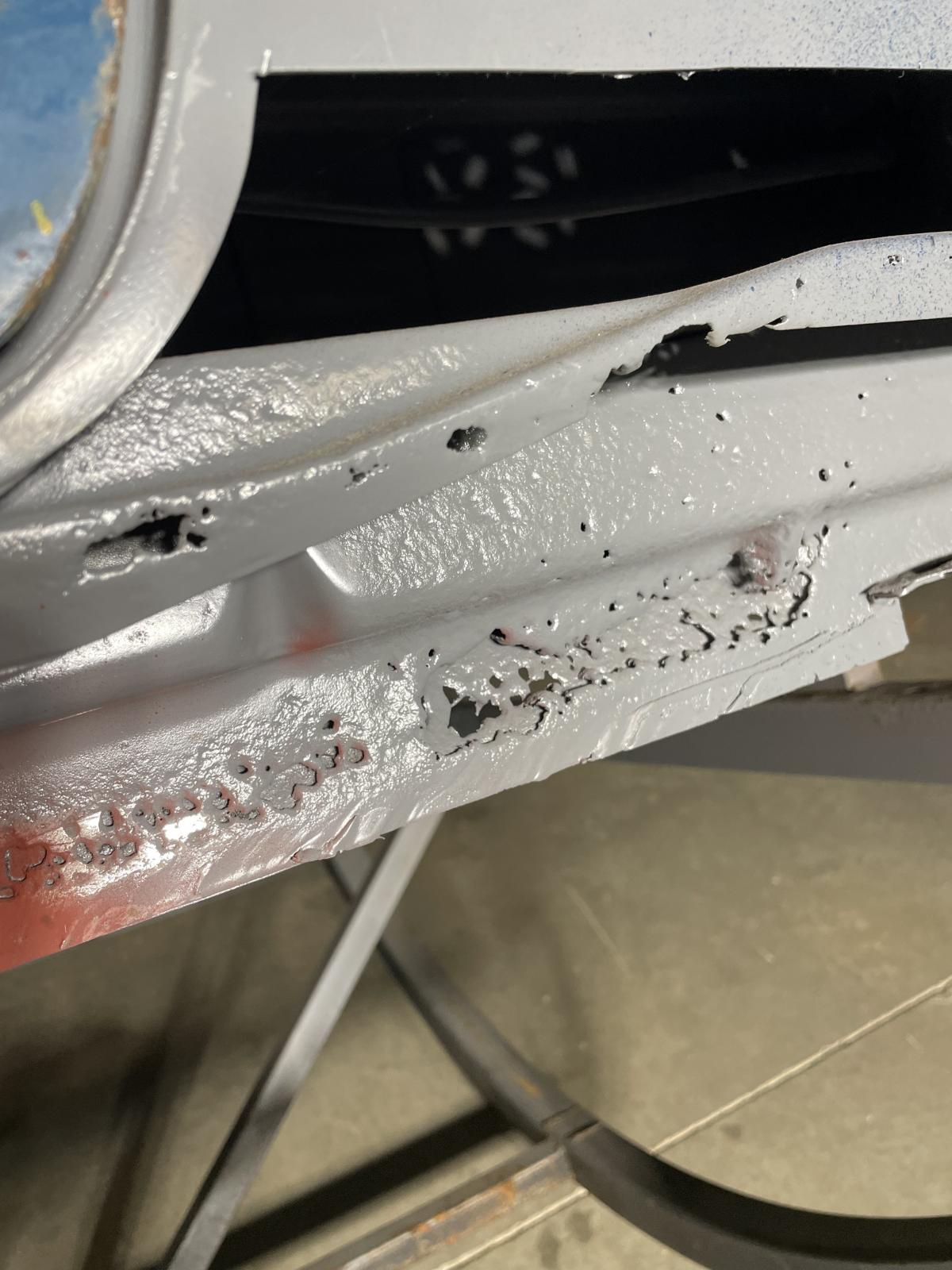

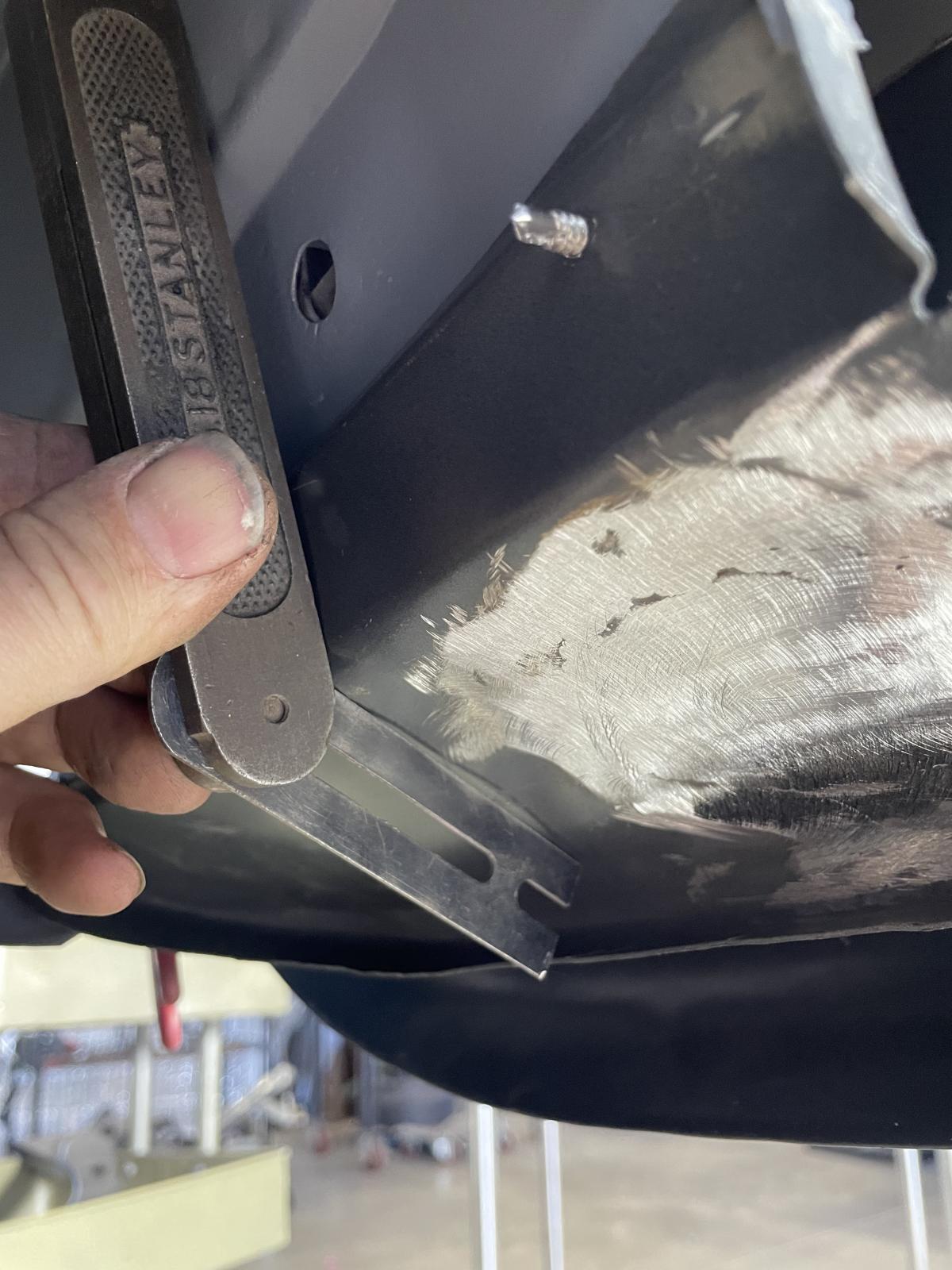

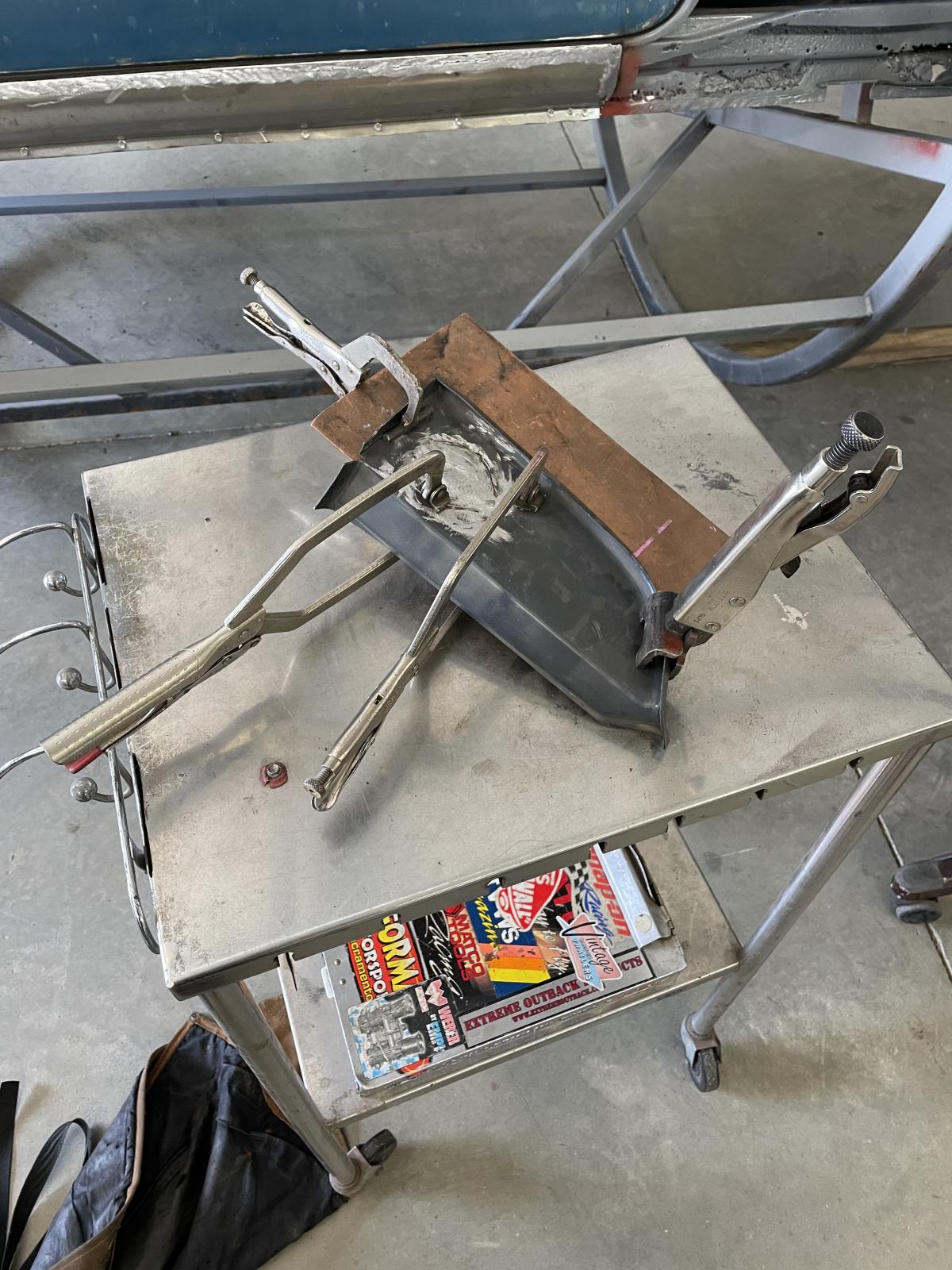

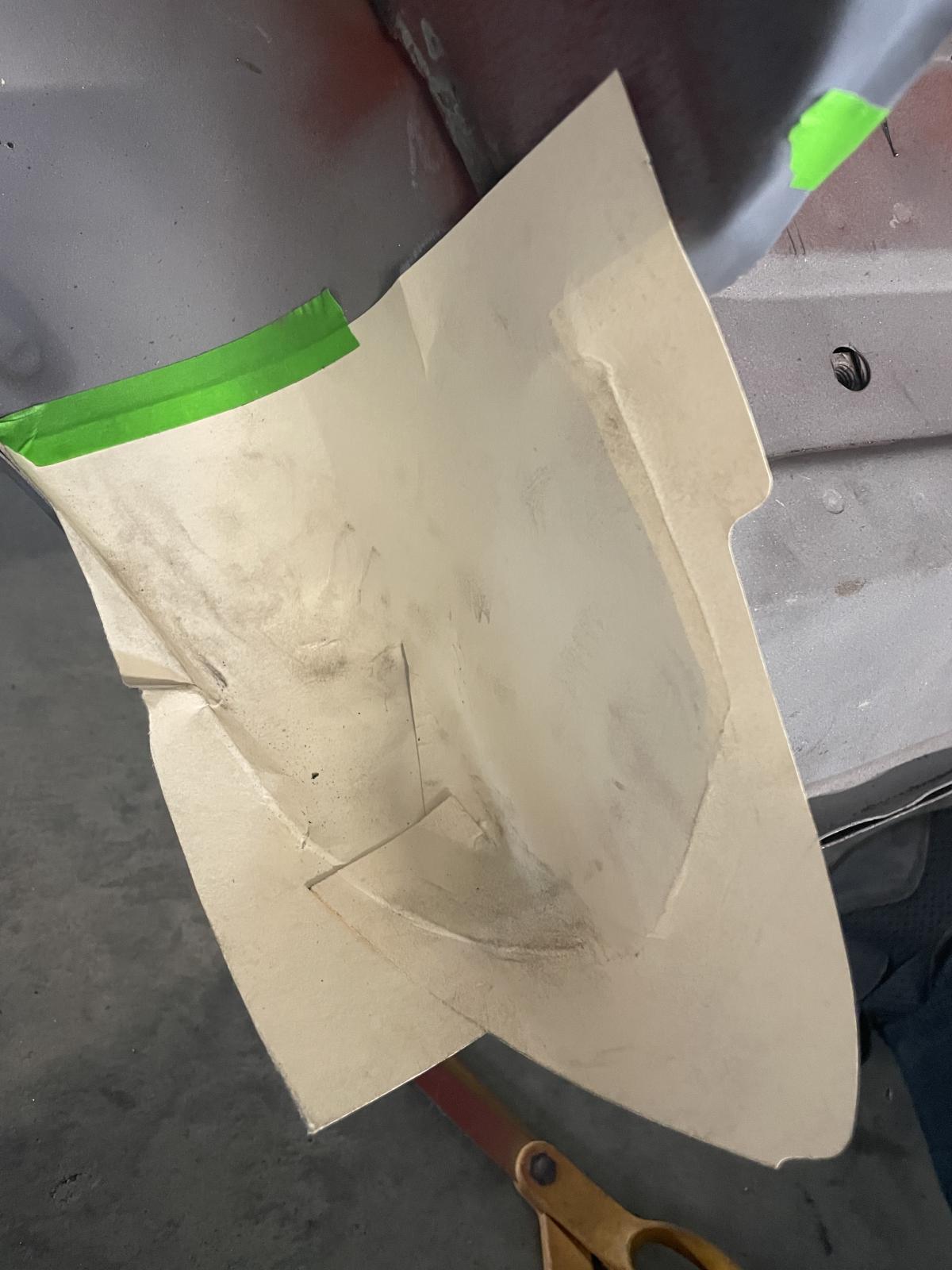

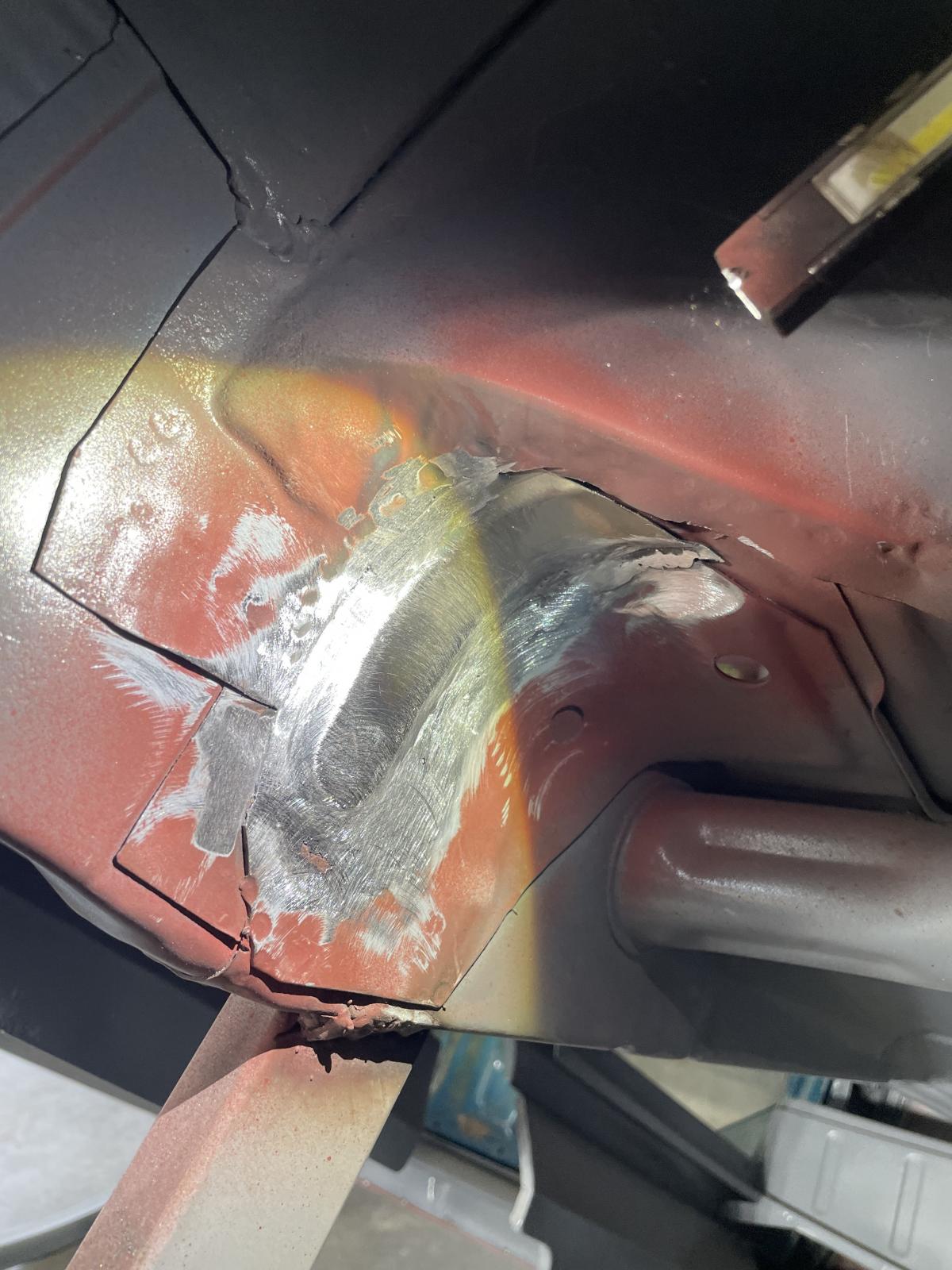

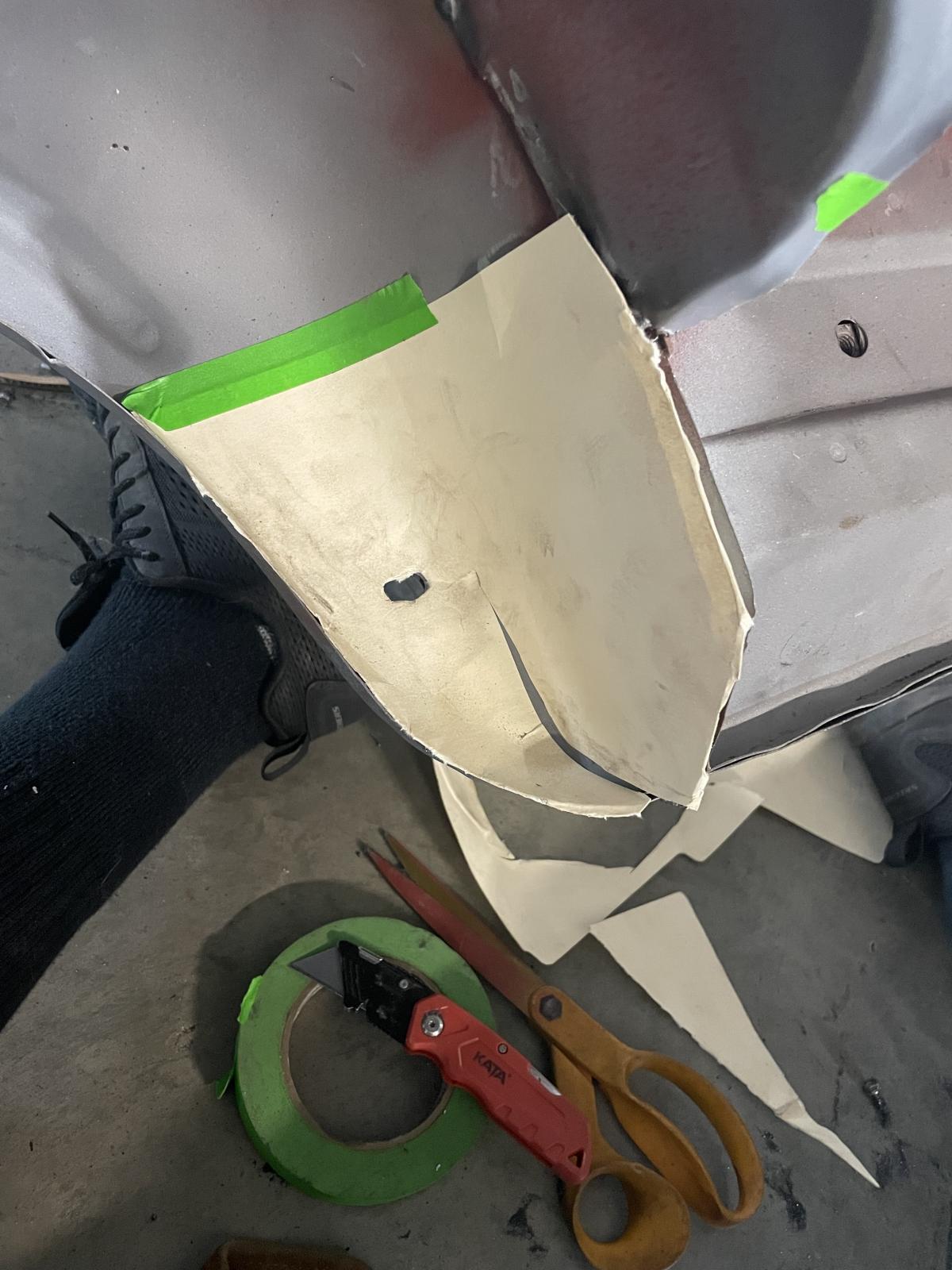

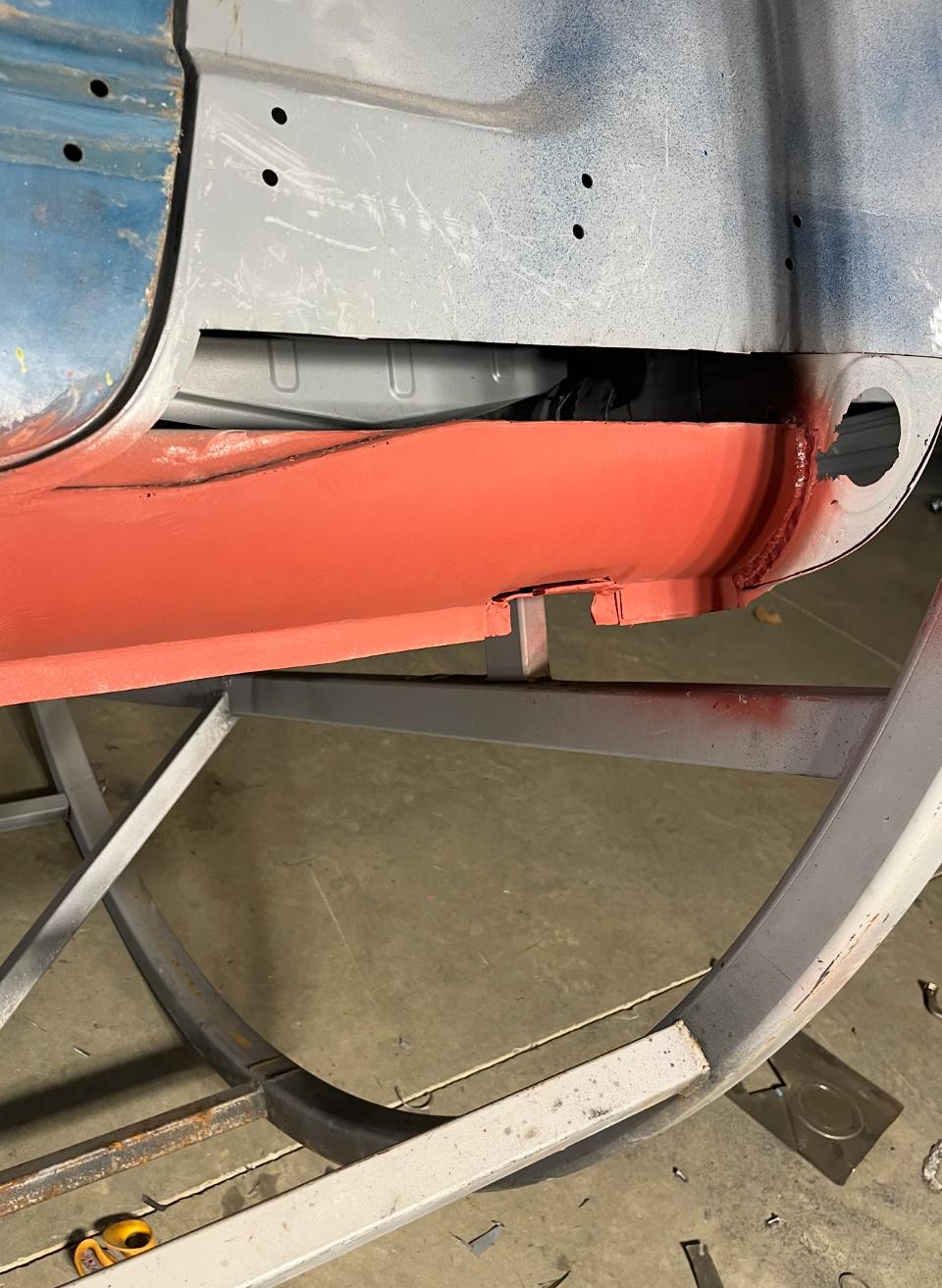

This was a very time consuming area. It was rotted all the way through all the layers.

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Tue Mar 18, 2025 6:37 pm Post subject: Re: 60âs Ghia Metal Restoration

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

TRS63 · Posted: Wed Mar 19, 2025 9:47 am Post subject: Re: 60âs Ghia Metal Restoration

Clean as always Cool

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685

halbug · Posted: Wed Mar 19, 2025 11:05 am Post subject: Re: 60âs Ghia Metal Restoration

You are such a sheet metal artist Shocked

Incredible work there! Thank you for sharing the progress in so much detail.
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324

WrennMetallWerks · Posted: Wed Mar 19, 2025 5:09 pm Post subject: Re: 60âs Ghia Metal Restoration

^^^ I truly appreciate that you guys. Itâs nice to hear you are enjoying it. I feel lucky that my clients also enjoy the threads and allow me the freedom to create and add content to them. Having The Samba is a wonderful thing for everyone involved! ^^^
_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Wed Mar 19, 2025 5:15 pm Post subject: Re: 60âs Ghia Metal Restoration

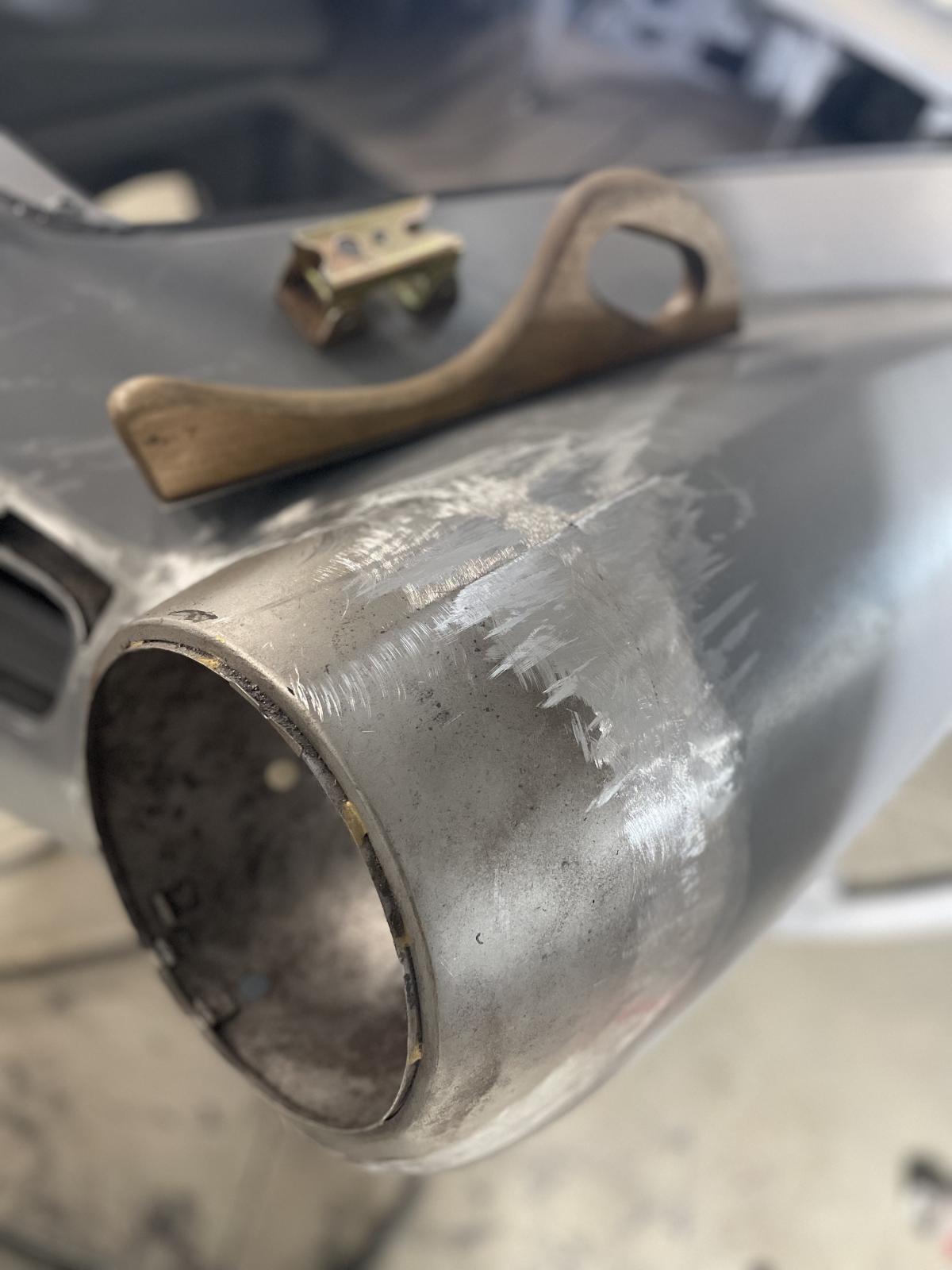

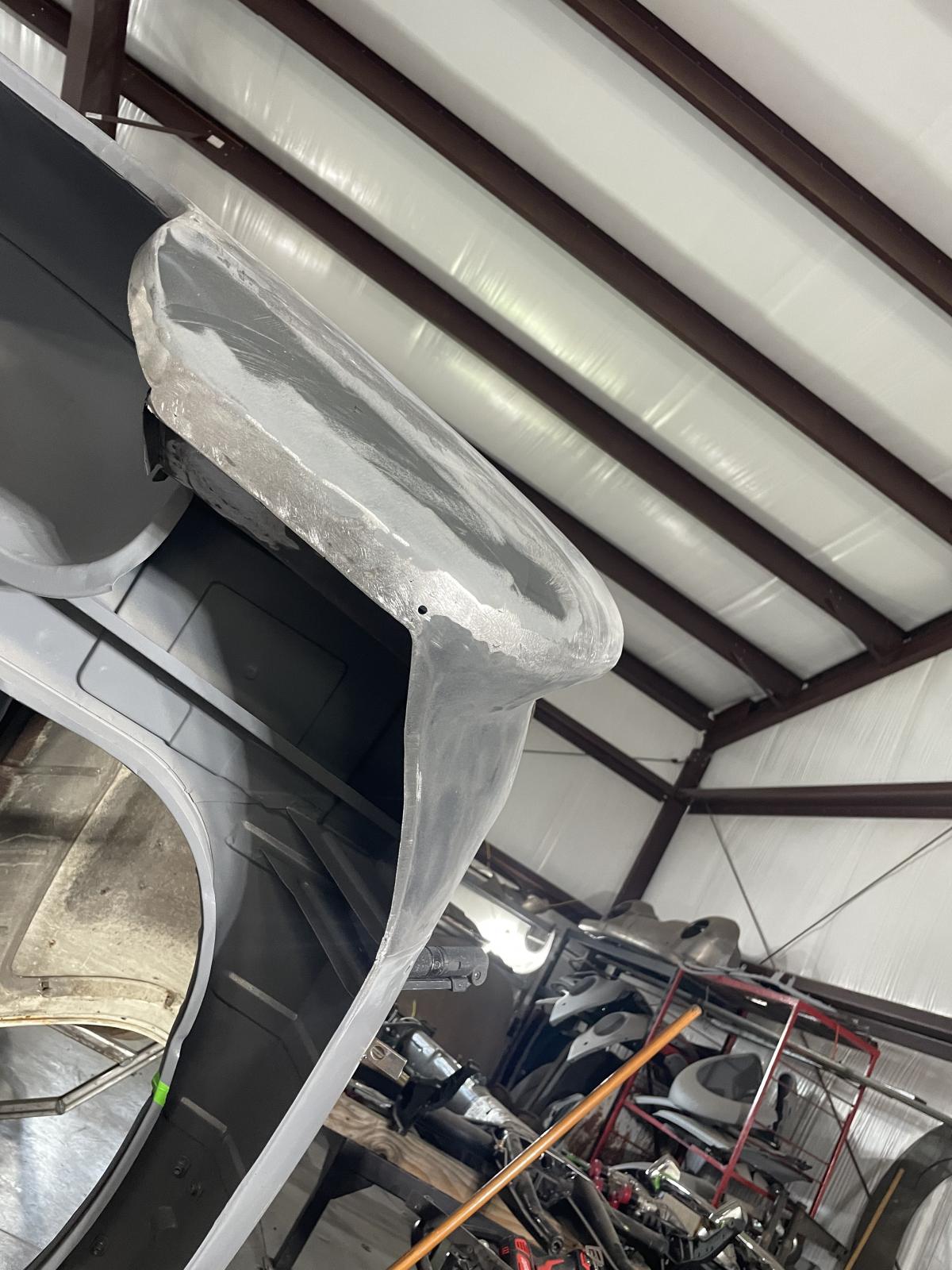

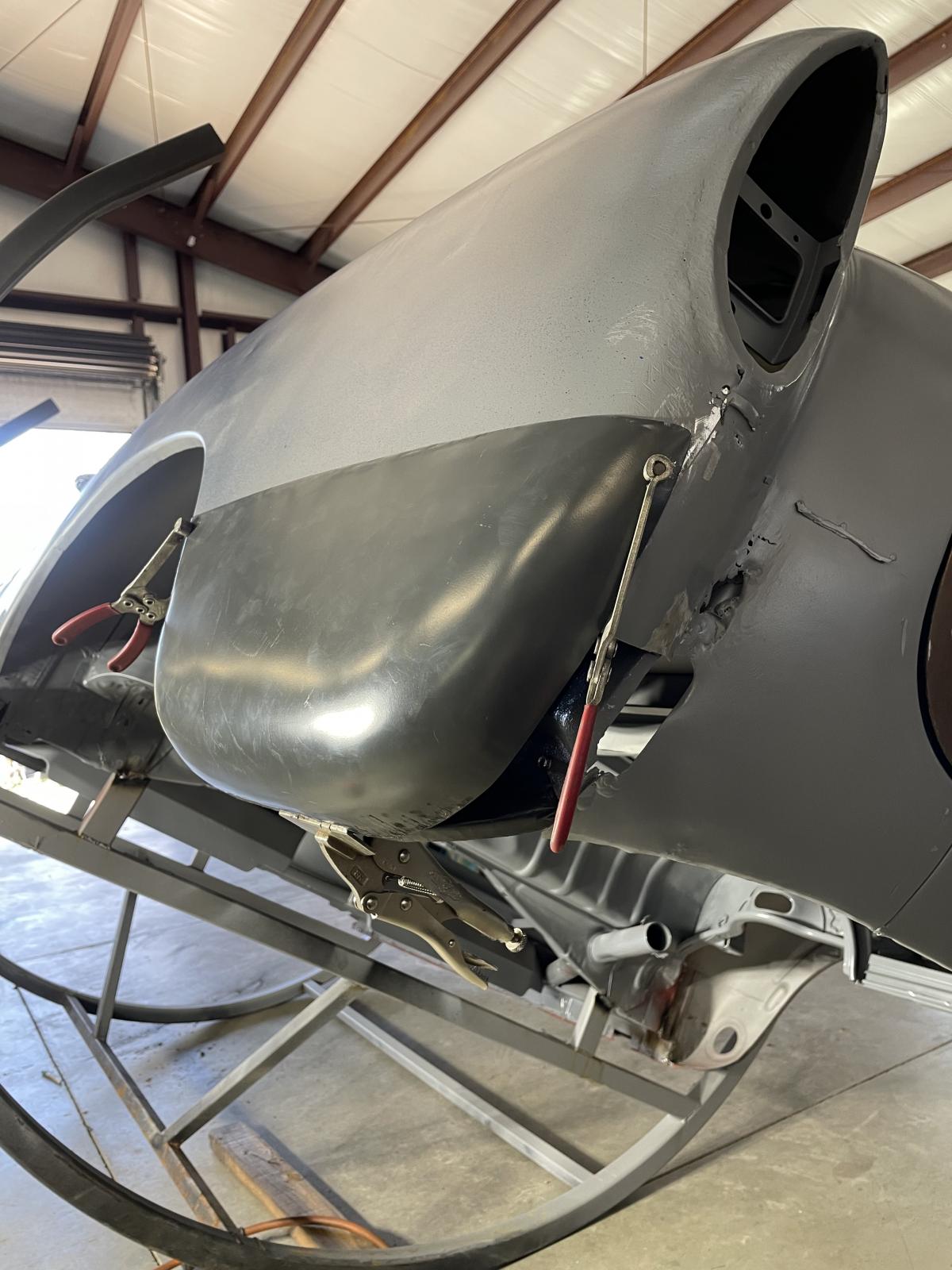

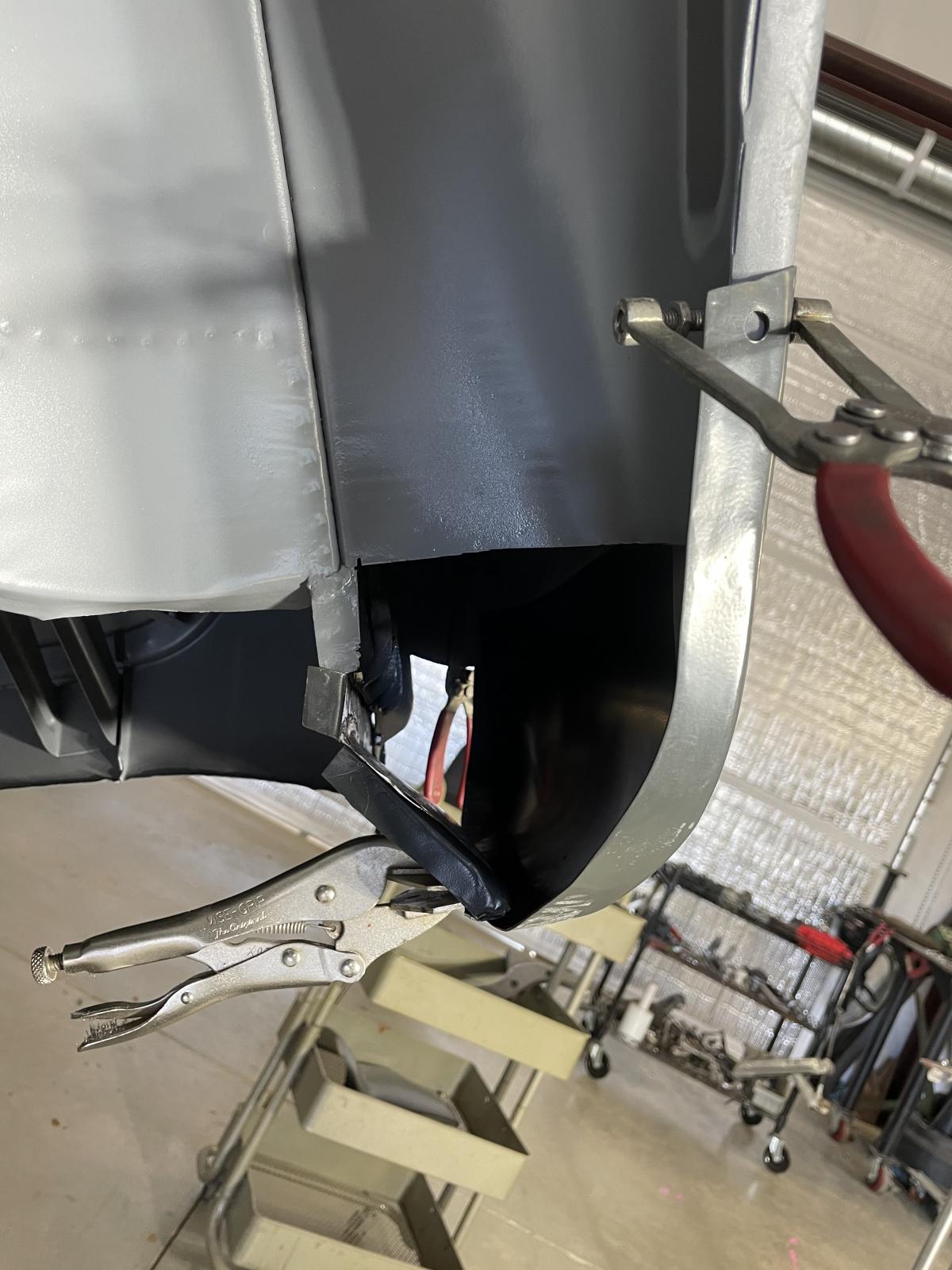

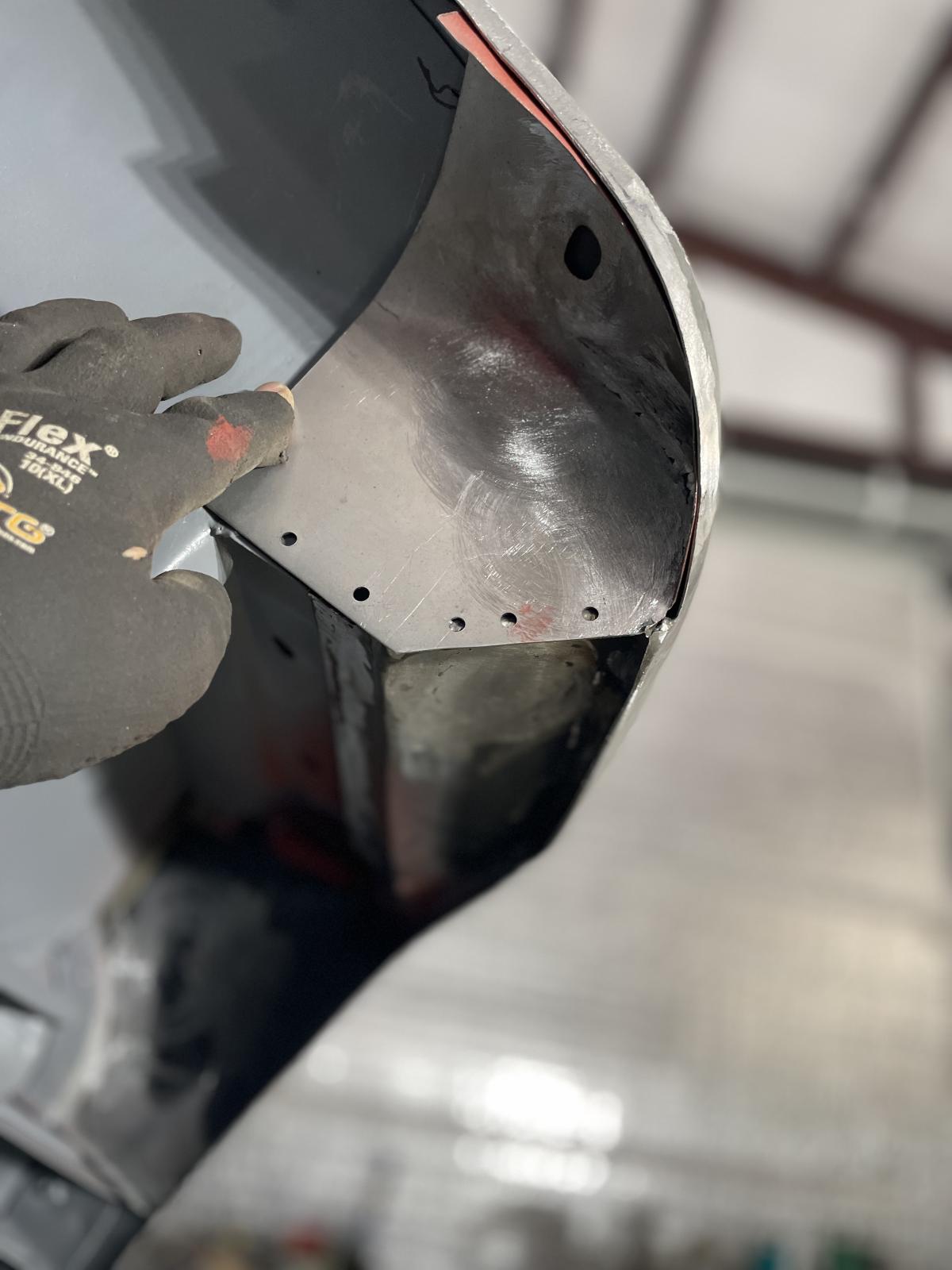

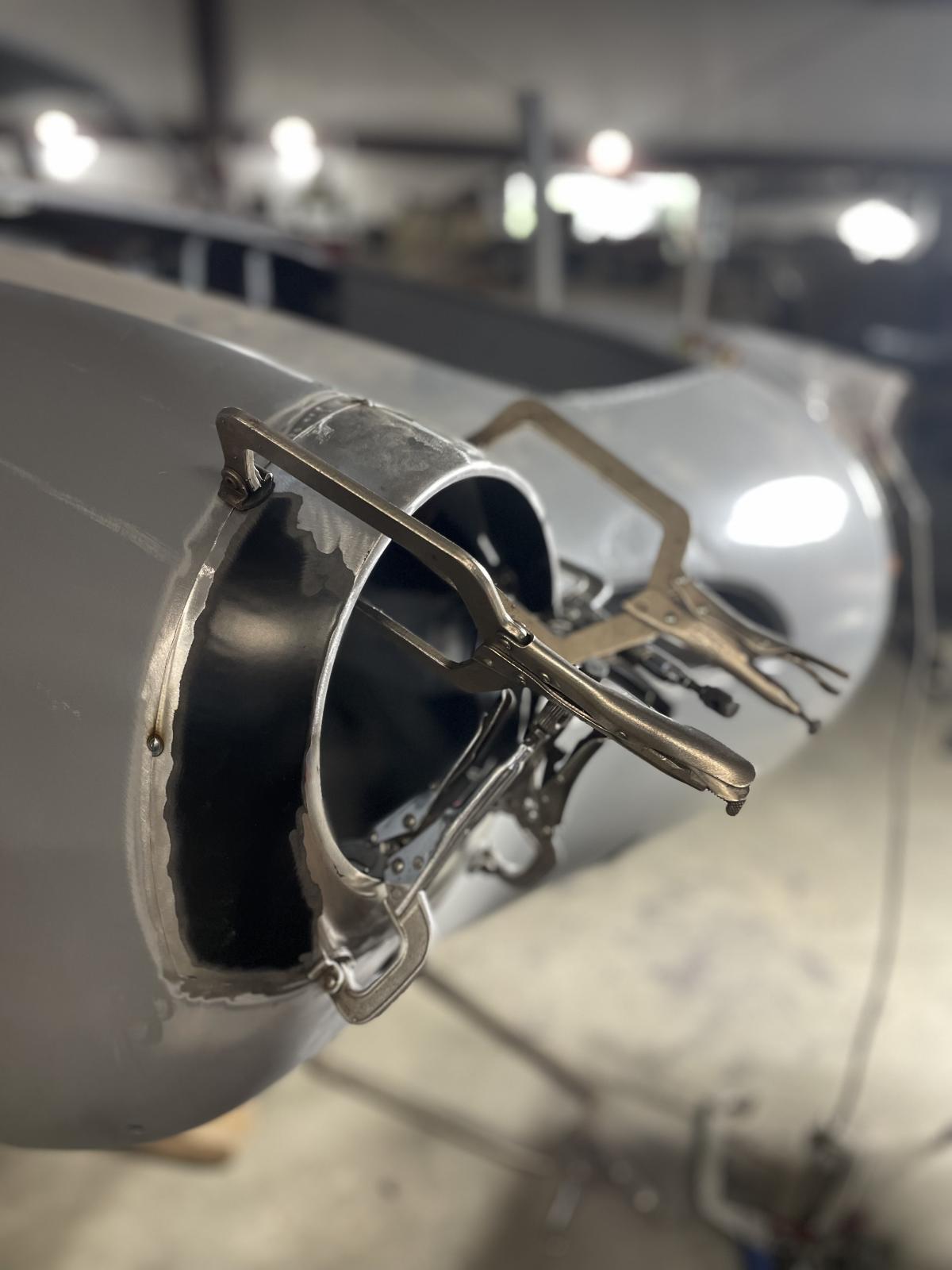

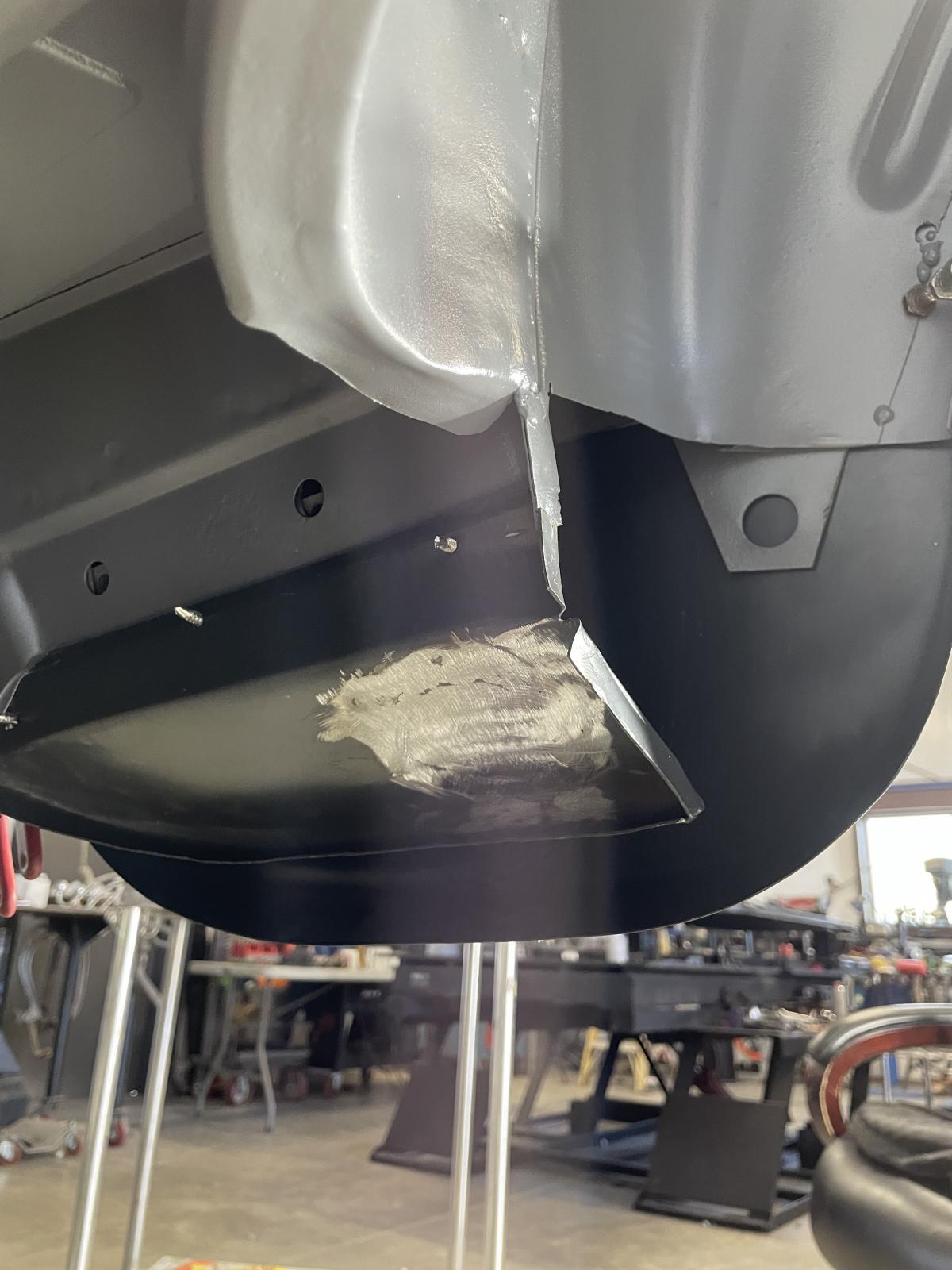

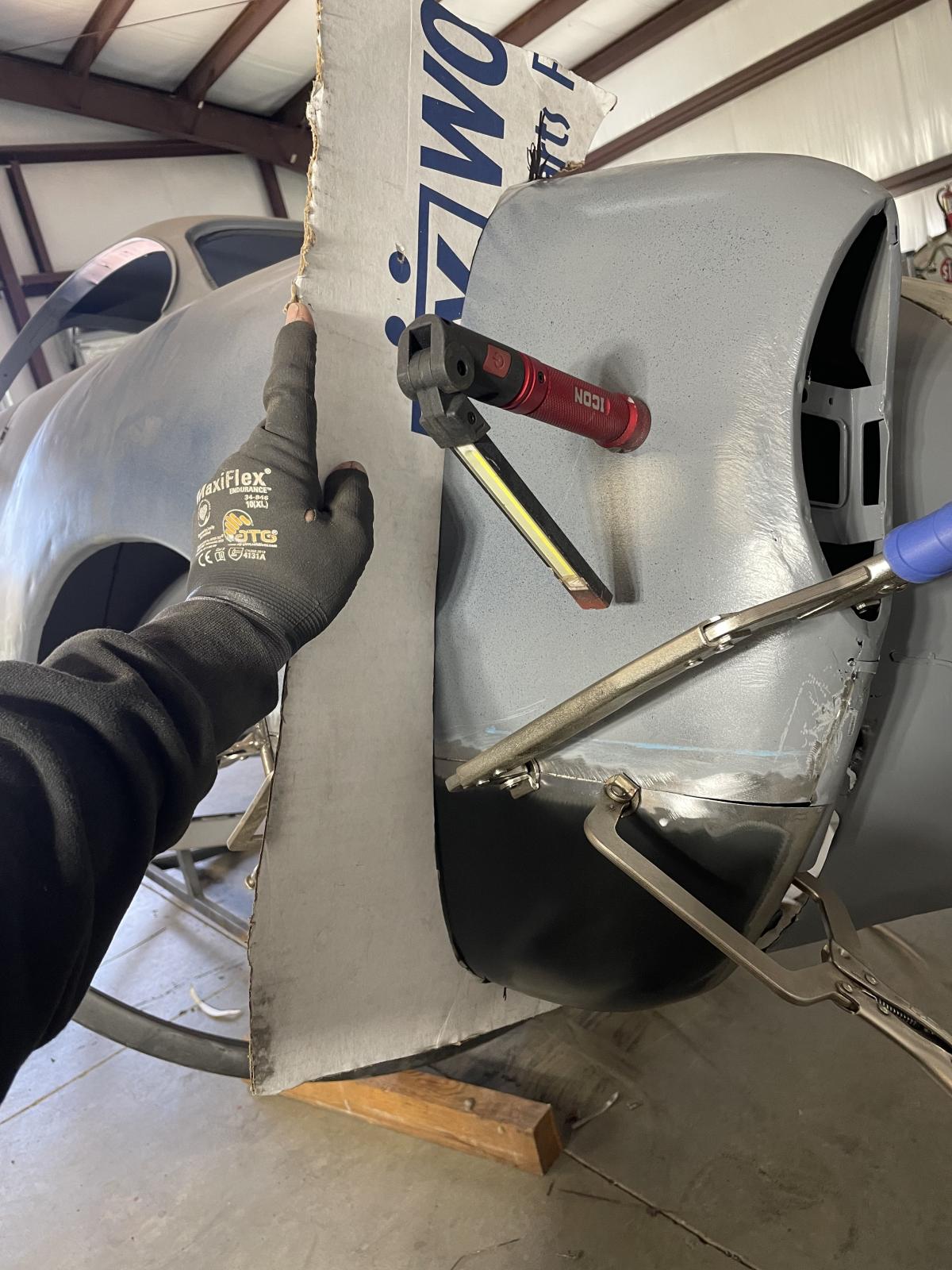

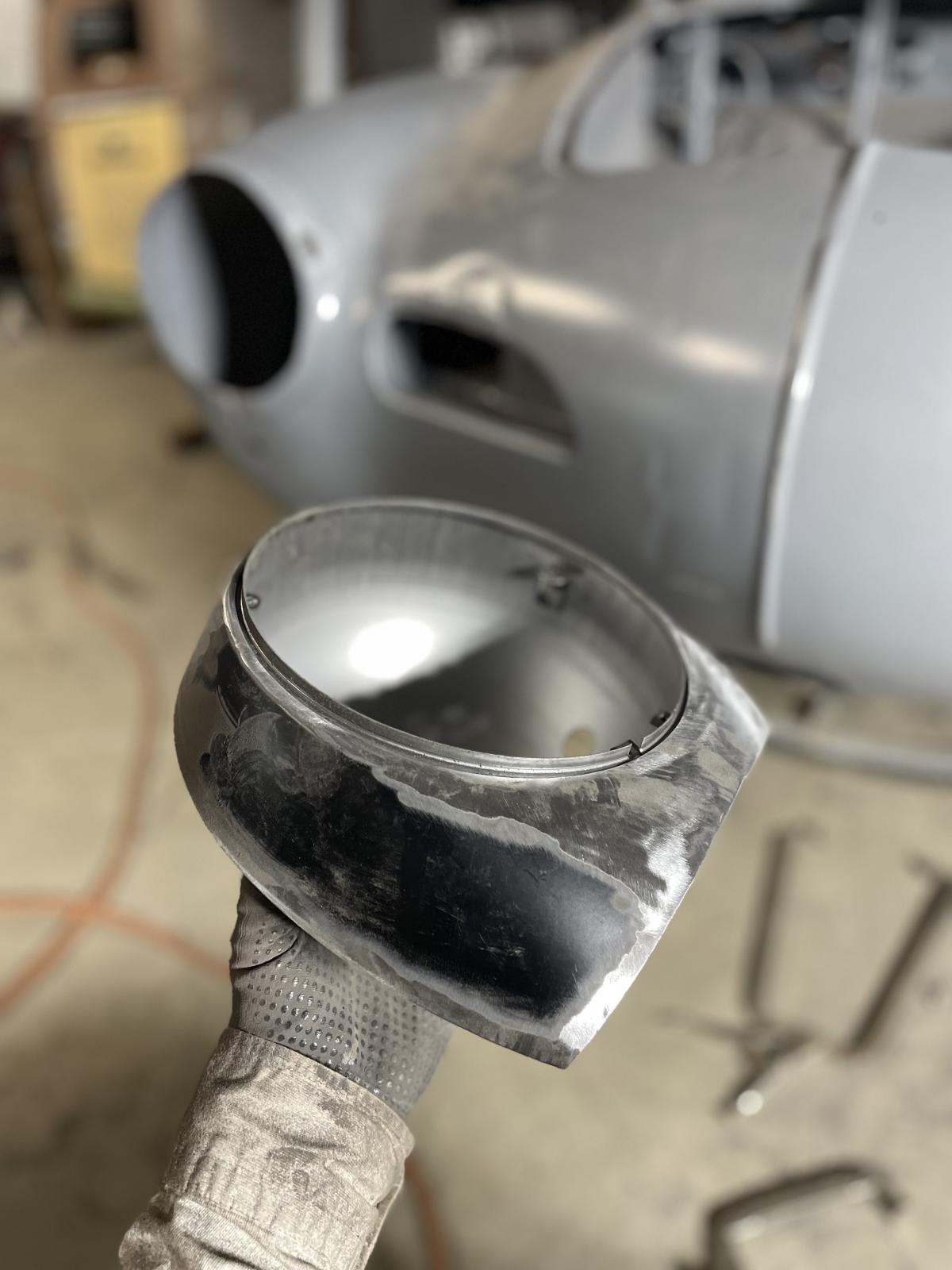

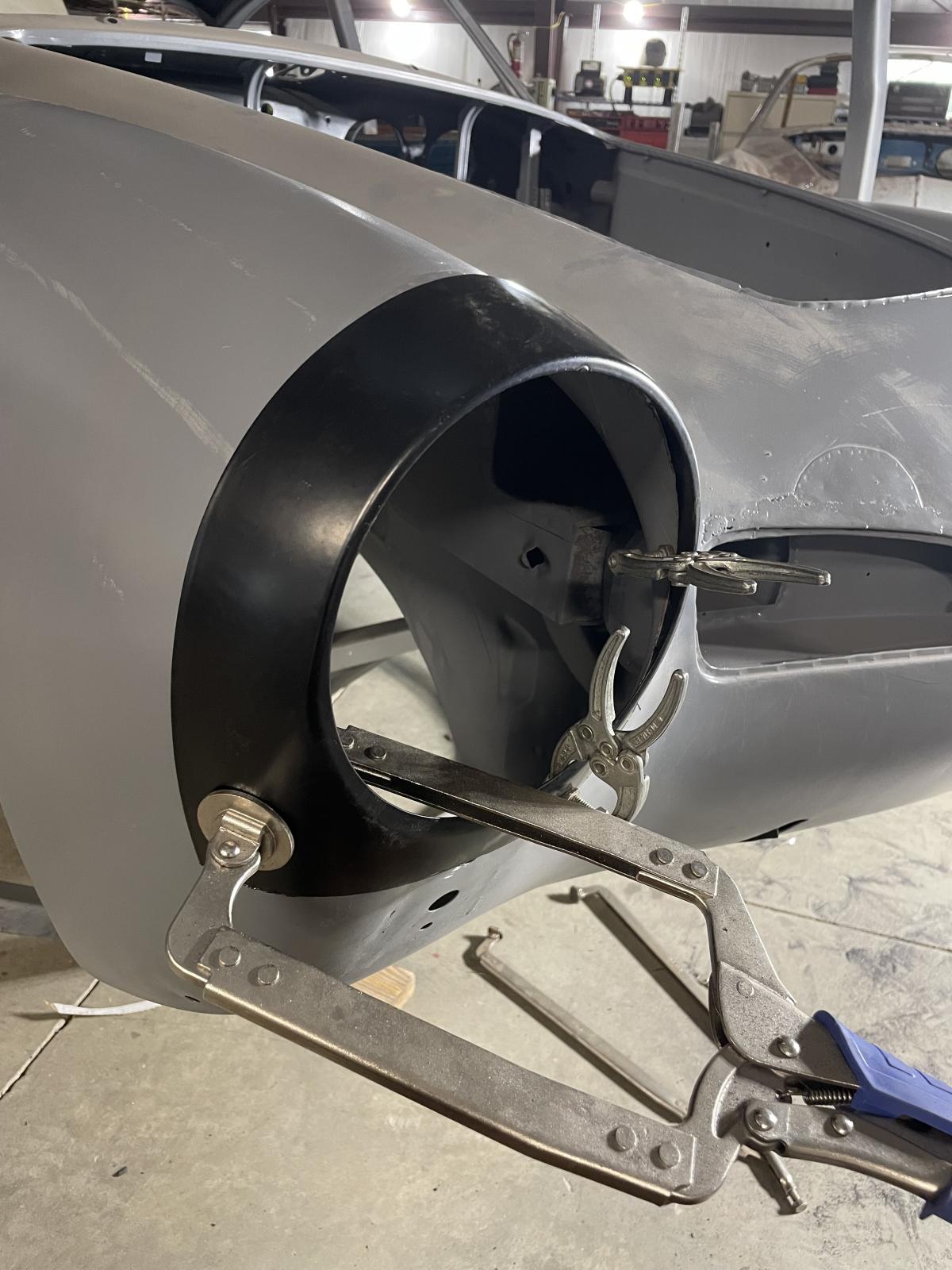

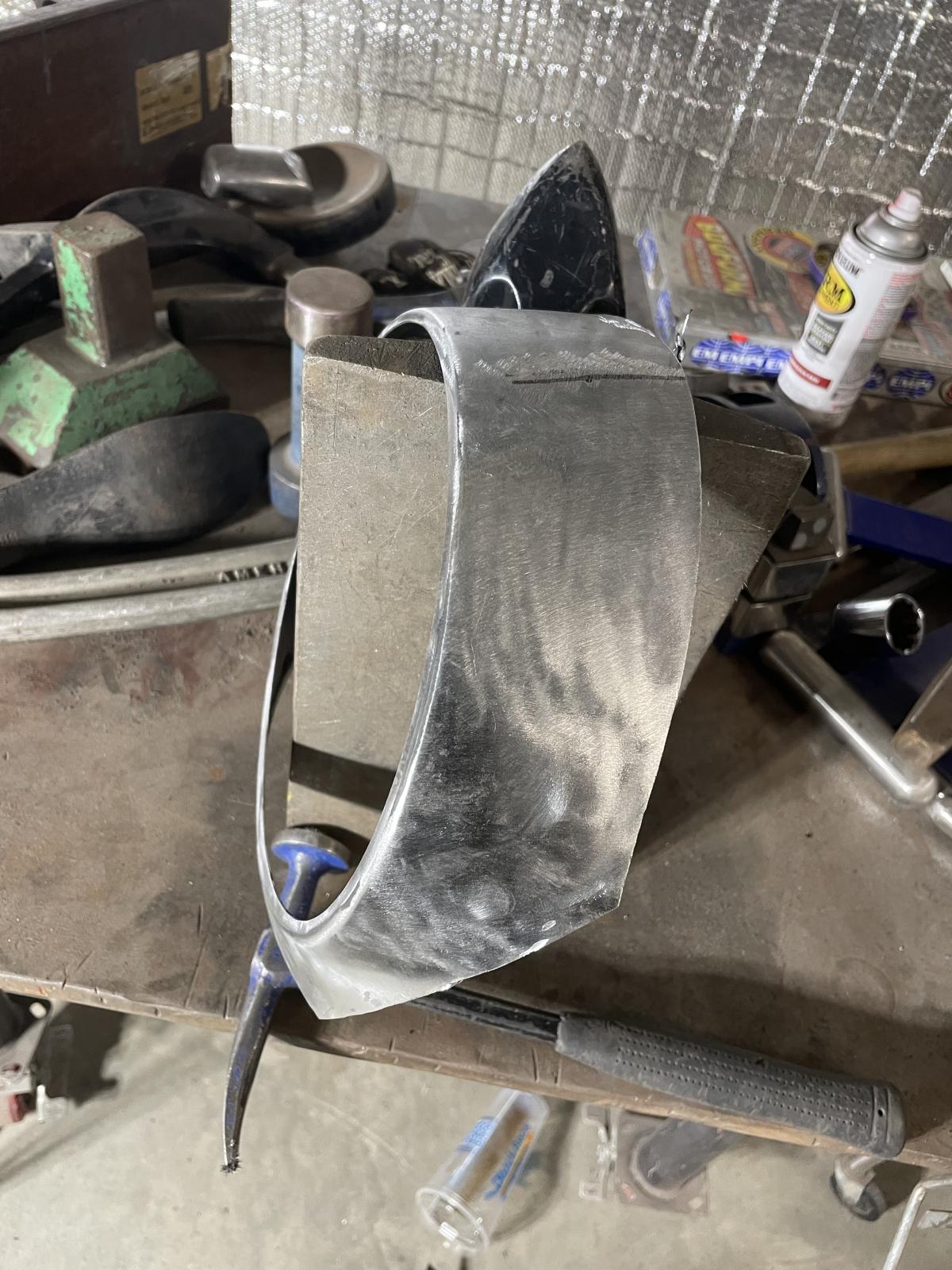

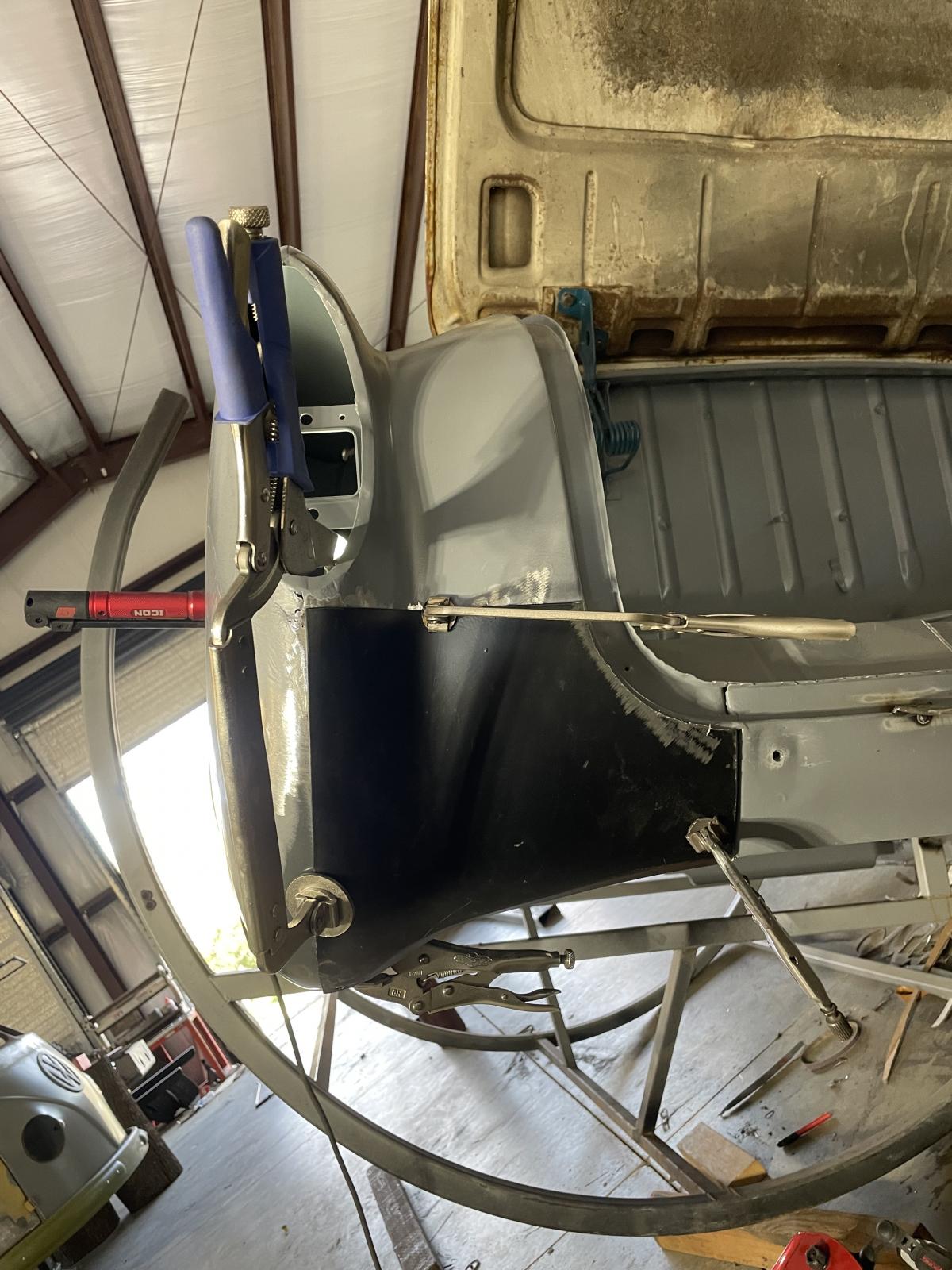

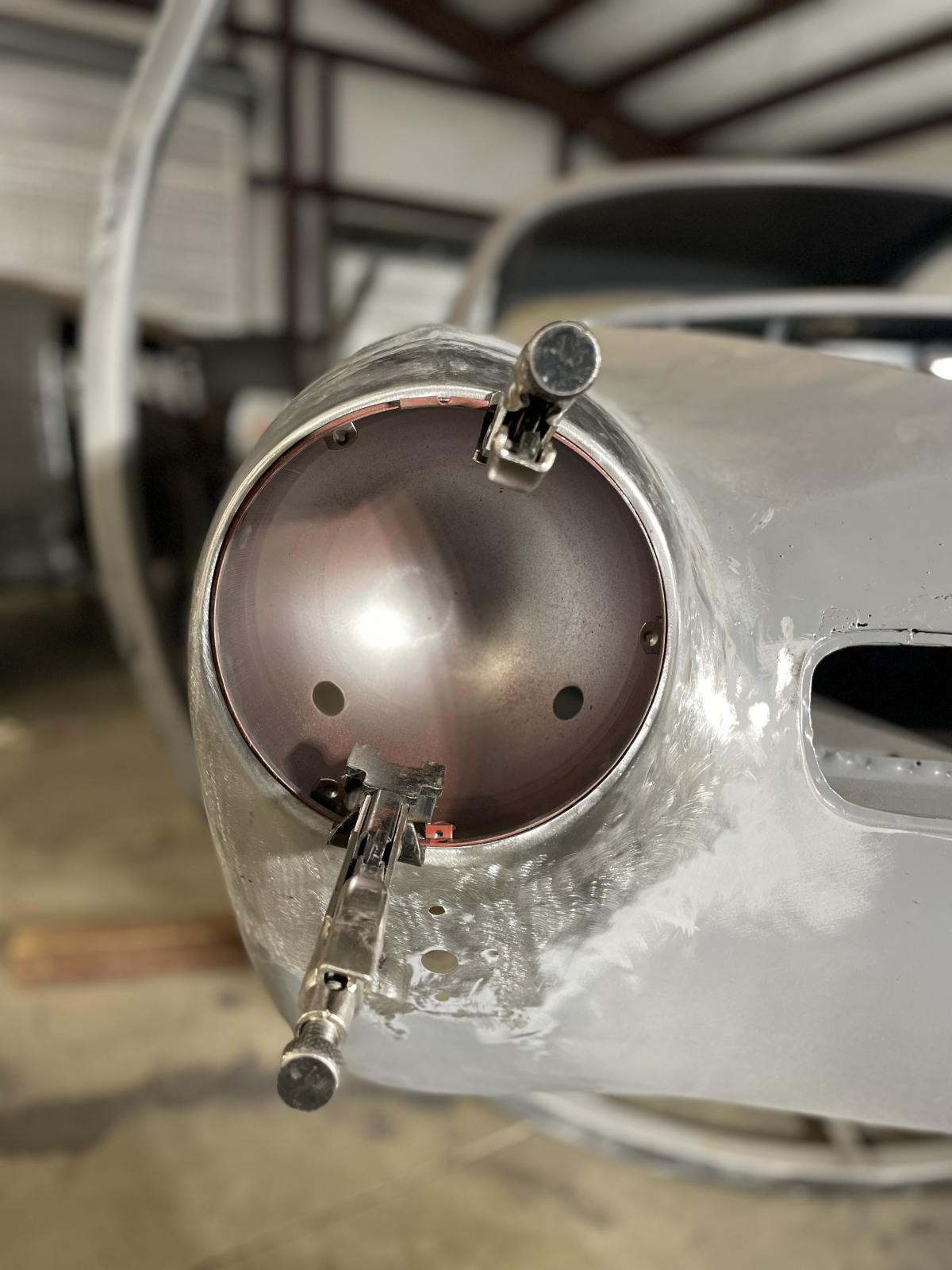

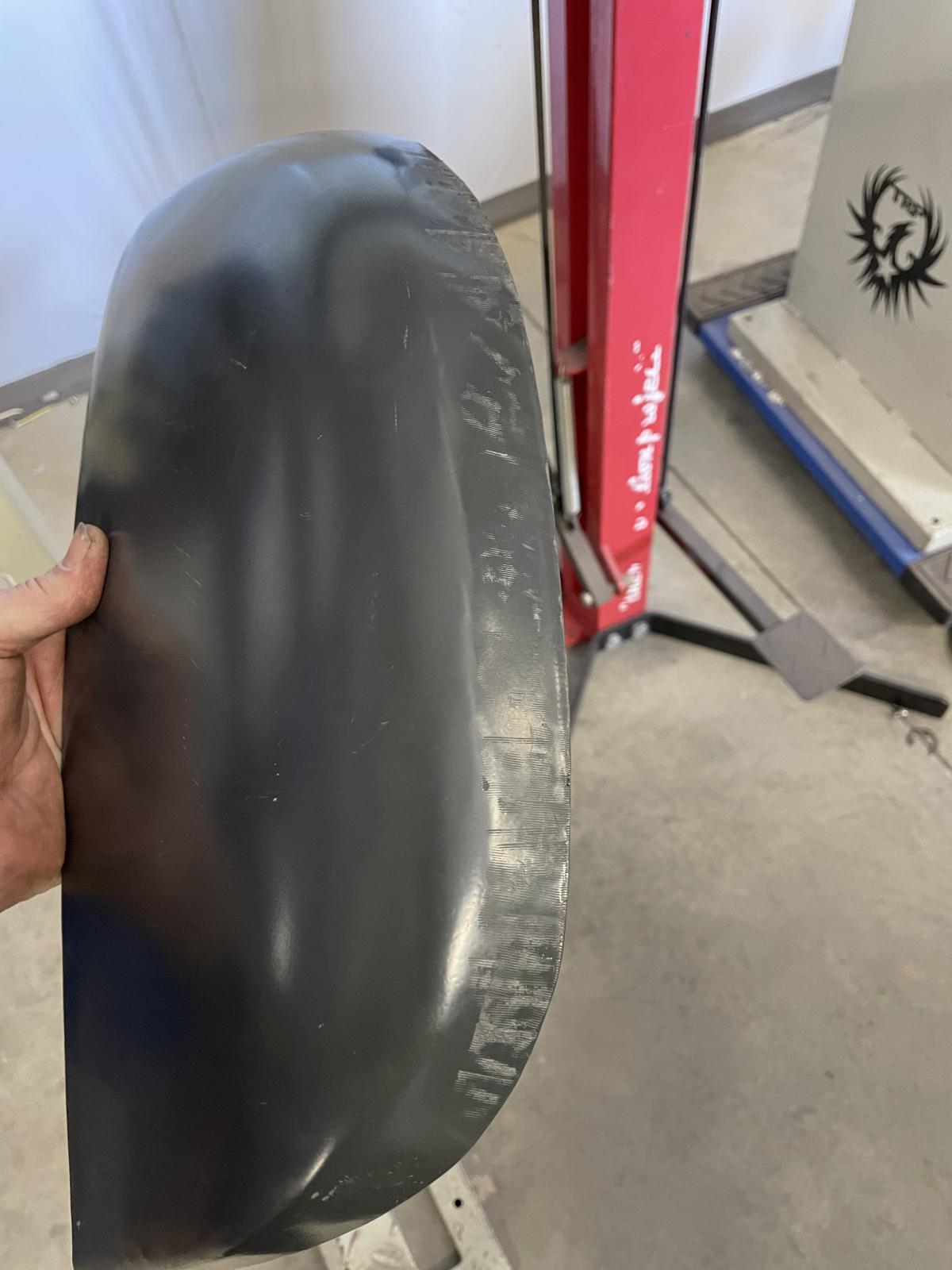

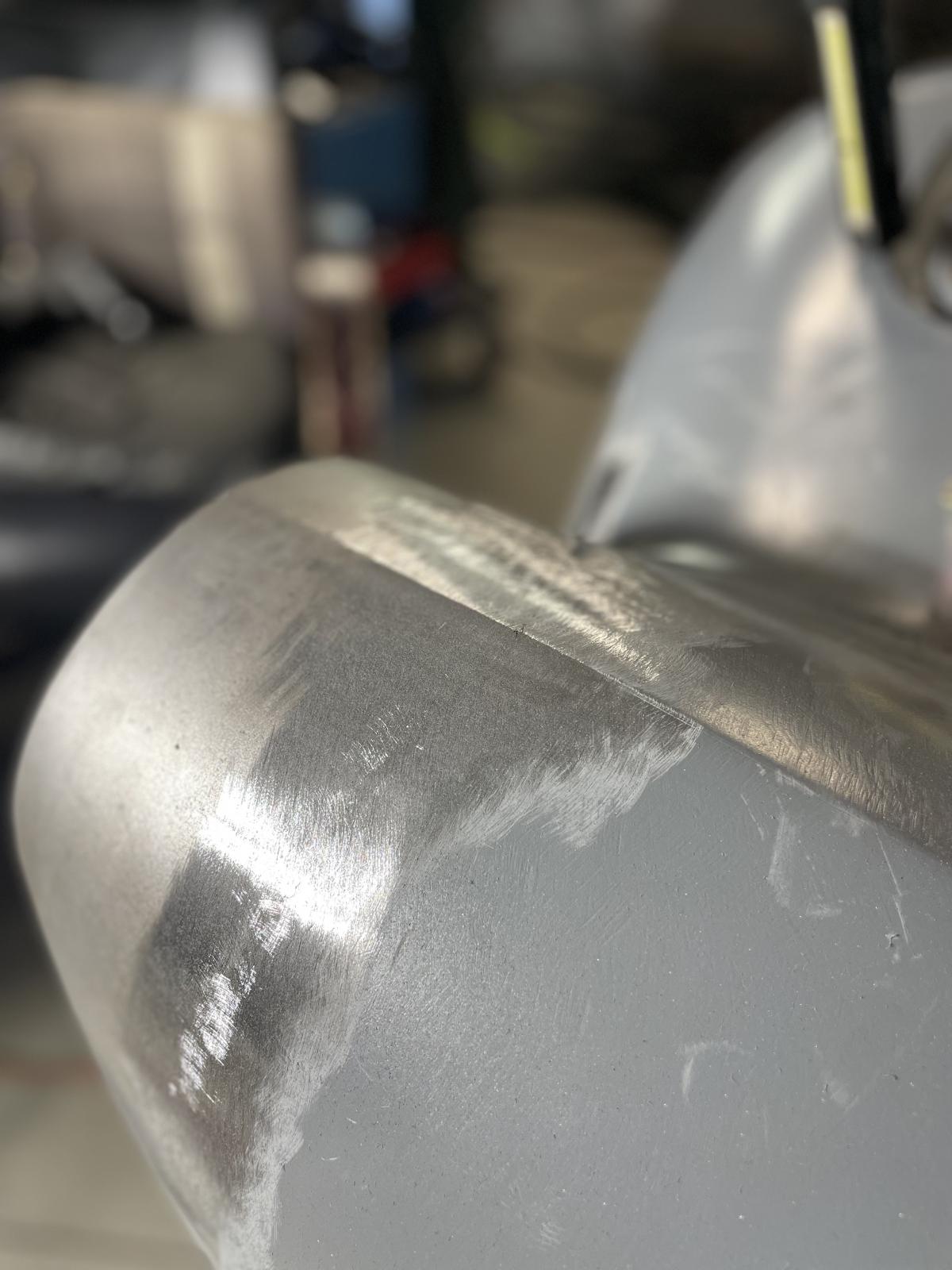

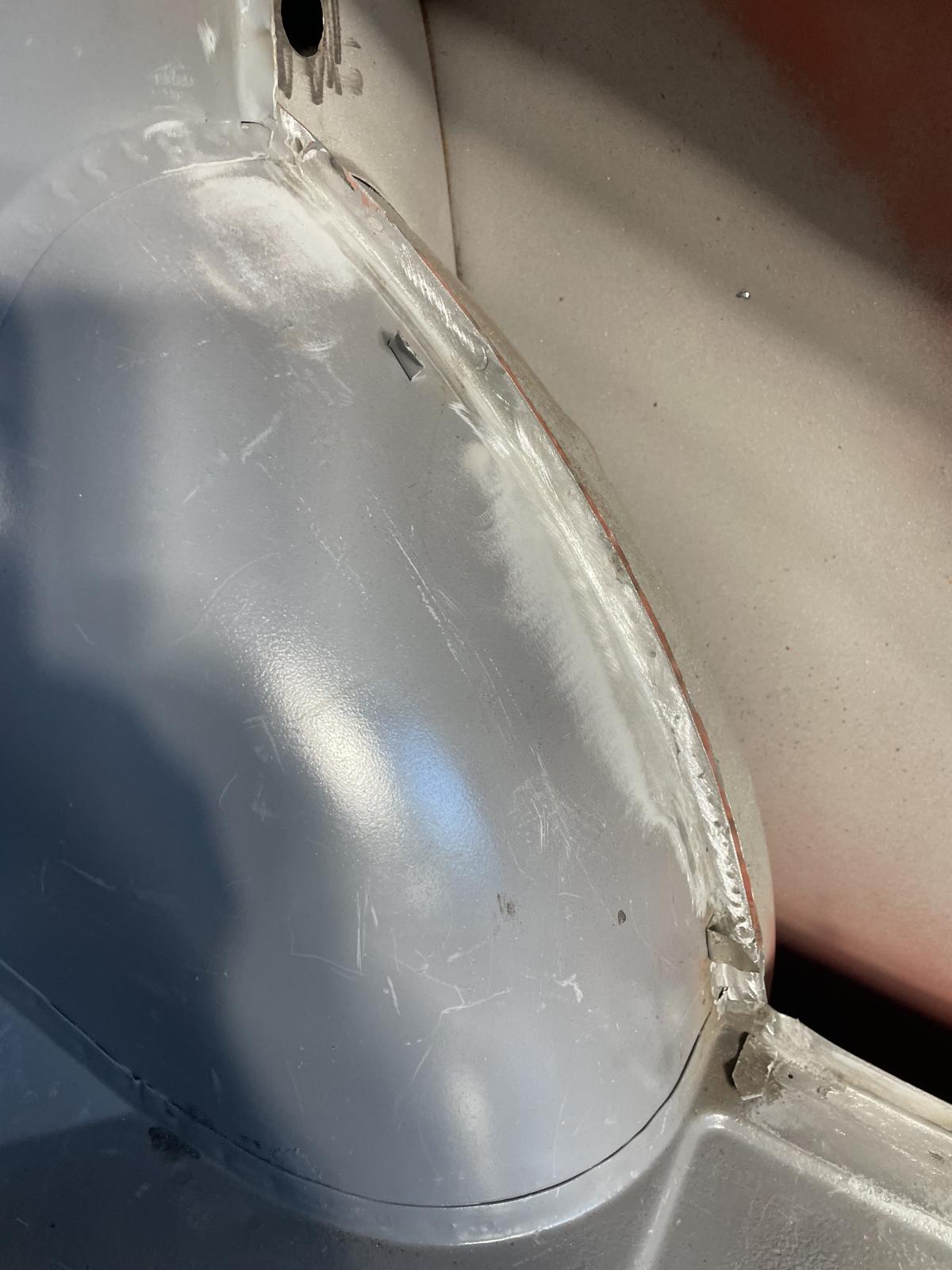

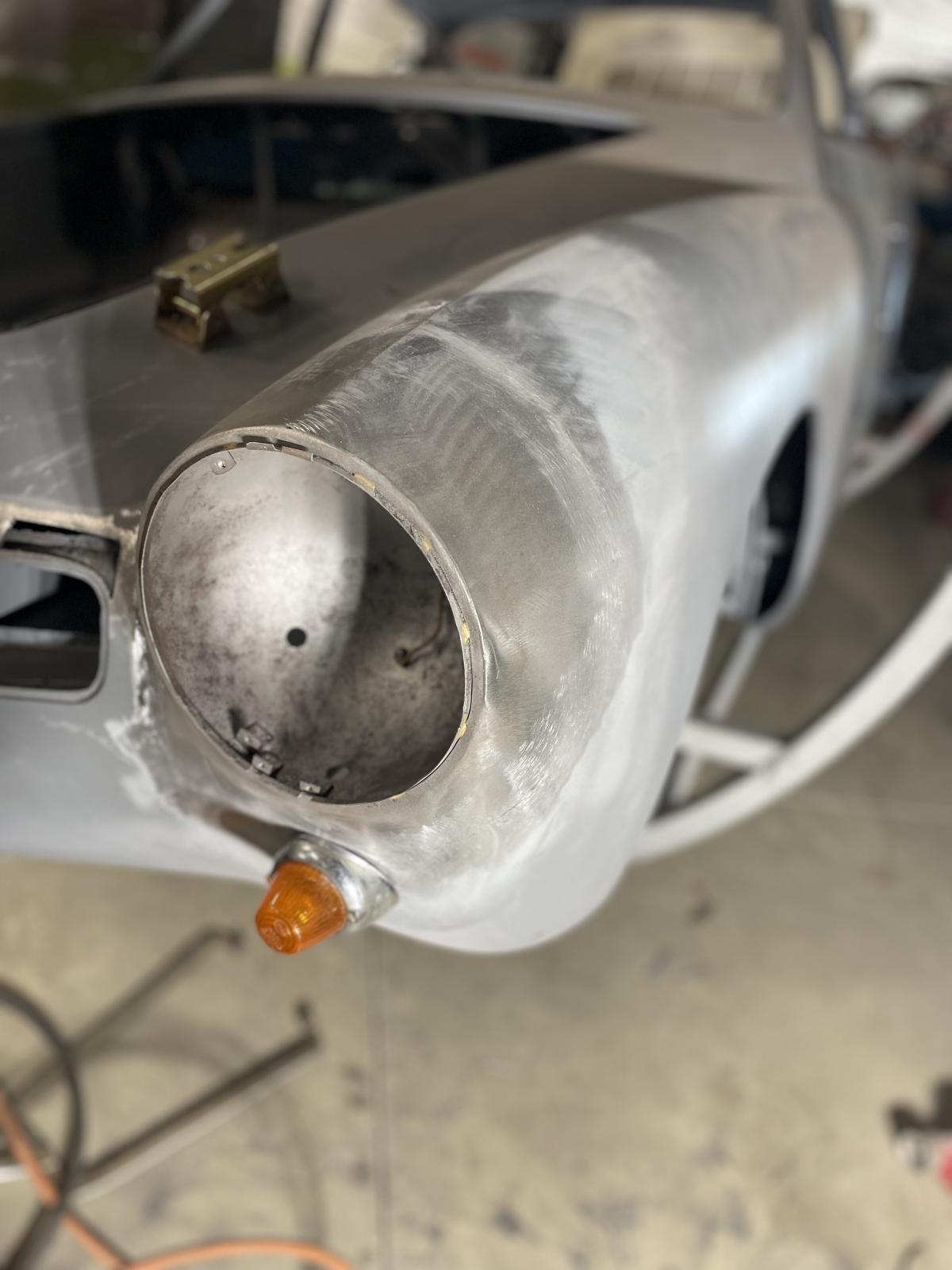

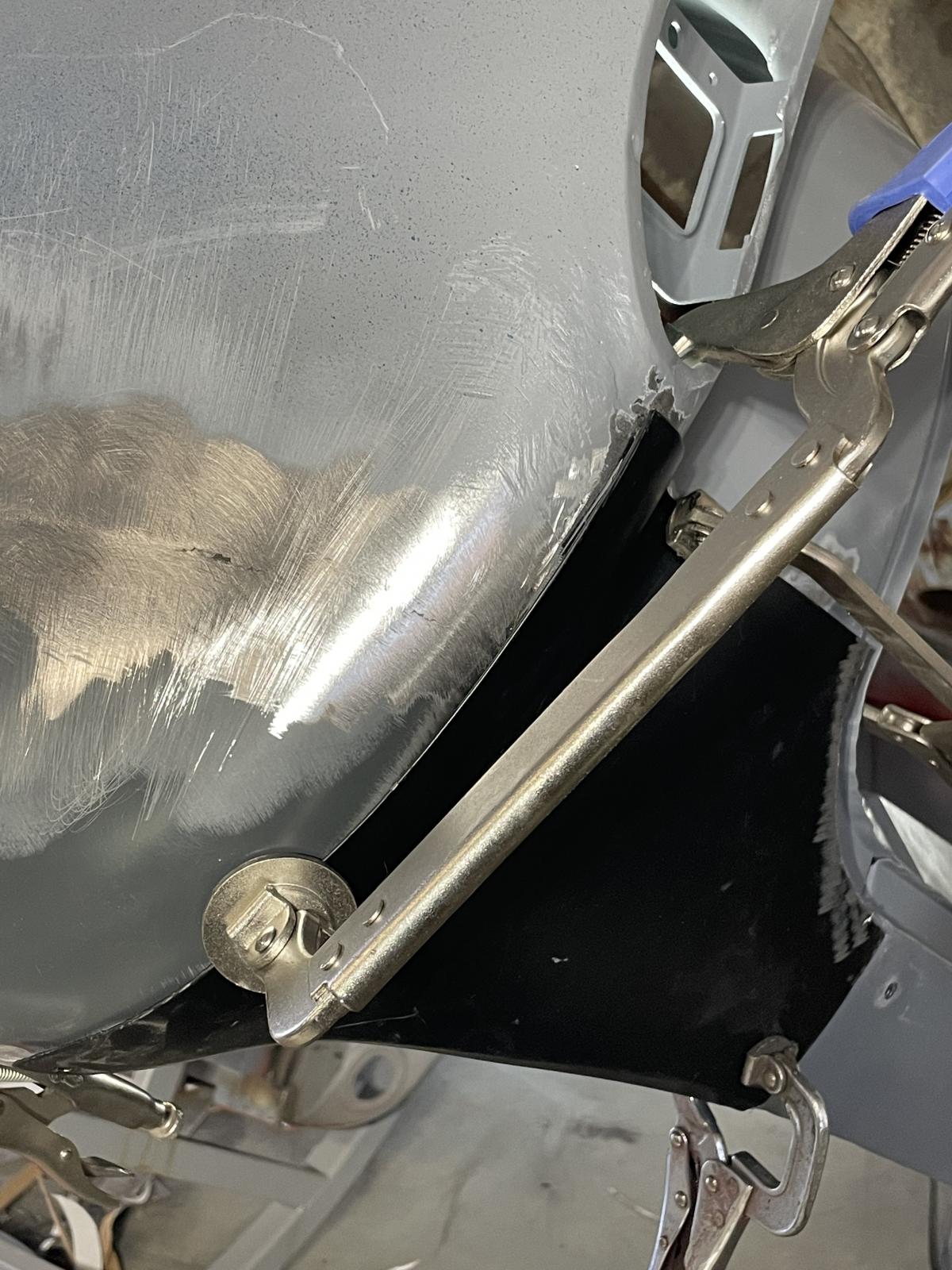

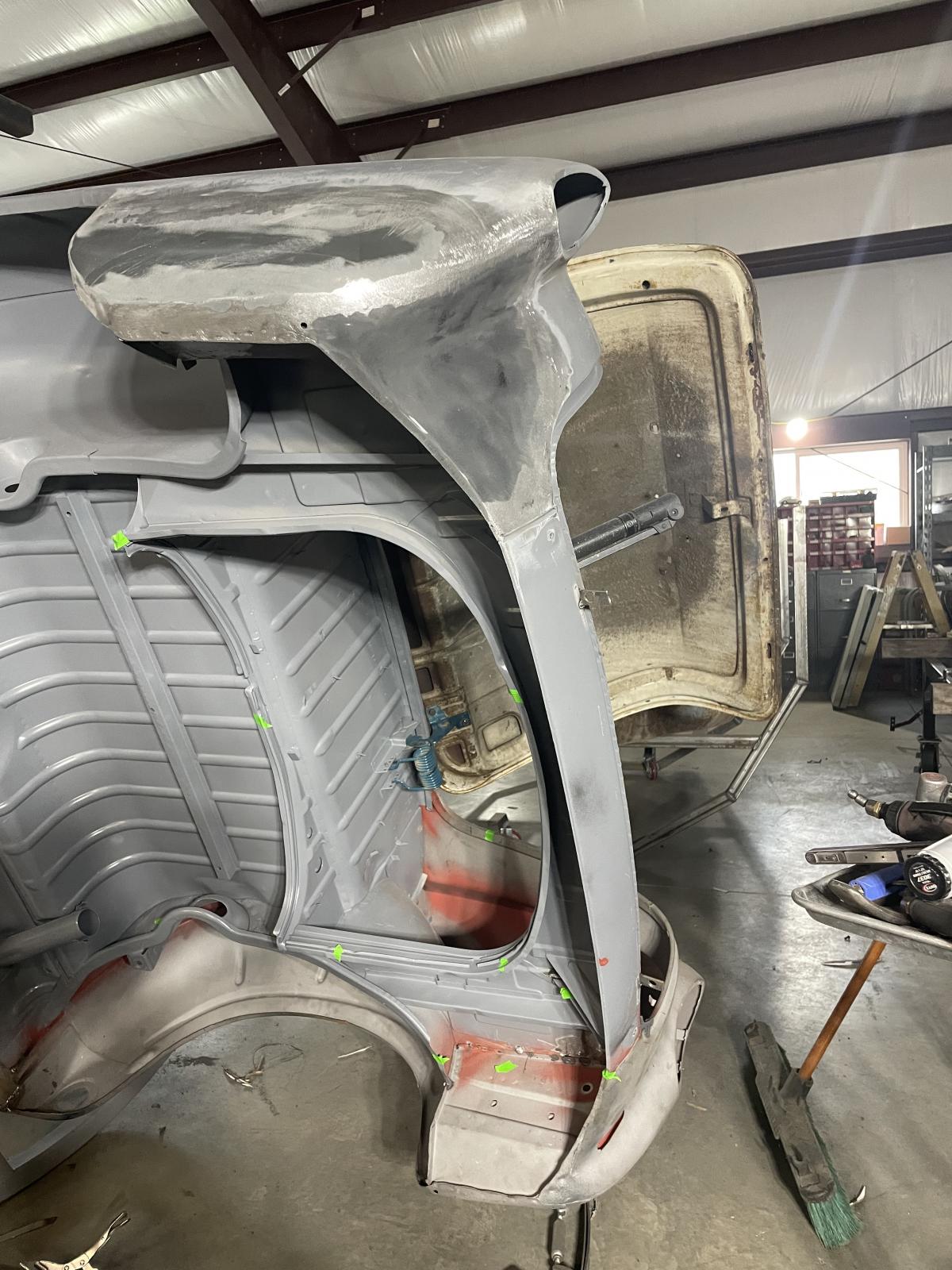

Iâm just about finished with this rear corner area and Iâm looking forward to moving onto the headlight sections. There was a lot to replace here but I was happy that the repop parts played nice , they did not give me much grief.

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Thu Mar 20, 2025 6:17 pm Post subject: Re: 60âs Ghia Metal Restoration

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

WrennMetallWerks · Posted: Fri Mar 21, 2025 7:40 pm Post subject: Re: 60âs Ghia Metal Restoration

_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

chrisflstf · Posted: Sat Mar 22, 2025 8:01 am Post subject: Re: 60âs Ghia Metal Restoration

You are the metal wizard. Do you final welding in Tig or Mig?

WrennMetallWerks · Posted: Sun Mar 23, 2025 2:57 pm Post subject: Re: 60âs Ghia Metal Restoration

^^^ Hey there^^^

Thanks for that.

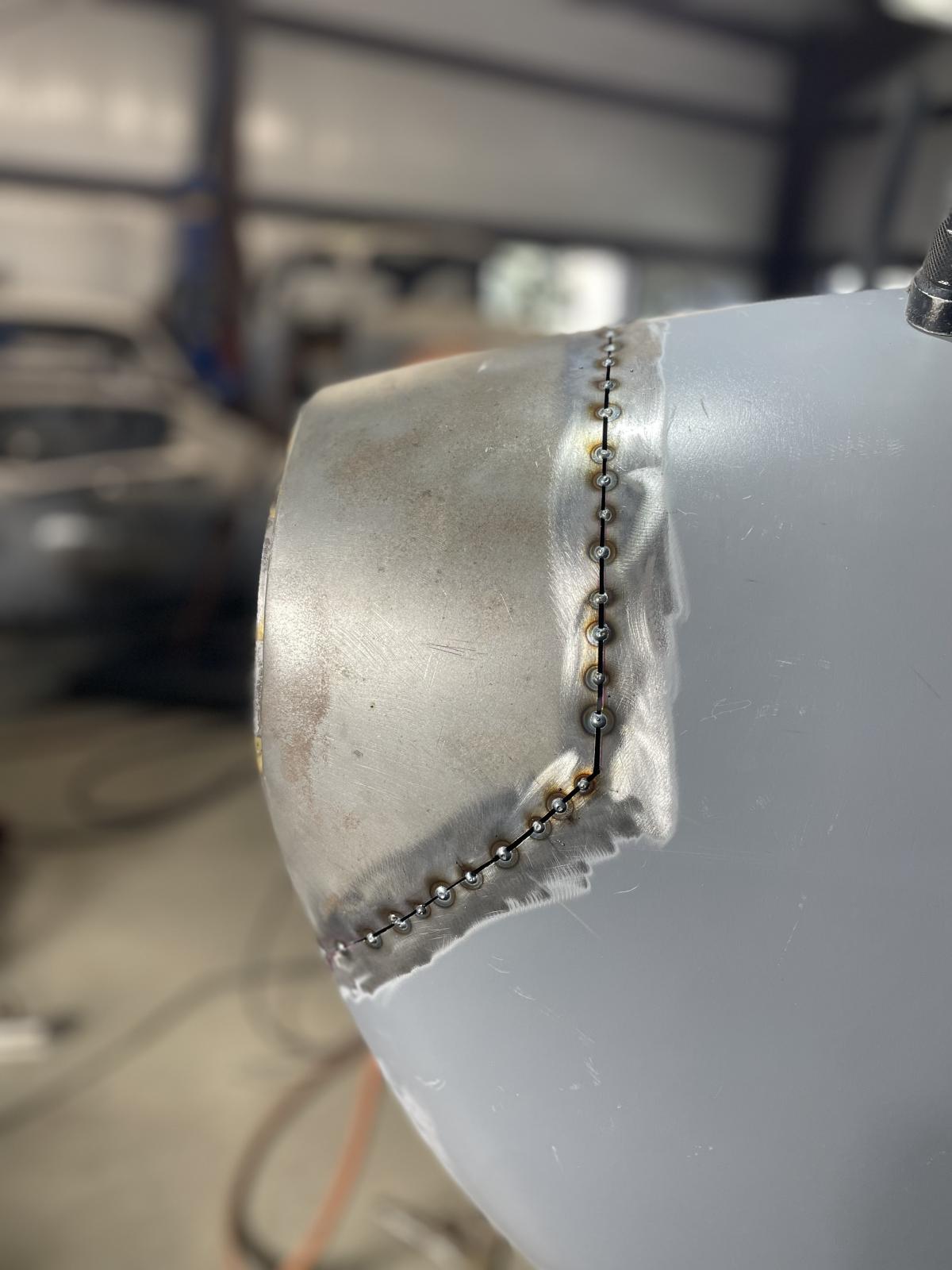

I have chosen to do a MiG Stitch Weld process. I discovered that when I Tig panels they need way too much hammer and dolly work afterwards. The typical process for Tig is just too hot for these cars in my opinion. If you try to Stitch Weld with a Tig machine to reduce the heat introduced into the panel it is slow and tricky to boot. Often when folks Tig they run a bead and warp the heck out of the panel just to go back and beat it back into submission. Tig is fun and very popular to watch these days and see posted online but at the end of the day it think it takes more time and energy, Many would probably disagree with my opinion but I have found it to be true for myself.
_________________
⚒ Believe In The Power Of Positive Thinking ⚒

Purpose Over Pleasure 🕊

âHard Werk ⚒ God First
https://music.youtube.com/watch?v=_aoE5aYSutY&si=mkZKPxd_41QA1kfs
https://music.youtube.com/watch?v=_NzUyyVexAE&feature=share
https://music.youtube.com/watch?v=UI8yUrIWS7E&feature=share

chrisflstf · Posted: Mon Mar 24, 2025 3:40 pm Post subject: Re: 60âs Ghia Metal Restoration

cool, thanks for the answer. I just recently learned stitch welding with my Miller 211 and Ive made my best welds with it! Very Happy
