The transport company is delivering our '72 Ghia Coupe today. We're pretty excited!

I want to do a basic tune up and replace the fluids right out of the gate (the transmission fluid debate post was very enlightening and entertaining ). But I've noticed there are different distributors, and being new to VW's I'd like to ask a couple of dumb questions.

First, I noticed there are ignition parts available for several distributor types - 009, 050, and stock Bosch. How do you identify which distributor you have?

Second, I also noticed references on the vendor sites to Type 1 and Type 3 engines. What's the story on this, and how do you ID?

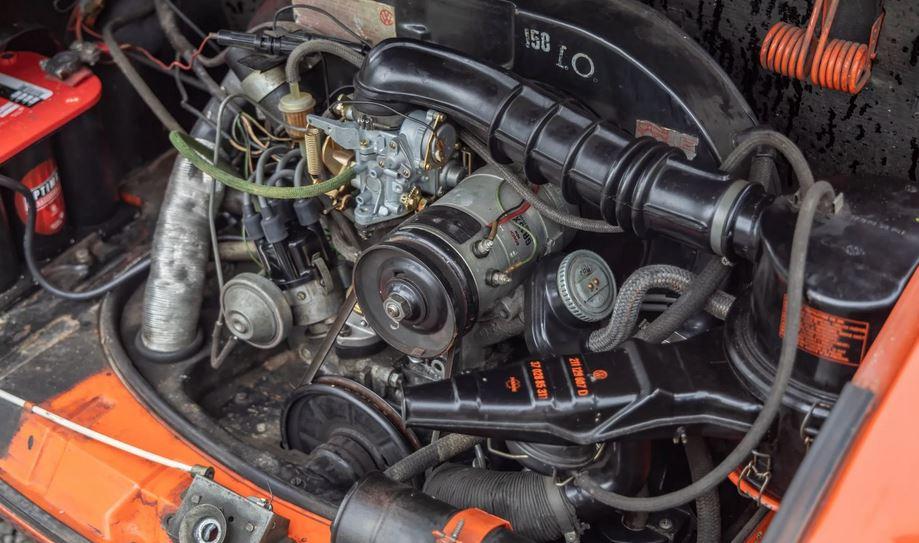

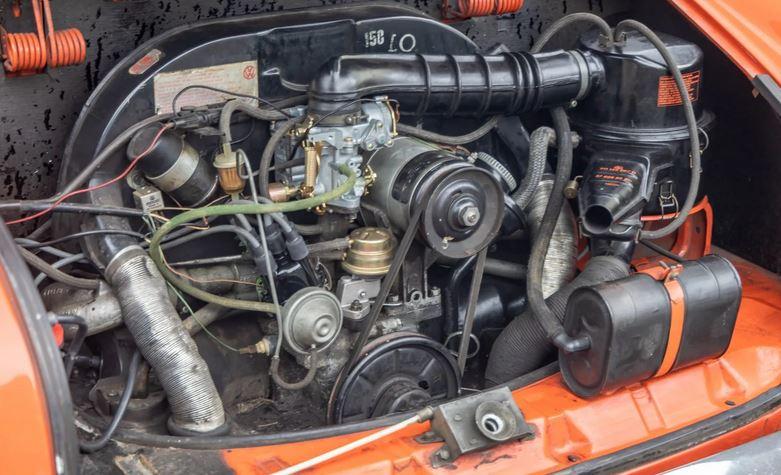

I've included engine bay pics from the BAT listing, since the car hasn't arrived yet. Thanks in advance for helping a VW rookie!

[Glenn]

You have a Type 1 dual port engine. The carb and distributor will have part number on the side of them.

Yours looks to be the correct one foe your year, a DVDA, meaning it has both vacuum advance and retard along with mechanical advance.

Double check the distributor number but it looks to be a 113-905-205AN.

Here's the tune up parts it uses:
Points: 01 011
Condensor: 02 054
Cap: 03 010
Rotor: 04 033

Spark plugs are Bosch W8AC or equivalent, 1/2" reach 14mm
Spark plug wires a Bosch 09001 or equivalent

Engine oil depends on condition of the engine. Either a 10W30 or 10W40
Gear lube is Valvoline 80W90 GL5
Brake Fluid is DOT 4

Get the Bentley shop manual, it has tons of info.

And welcome to the club.

------------------------------------------------------

WARNING!!!!

Do something with the fuel filter.

no clamps
replace with a metal filter
Move out of the engine compartment and under by the transaxle if possible.

Too many car fires have occurred on cars with exactly what you have. Plastic cracks, no clamps and right about the spark plug wires.

Gas and spark = FIRE.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי

[Era Vulgaris]

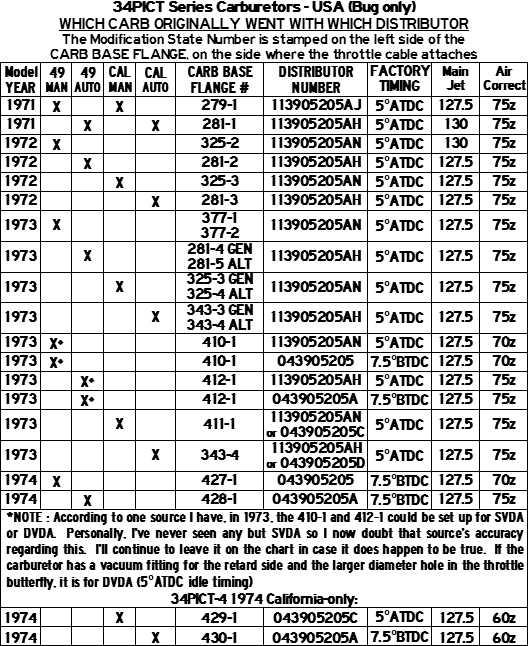

One thing to be aware of with your DVDA distributor, is that it requires a DVDA-compatible version of the 34pict-3 carb to get maximum performance. The DVDA-compatible version has a larger size hole in the throttle butterfly, and you can determine if it is compatible or not by the base flange number on the carb. Alot of people poo-poo the DVDA because they're trying to run it with an SVDA-compatible version of the 34pict-3.

I can't quite tell from the pic, but it looks like you might have an aftermarket replacement carb. If so, it might be worthwhile for you to track down the correct carb for your DVDA distributor. If you find one that needs rebuilding, contact Volkzbitz.com

Any carb that matches with the 205AN will work

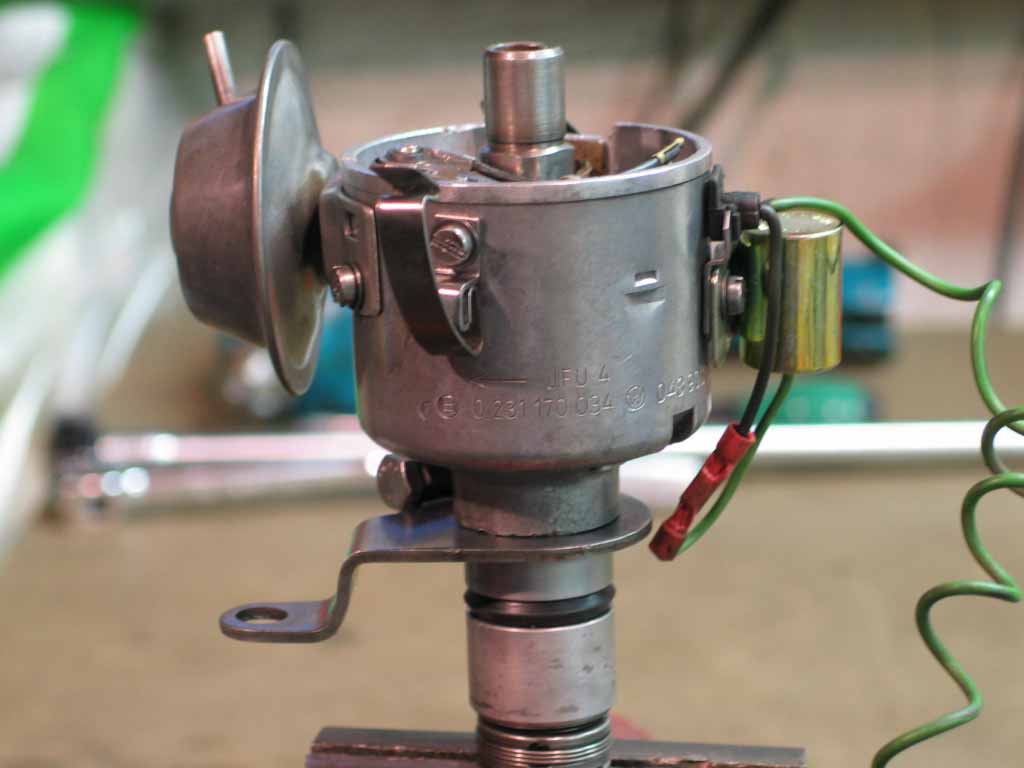

Or conversely, you could pic up an original German Bosch 034 SVDA to go with that carb you have. Several folks in the classifieds rebuild them if need be. Don't buy an aftermarket SVDA though. The advance curve from the aftermarket vac canisters aren't the same as original.
