 Posted: Sun Jul 09, 2023 6:48 am Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
 |
|
Thatâs a drag about the brakes, but I never fault my cars if they break down near the house!
I would suspect a collapsed rubber line, they tend to fail internally letting pressure in but not out, but that usually wouldnât result in no pedal, just the opposite. Keep us posted.
_________________
Go Reds! Smash state!
Retirement is here!
1960 double cab
1960 Baja Bug
1963 stretched double cab
1962 Golde sunroof Ghia
1963 356 B coupe
1963 Notchback
1967 21 window less rusty now
1989 Westfalia |
|
| Back to top |
|
 |
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Sun Jul 09, 2023 2:13 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
| Braukuche wrote: |
Thatâs a drag about the brakes, but I never fault my cars if they break down near the house!
I would suspect a collapsed rubber line, they tend to fail internally letting pressure in but not out, but that usually wouldnât result in no pedal, just the opposite. Keep us posted. |
Cheers Braukuche, it did happen after a spell of quite heavy braking, so I think the hot fluid had vaporised water and the pedal was just really spongy. My friend came to help me fix the problem and he had a brake fluid moisture tester and the fluid had a high % of water.

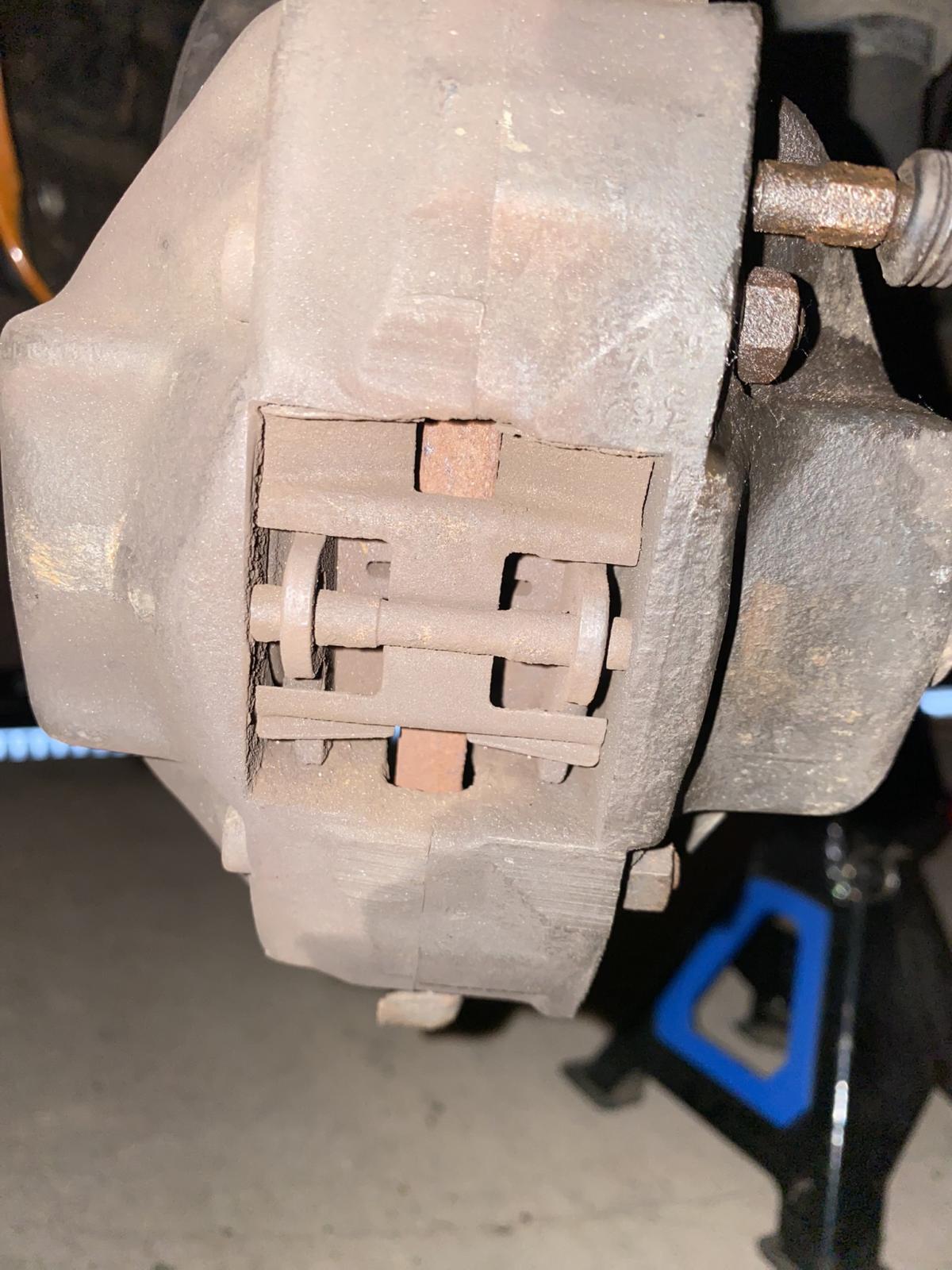

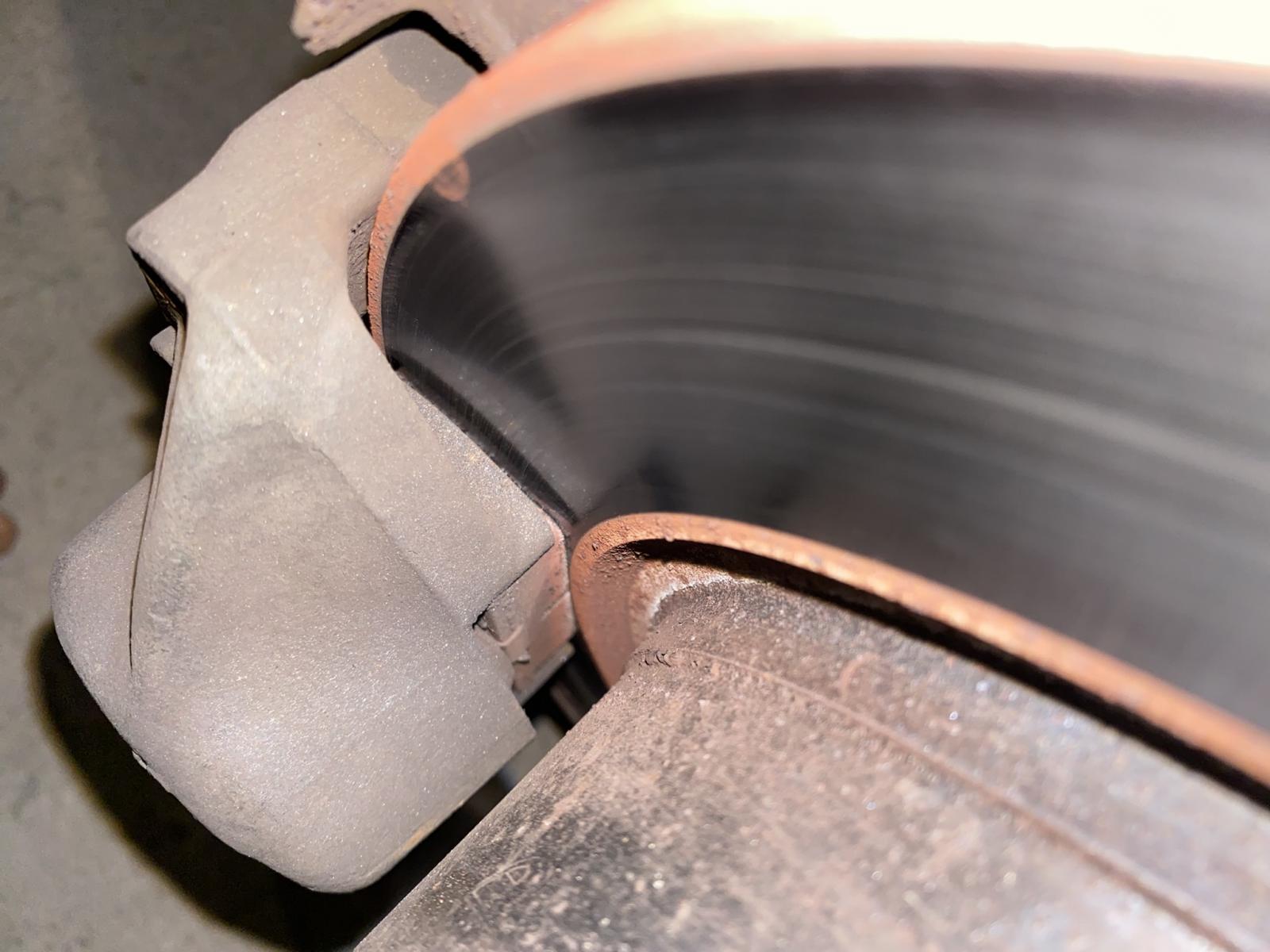

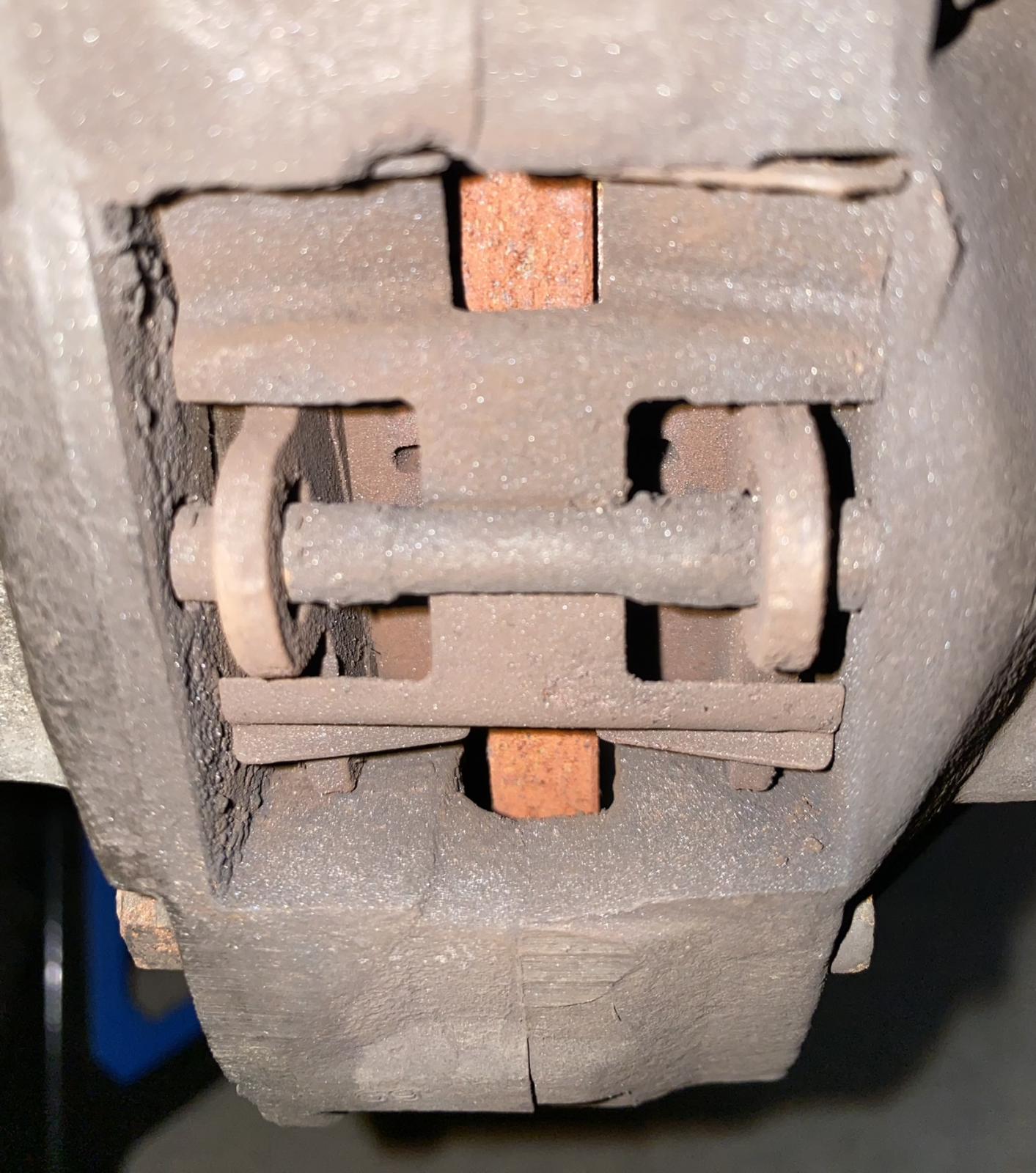

We inspected the discs, which were actually ok and we cleaned up the pads, pins and springs and lubricated everything. The dust seals on the pistons were ripped, so I have ordered a caliper rebuild kit. The pads etc were all moving much more freely afterwards so I was happy to carry on using the car in the meantime until I can rebuild the calipers later in the year.

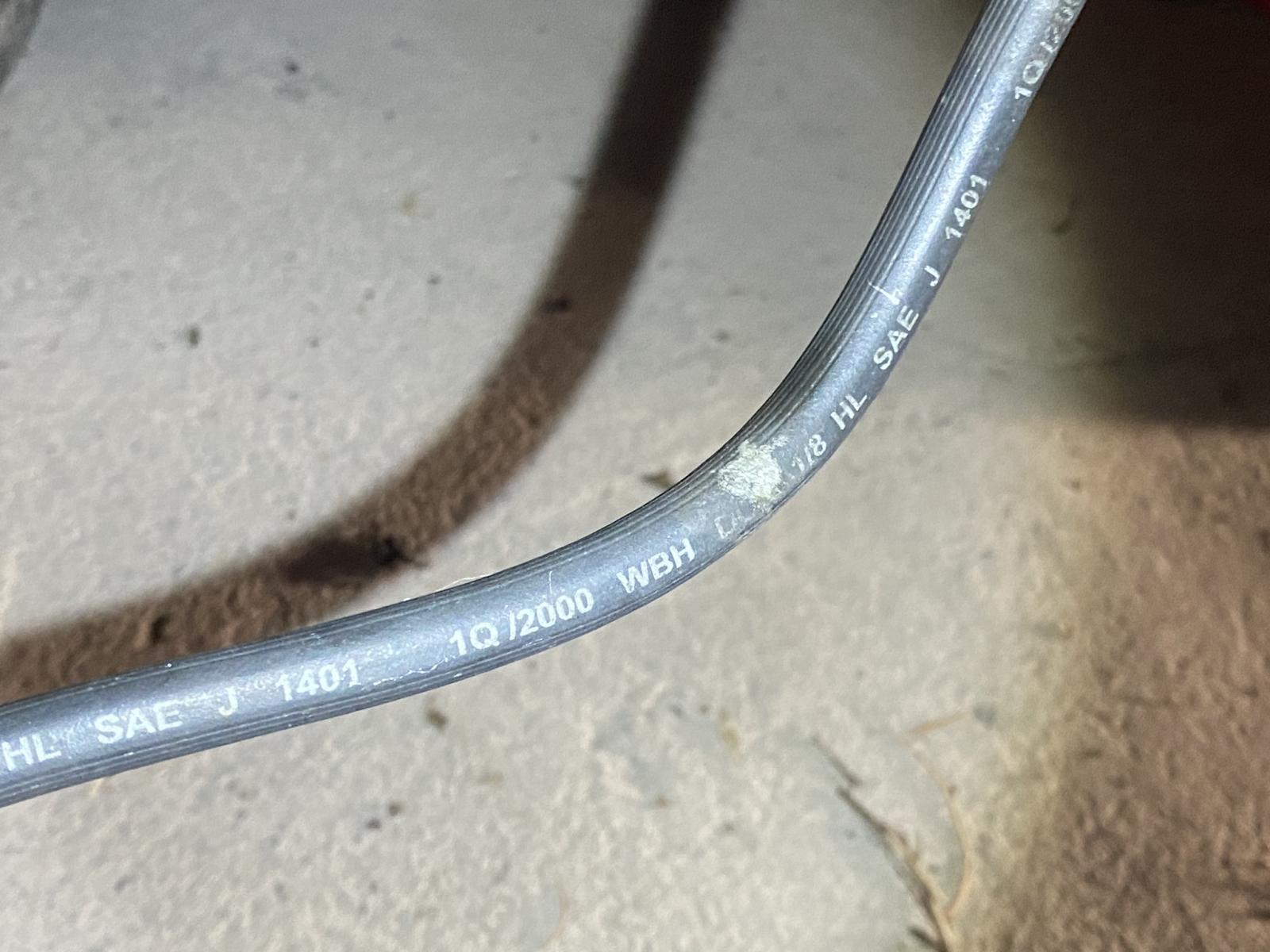

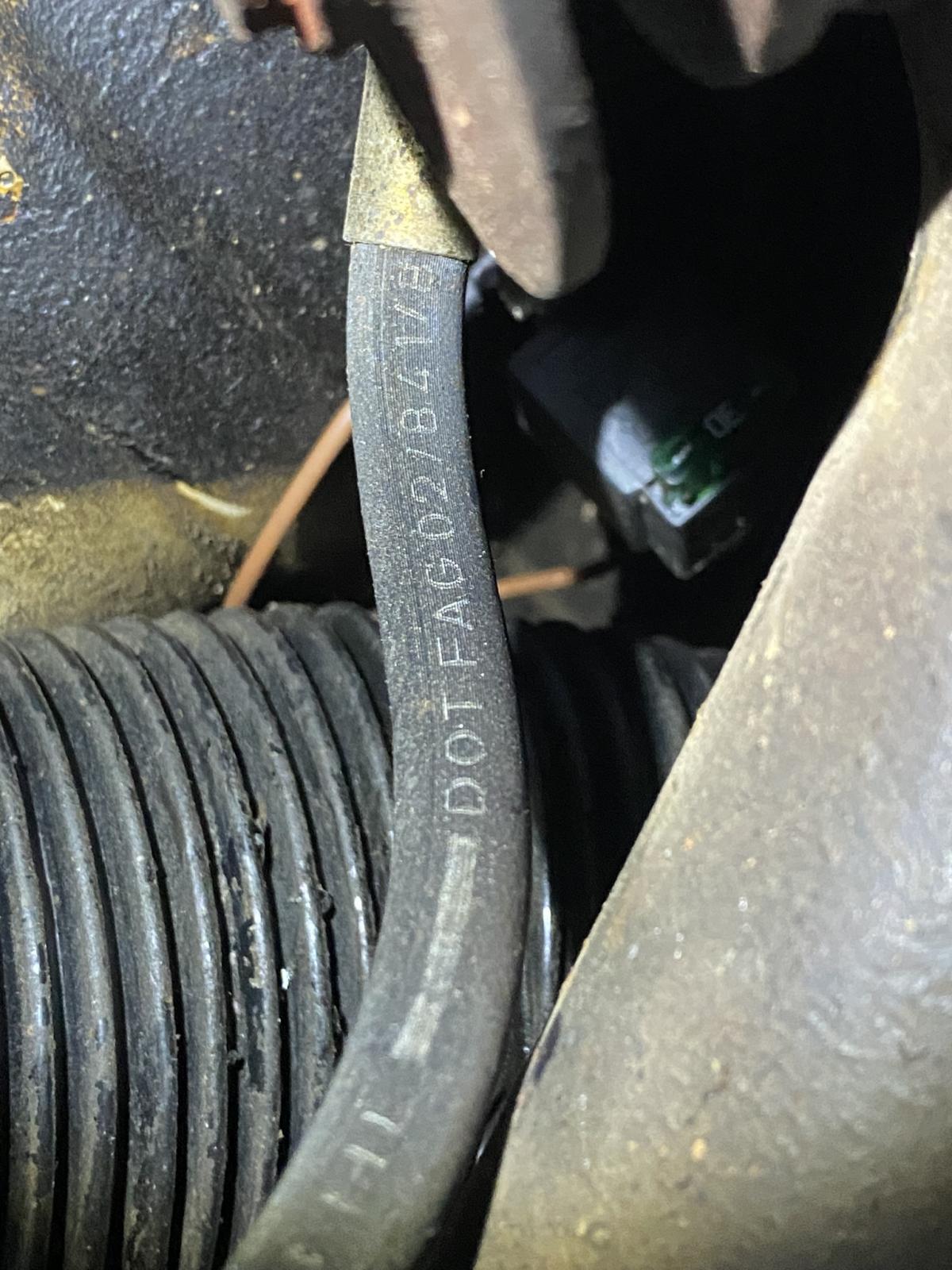

The brake hoses seem to date from 2000 (front) and 1984 (rear) though, so they will be getting replaced ASAP!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Sun Jul 09, 2023 2:26 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
Having fixed the Ghia, we then went away for a week in the Kombi, camping in the North-West Highlands. Lovely!

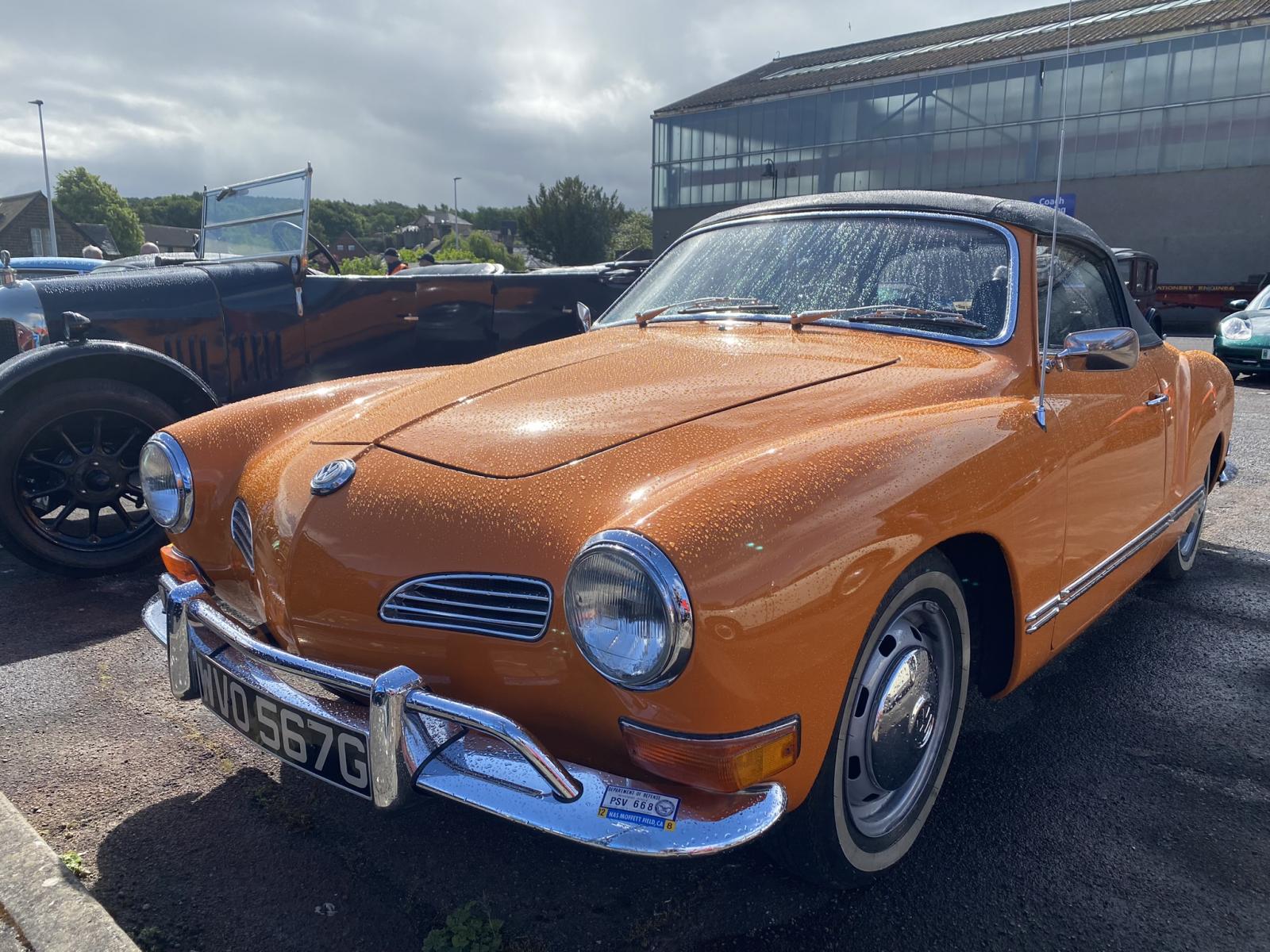

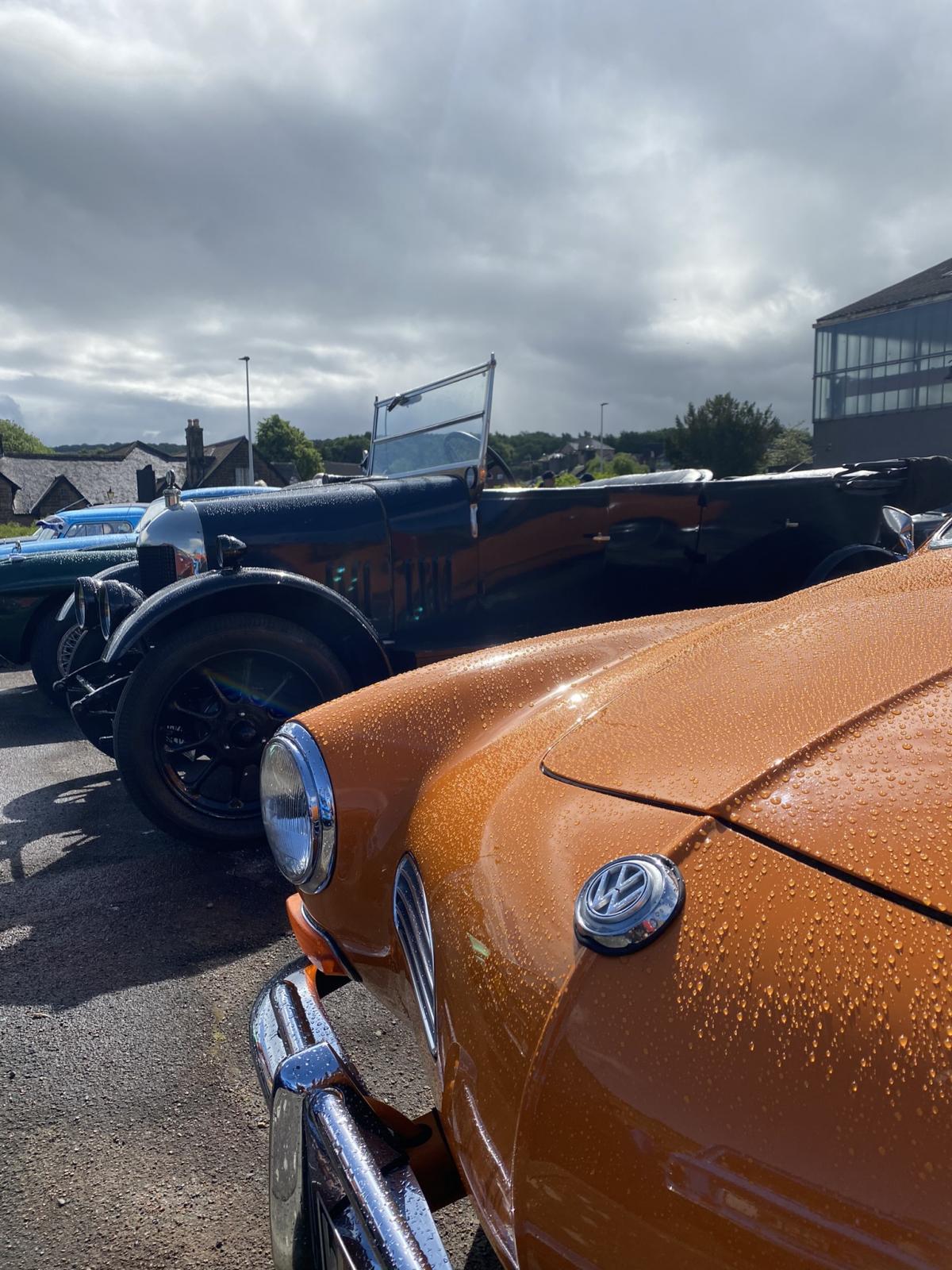

As soon as we got back, the next morning I had entered a local all-marques vintage and classic car touring run and show. I just grabbed the Ghia from the garage, bashed on the hubcaps, made sure I had fuel and then drove to the start point, which was a mining museum in Midlothian. There was a lovely selection of all sorts of vehicles, some over 100yrs old, including commercial lorries and motorcycles. About 100 in all.
The rain came on and off very heavily all through the day, so the convertible top was up and down like a yo-yo, including during the scenic driving routes!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Sun Jul 09, 2023 2:42 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|

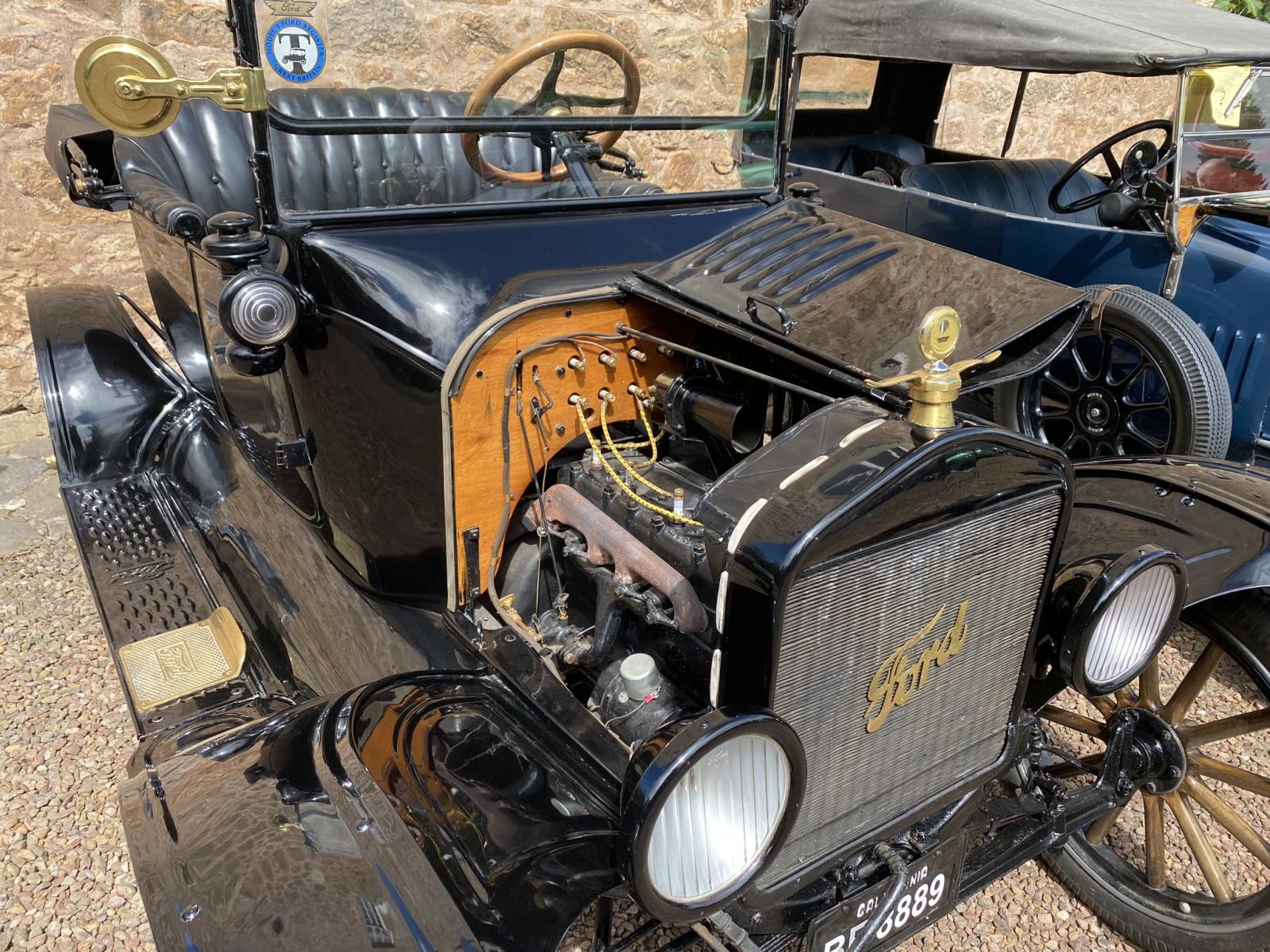

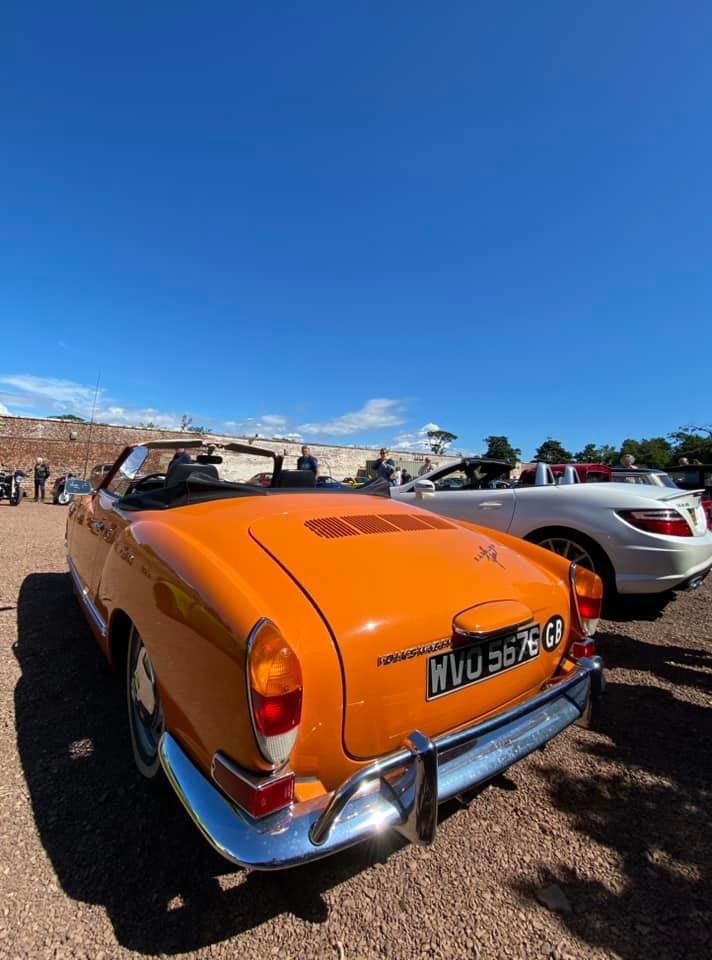

The scenic drives ended at a beautiful stately home called âLennoxloveâ. There was the chance to look around the house and the rest of the vehicles, while the judges looked over the cars, trucks and motorcycles. The blue motorbike in the pictures is from 1907!
There were prizes for category winners and I was very pleased that the Ghia was announced winner of the ?1967-1972 class. The rain had come on heavily again and I was about to go and close the roof, but sheltered under a tree instead while they announced the âBest in Showâ prize, which is an engraved trophy going back nearly 30 years. I was totally floored (and so delighted!) when it was announced the Ghia had won that too! Really pleased too that an ACVW took the award above such impressive competition.
Certainly made the day even more worthwhile!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
Braukuche
Samba Member
Joined: September 03, 2004
Posts: 11180
|
| Posted: Sun Jul 09, 2023 7:40 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
Wow, thatâs a pretty impressive win.
_________________
Go Reds! Smash state!
Retirement is here!
1960 double cab
1960 Baja Bug
1963 stretched double cab
1962 Golde sunroof Ghia
1963 356 B coupe
1963 Notchback
1967 21 window less rusty now
1989 Westfalia |
|
| Back to top |
|
|
John Moxon
Samba Moderator
Joined: March 07, 2004
Posts: 14174
Location: Southampton U.K.
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Fri Jan 19, 2024 12:43 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
Winter Update:

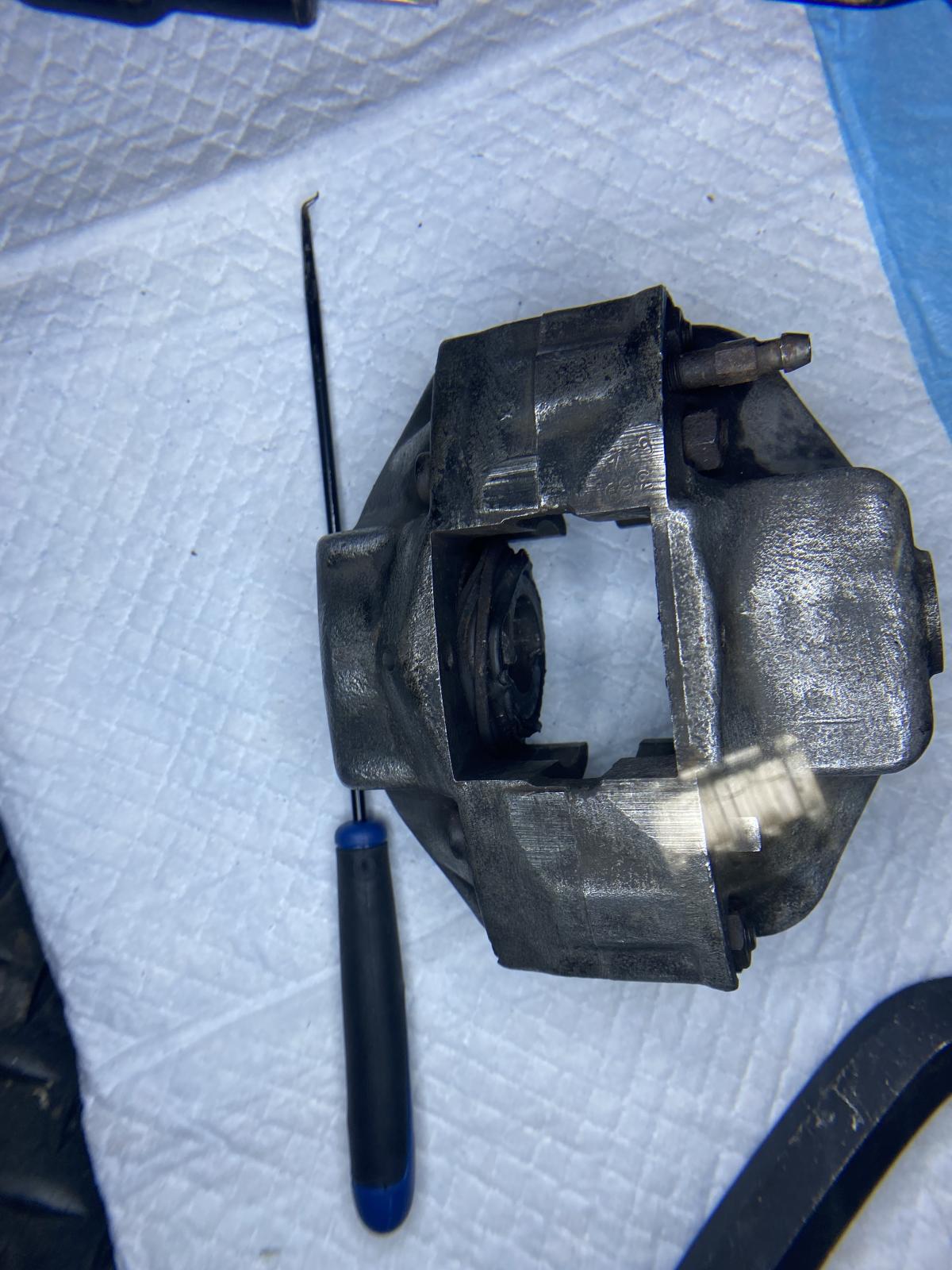

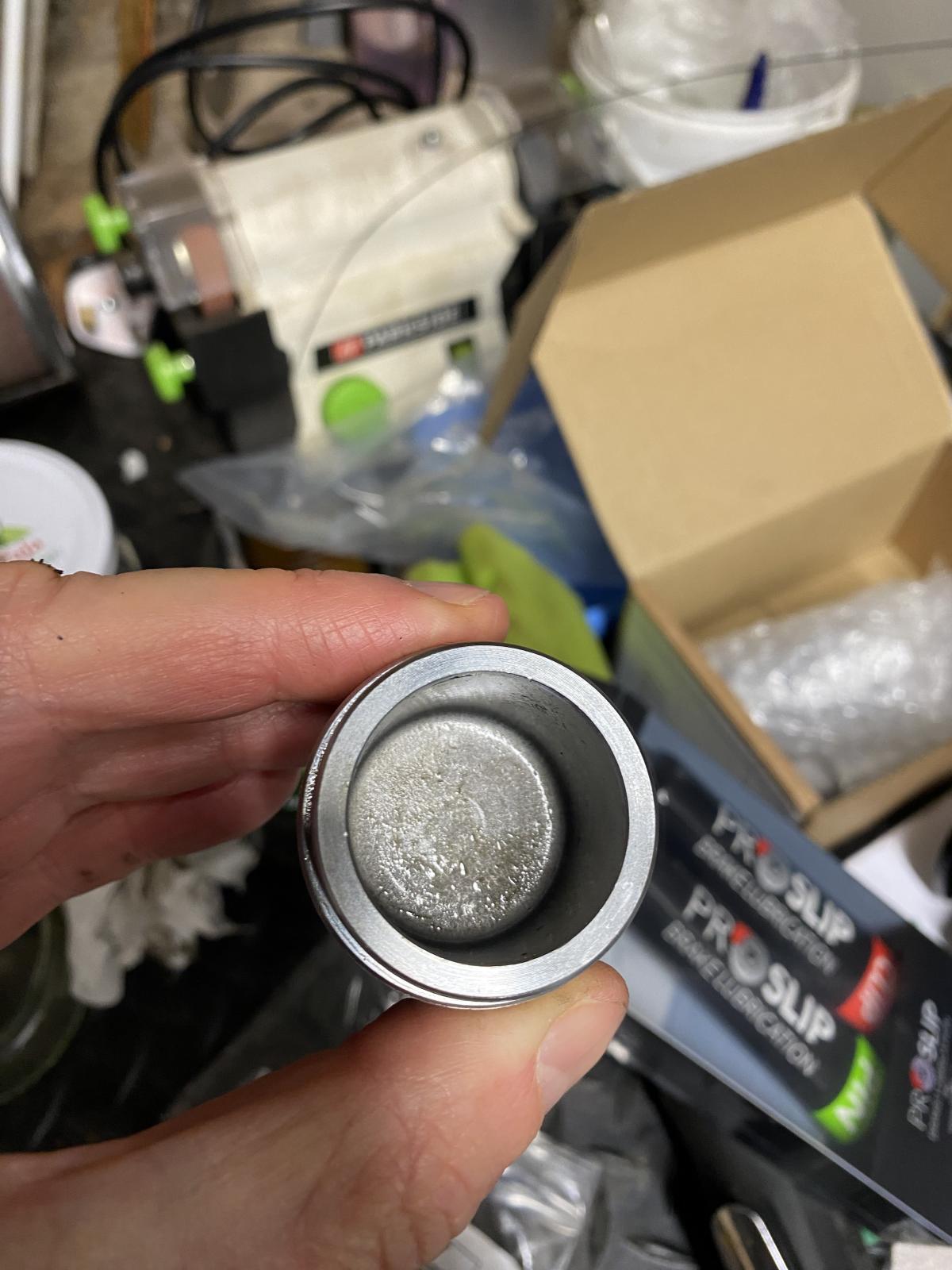

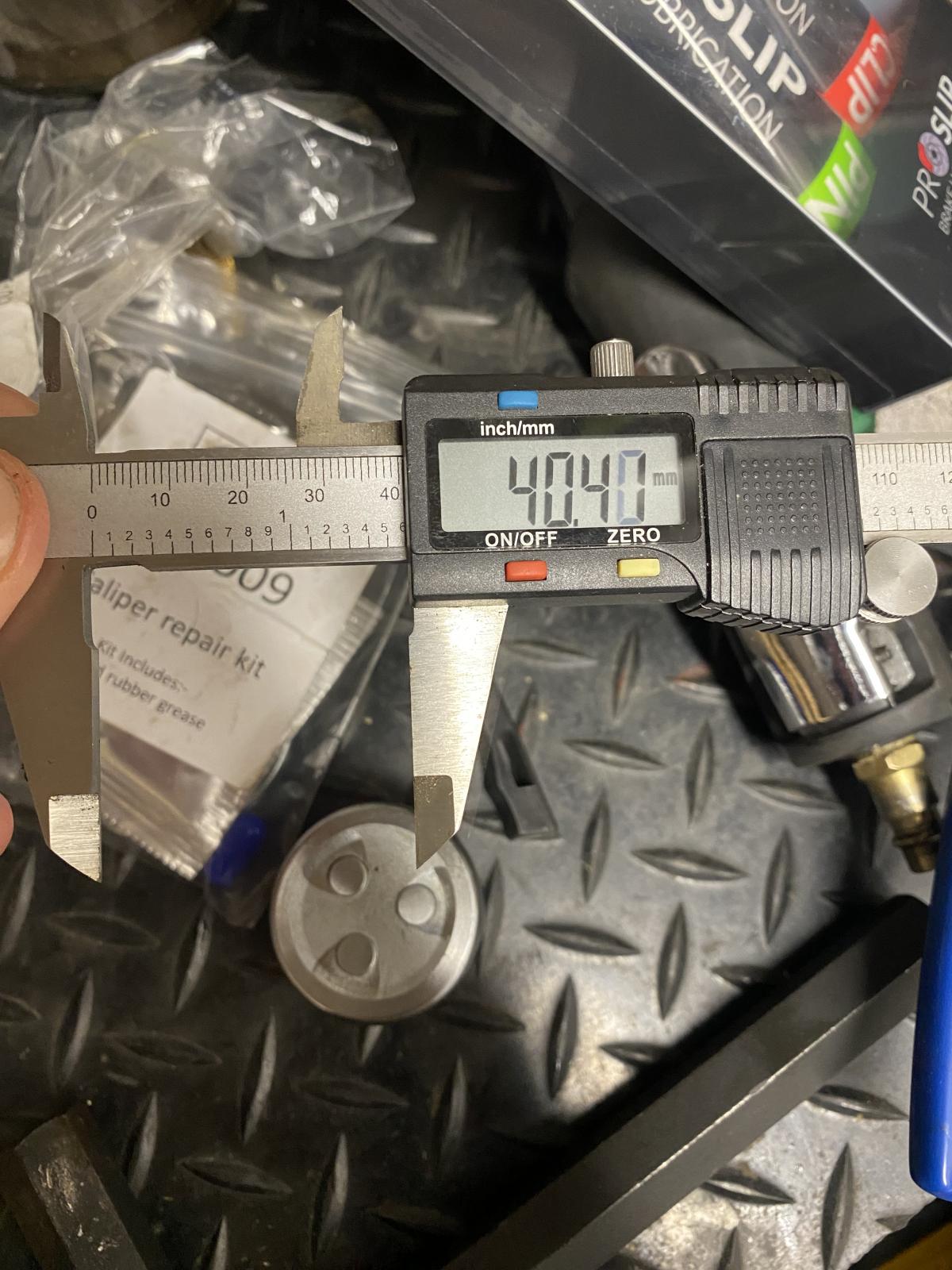

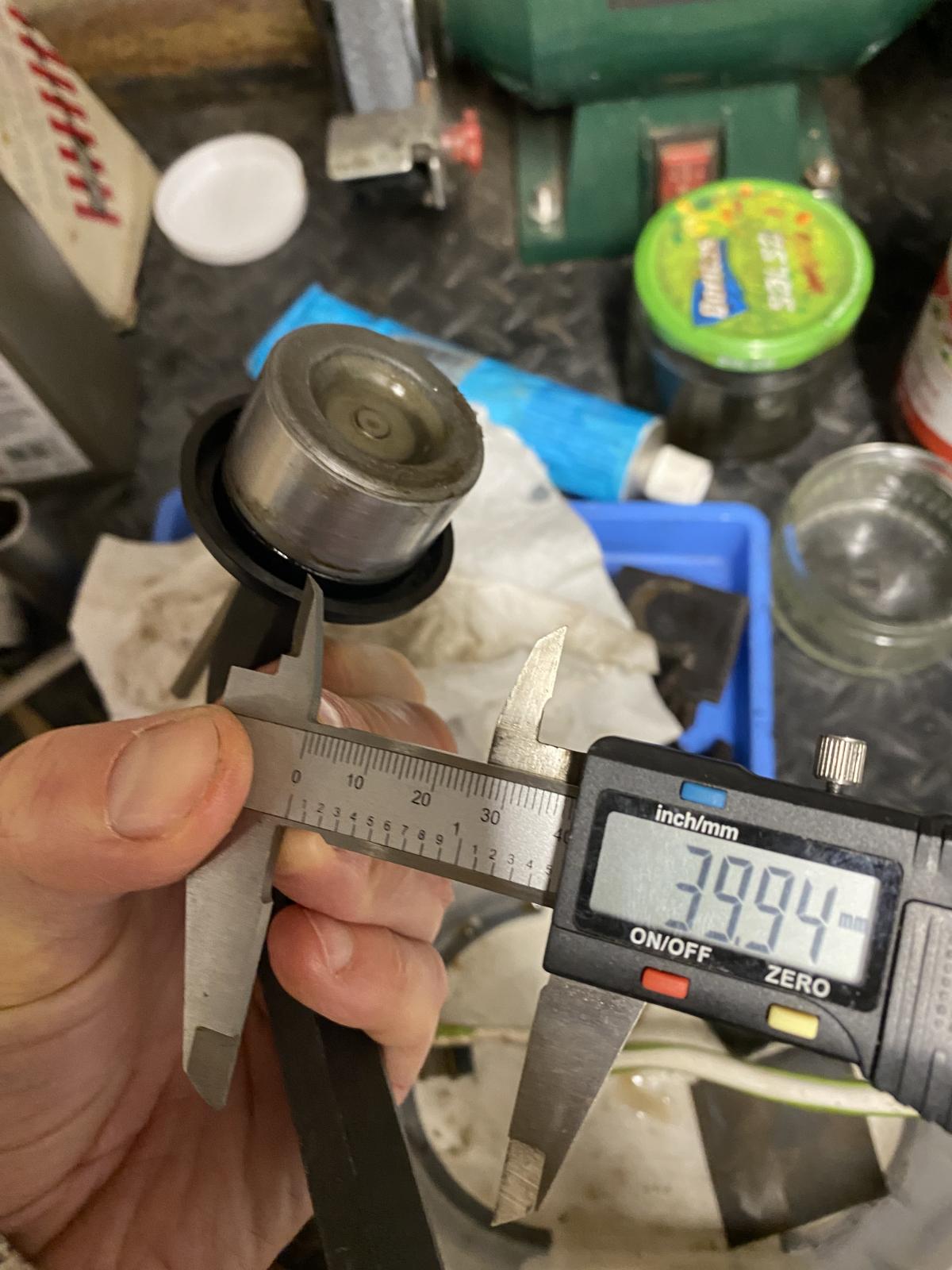

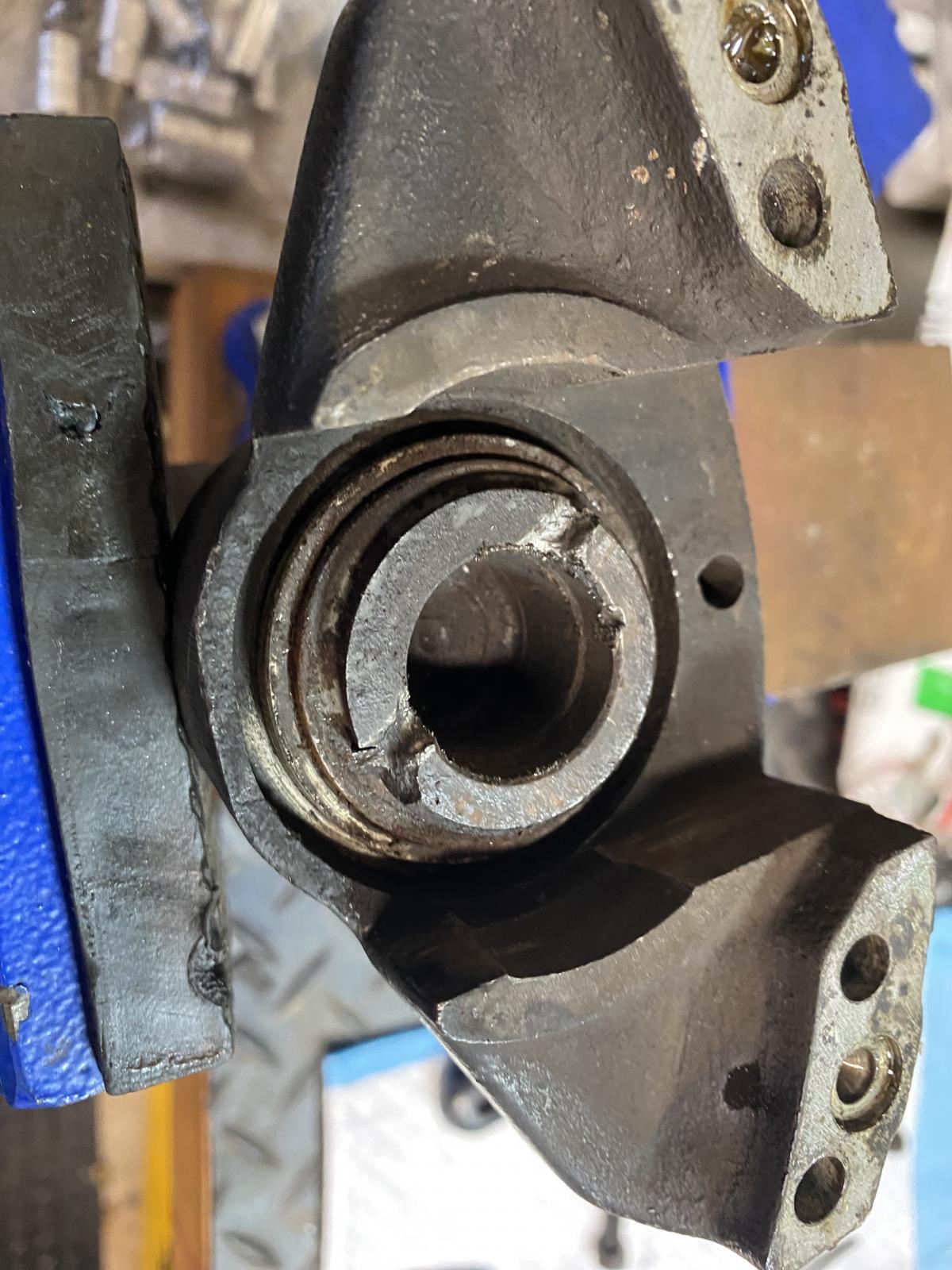

I have been working away on the brakes for the Ghia since the pistons stuck and were temporarily fixed in the summer. I have taken the calipers off and of course the dust boots were shot. I had ordered a rebuild kit several months ago but they had sent the wrong pistons (too large and no cut out for the shims)! They kindly sent replacements and I have rebuilt the calipers, but annoyingly the anti rotation shims donât quite fit in the new pistons. Iâm considering adapting them or leaving them off. Suggestions welcome!

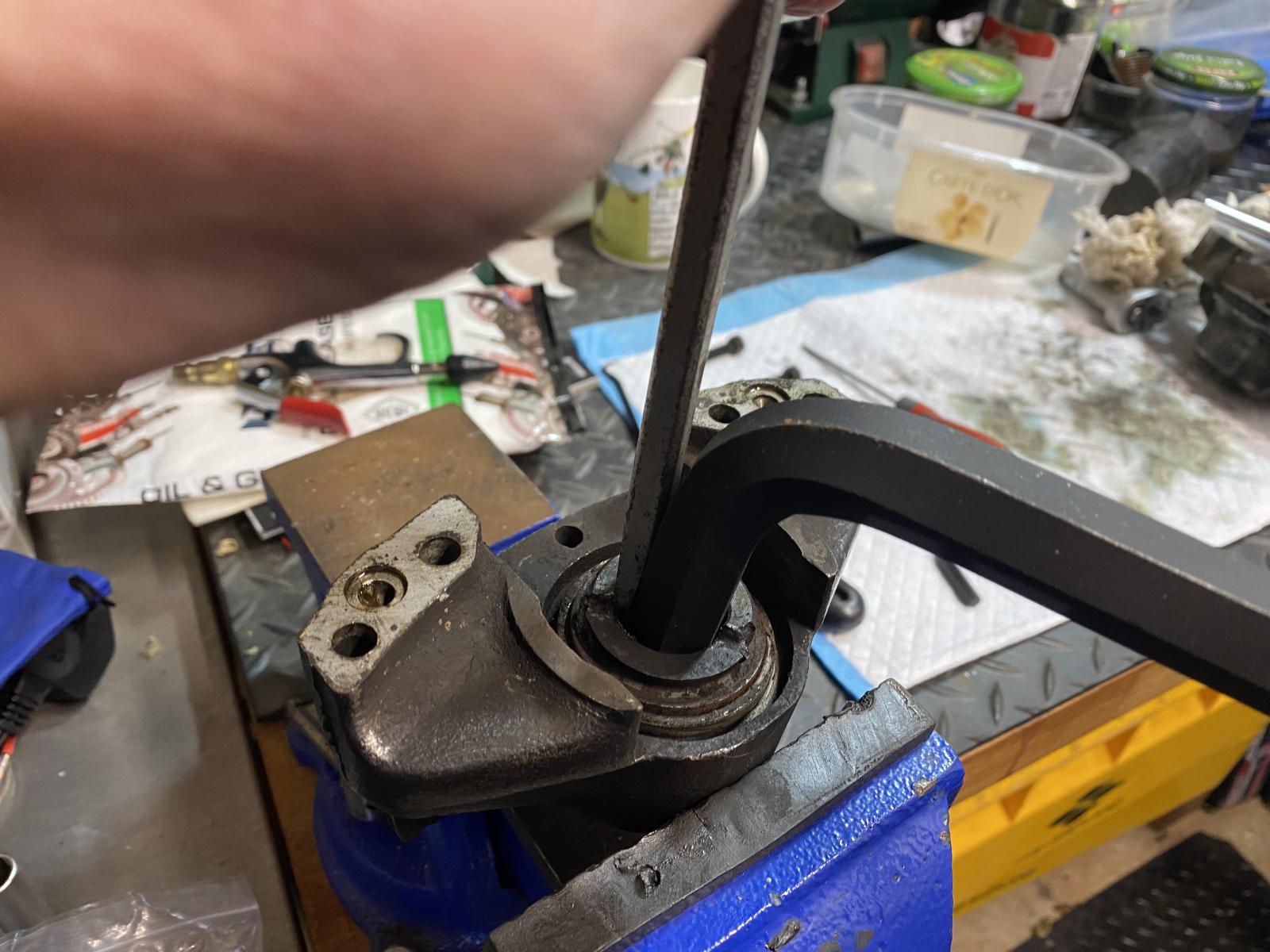

My DIY tool for removing the pistons is a large hex key, jammed in with an aluminium handle-works perfectly!

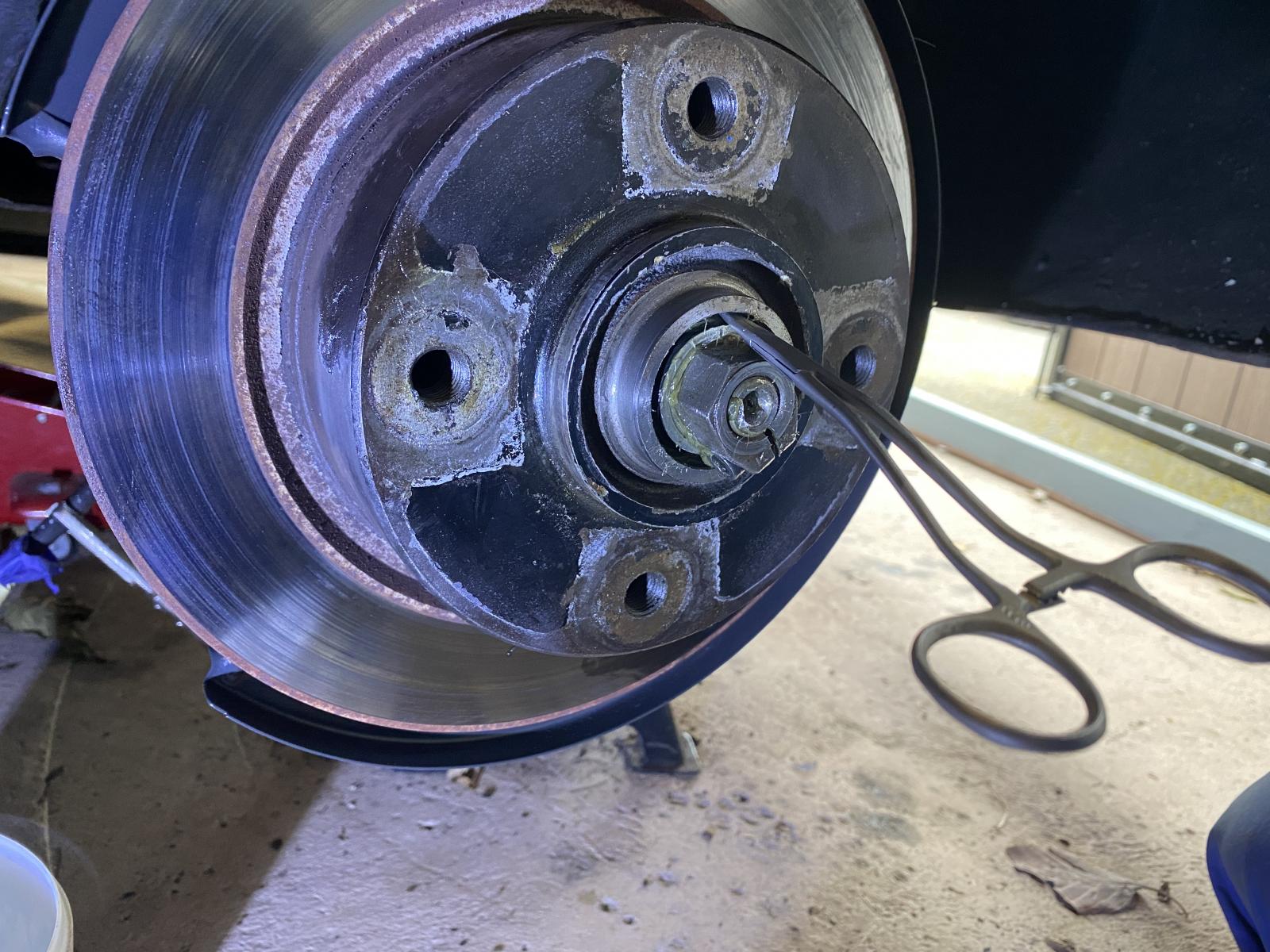

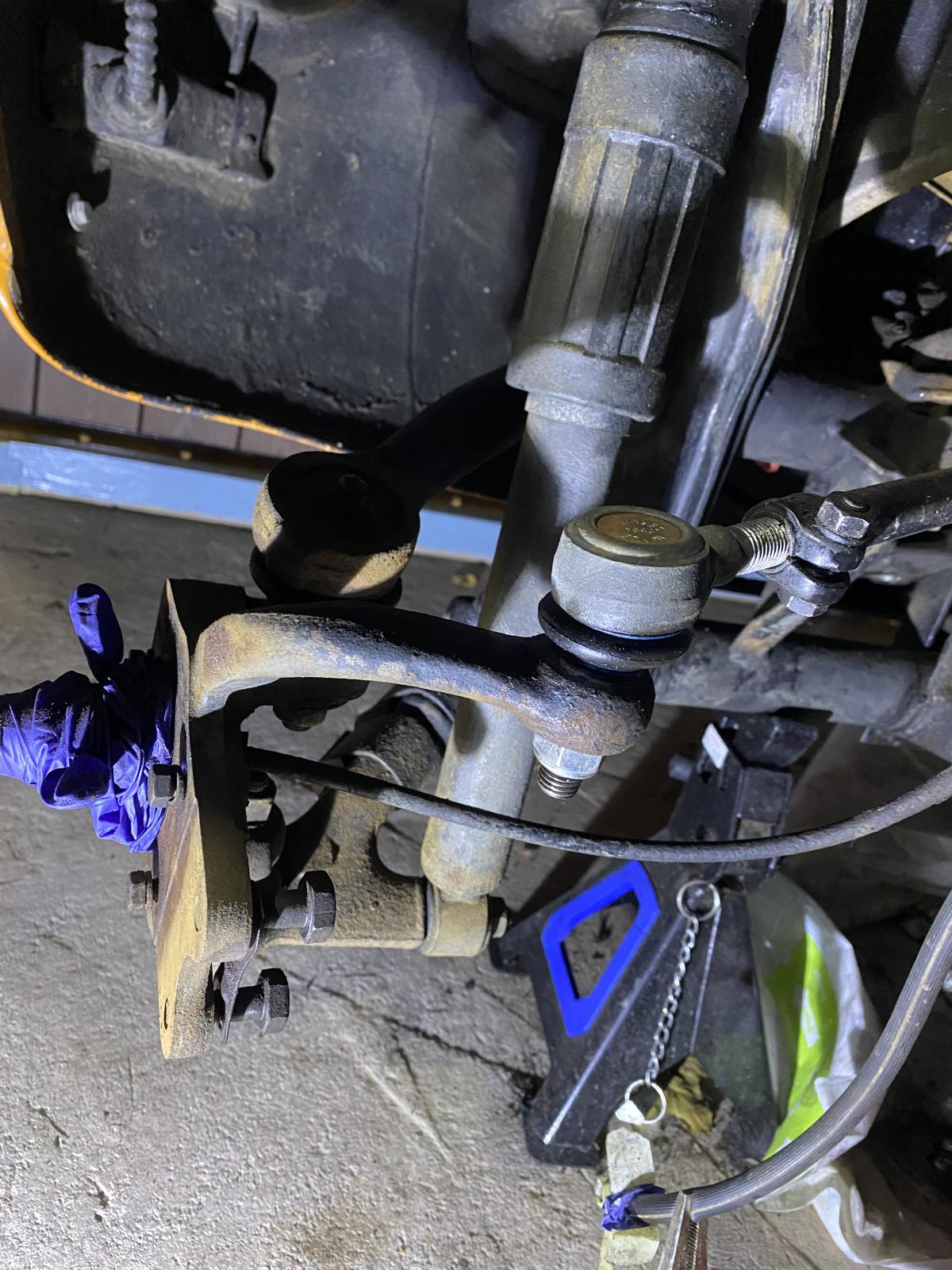

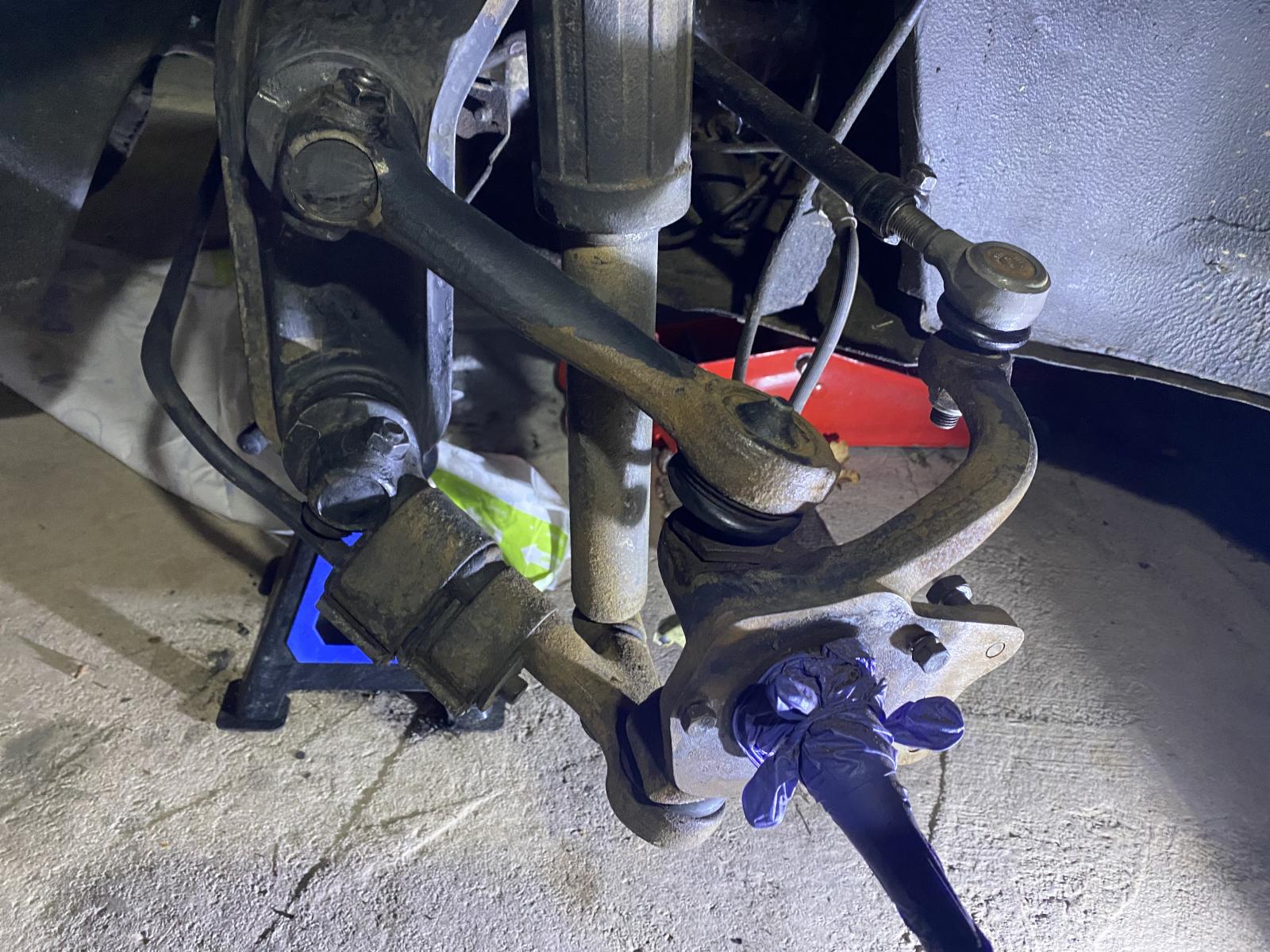

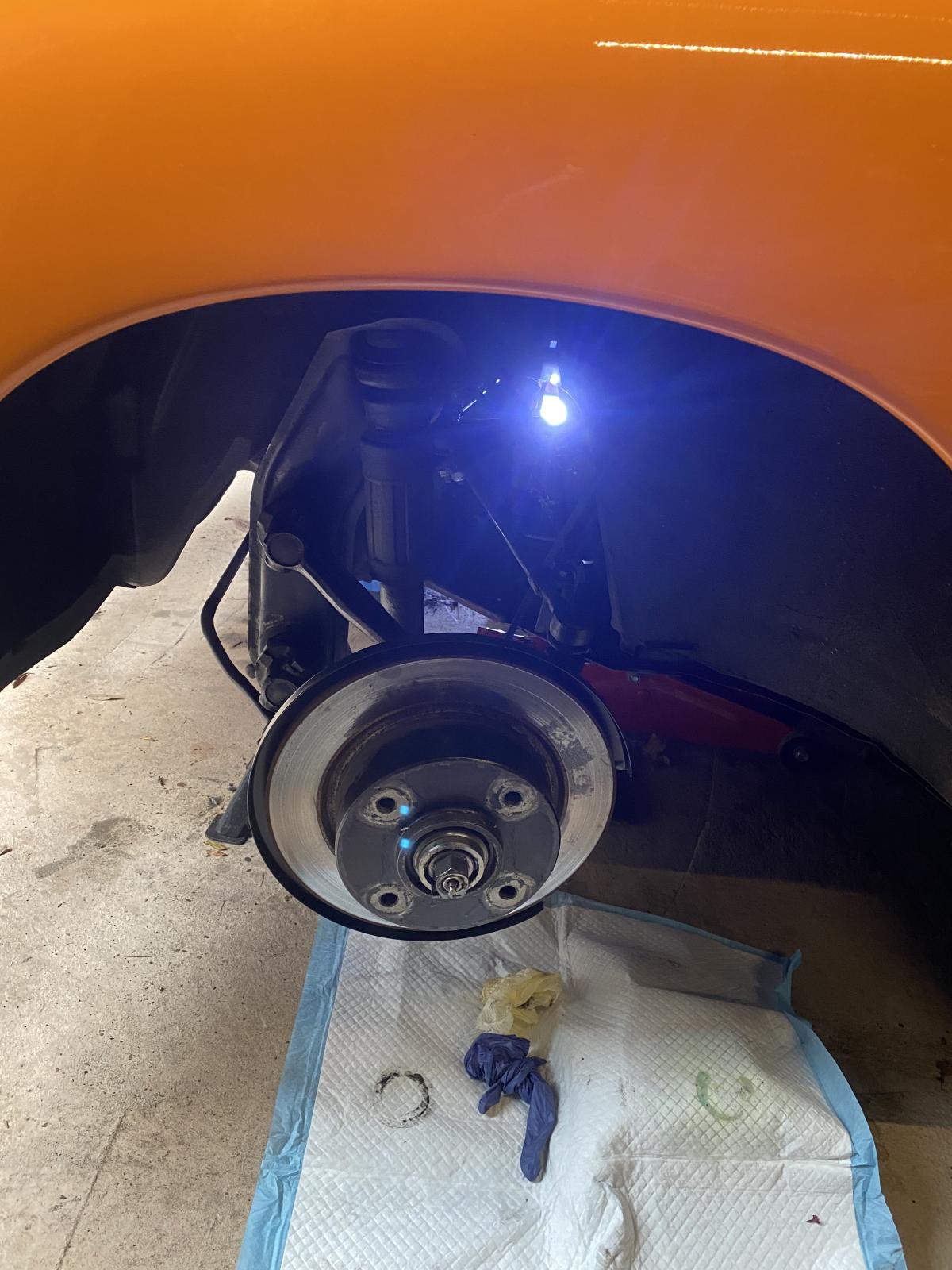

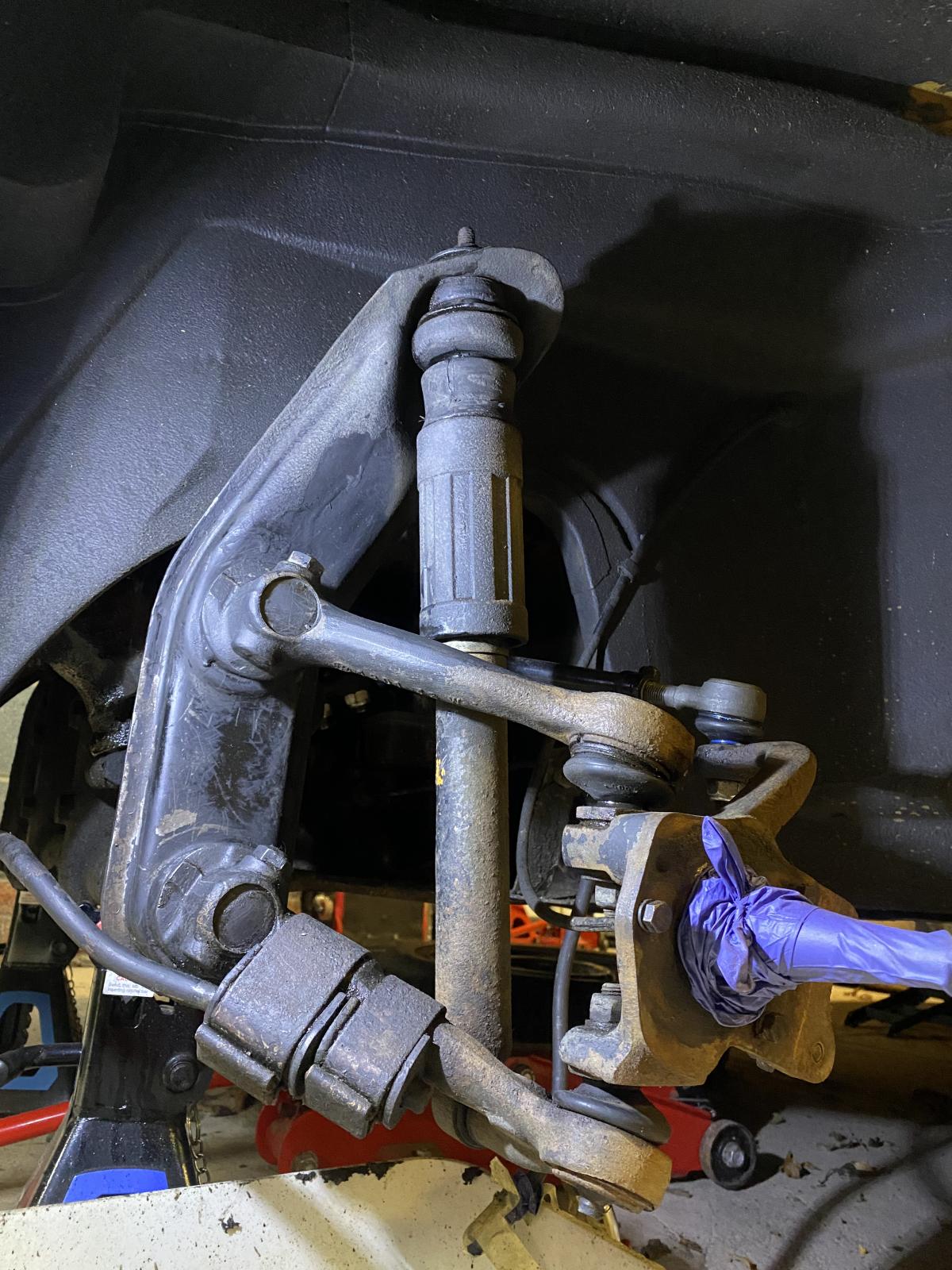

While the calipers were off I took the chance to remove the discs and bearings and sent the splash guards for powder coating. They are in remarkably good condition and I doubt I would get an exact replacement, so itâs worthwhile.
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Thu Jan 25, 2024 2:09 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|

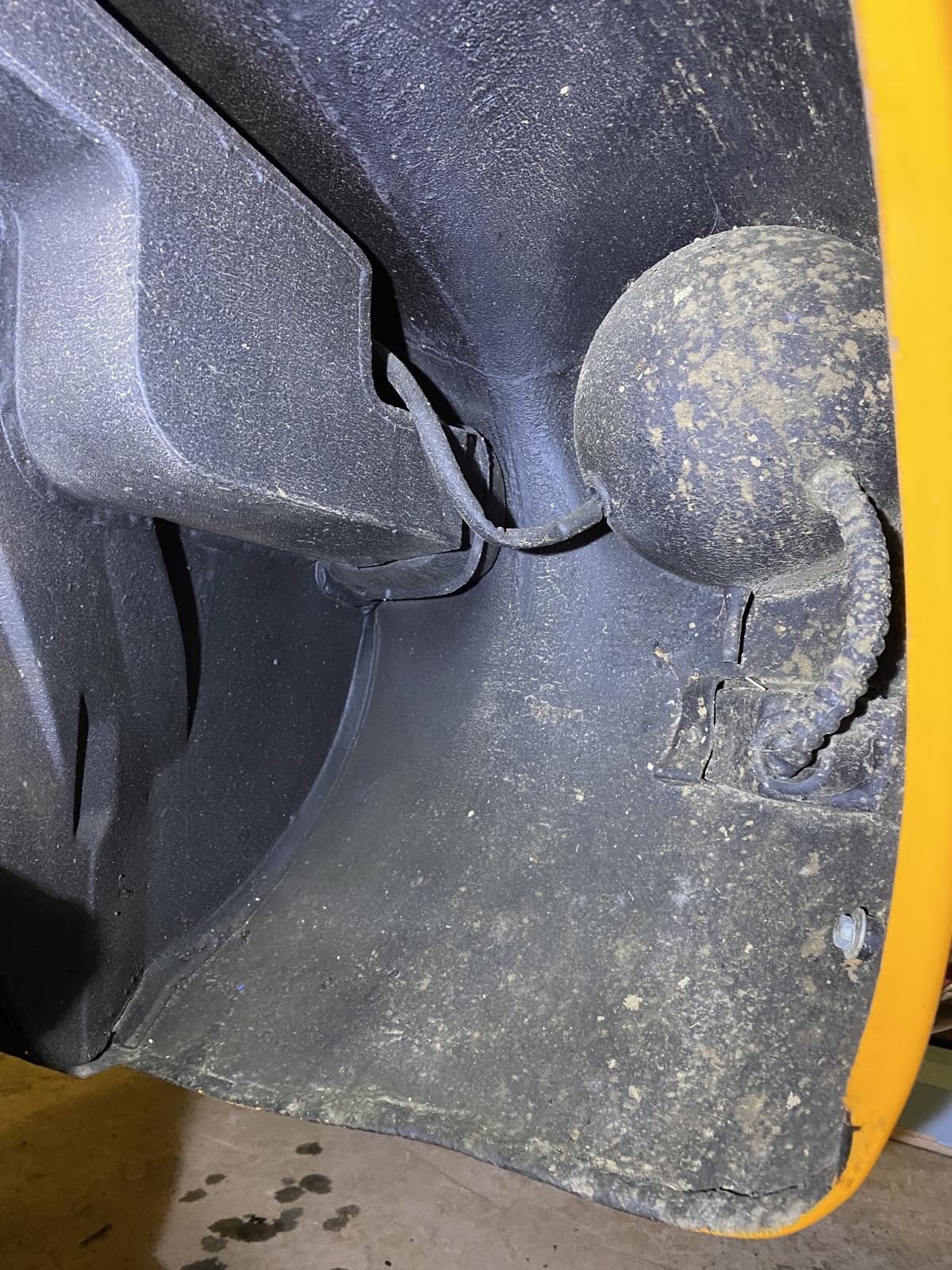

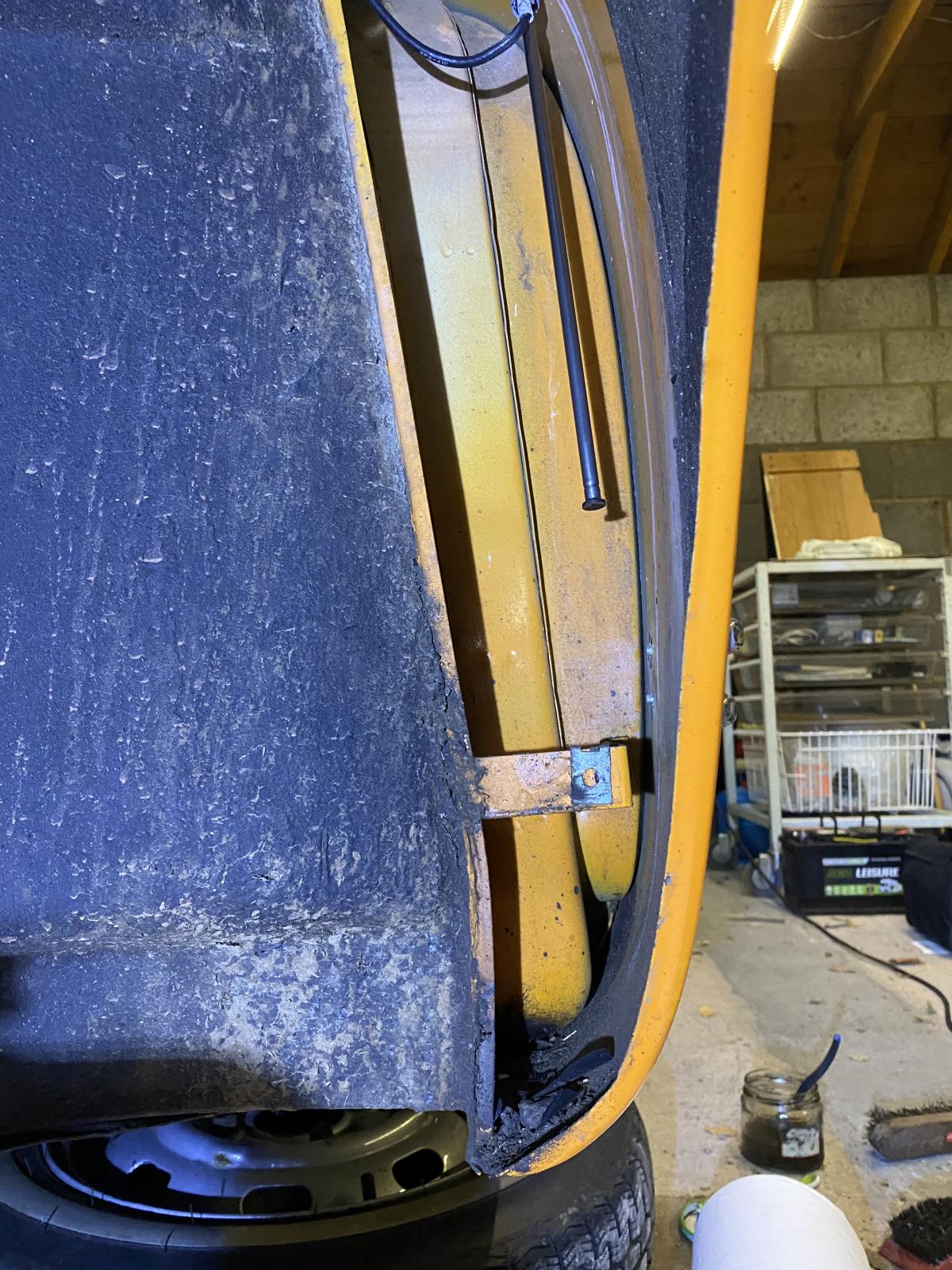

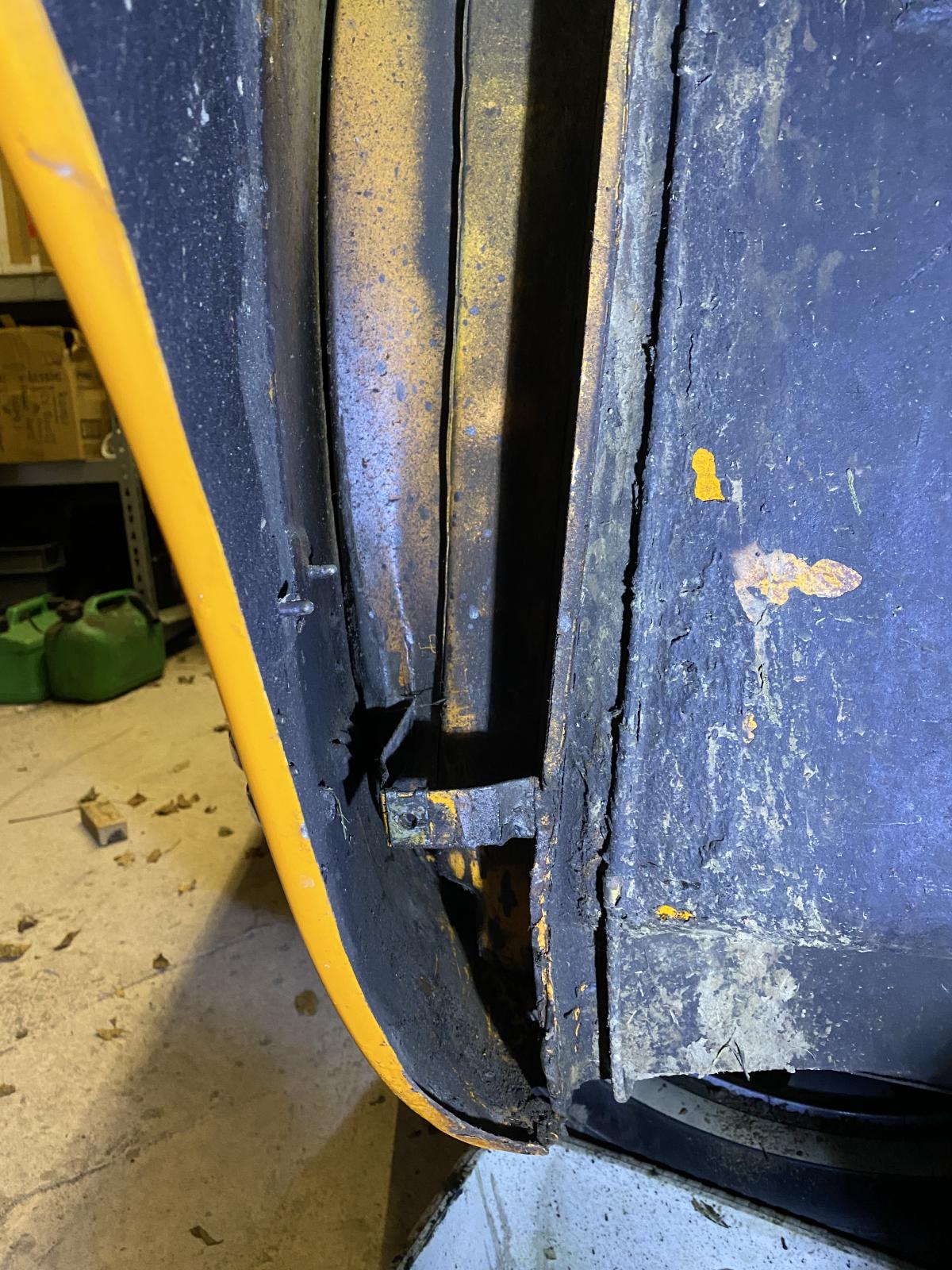

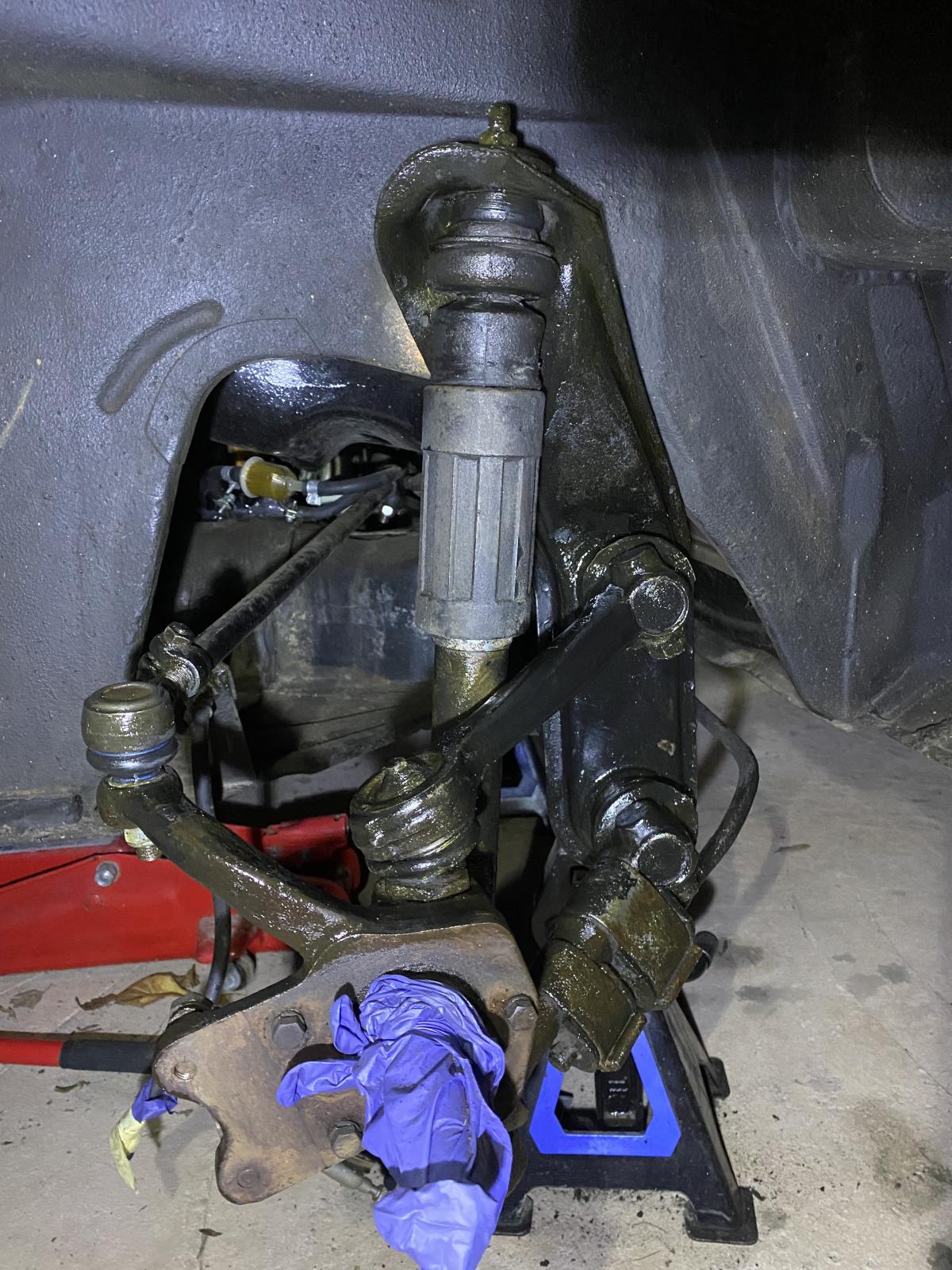

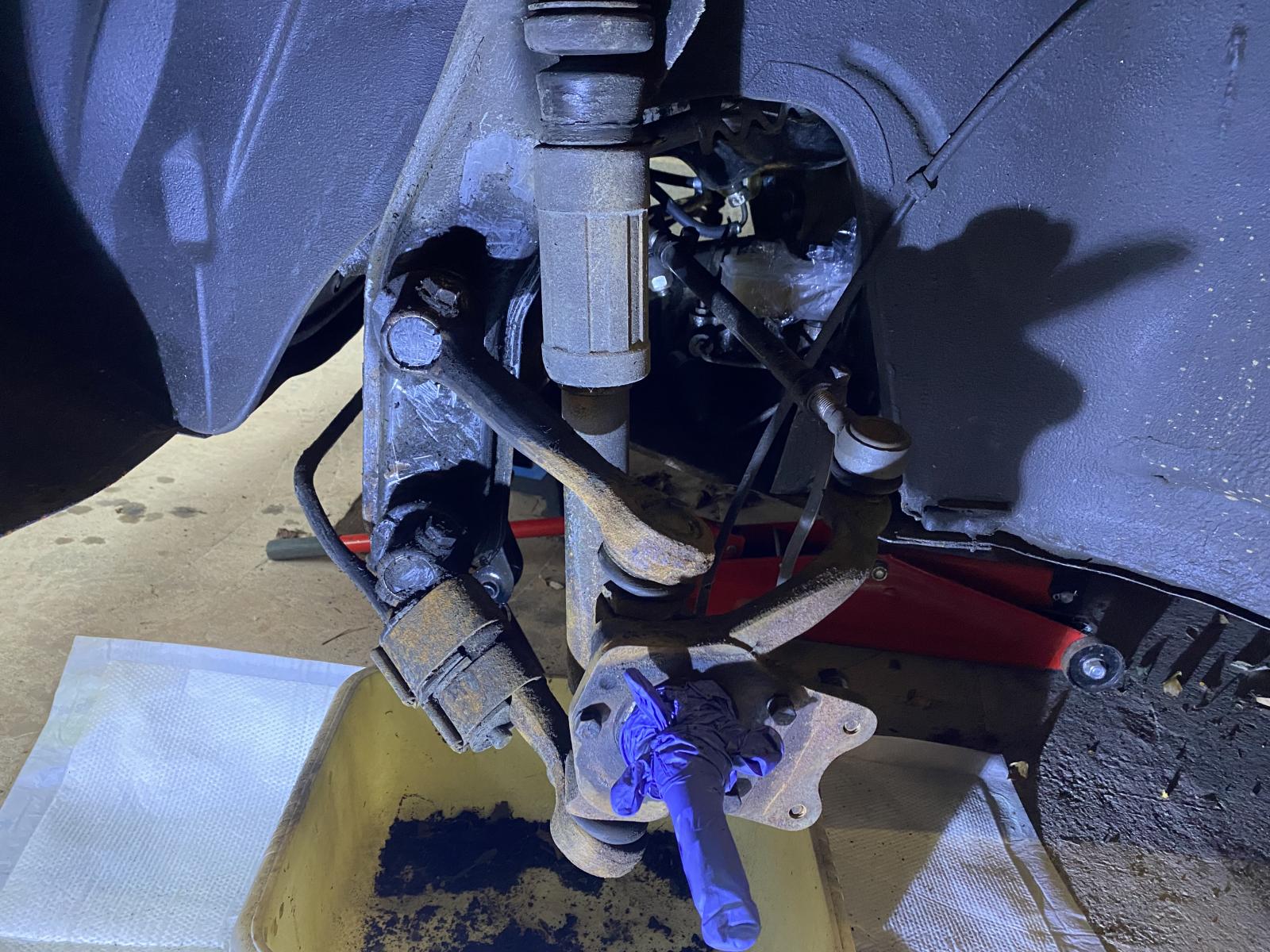

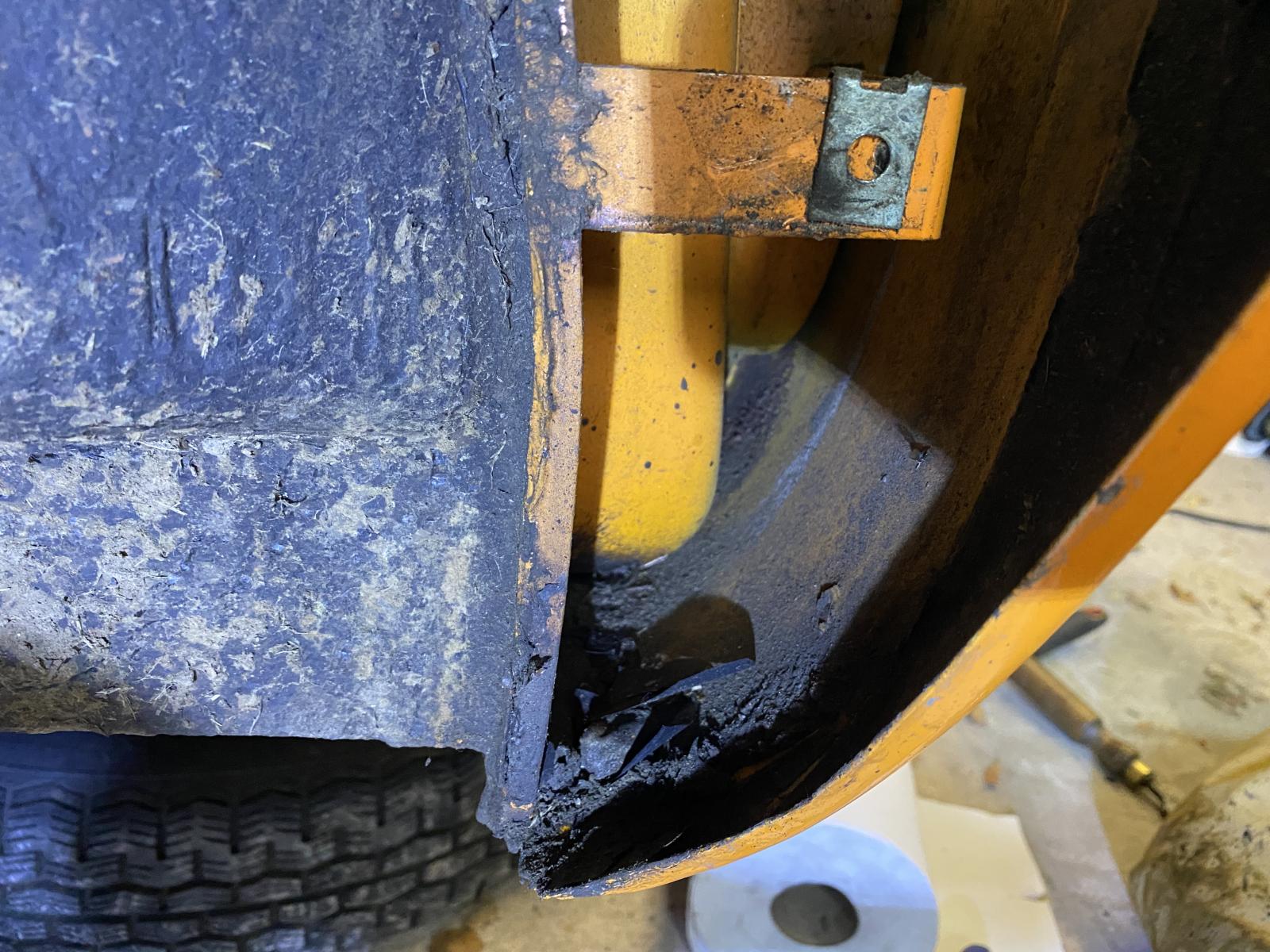

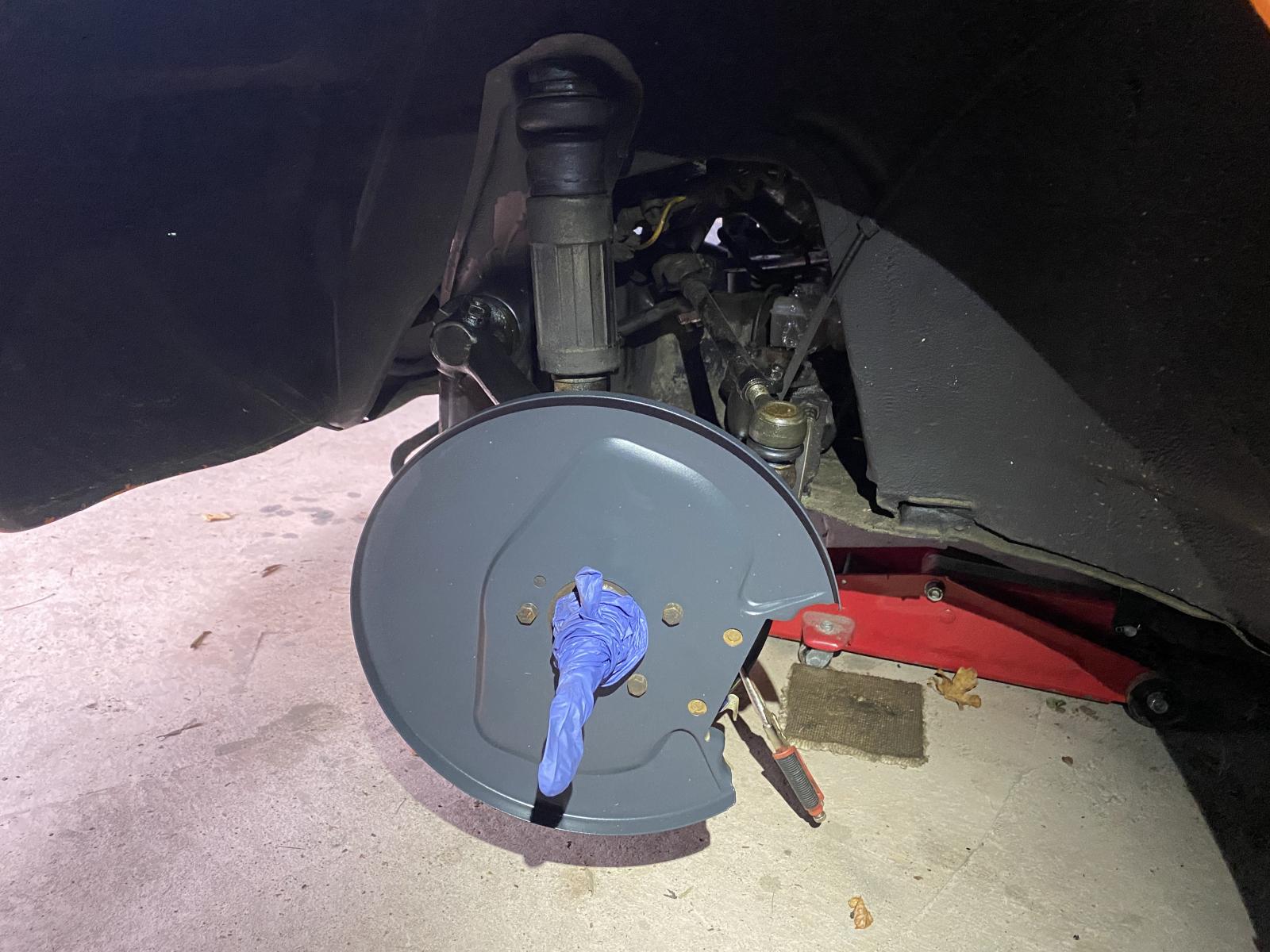

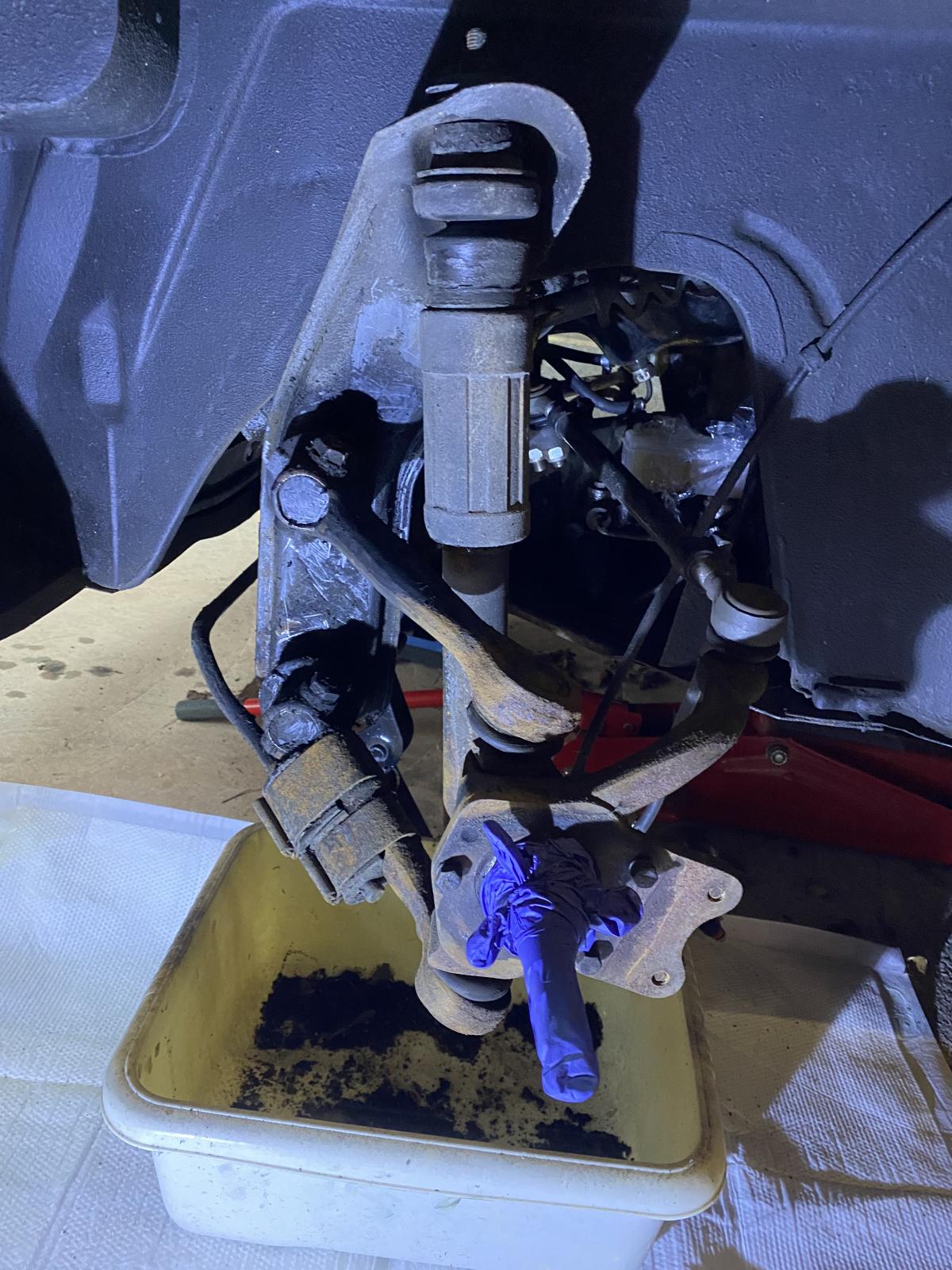

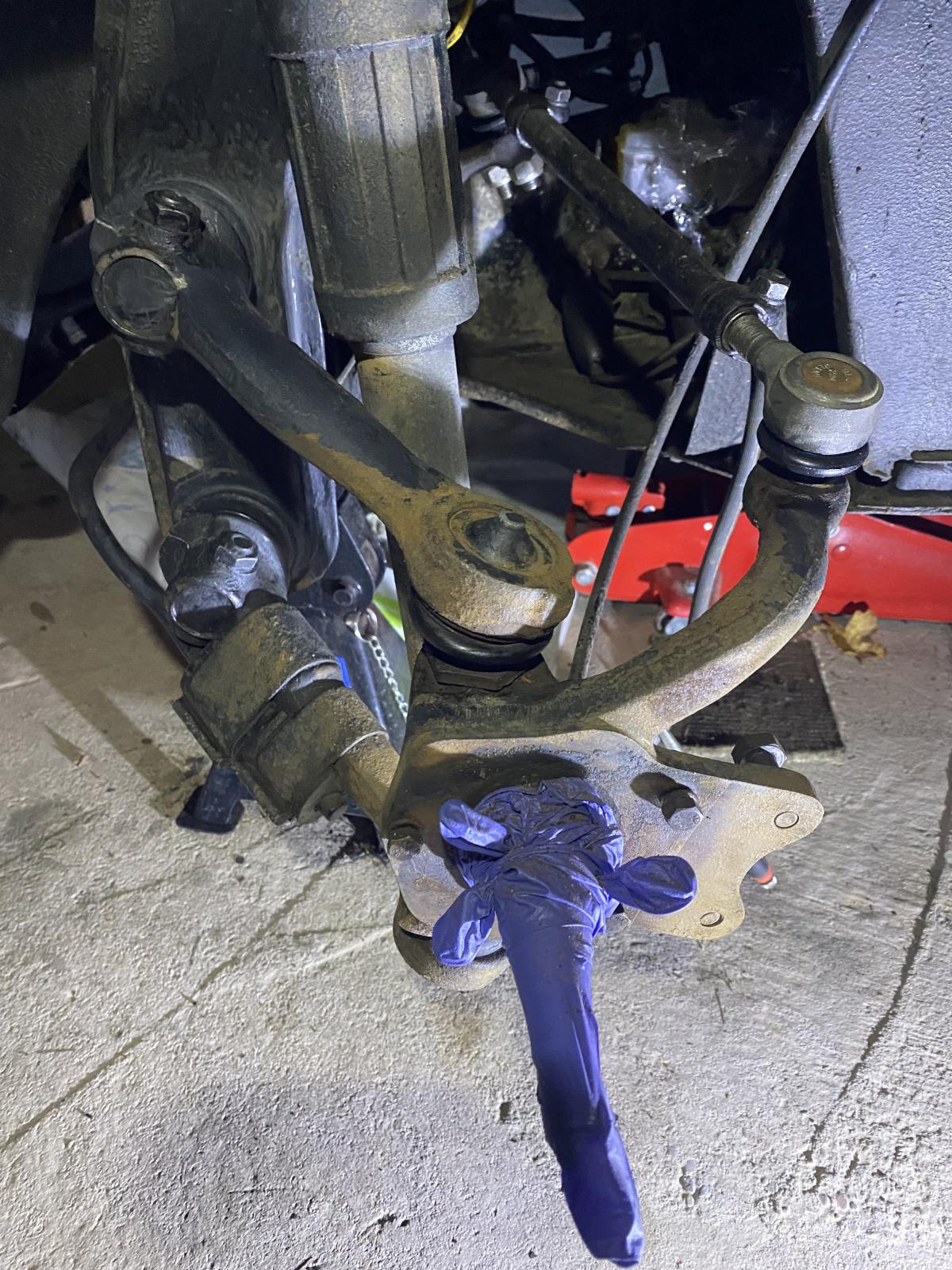

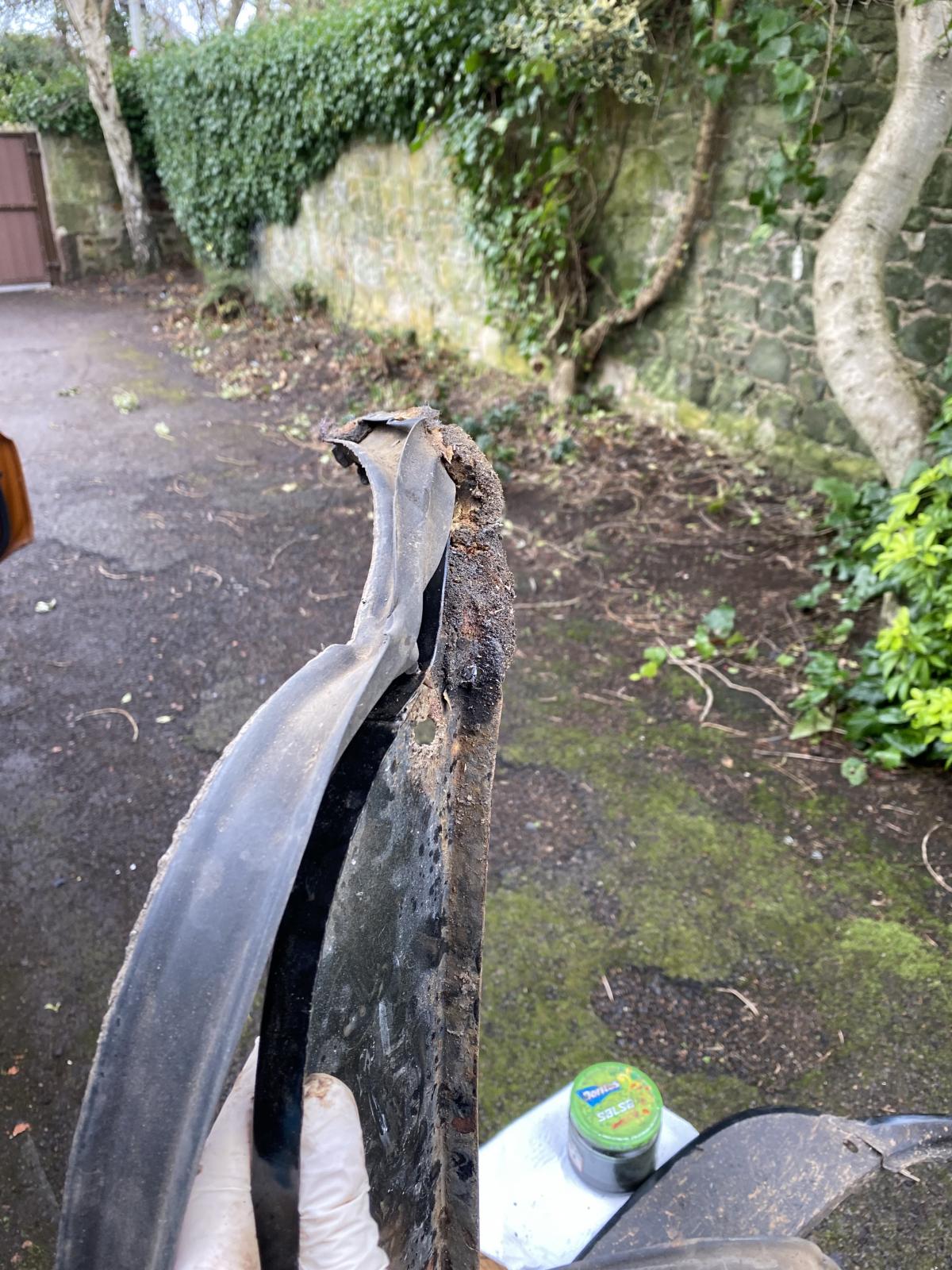

I was keen to inspect behind the splash panels, but I didnât anticipate it being quite such a pain to get them off. Not helped by shearing on of the top bolts that you reach from the trunk but I have tapped a thread for a fresh bolt and the panels will go for powder coating, as they are solid but with a little surface rust. The rubber seals were intact but covered in underseal and grease, so I cleaned them up and have reconditioned them with glycerine and they look reusable. They are held on by three small nails, but I think I will rivet instead. The top âtongueâ section was sealed with an adhesive strip of thick foam which had totally degraded and Iâm not sure what to fill the remaining gap with, possibly Iâll just go with ATV?

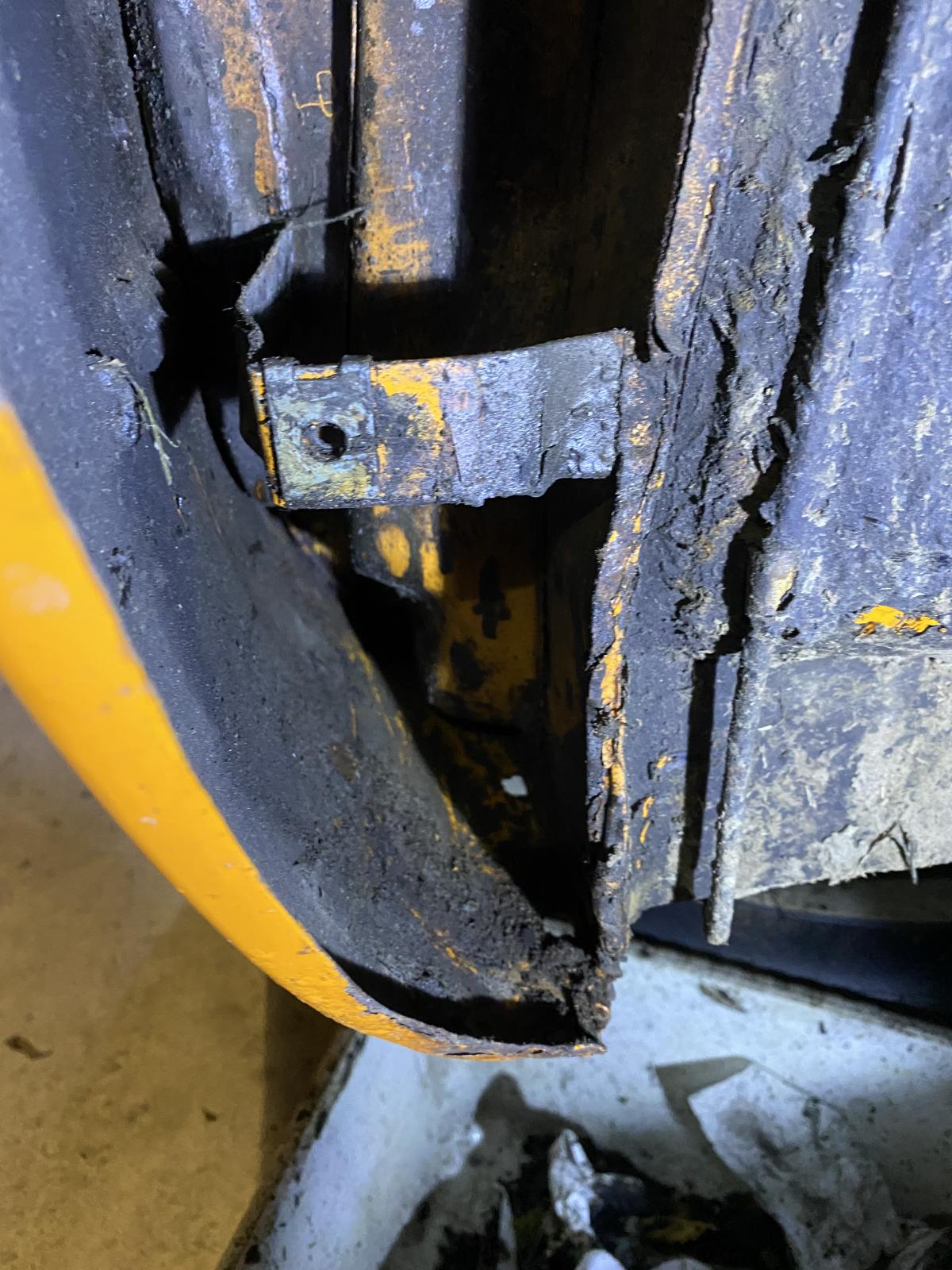

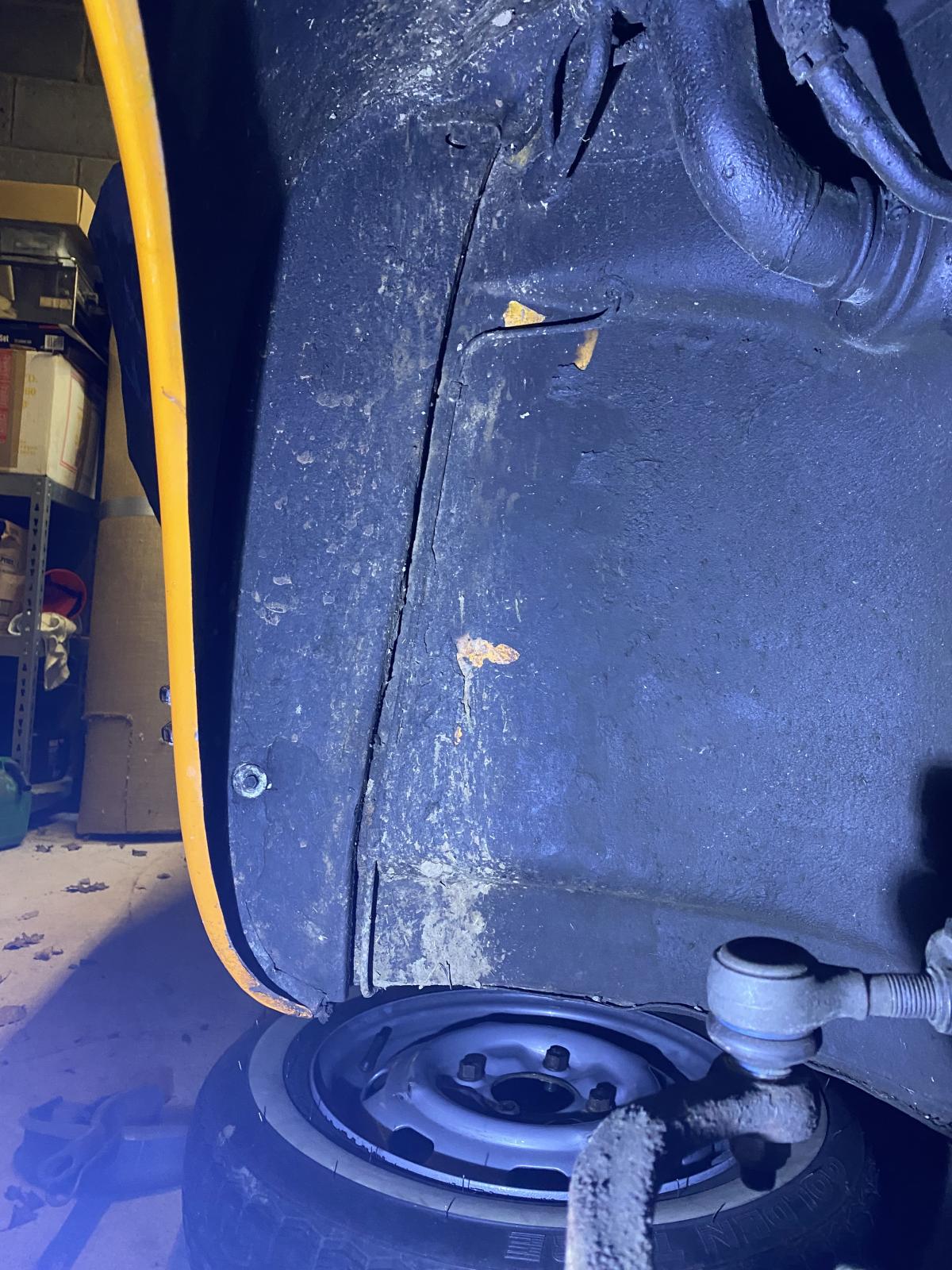

The area behind the splash panels just had a bit of surface rust and so Iâve sanded it back, treated the rust and painted on red oxide primer.
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
Marcdeb
Samba Member
Joined: May 22, 2019
Posts: 3234
Location: Vermont
|
| Posted: Thu Jan 25, 2024 2:27 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
Wonderful documentation. Someday, I've got to put the splash guards on my 71 and your pictures will be very helpful. Amazing that the metal behind the splash guards has stayed so well preserved!.
_________________
Marc
68 Karmann Ghia Cabrio Autostick
71 Karmann Ghia Cabrio
Previously Owned:
2011 VW EOS Hard Top Conv
2008 Saab 9-3 2.0T Conv
2003 Saab 9-3 SE Conv
2001 Saab 9-3 Conv
1998 BMW 3 Series Conv
1997 Saab 900 Conv
1997 Mazda Miata
68 Ghia Vert Survivor with 22,350 miles: https://www.thesamba.com/vw/forum/viewtopic.php?t=768107&highlight=
71 Ghia Vert Restoration: https://www.thesamba.com/vw/forum/viewtopic.php?t=726710&postorder=asc |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Thu Jan 25, 2024 2:55 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
| Marcdeb wrote: |
| Wonderful documentation. Someday, I've got to put the splash guards on my 71 and your pictures will be very helpful. Amazing that the metal behind the splash guards has stayed so well preserved!. |
Thanks Marc.

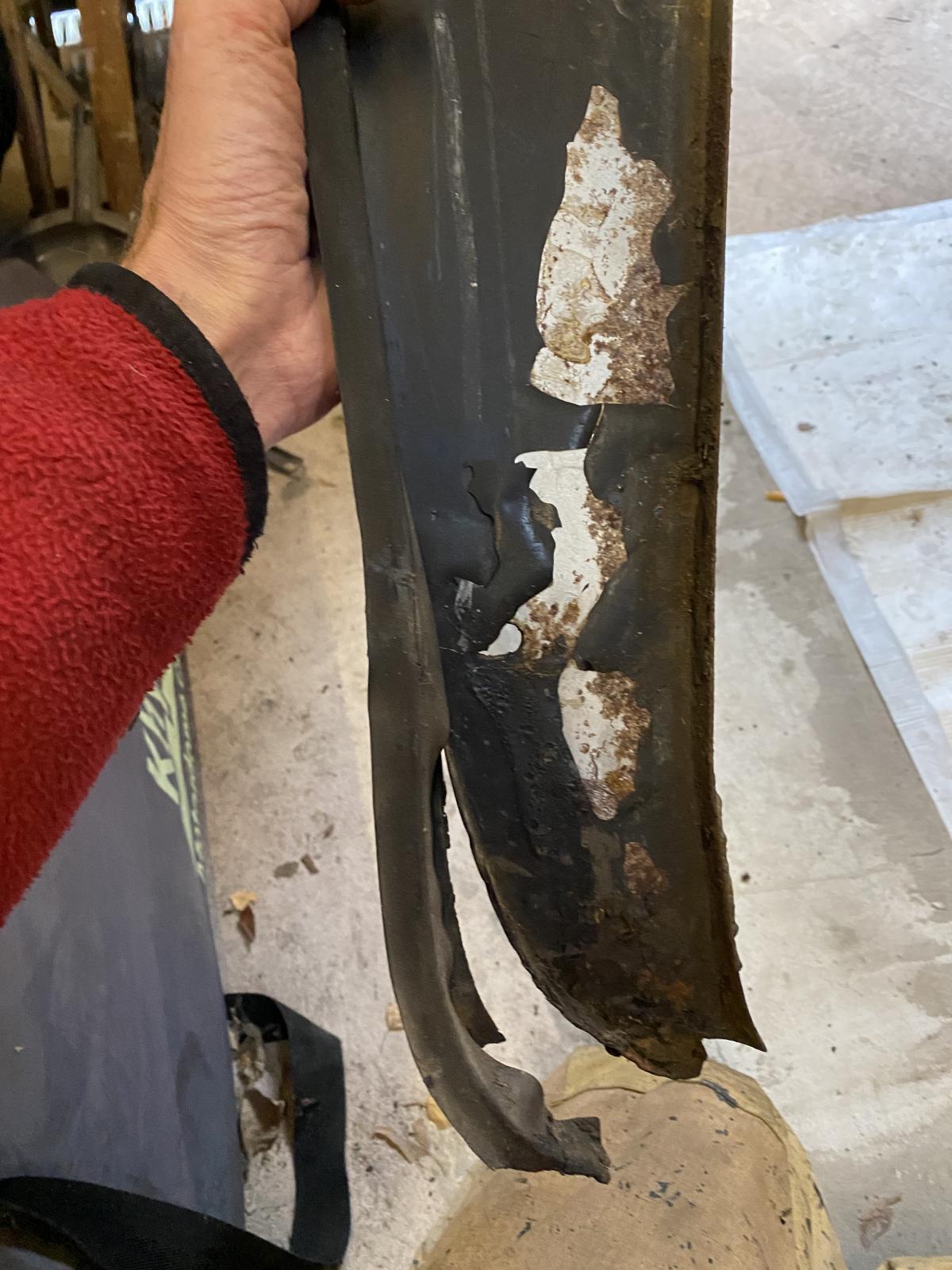

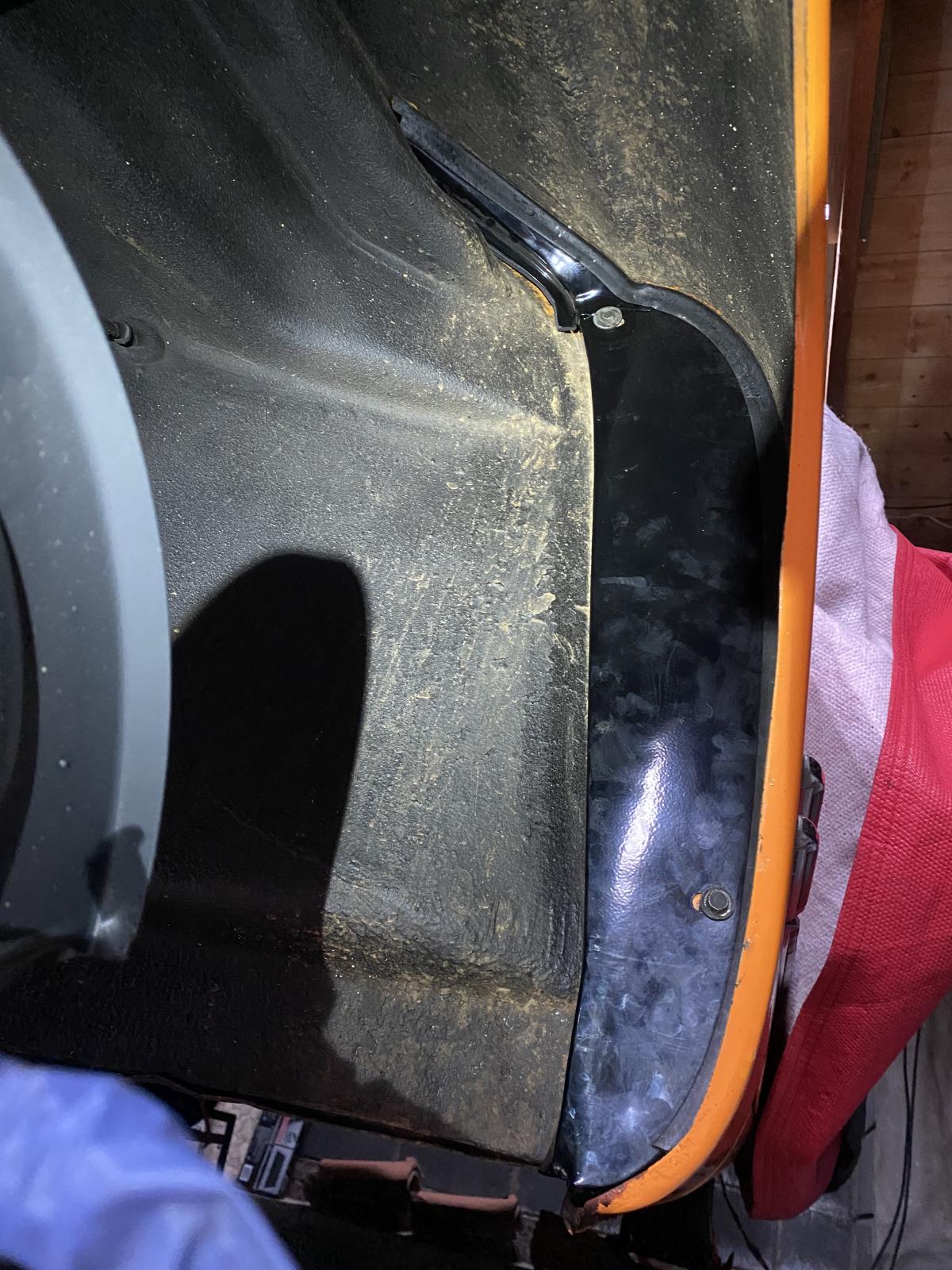

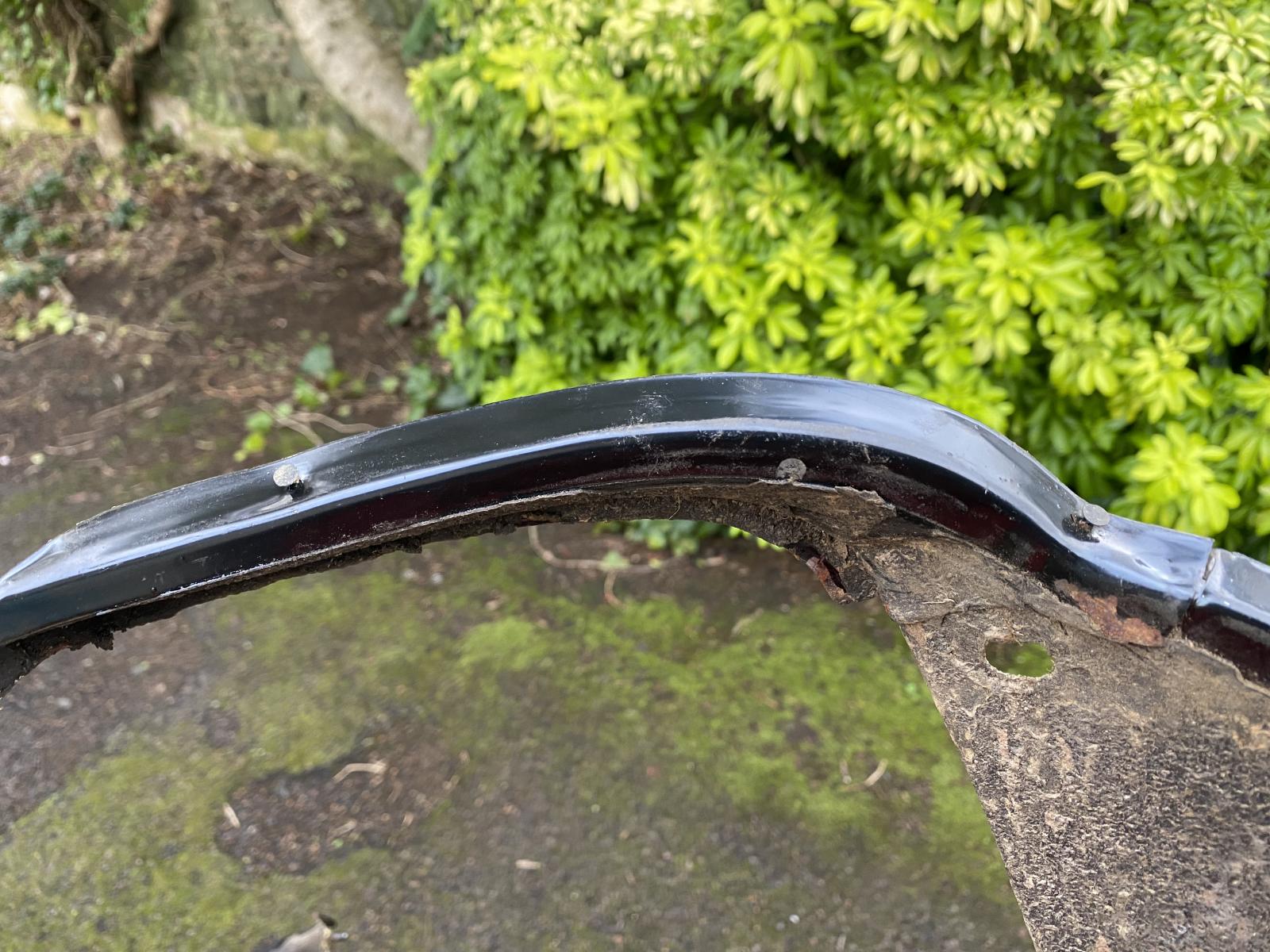

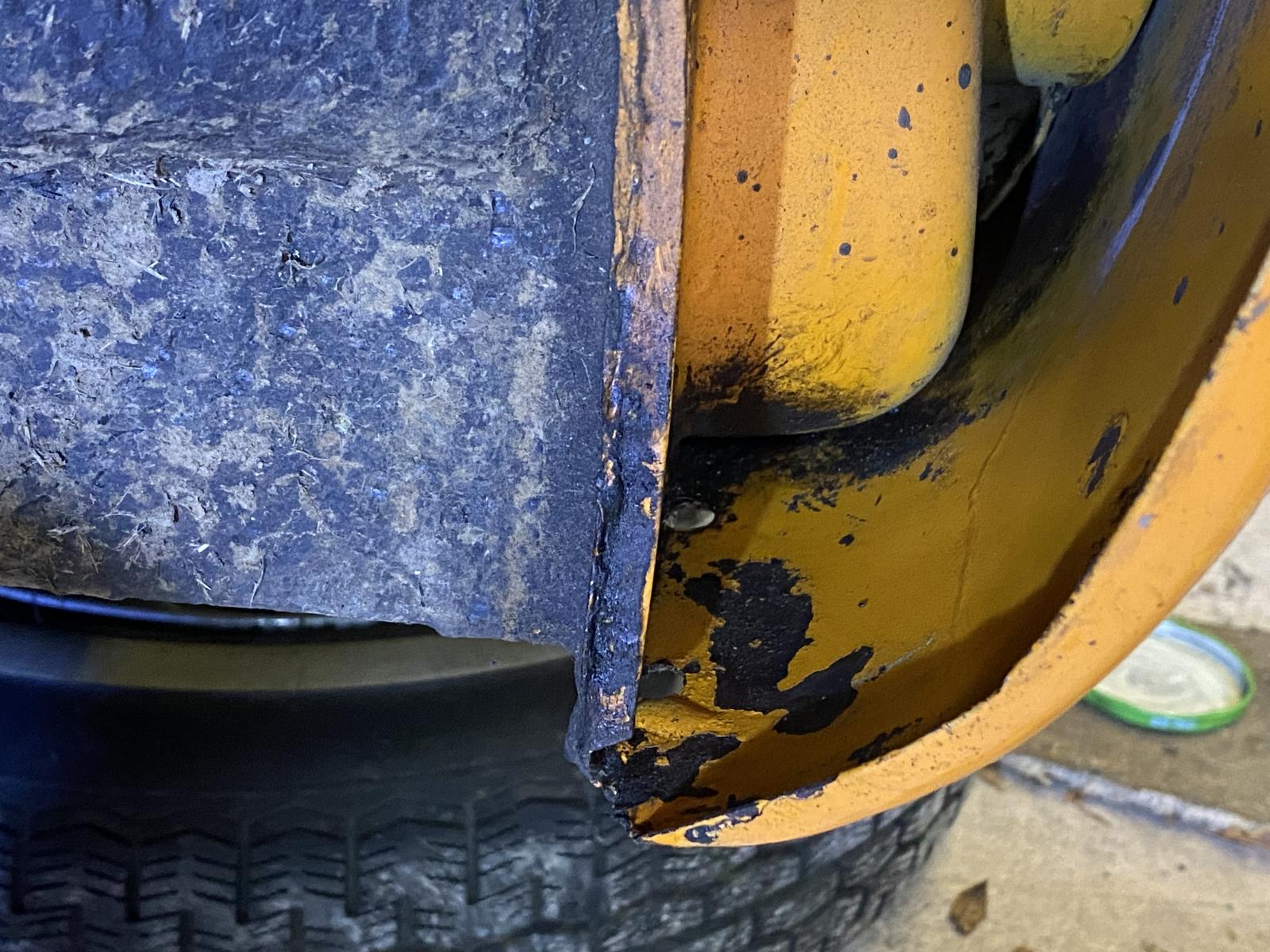

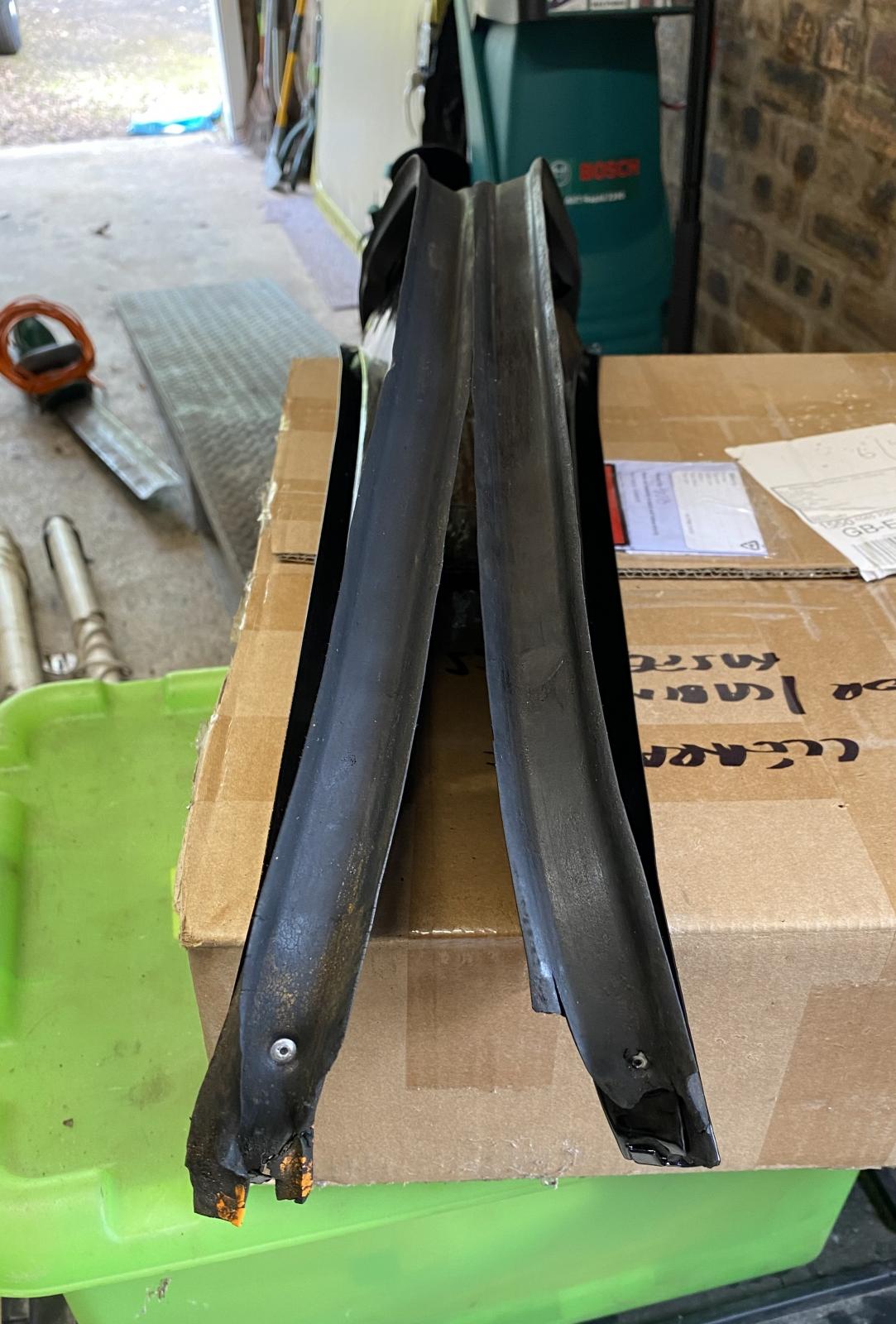

I am amazed by the condition of the splash guards, with just a bit of early rust down at the bottom ends, but Iâll be happy with them powder coated. I was keen to preserve and reuse the rubber seals if I can, they look a bit different from the replacement ones and Iâm sure they had never been off! A real pain to clean off 90% of the underseal, but they are looking much better with the glycerine soaking in and that usually works very well to soften and recondition rubber seals.
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Mon May 27, 2024 12:32 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
I am driving myself slightly demented with brakes on the Ghia.
After a caliper/piston failure last year I have rebuilt the calipers and am in the process of replacing the flex hoses all round, some of which date from 1984!

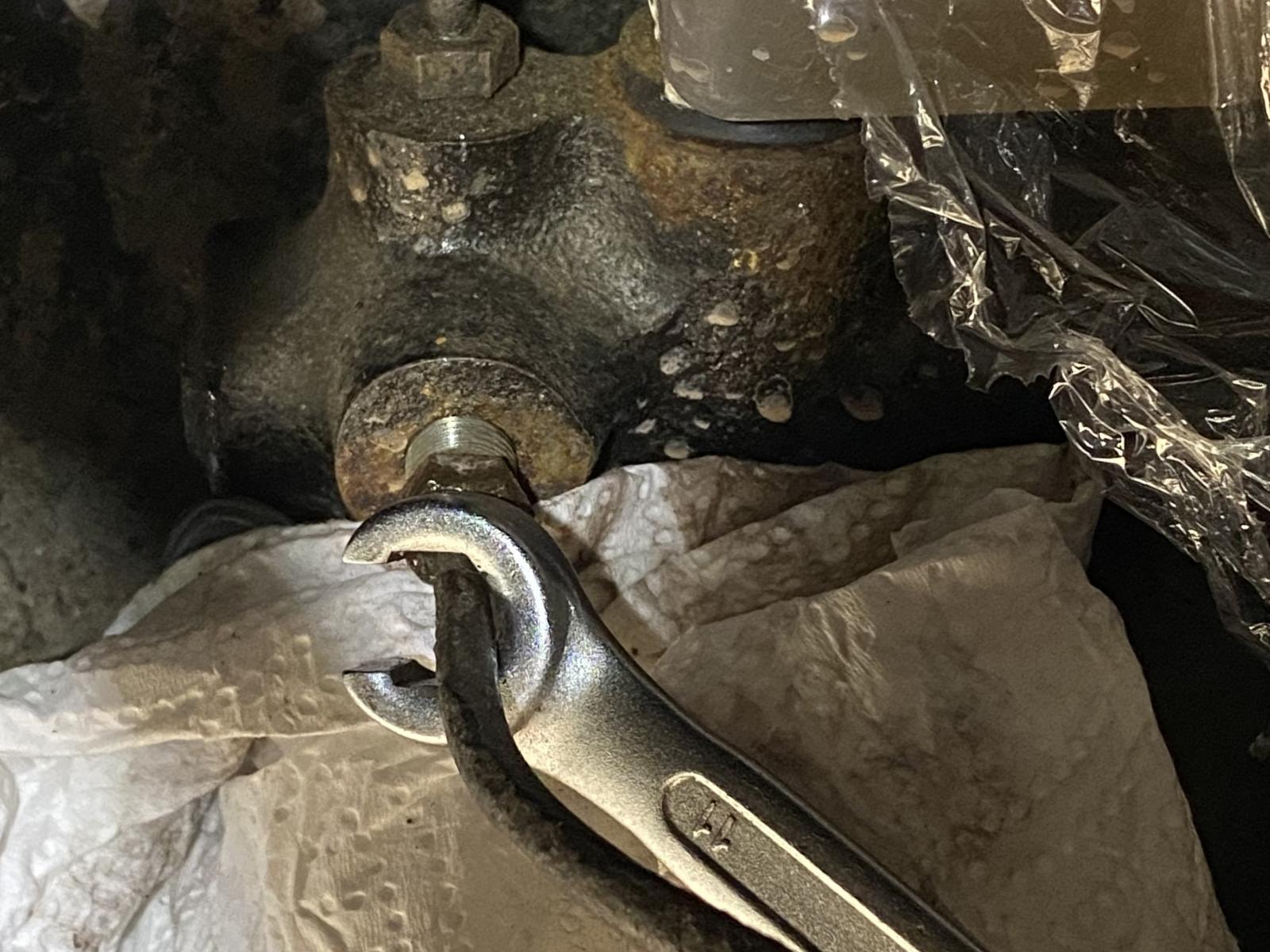

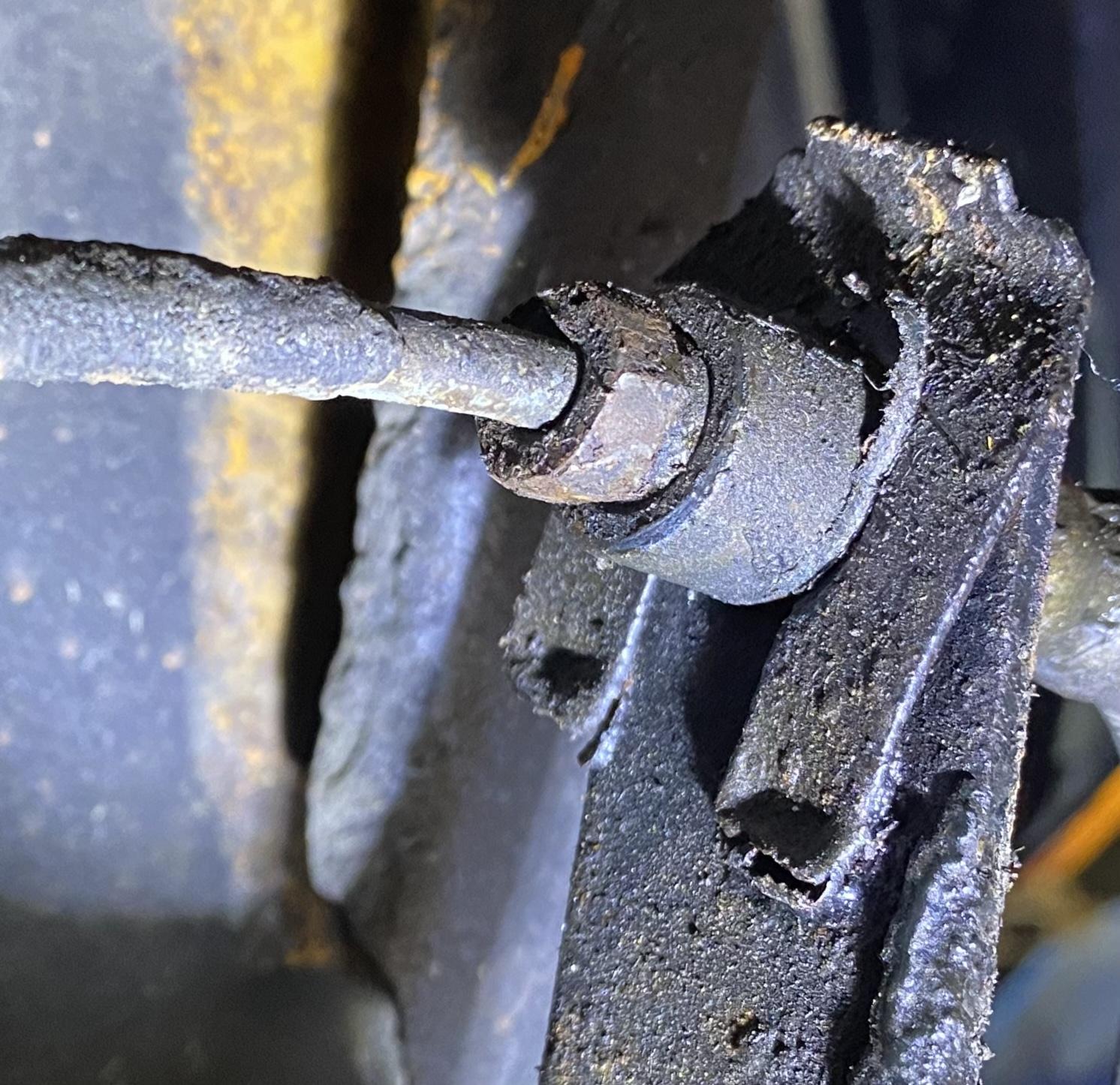

My problem is that the union between the flexible and hard lines at the front is stuck solid. Even my flare nut spanner is rounding off the nut. Even when I removed the hard line at the master cylinder and took it out of the car I couldnât get it loose! Fine, I thought, Iâll just replace the hard line as well and I have CuNi lines coming.
The rears though are similarly stuck and part of the problem is the hose inner end is attached to a 2/3 way brass block on a bracket which doesnât allow you to exert full force. I eventually got one of the hoses off with the bracket only to realise that my spare rear hoses are female/female and I need M/F!
So. Question: I can order the three flexi hoses I need, but for about twice the price I can have Goodrich stainless/PFTE braided hoses with a lifetime guaranteeâ¦
Iâm tempted to go for the braided but keen to hear any thoughts.

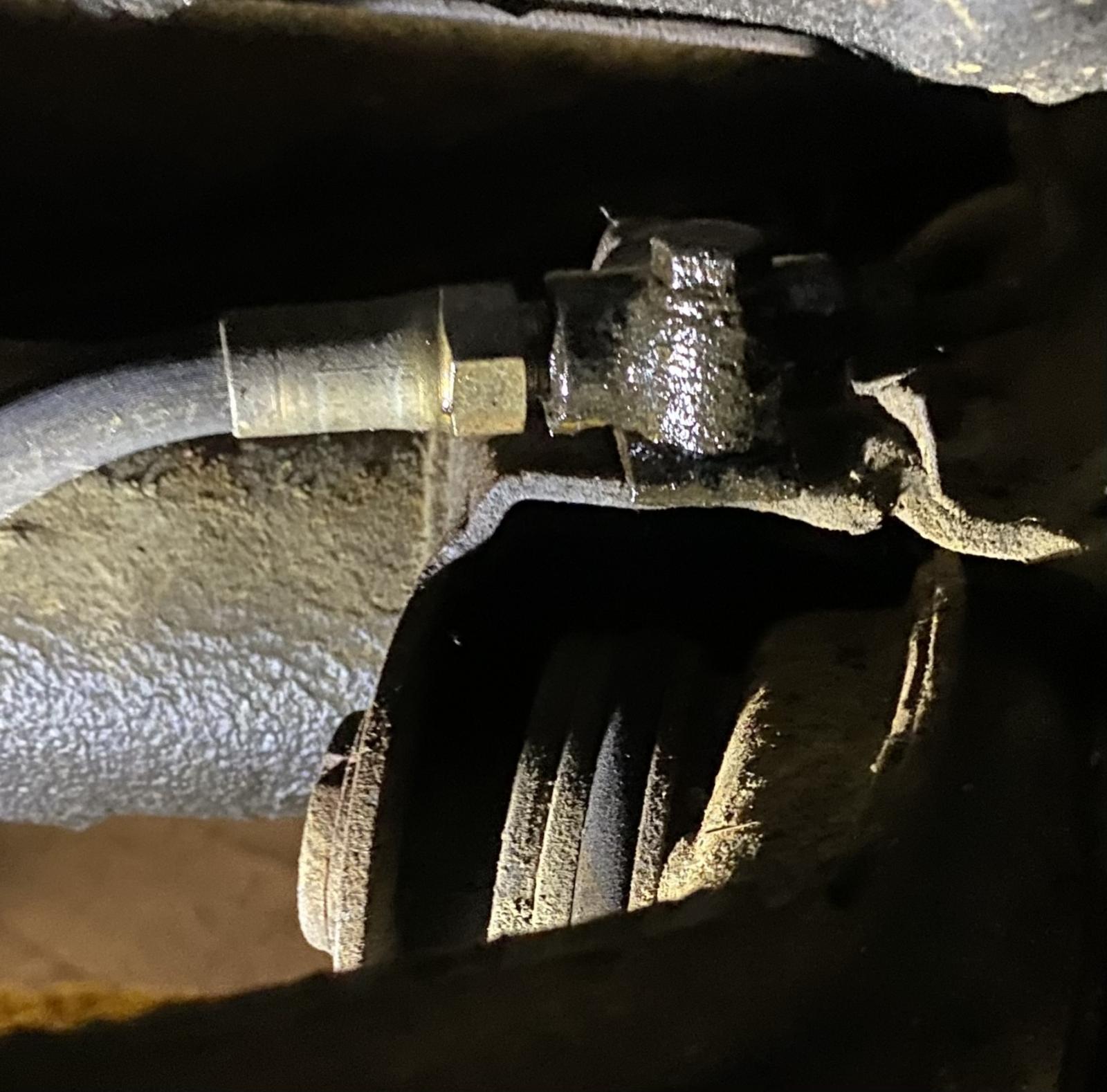

Pics of the brass block (and the general area for no good reason)!
_________________
1978 marino yellow Bay Dormobile camper
1969 signal orange Karmann Ghia convertible
1976 martini olive Bay Dormobile camper
Stop dead photo links! Post photos to The Samba Gallery! |
|
| Back to top |
|
|
Ian Godfrey
Samba Member
Joined: September 25, 2006
Posts: 1203
Location: Melbourne Australia
|
| Posted: Mon May 27, 2024 1:42 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
Oh the wo's of old car ownership. It sounds like a PO might have been a bit heavy handed tightning these up, because of the flares they don't need much to make them seal.
I have had a a bit of luck with home made penetrating fluid, 50% ATF and 50% acetone, it 'might' help.
I like the braided hoses, and have run them for 20 years and they never swell or go soft like rubber hoses. If available, I'd get the ones with the clear PVC cover so they don't scratch anything. the brake feel is noticably better than stock hoses.
at the back when undoing the lines, I have been able to get a pair of vice grips on the brass block to take some of the stress of the little bolt the goes through it |
|
| Back to top |
|
|
mcdonaldneal
Samba Member
Joined: June 13, 2013
Posts: 2725
Location: Gullane, Scotland
|
| Posted: Mon May 27, 2024 1:50 pm Post subject: Re: Late 1969 Ghia vert preservation/ restoration |
|
|
| Ian Godfrey wrote: |
Oh the wo's of old car ownership. It sounds like a PO might have been a bit heavy handed tightning these up, because of the flares they don't need much to make them seal.
I have had a a bit of luck with home made penetrating fluid, 50% ATF and 50% acetone, it 'might' help.
I like the braided hoses, and have run them for 20 years and they never swell or go soft like rubber hoses. If available, I'd get the ones with the clear PVC cover so they don't scratch anything. the brake feel is noticably better than stock hoses.
at the back when undoing the lines, I have been able to get a pair of vice grips on the brass block to take some of the stress of the little bolt the goes through it |
Thanks for that Ian. I had thought the same about a pair of vice grips. Itâs a pretty tight space but I have a couple of different options. Iâll have a go tomorrow.
