TRS63
Samba Member


Joined: December 17, 2017
Posts: 1127
Location: Stuttgart - Germany
TRS63 is offline
PostPosted: Sat Apr 05, 2025 11:47 am    Post subject: Re: Ghia coming home Reply with quote
Cool Cool top plan, and with such a solid body, totally understandable!

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Sun Apr 13, 2025 11:29 am    Post subject: Re: Ghia coming home Reply with quote
halbug wrote:

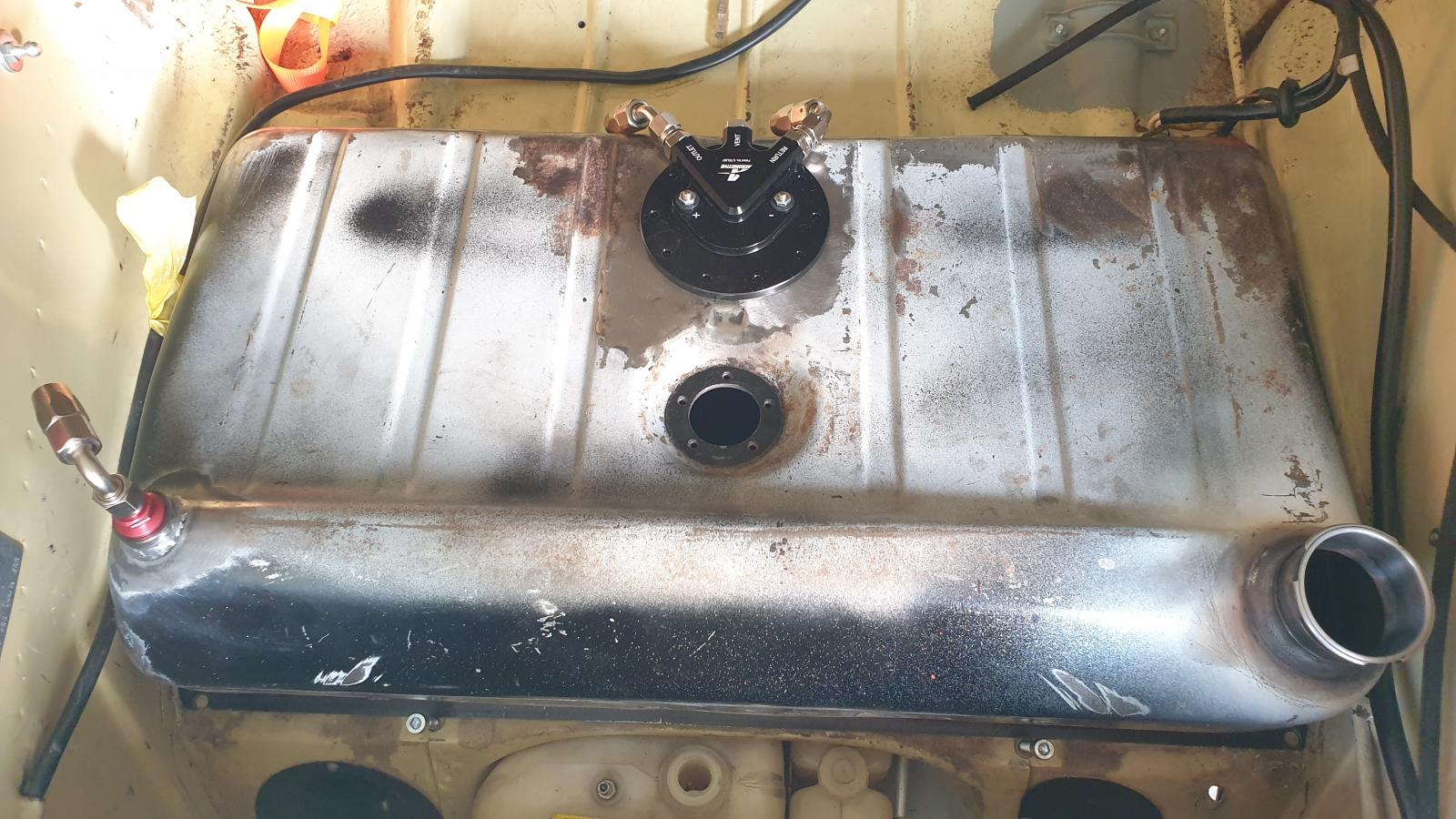

First I thought it's cool to vent tank through the flange of the Aeromotive fuel pump as it is forseen. However, I find it altmost impossible to run a straight or better yet slightly constant raising line for venting the tank without creating a siphon in the line...
Image may have been reduced in size. Click image to view fullscreen.

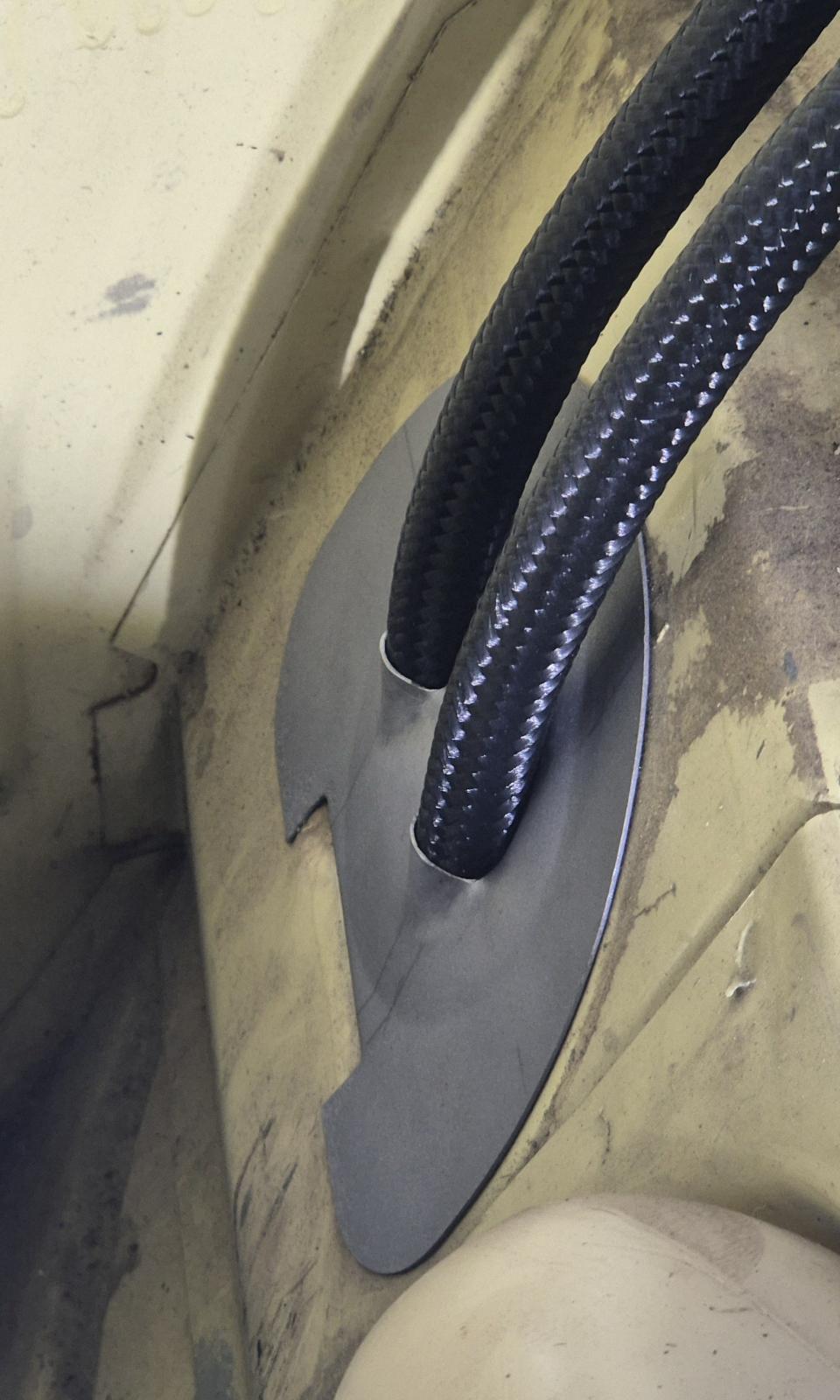

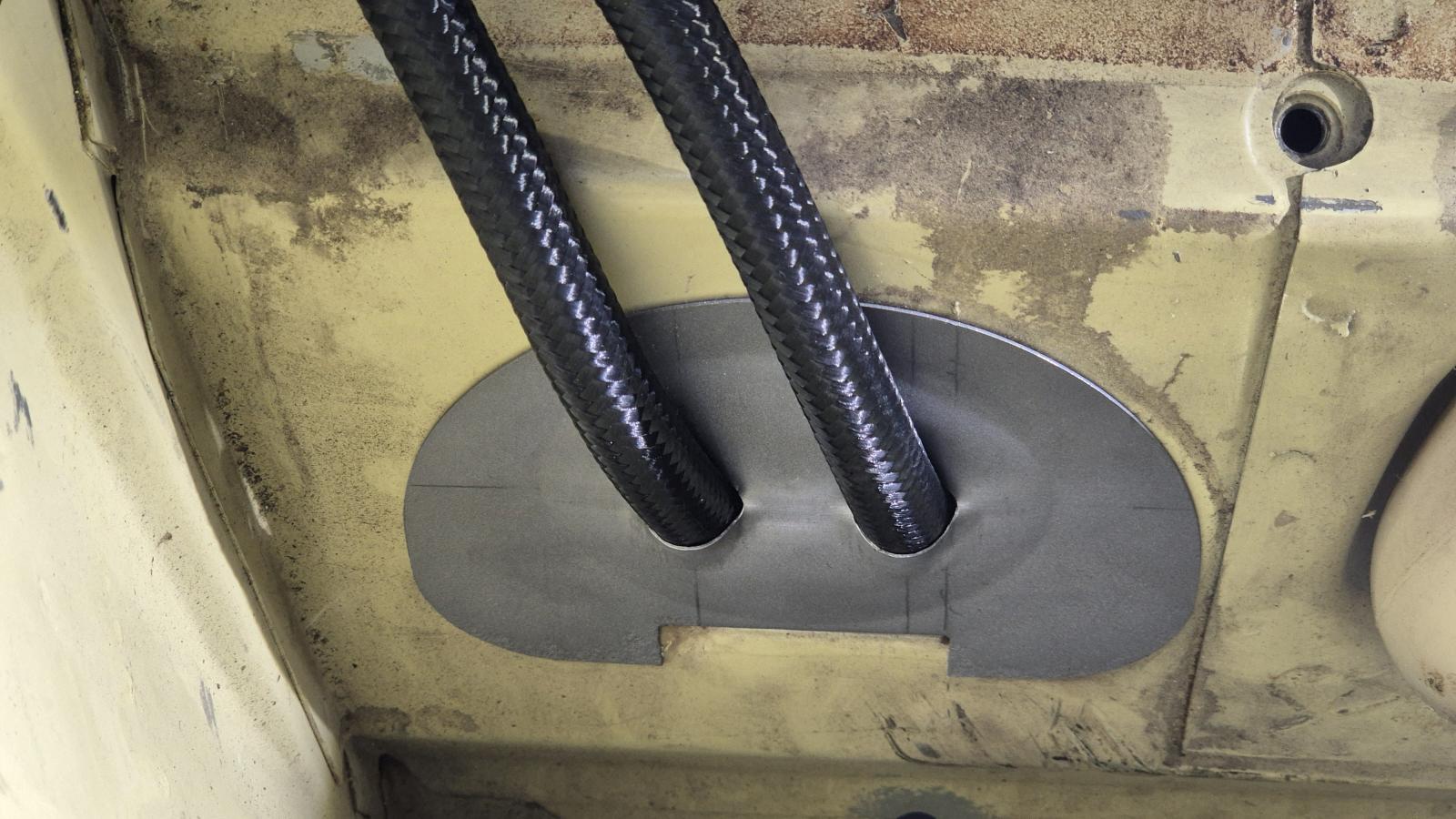

... and here is how I will pass through with the fuel lines from the trunk to the outside. I stole this idea from VW as they do exactly the same pass through for the tank vent line on the other side.

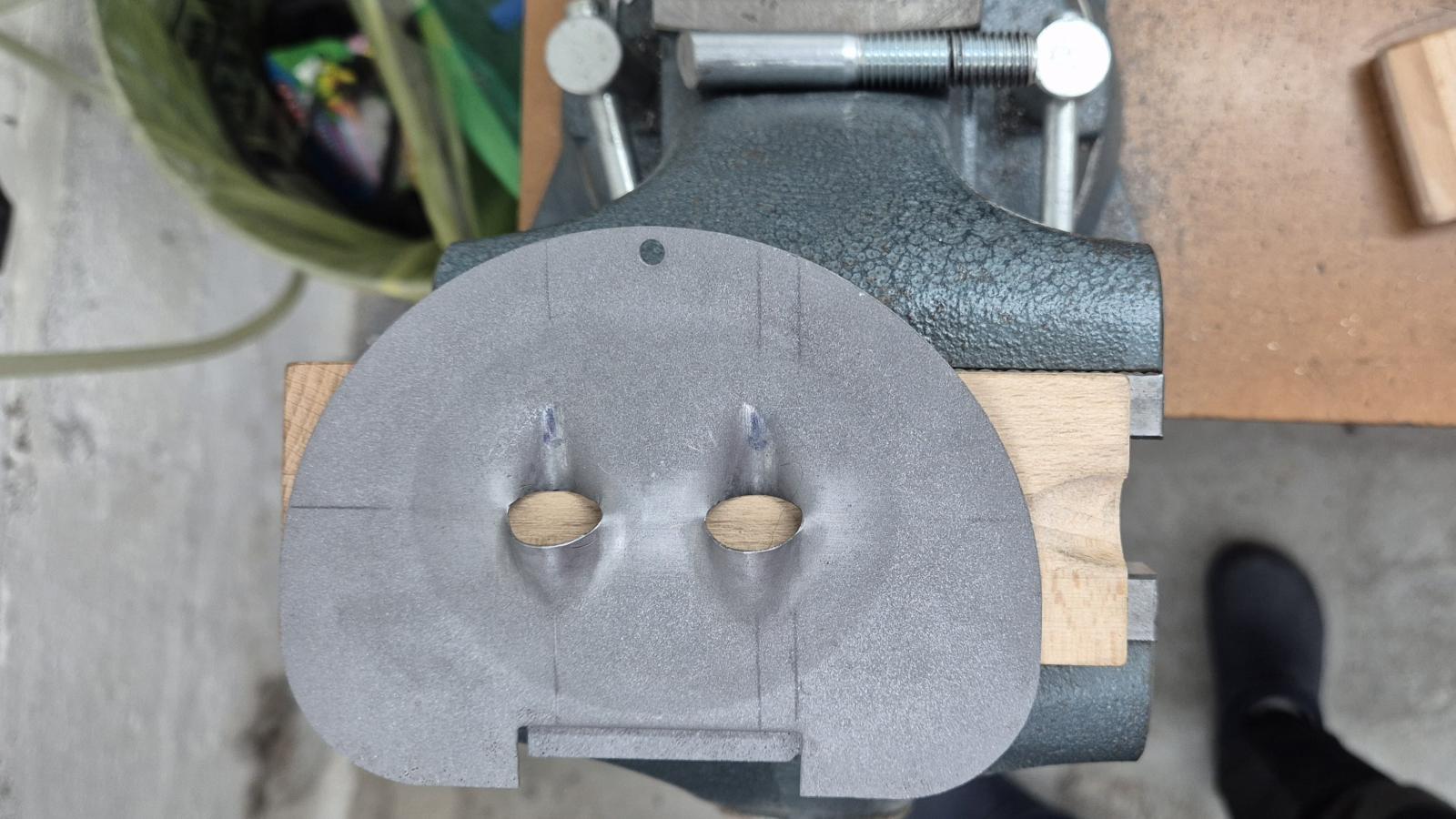

Sheetmetal forming becomes so easy with a die Laughing

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


BTW, this solution alows me to place a spare tire in the original location.
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1203
Location: Melbourne Australia
Ian Godfrey is offline
PostPosted: Sun Apr 13, 2025 4:38 pm    Post subject: Re: Ghia coming home Reply with quote
that is a very tidy solution for the fuel lines. I think on later KG's the vent line went across tucked near the wipers to solve the syphon problem.
are you going to use the bung welded in on the opposite side to the filler?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Sun Apr 13, 2025 9:59 pm    Post subject: Re: Ghia coming home Reply with quote
Hi Ian, yes VW developed the vent line further and further up to the catch cans.

I am using an anti roll valve to start splash and will run the line across the windshield wipers, as you describe and have it end at the original pass through.
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Mon Apr 28, 2025 1:56 pm    Post subject: Re: Ghia coming home Reply with quote

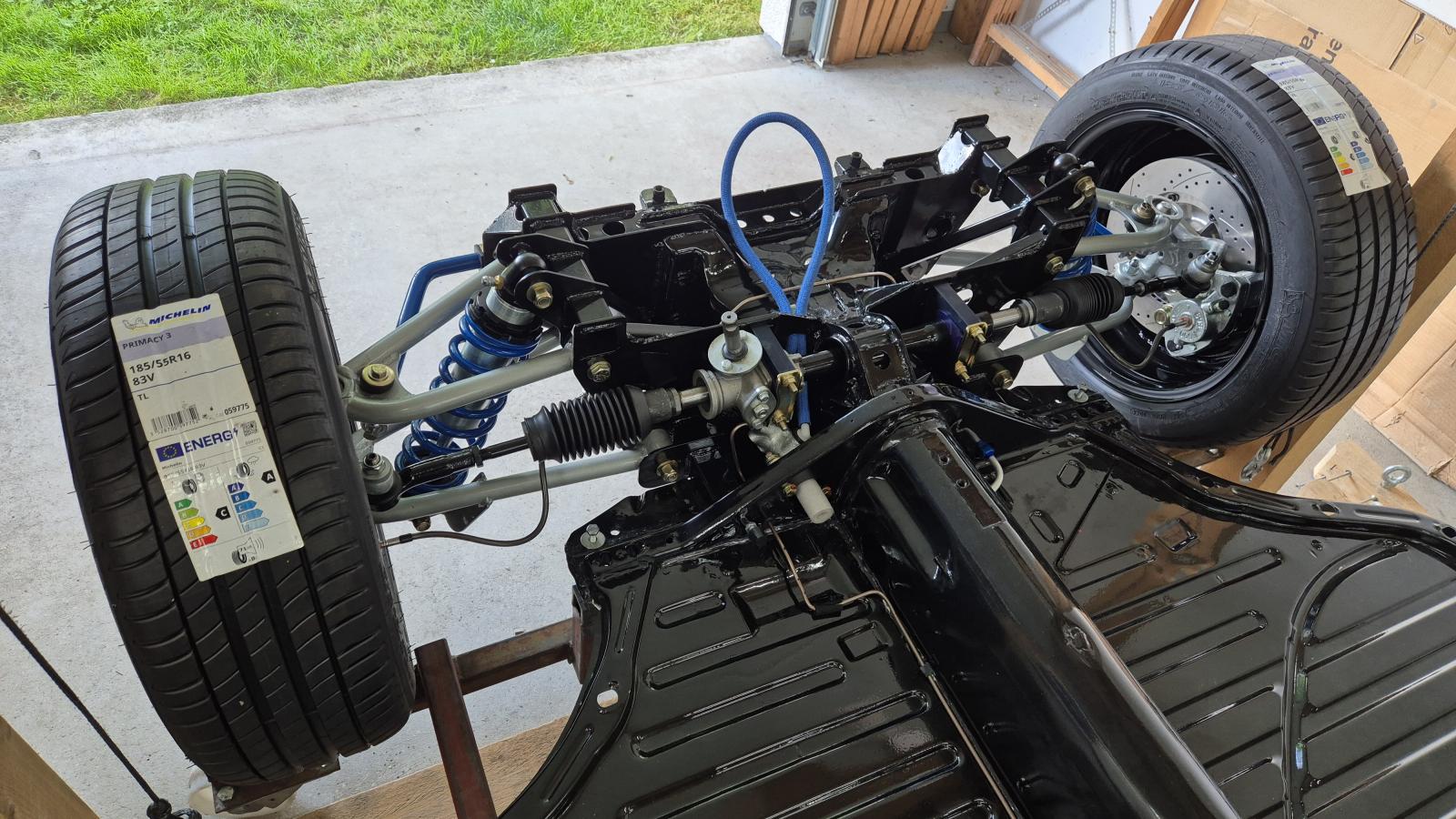

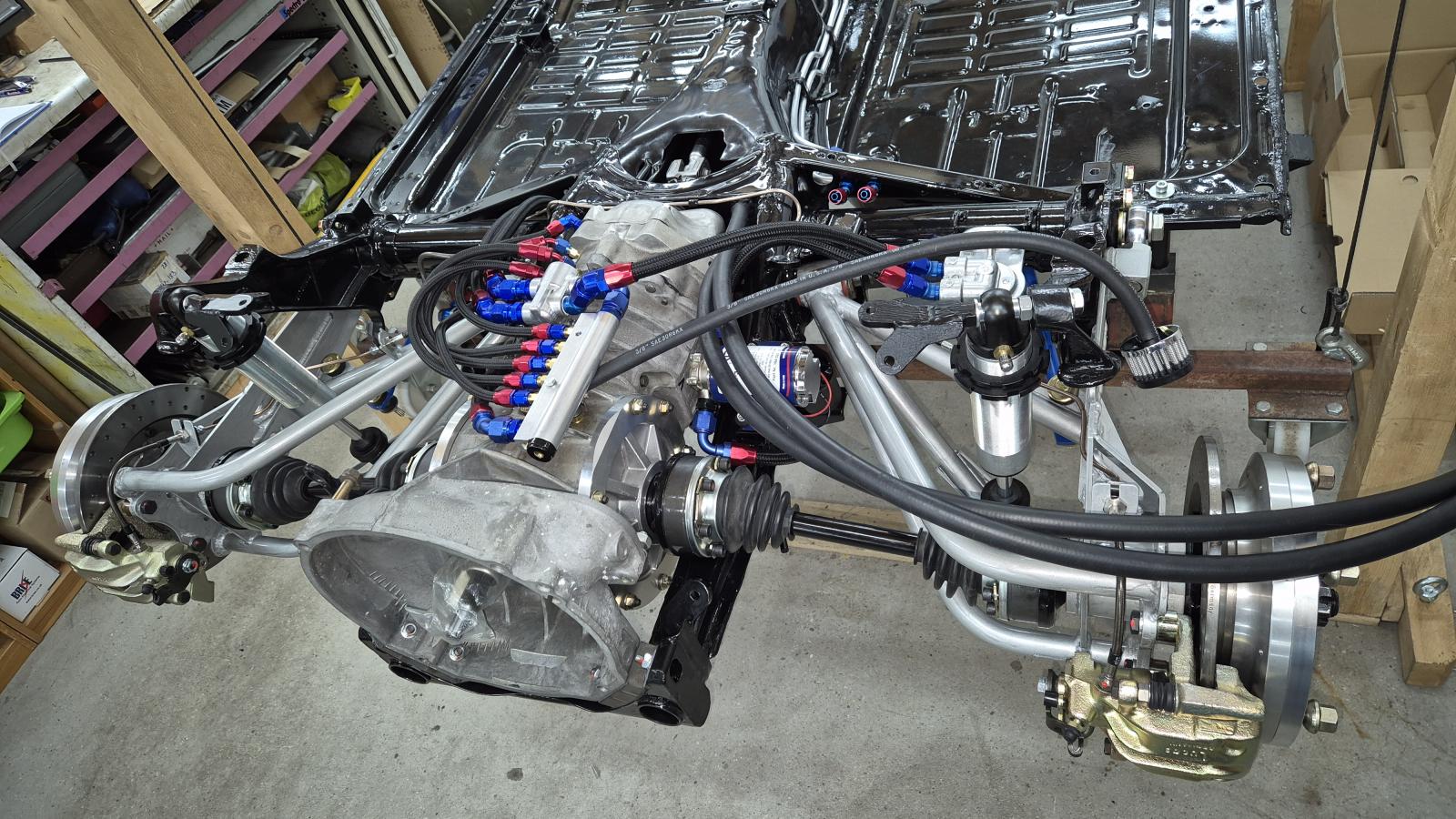

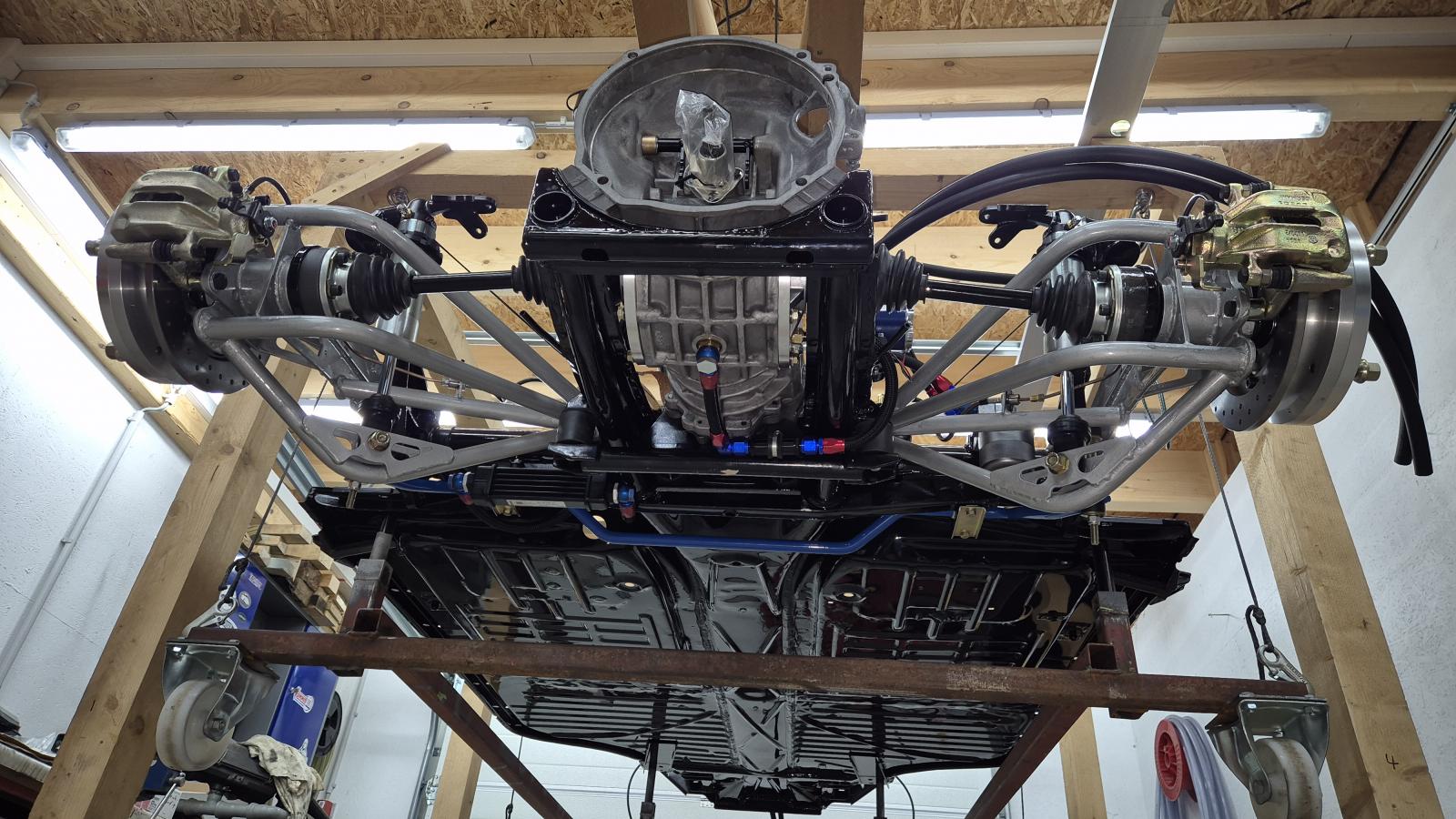

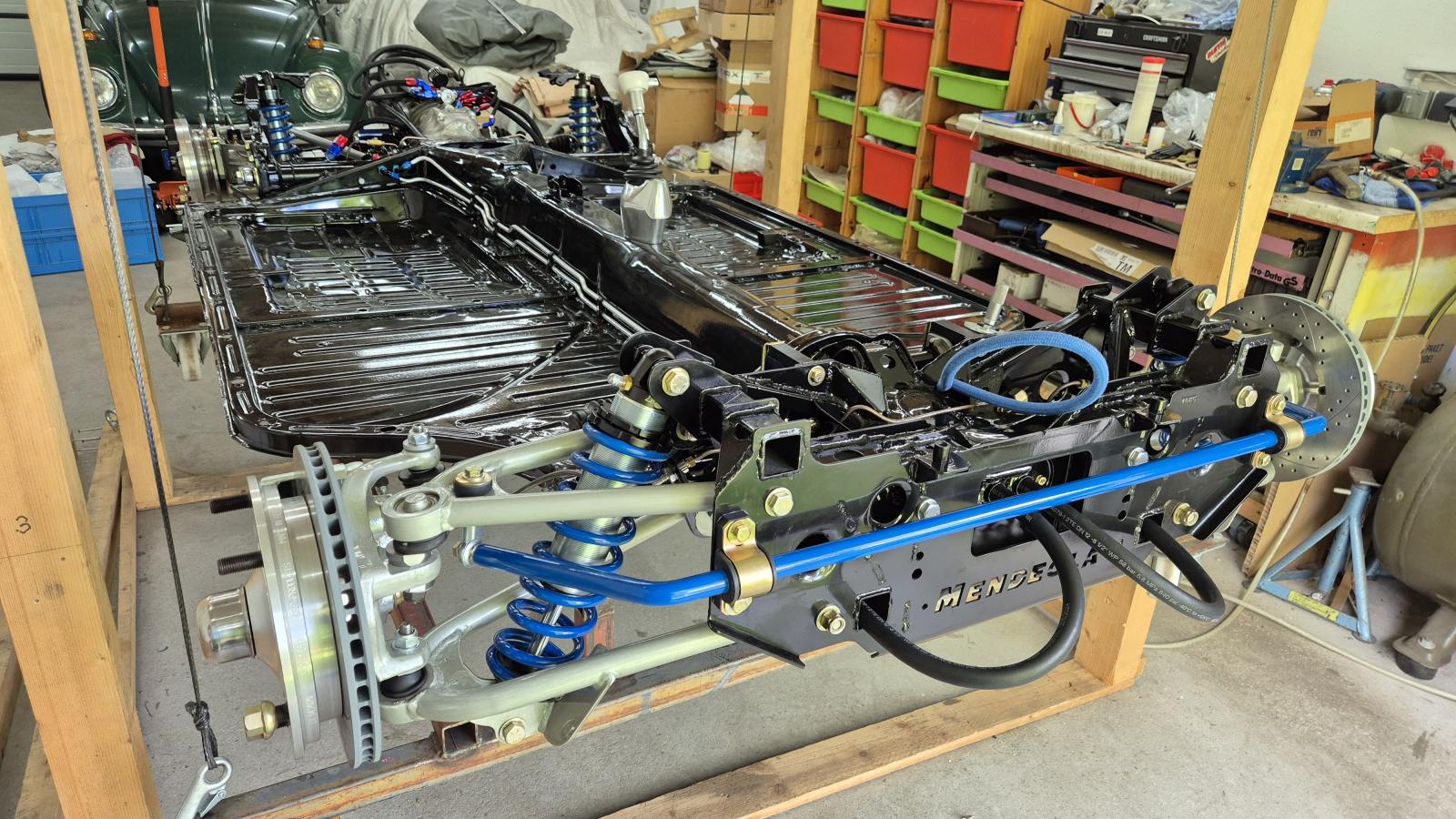

I have started to assemble the chassis today Cool Cool Cool

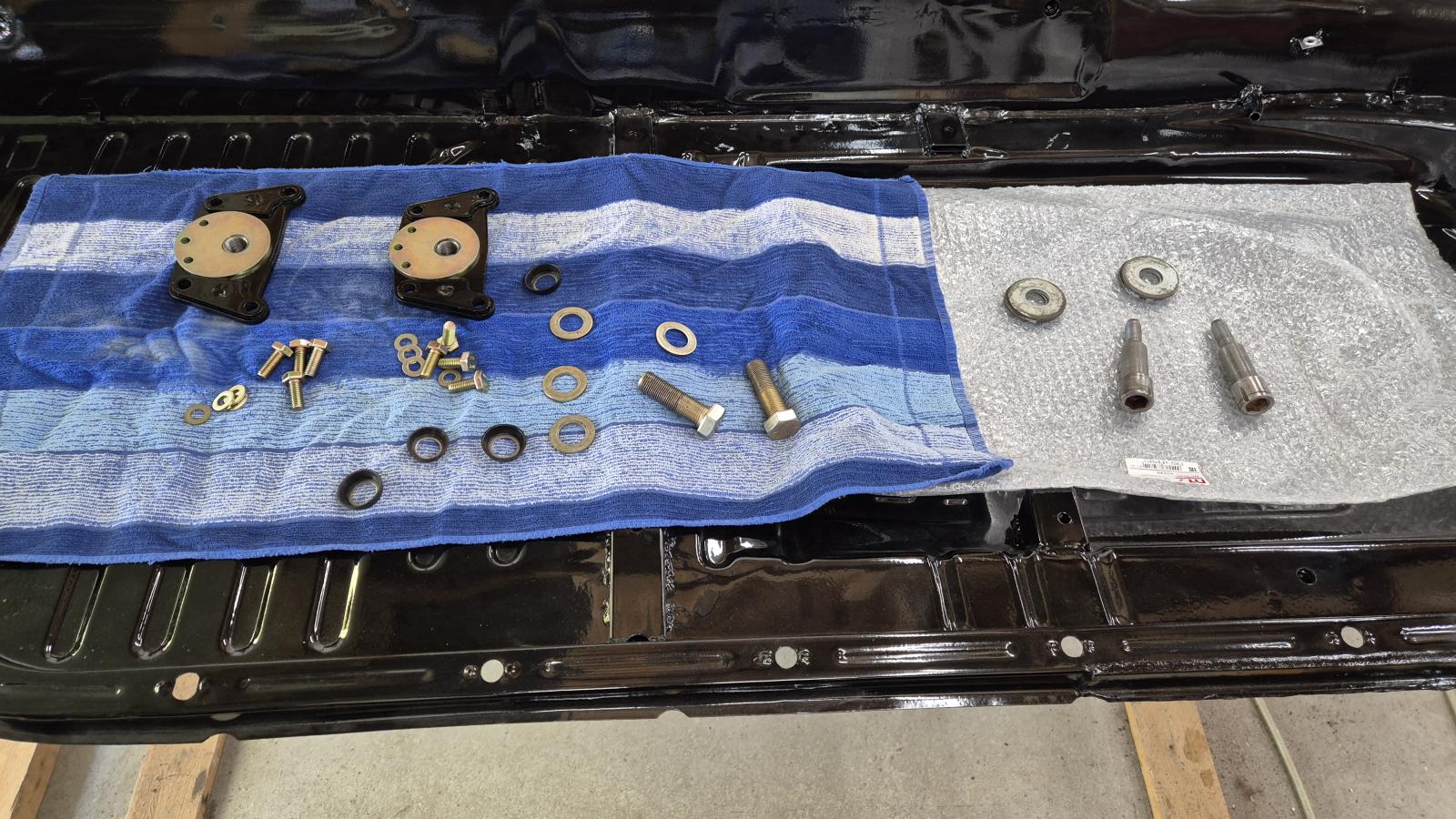

Puzzle
Image may have been reduced in size. Click image to view fullscreen.

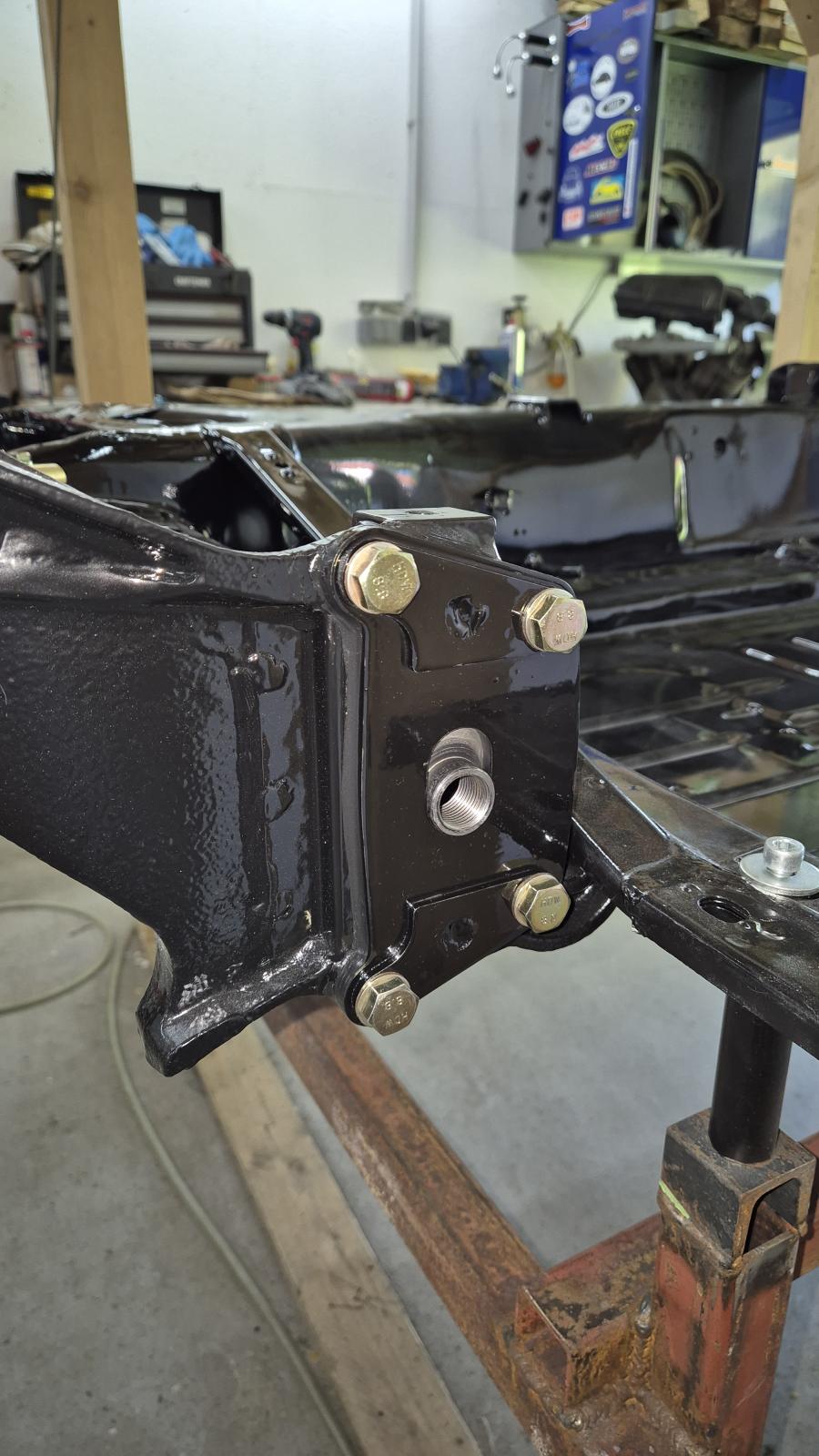

Sealed and torqued
Image may have been reduced in size. Click image to view fullscreen.

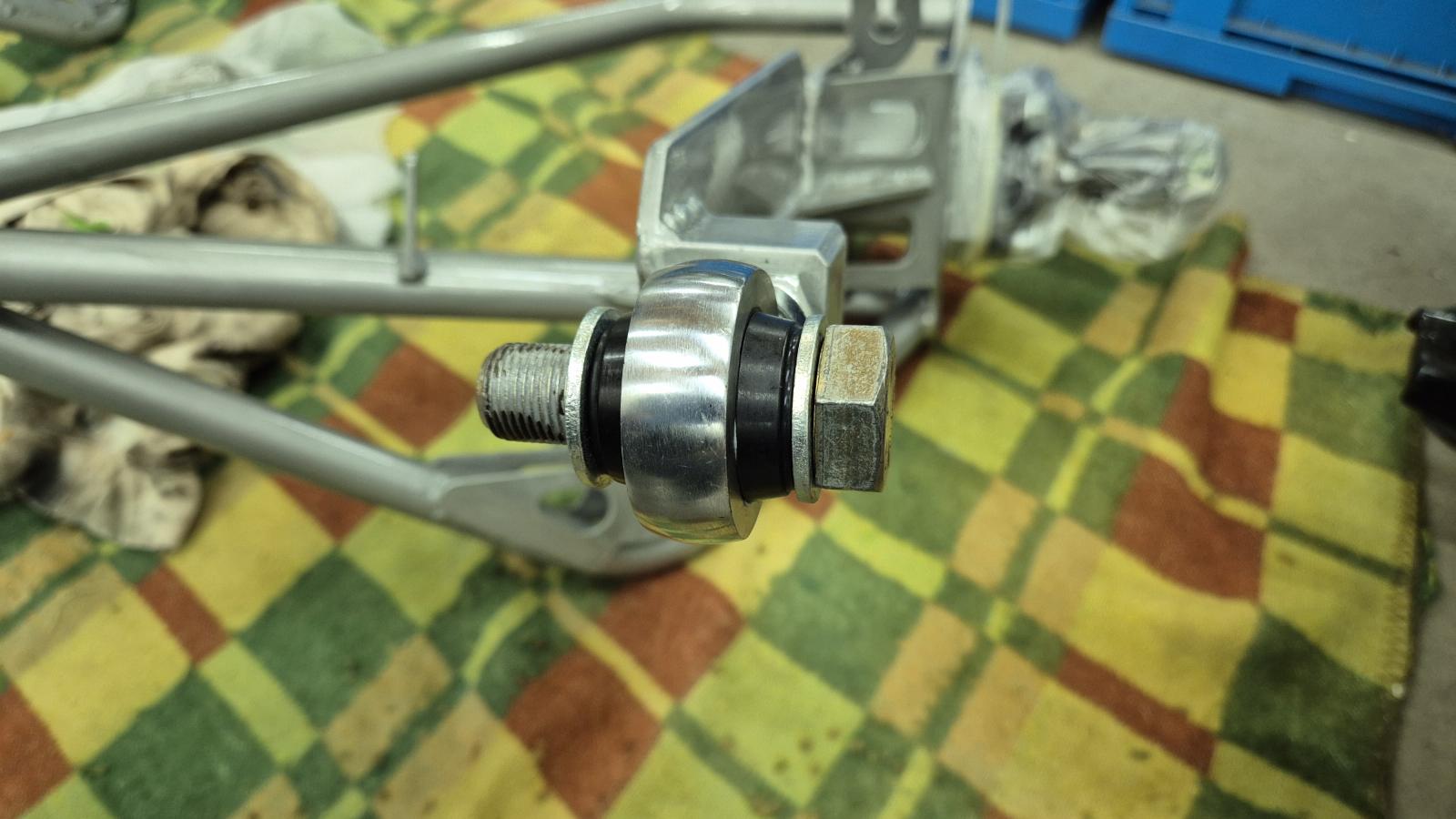

Seals to protect the ball joints
Image may have been reduced in size. Click image to view fullscreen.

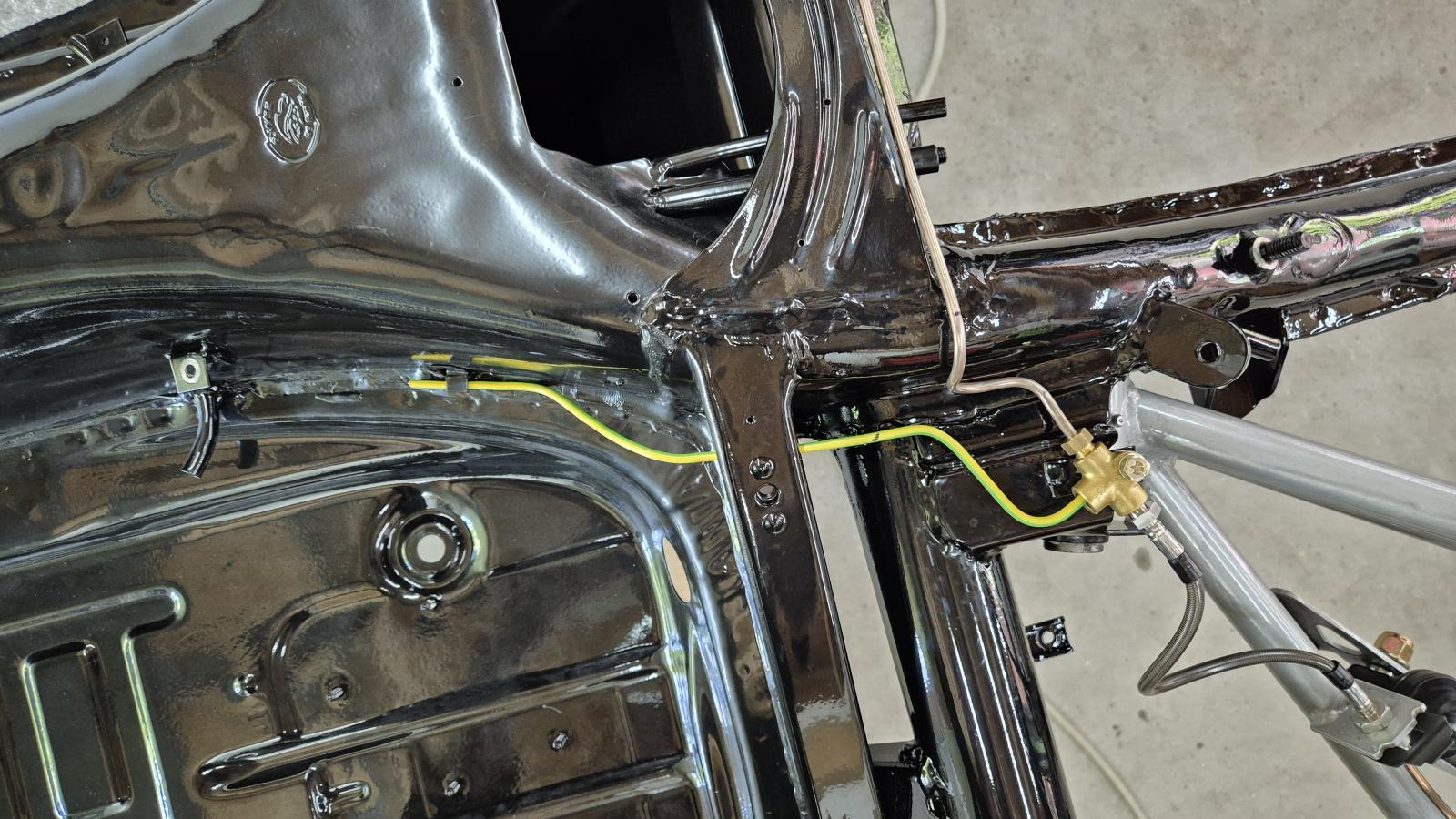

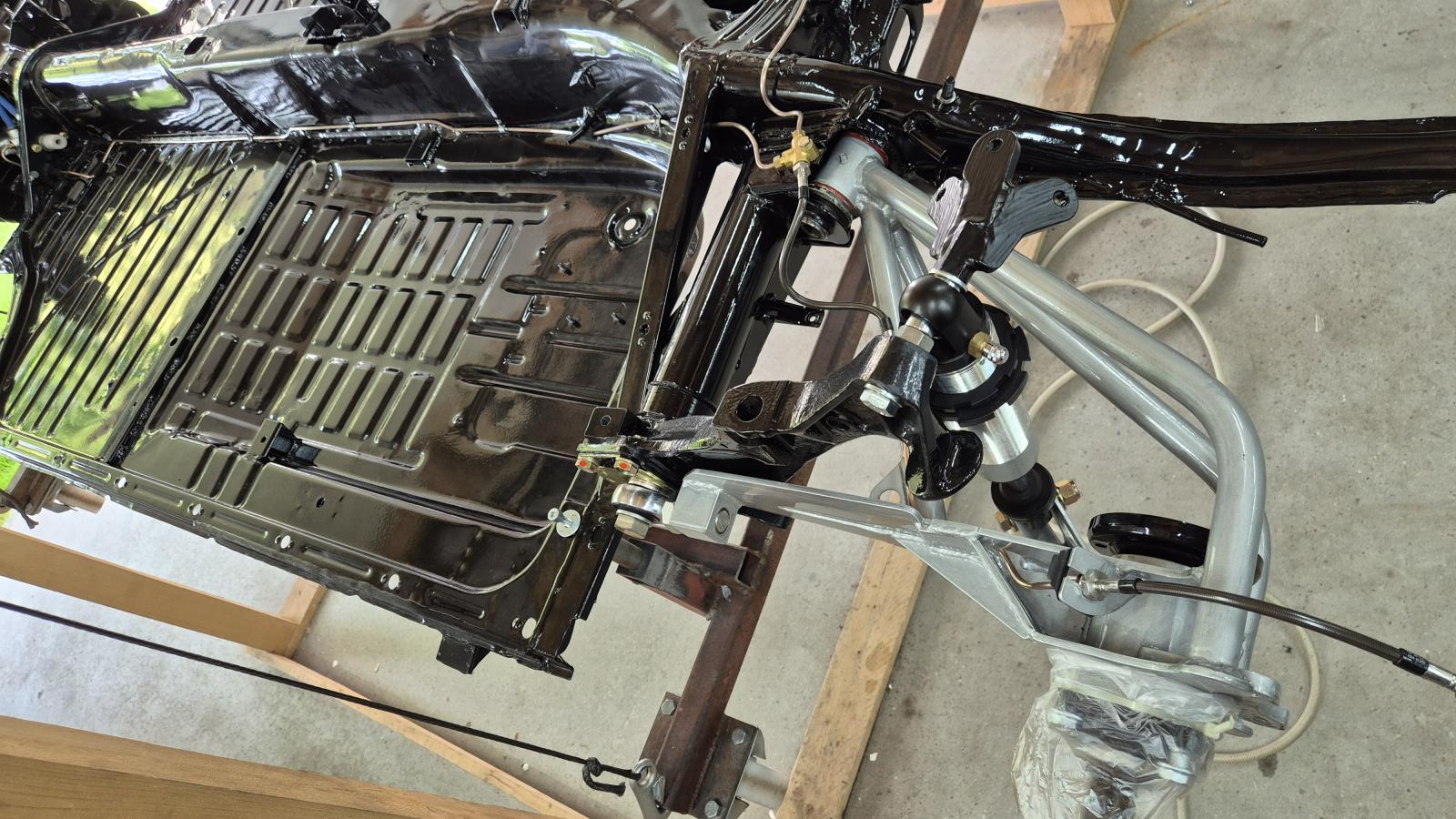

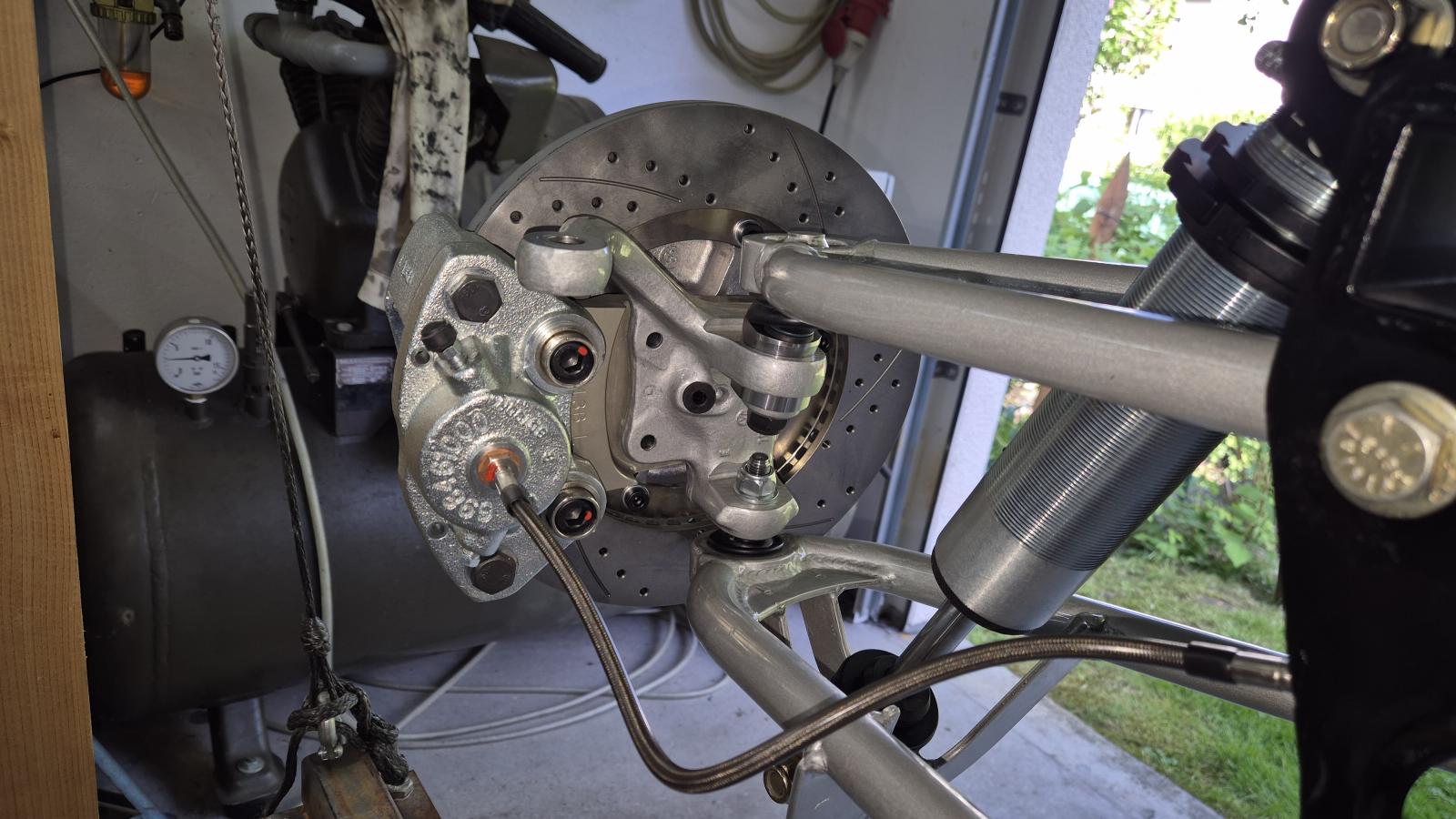

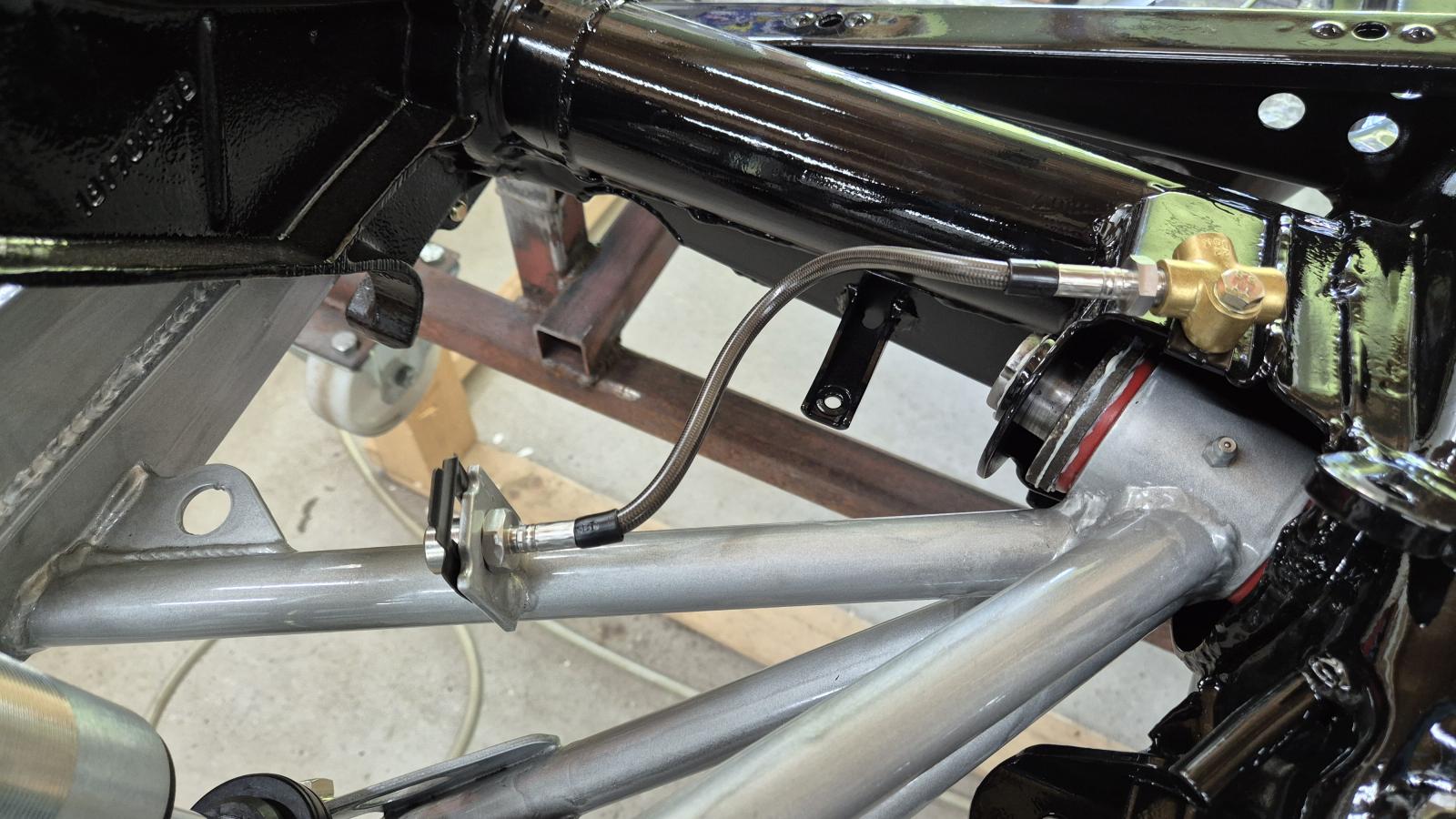

Brake line routing
Image may have been reduced in size. Click image to view fullscreen.

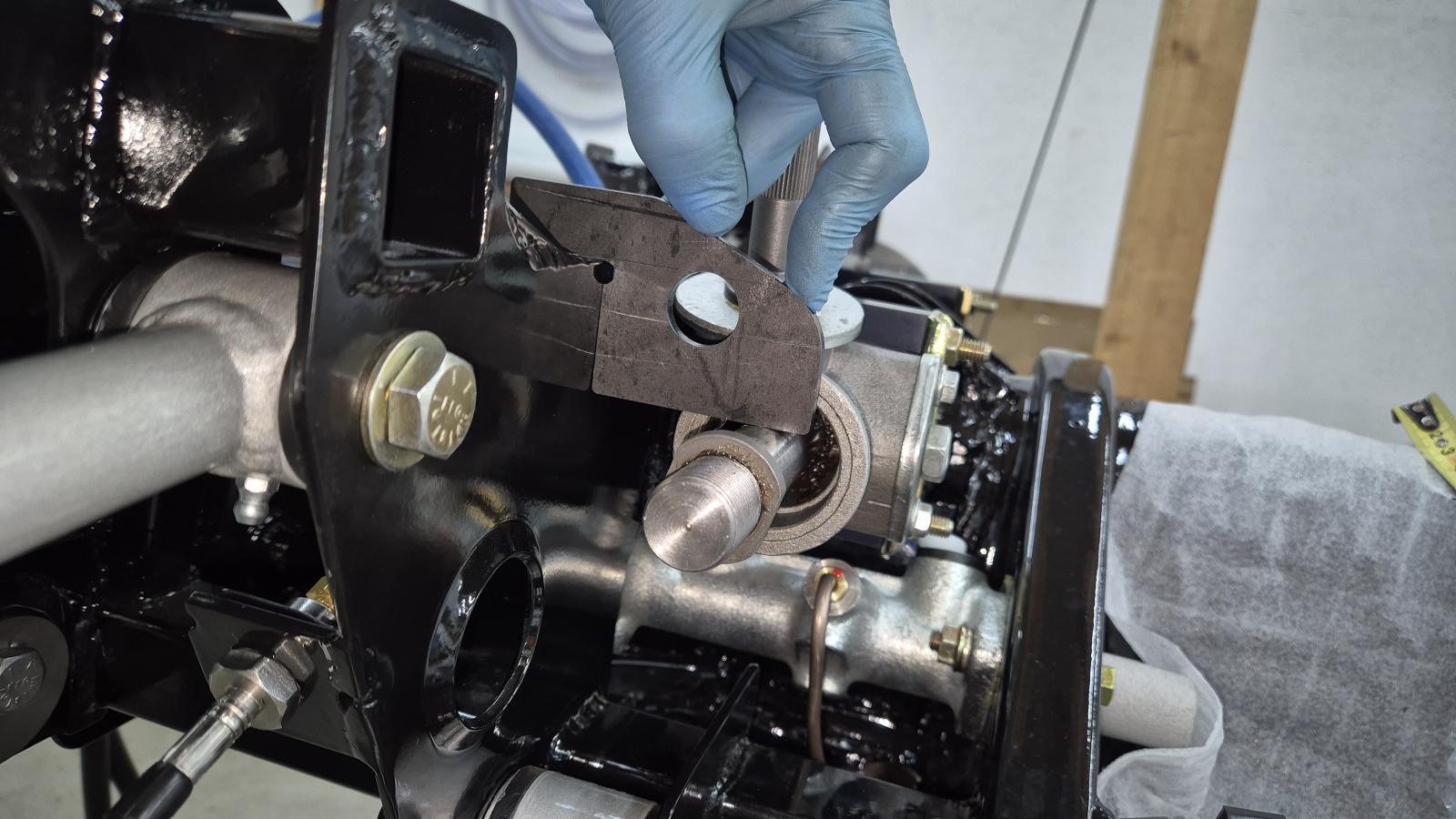

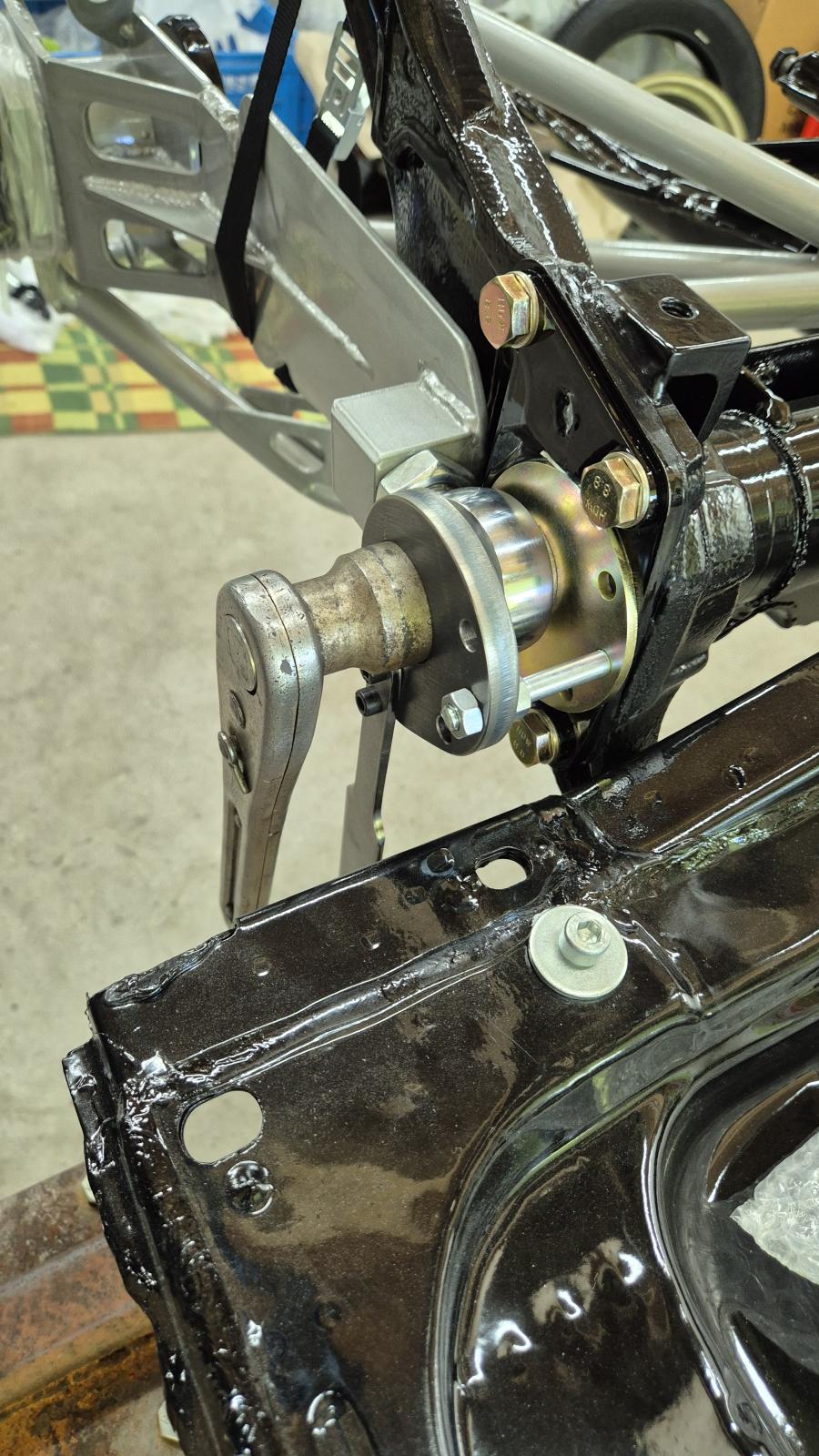

Try out of excenter adjuster tool, works great
Image may have been reduced in size. Click image to view fullscreen.

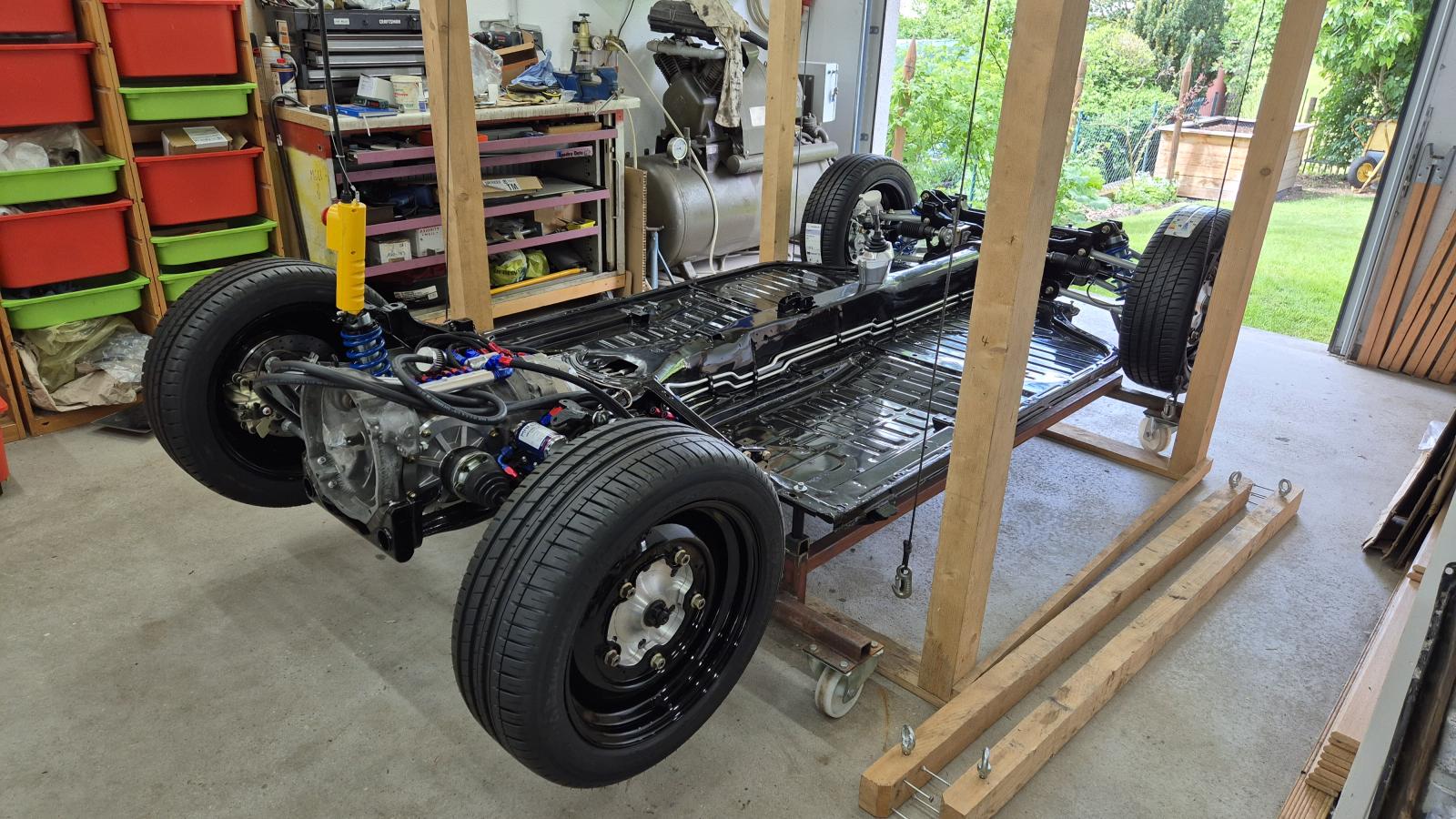

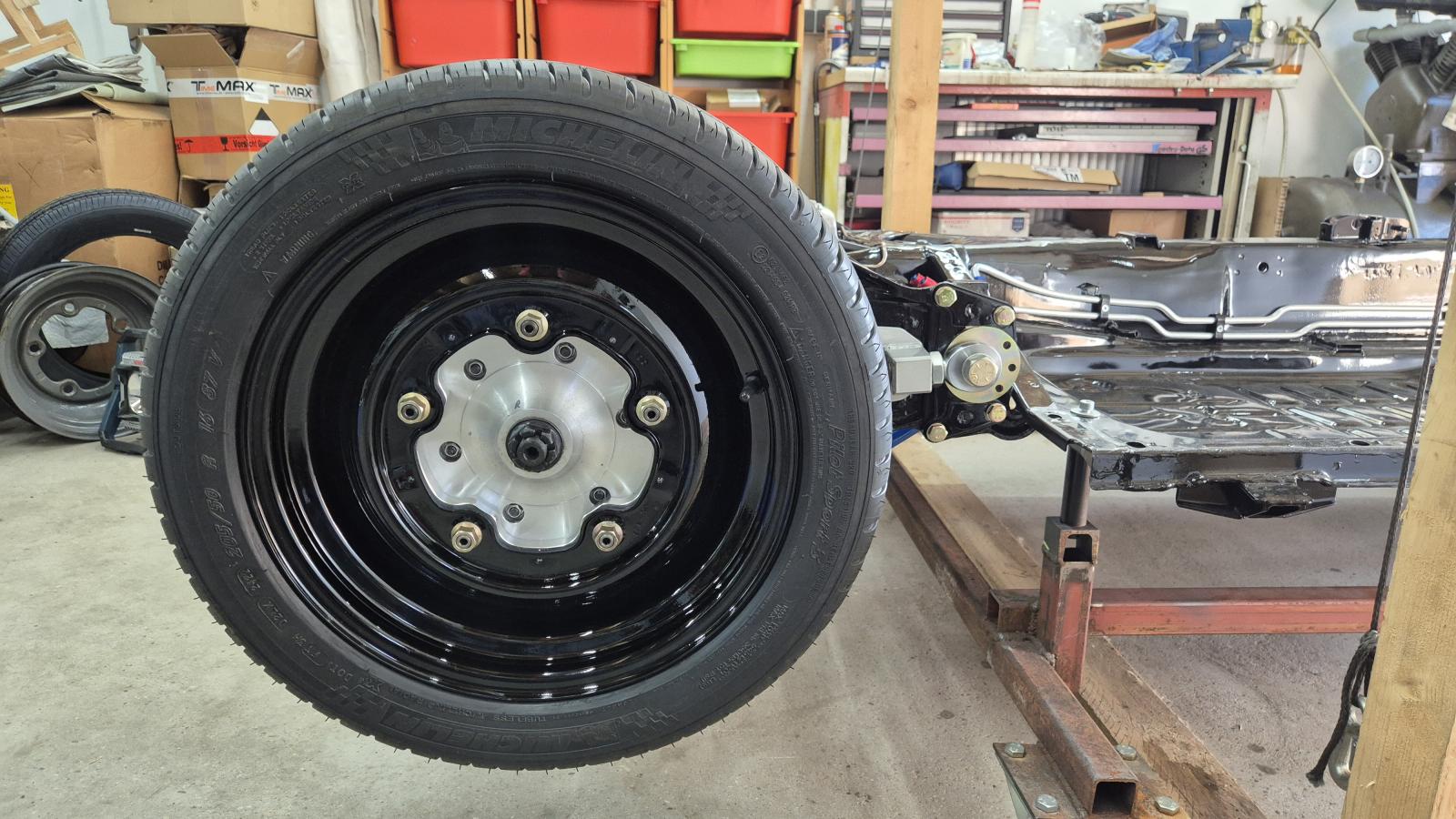

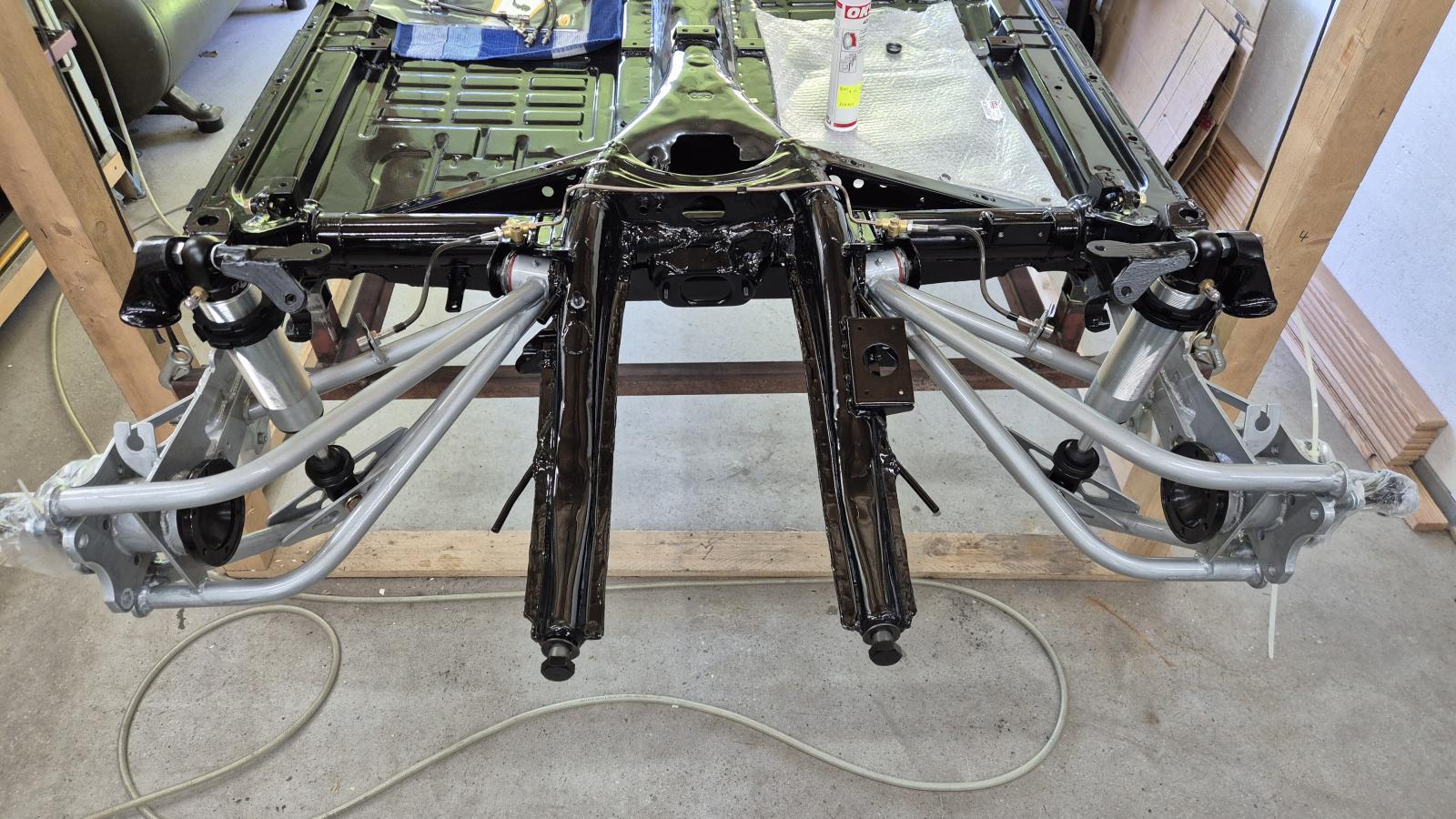

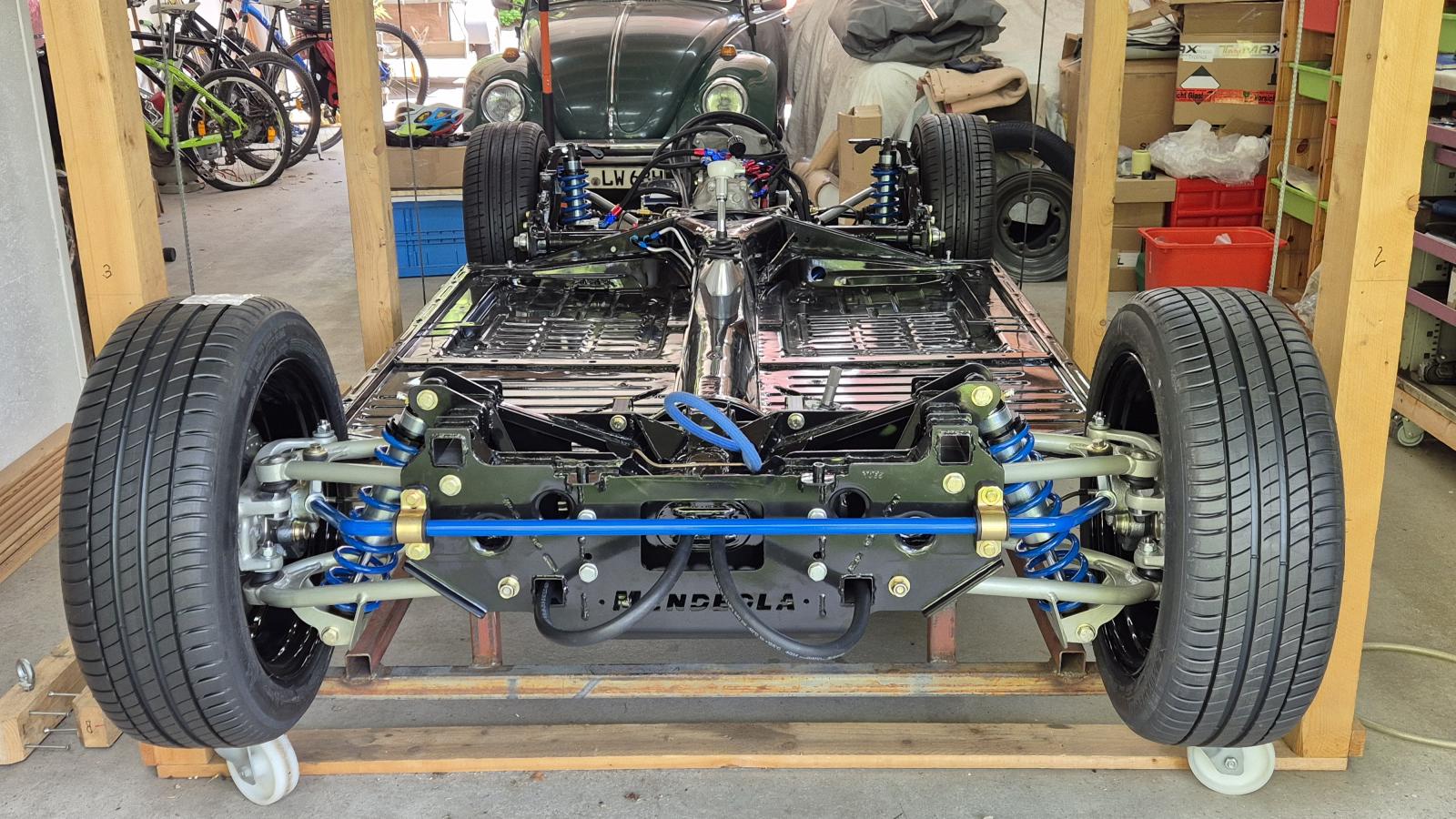

First day
Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1203
Location: Melbourne Australia
Ian Godfrey is offline
PostPosted: Mon Apr 28, 2025 4:12 pm    Post subject: Re: Ghia coming home Reply with quote
Eye Candy Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TRS63
Samba Member


Joined: December 17, 2017
Posts: 1127
Location: Stuttgart - Germany
TRS63 is offline
PostPosted: Tue Apr 29, 2025 11:18 am    Post subject: Re: Ghia coming home Reply with quote
Now you're showing off Razz Just kidding, looking fantastic as always !
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Thu May 01, 2025 3:12 am    Post subject: Re: Ghia coming home Reply with quote
Thank you guys!

TRS63 wrote:
Now you're showing off Razz Just kidding, looking fantastic as always !


Antoine, maybe you are right, but after 10 years (on and off, of course) of hard work, I am so happy that everything is coming together, that I like to share my joy... Wink
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Fri May 02, 2025 12:02 pm    Post subject: Re: Ghia coming home Reply with quote

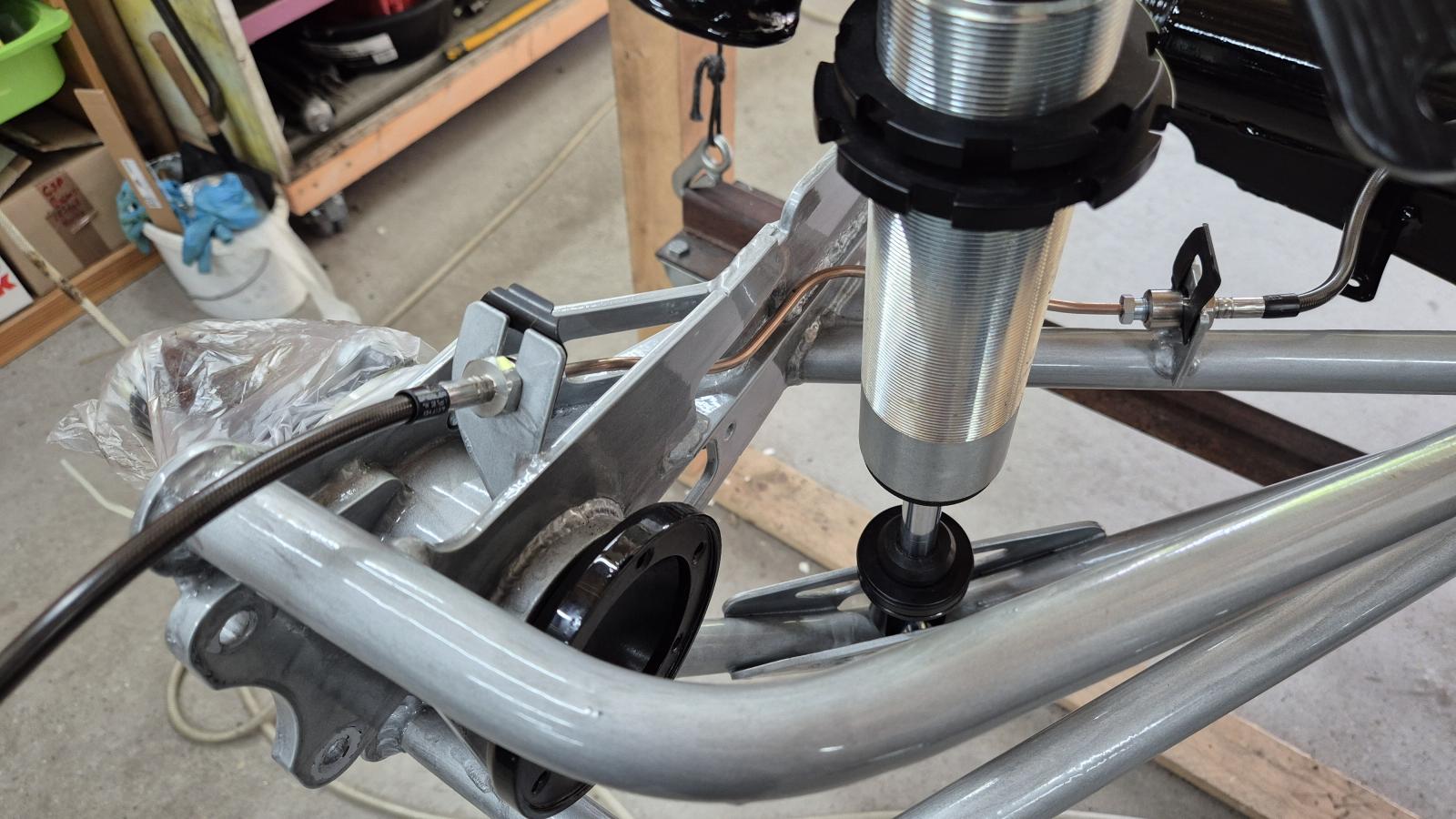

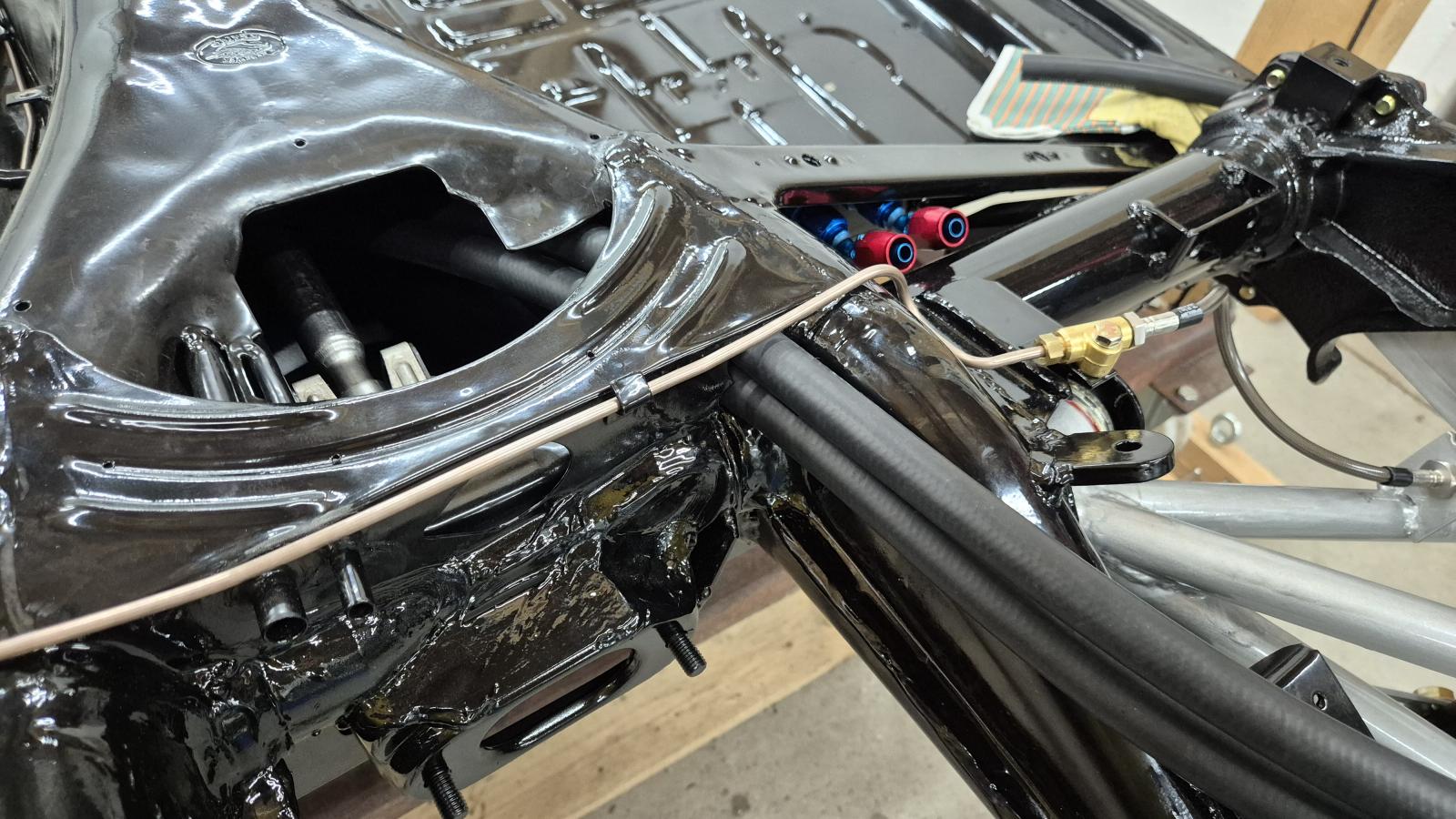

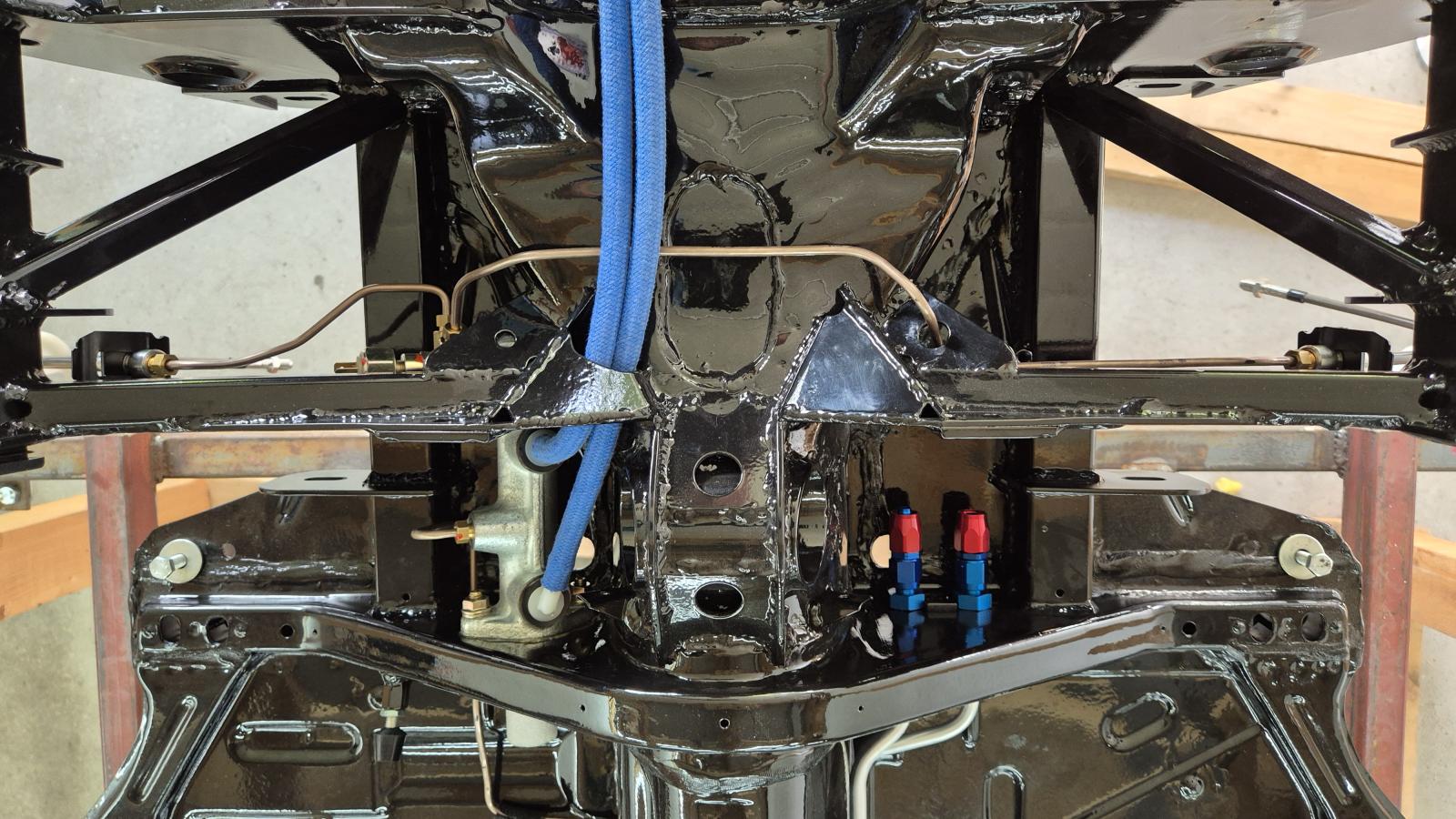

I don't know how you guys do it faster, but it took me two days to run all the brake lines Laughing

To try out the best way routing the lines and for templating I used solid copper wire on the more complicated corners:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

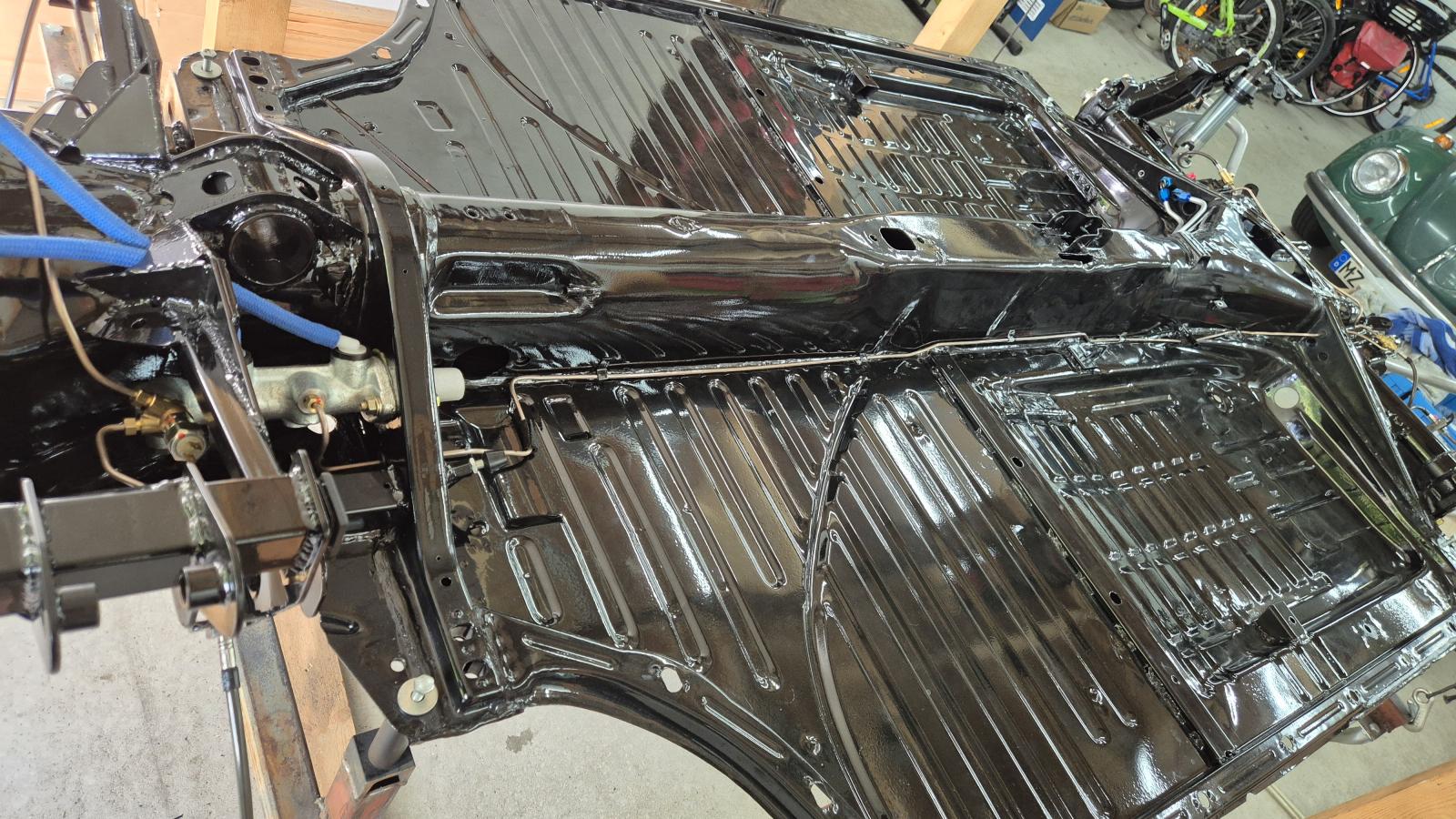

Brakelines done! Cool
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Fri May 02, 2025 12:18 pm    Post subject: Re: Ghia coming home Reply with quote

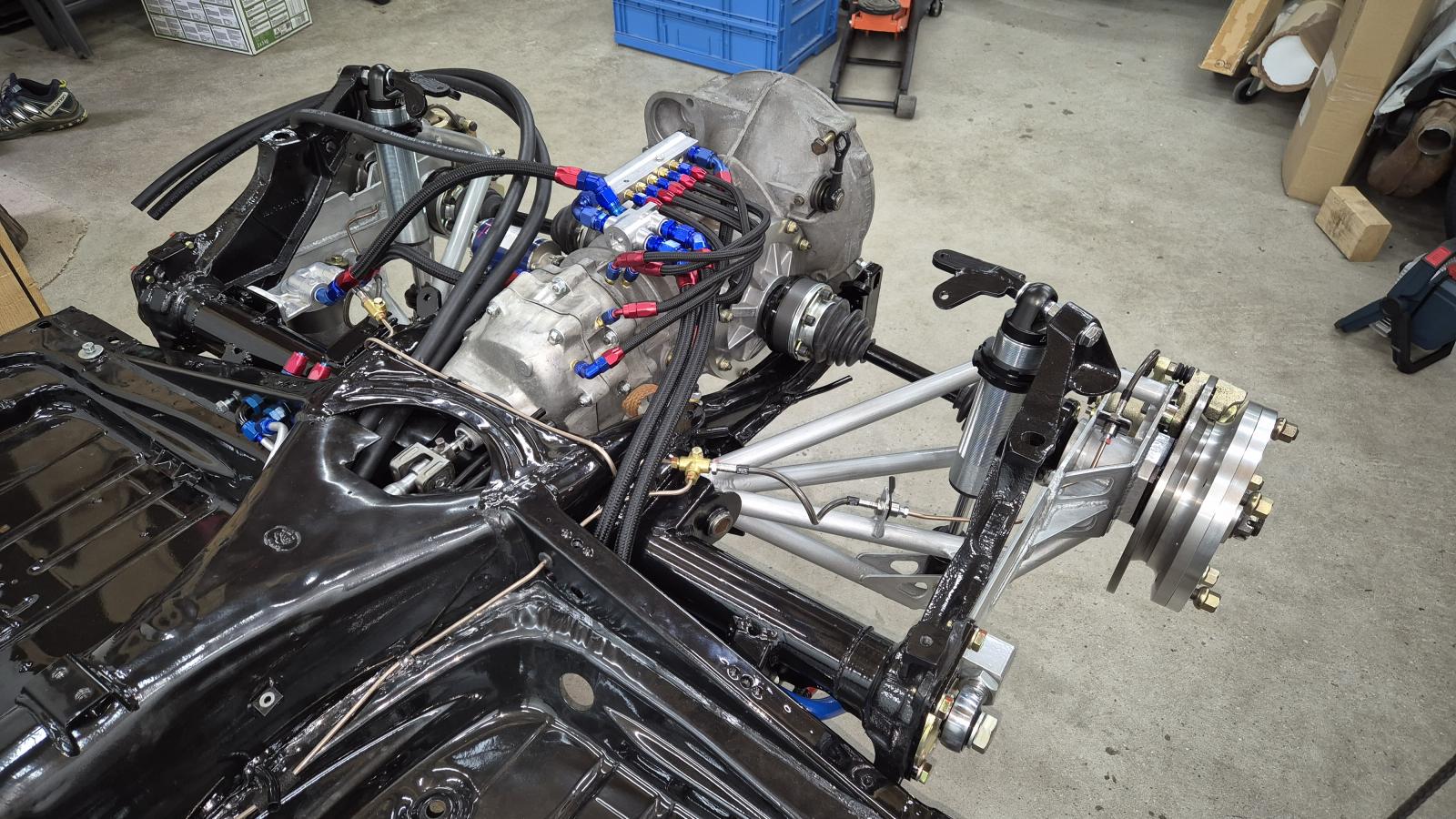

And today was fuel line time.

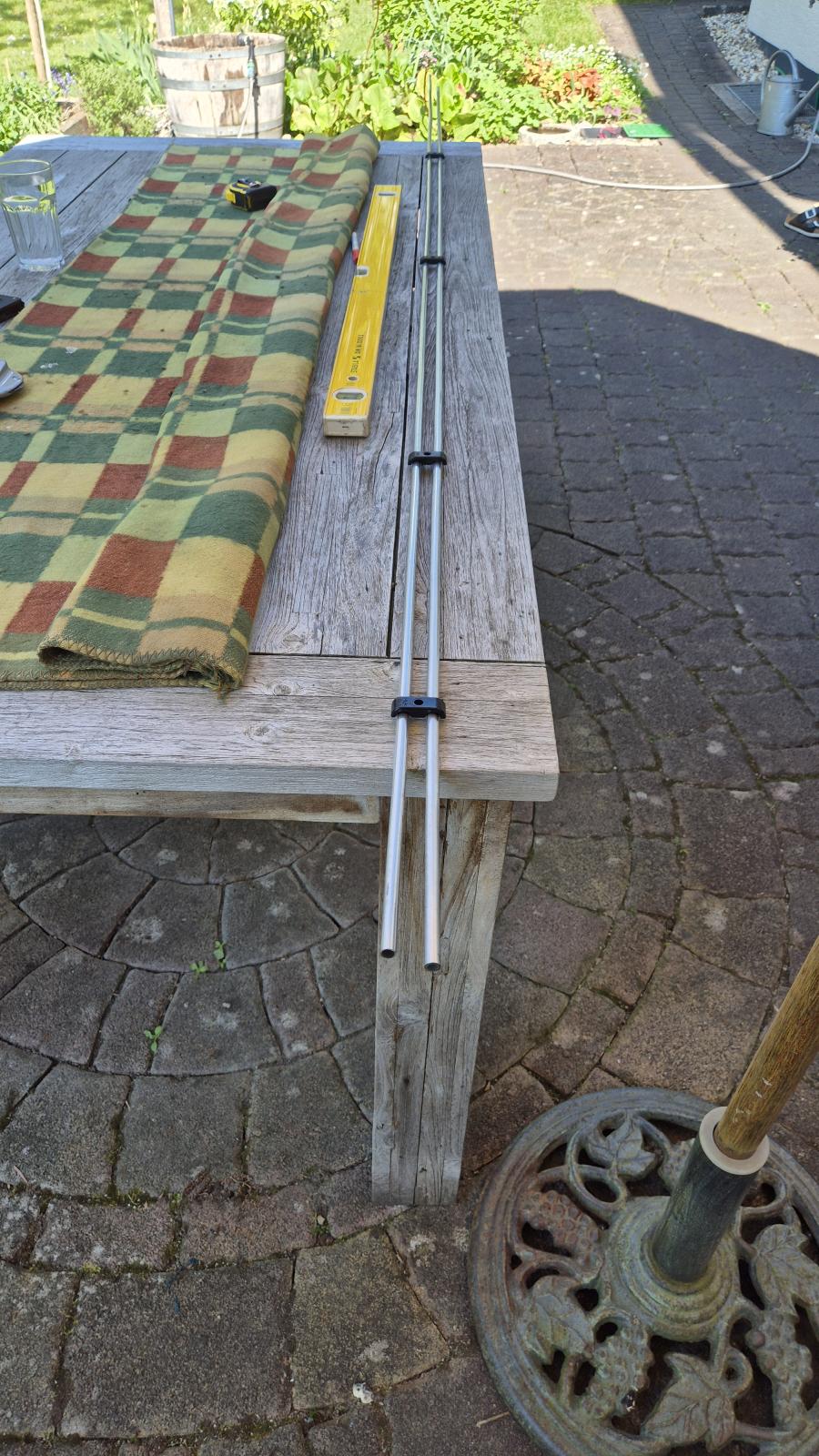

Straightening the rolled lines was a lot of work
Image may have been reduced in size. Click image to view fullscreen.

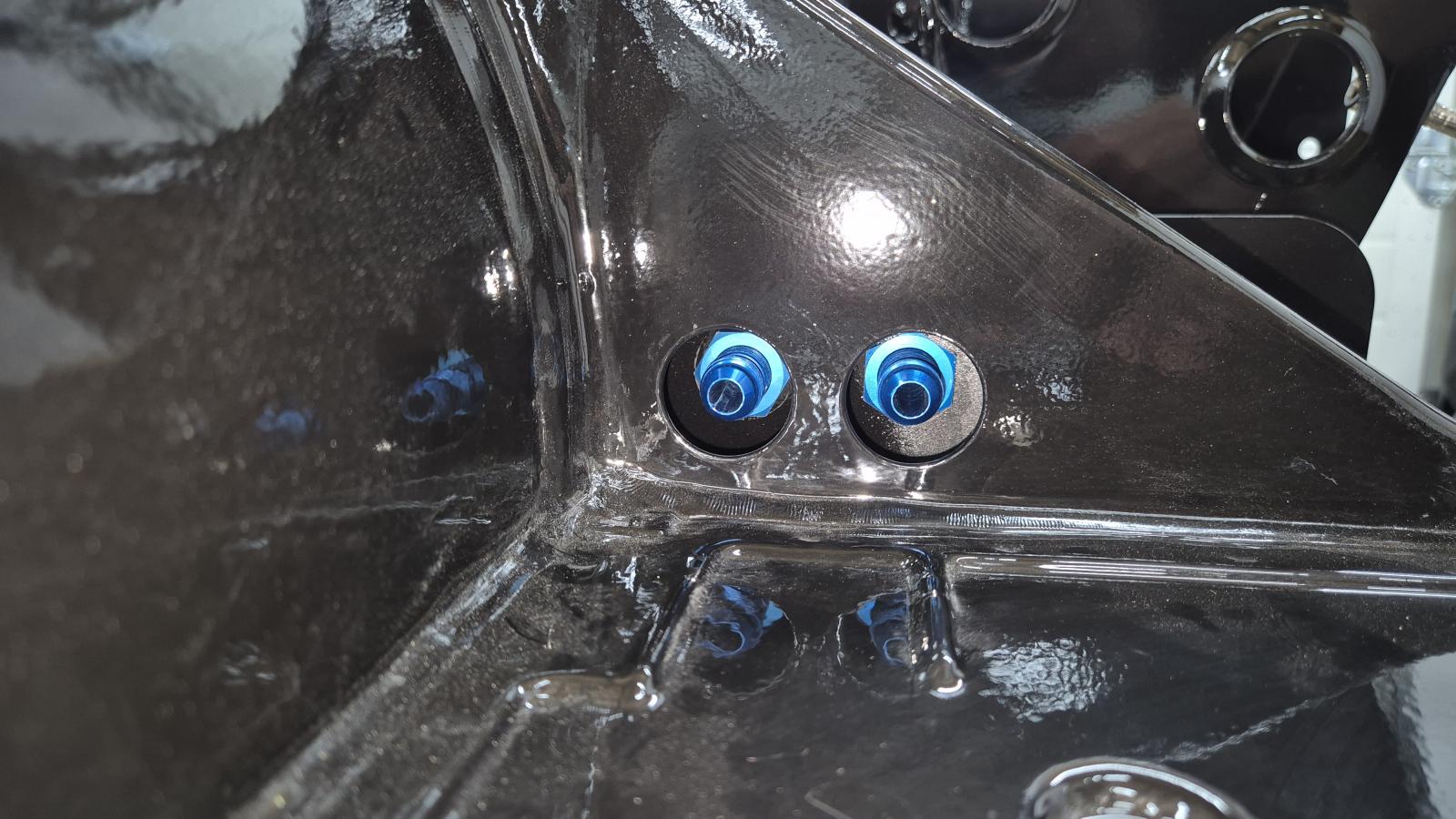

Detail shot of the bulk head
Image may have been reduced in size. Click image to view fullscreen.

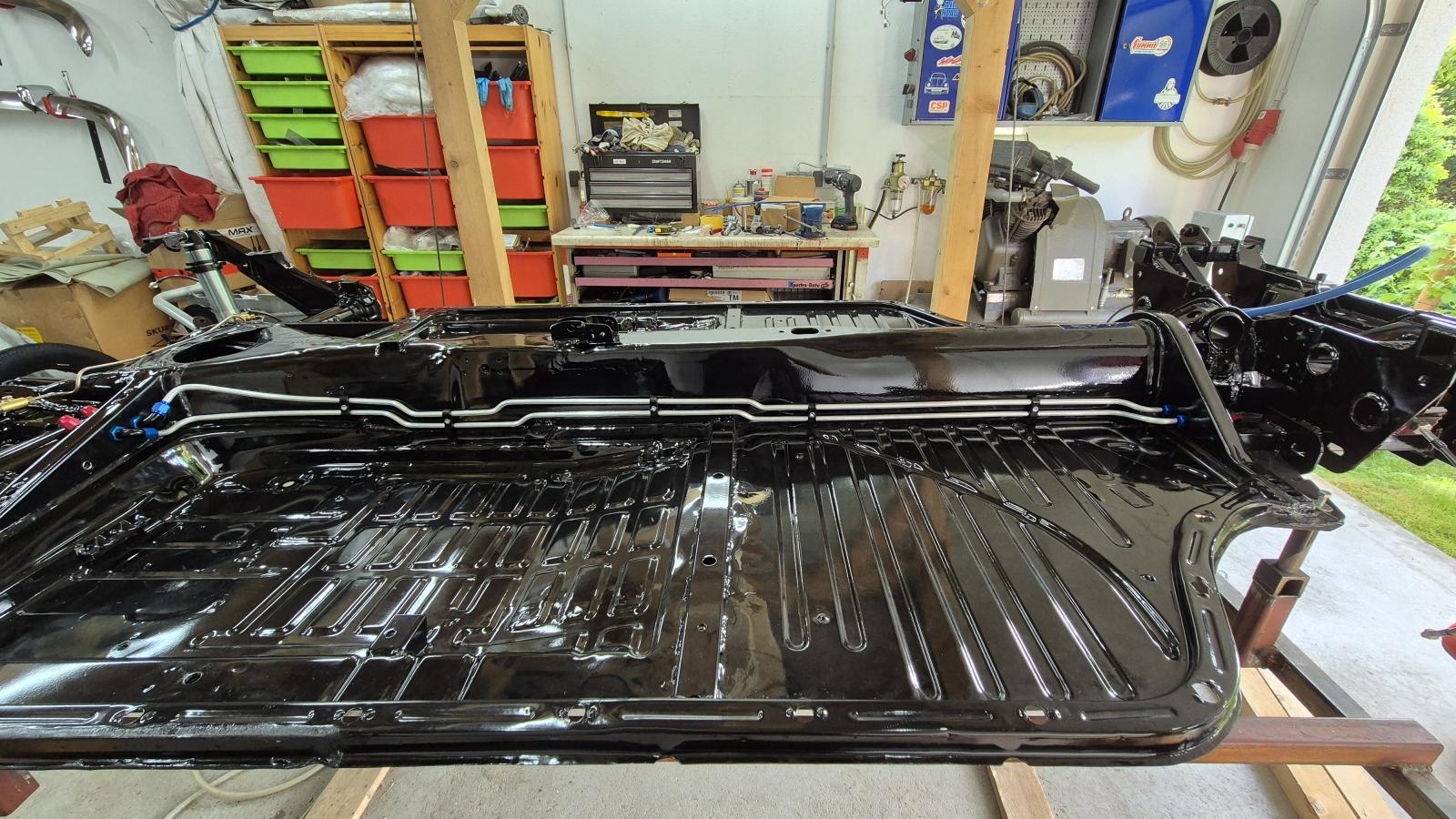

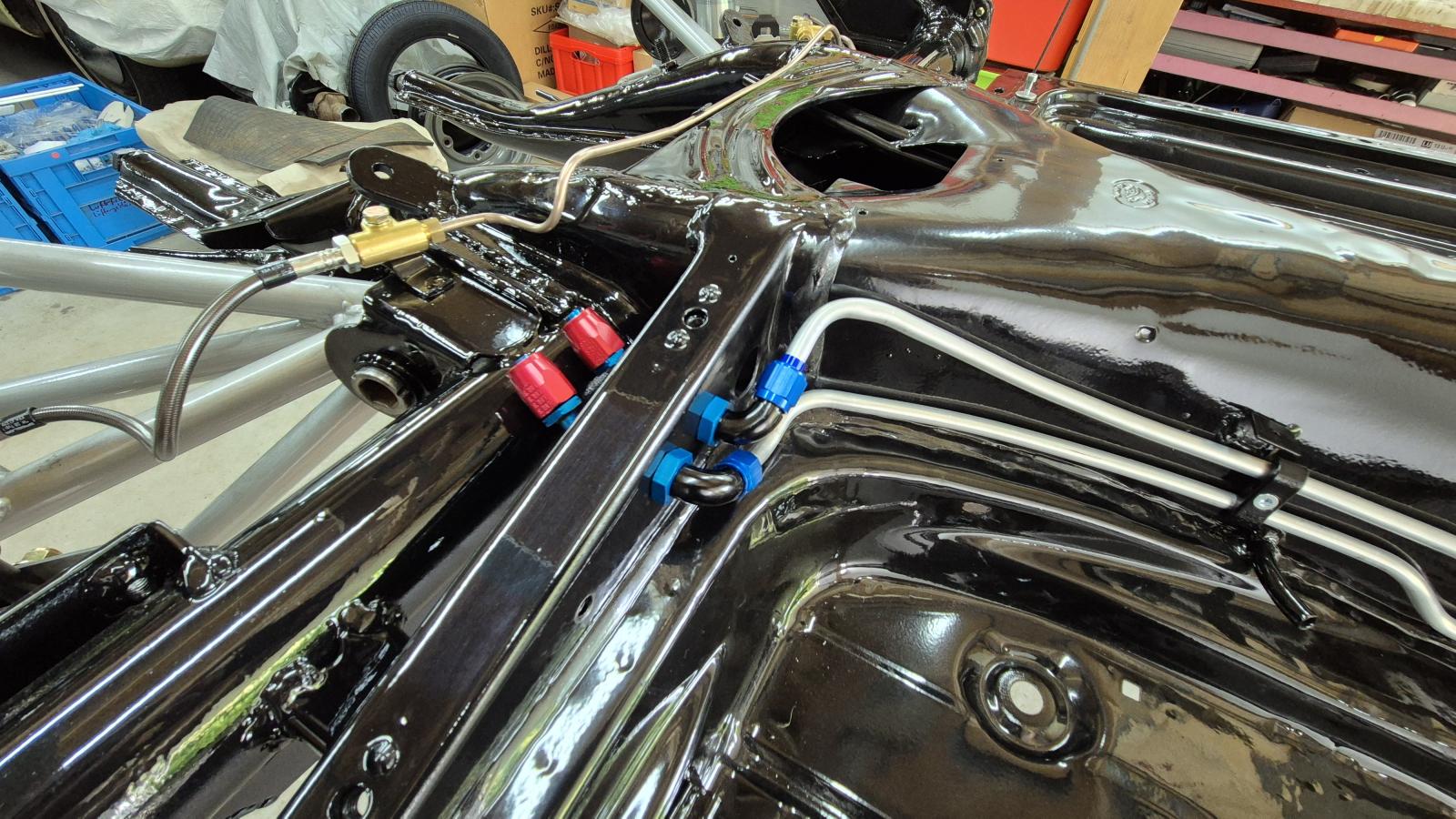

Finished lines
Image may have been reduced in size. Click image to view fullscreen.


Side view
Image may have been reduced in size. Click image to view fullscreen.


Detail shot of rear bulkheads, left room for starter cable through hole
Image may have been reduced in size. Click image to view fullscreen.


Do you guys protect the aluminum fuel lines against corrosion? I am not sure what to do.

Cheers!
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ian Godfrey
Samba Member


Joined: September 25, 2006
Posts: 1203
Location: Melbourne Australia
Ian Godfrey is offline
PostPosted: Fri May 02, 2025 4:03 pm    Post subject: Re: Ghia coming home Reply with quote
beautiful work again. Smile
For the aluminium lines I spray them with clear lacquer after bending.
where your RH front brake hard line passes through the hole in the Mendeola front end I'd suggest a grommet for that length of line to stop the possibility of rubbing. Sometimes I use planking grommets and punch a hole in them as the are soft and easy to push the 'nut' through.

A couple of builds ago I bought one of these tubing straightners Cool
https://raceworks.com.au/tools/tube-straightener/
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Sat May 03, 2025 12:16 am    Post subject: Re: Ghia coming home Reply with quote
Ian Godfrey wrote:
beautiful work again. Smile
For the aluminium lines I spray them with clear lacquer after bending.
where your RH front brake hard line passes through the hole in the Mendeola front end I'd suggest a grommet for that length of line to stop the possibility of rubbing. Sometimes I use planking grommets and punch a hole in them as the are soft and easy to push the 'nut' through.

A couple of builds ago I bought one of these tubing straightners Cool
https://raceworks.com.au/tools/tube-straightener/


Ian, I am amazed by what you always catch, I need to be more careful of what I post. Laughing Seriously, thank you very much for your hint. It helps me, should I overlook something Cool

The hole you mentioned was done to pass the brakeline through to retain it with an original brakeline grommet. I am just out of those and need to order more.

Cheers
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Sat May 03, 2025 1:49 pm    Post subject: Re: Ghia coming home Reply with quote

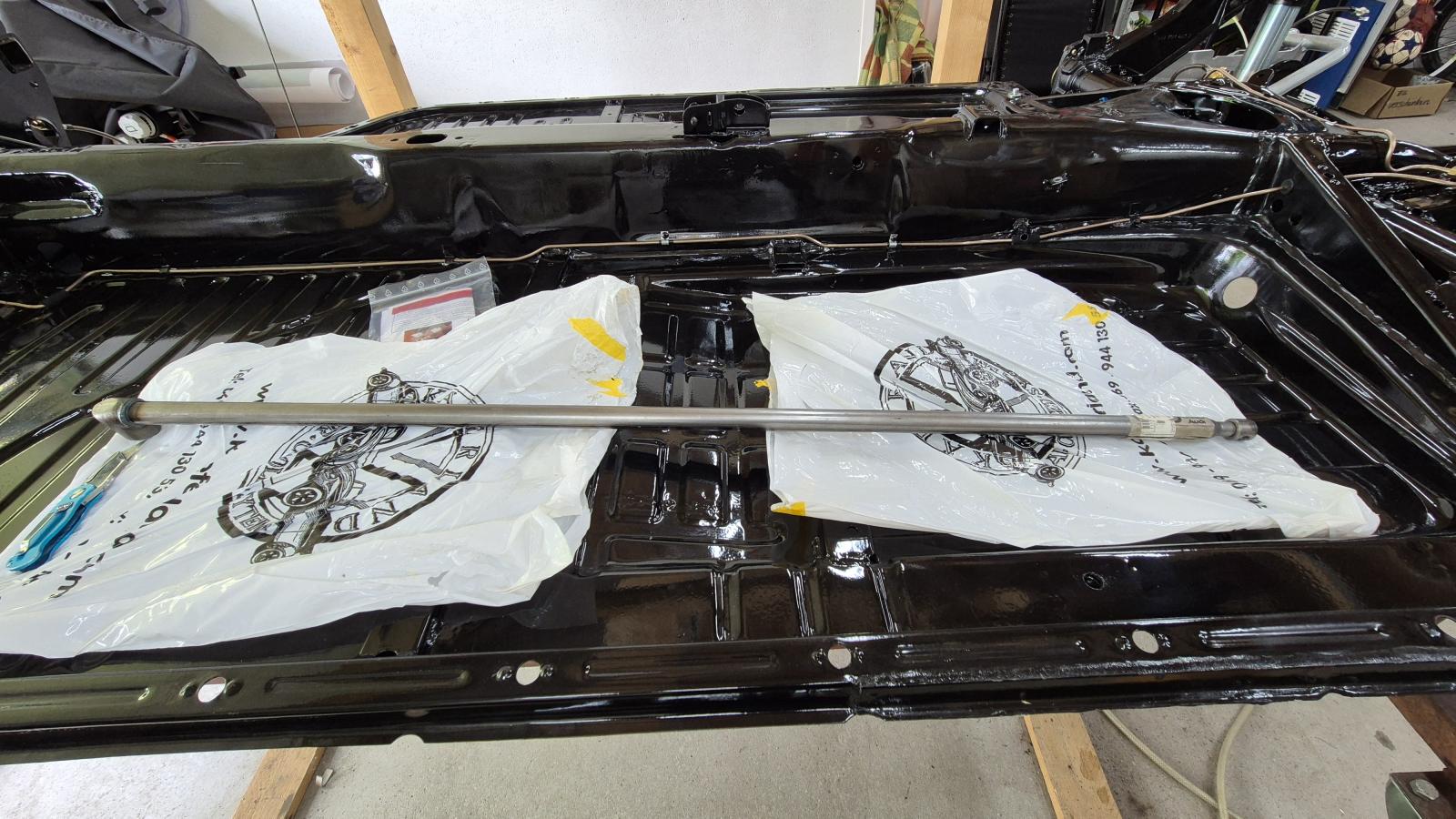

I was lucky to find a NOS shifting rod some years back. Time to install it!
Image may have been reduced in size. Click image to view fullscreen.


I tried to install the rod with this new bushing from https://kaefertuer.com/produkt/schaltstangenfuehru...u-zone-1/Käfer
Image may have been reduced in size. Click image to view fullscreen.


It took me hours!!! to find out why it would not want to fit into my chassis After doing some machining on my lathe I got them installed and working! Frustrating part of today Rolling Eyes
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Sat May 03, 2025 2:15 pm    Post subject: Re: Ghia coming home Reply with quote
halbug wrote:
Hi Ian, I will pull them into the tunnel with the oil hoses, no cutting planned Smile Button head screws, screwed from the bottom, will hold them in place.

I will machine some sleeves that will keep the holders together until the main screw is in place.

Cheers
Lars


After the shiftrod was in, oil lines were next.

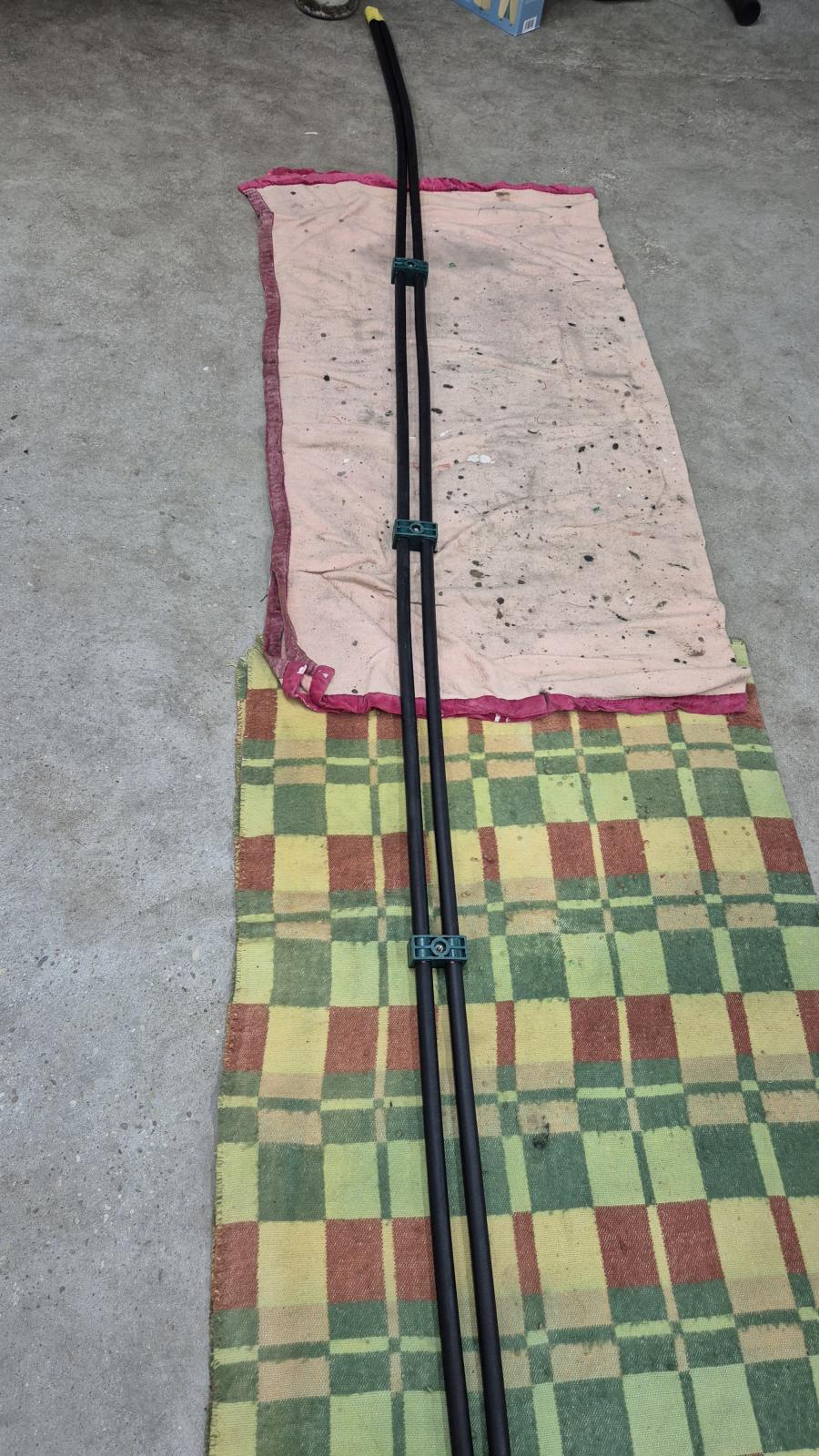

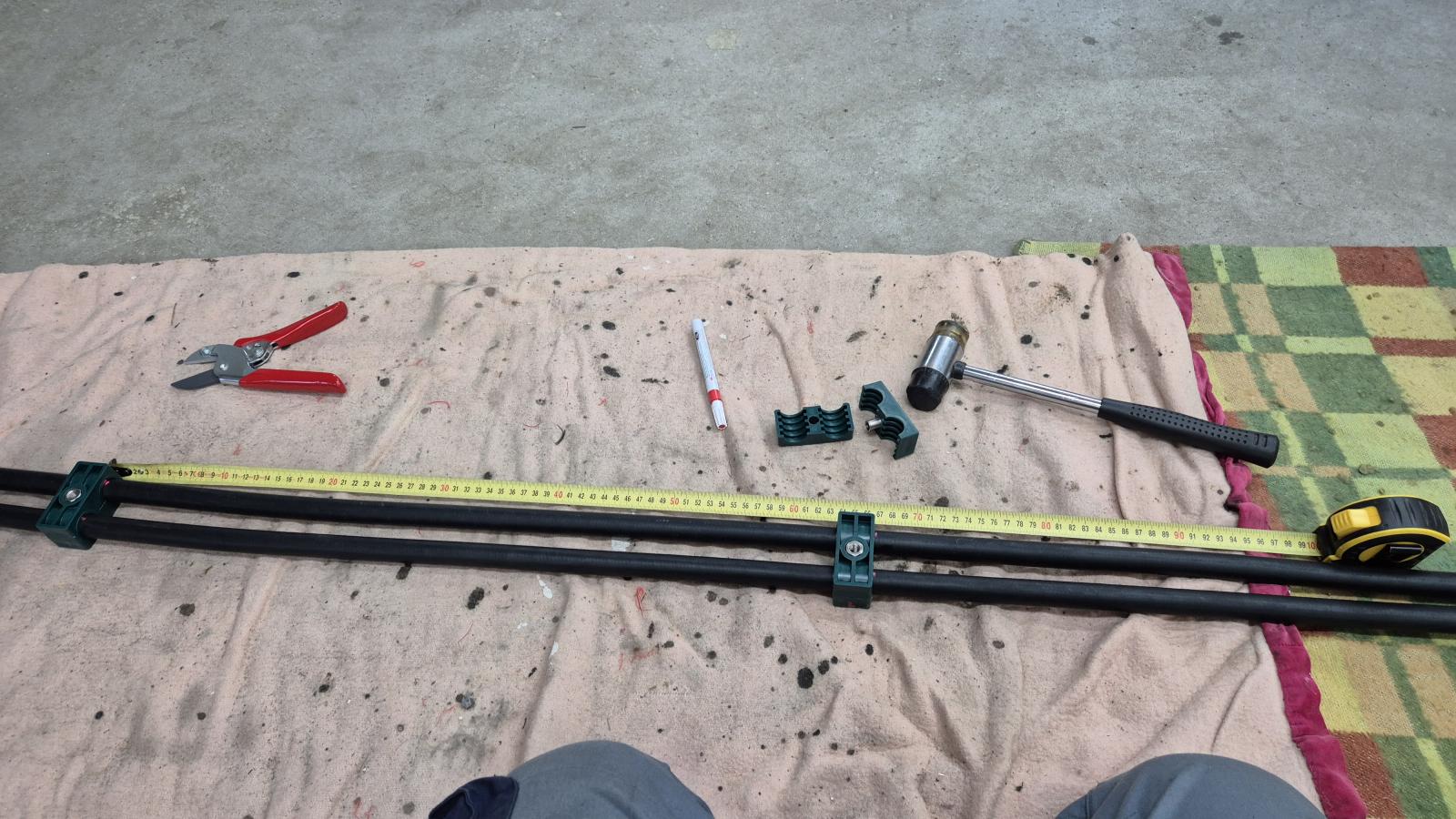

Clamps pre-install with the sleeves I made, lined up to the previosly drilled holes on the tunnel underside
Image may have been reduced in size. Click image to view fullscreen.

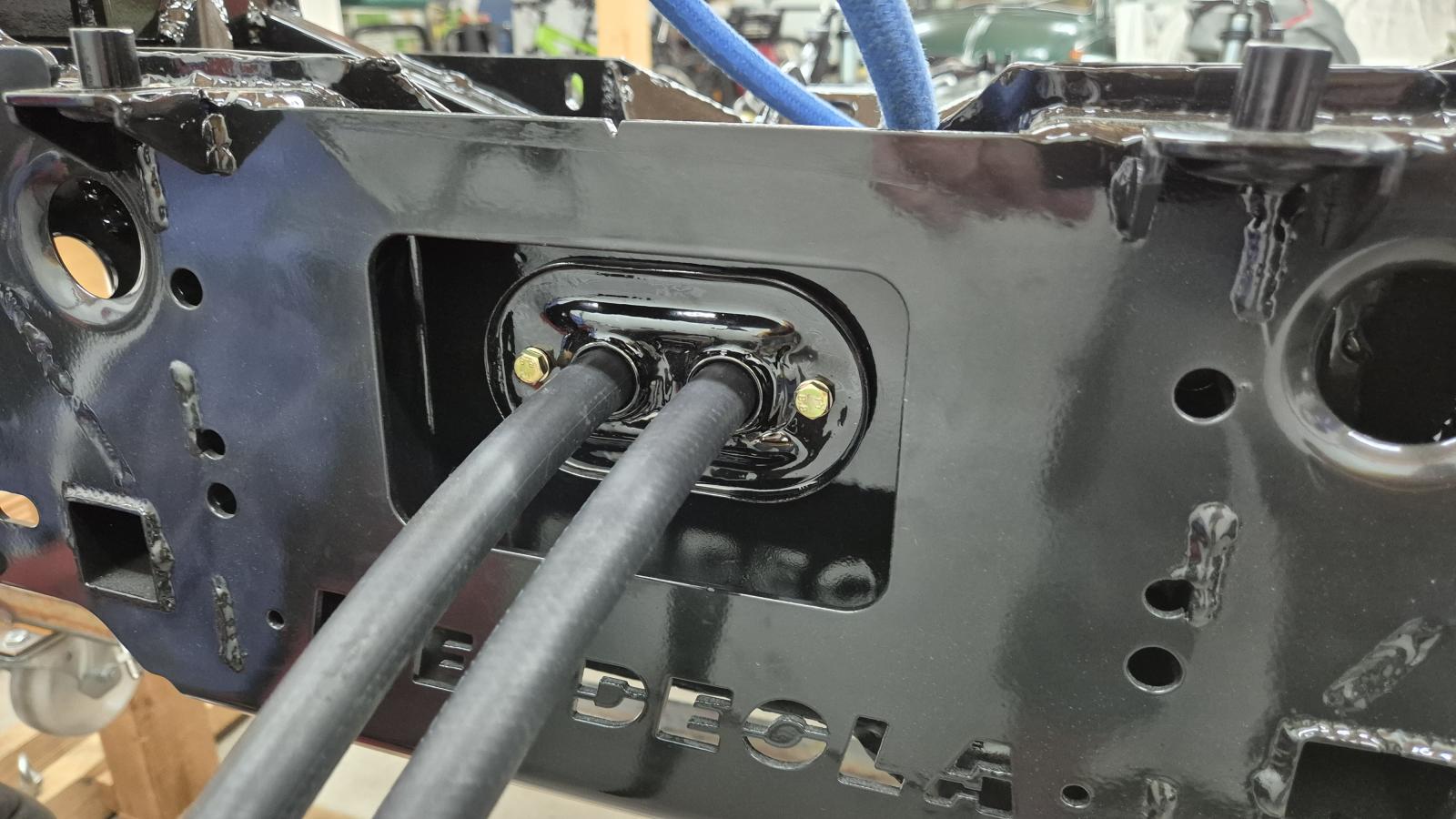

I pulled the complete assembly in from the front
Image may have been reduced in size. Click image to view fullscreen.

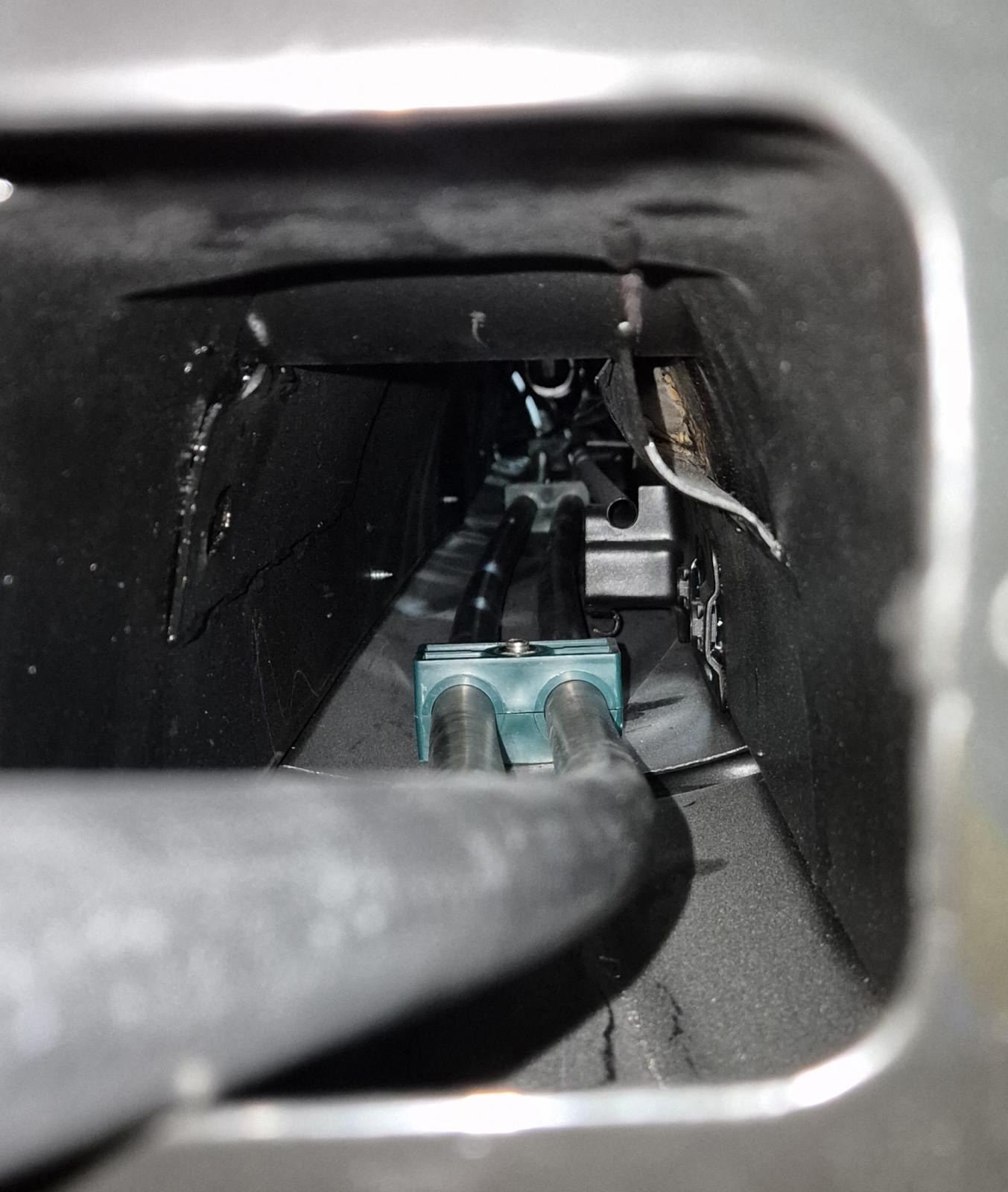

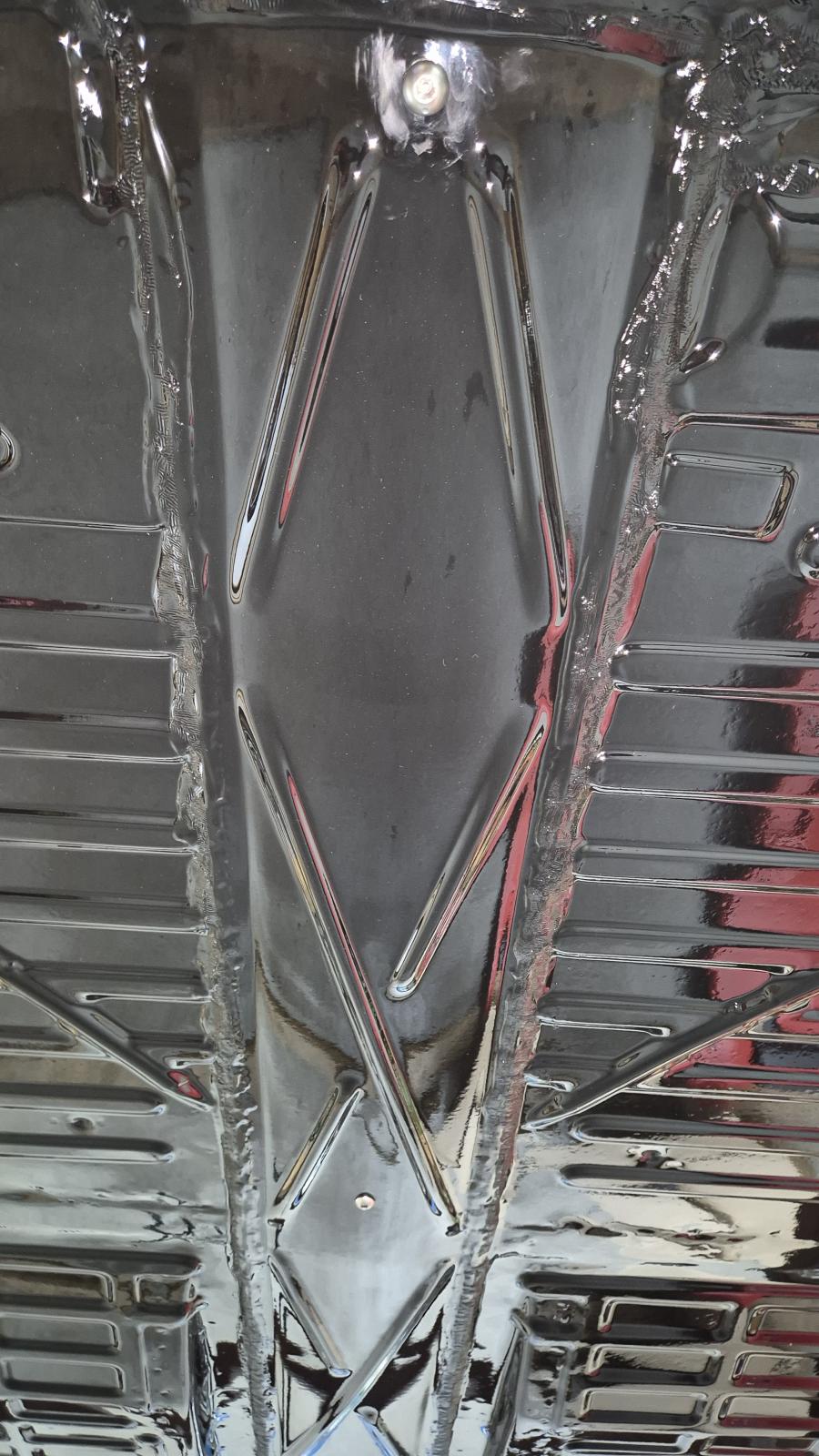

Hoses attached to the tunnel floor
Image may have been reduced in size. Click image to view fullscreen.


Rear exit, will need some silicone sealer
Image may have been reduced in size. Click image to view fullscreen.


Button head screws to hold things in place
Image may have been reduced in size. Click image to view fullscreen.


Front exit
Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TRS63
Samba Member


Joined: December 17, 2017
Posts: 1127
Location: Stuttgart - Germany
TRS63 is offline
PostPosted: Sun May 04, 2025 11:45 am    Post subject: Re: Ghia coming home Reply with quote
Looking sooo fantastic, wow!! Lars, I am really really happy for you to see it coming together !!

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685
Back to top
View user's profile Send private message Gallery Classifieds Feedback
DaveB9
Samba Member


Joined: October 20, 2021
Posts: 355
Location: UK
DaveB9 is offline
PostPosted: Mon May 05, 2025 2:26 pm    Post subject: Re: Ghia coming home Reply with quote
Those lines look brilliant secured to the floor! Some careful measuring gone on there. This is looking so good, keep the pictures coming.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
karl h
Samba Member


Joined: October 10, 2005
Posts: 634
Location: austria
karl h is offline
PostPosted: Mon May 05, 2025 11:02 pm    Post subject: Re: Ghia coming home Reply with quote
read to the whole thread, very nice work! makes me want to pull my vert out under the pile of junk it is under
_________________
61 panel: http://www.thesamba.com/vw/forum/viewtopic.php?t=465022
68 ghia vert
arctic alice (63 ragtop on irs): http://cal-look.no/lounge/index.php/topic,27456.0.html
86 Caravelle
04 new beetle vert
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Wed May 07, 2025 12:16 pm    Post subject: Re: Ghia coming home Reply with quote
Guys! Thank you so much...
_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Wed May 07, 2025 12:28 pm    Post subject: Re: Ghia coming home Reply with quote
I completed the rear end today. No new technical solutions here, simply stuff finally put together on a freshly painted pan. I hope you enjoy anyhow.

Hand brake cables are out to get their threaded ends pressen on.

And I was able to shift through all gears with the shifter for the first time Cool

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
halbug
Samba Member


Joined: March 09, 2006
Posts: 569
Location: Germany
halbug is offline
PostPosted: Thu May 08, 2025 1:45 pm    Post subject: Re: Ghia coming home Reply with quote
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Stealth Ghia Transformation: http://www.thesamba.com/vw/forum/viewtopic.php?p=7226044&highlight=#7226044
My Berg5: https://www.thesamba.com/vw/forum/viewtopic.php?t=730276&start=0
The motor: https://www.thesamba.com/vw/forum/viewtopic.php?p=10343324#10343324
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Ghia All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3 ... , 28, 29, 30  Next
Jump to:
Page 29 of 30


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
